TP-Link Archer D9 Quick Installation Manual

Quick

Installation Guide

AC1900 Wireless Dual Band Gigabit
ADSL2+ Modem Router

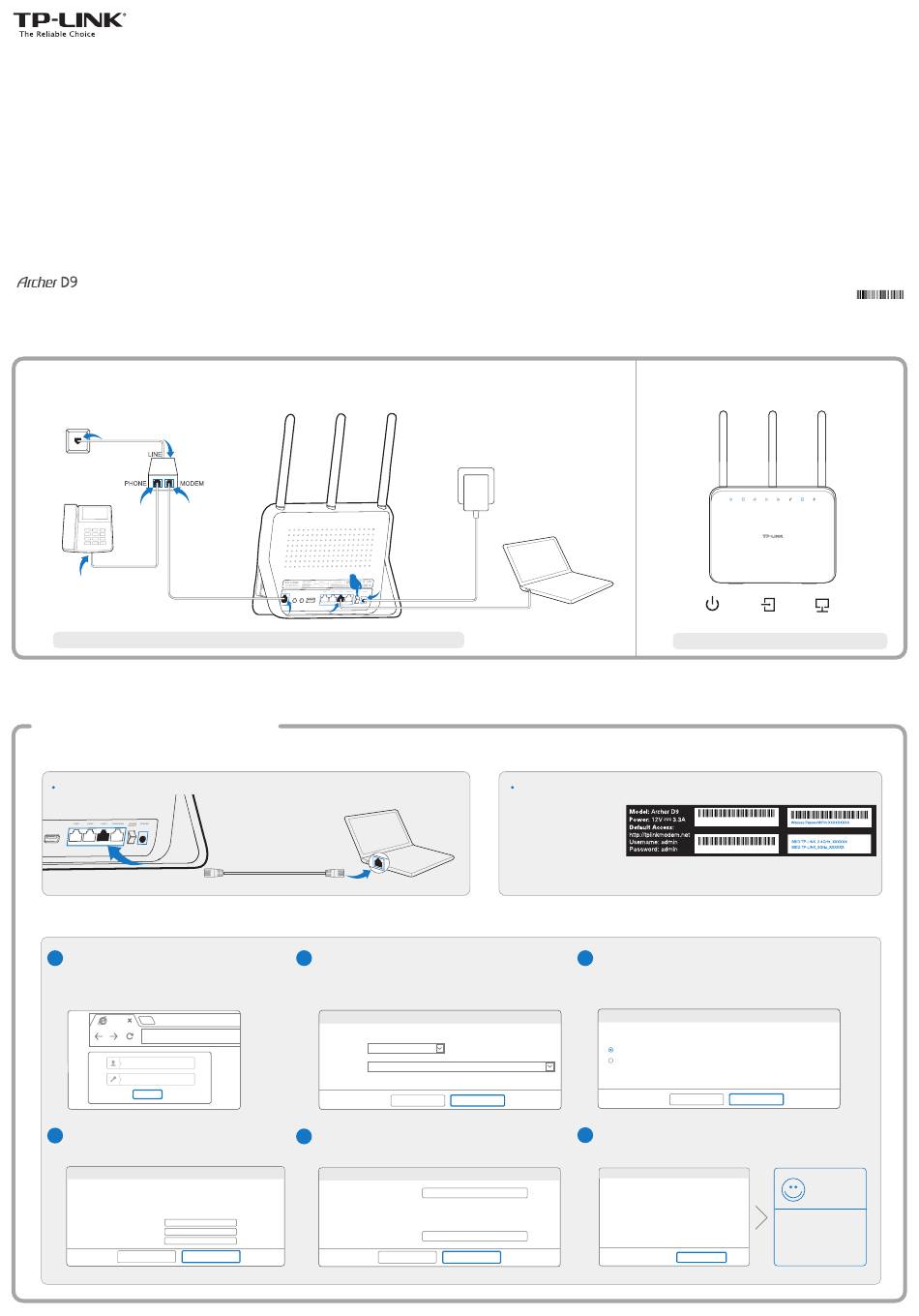

1. Connecting the Hardware

1
Connect the splitter, computer and power adapter as follows. Then turn on the modem router.
Phone Jack
Note: If you don't need the phone service, just directly connect the ADSL port to the Phone Jack with a phone cable.
2. Configuring the Modem Router
Method 1 Via Web Browser
1
Connect your computer to the modem router (Wired or Wireless).
Wired
USB 3.0
2
Open a web browser on the computer and configure the modem router according to the following main clues.
a
Enter http://tplinkmodem.net or 192.168.1.1 in
the address bar. Type in admin for both the user
name and password and click OK.
Note: If the login window does not appear, please refer to
FAQ->Q1.
http://tplinkmodem.net
admin
admin
Login
d
Enter the parameters provided by your ISP and then
click Next. Here we take PPPoE as an example.
Quick Setup-PPPoE
Auto-detection has succeeded!
DSL PVC: 8/35
Encapsulation Mode: LLC
Connection Type: PPPoE
Username:
XXXXXX
Password: XXXXXX
Confirm Password: XXXXXX
Back
Splitter
WPS WiFi USB 3.0
ON/OFF
Ethernet cable
b
Choose Quick Setup in the main menu and then click
Next to start the configuration. Select your Region and
Time Zone from the drop-down list, and then click Next.
Quick Setup-Region and Time Zone
Region XXXXXX
Time Zone XXXXXXXXXX
e
Click Next to continue.
Note: You may rename your 2.4GHz/ 5GHz wireless network name and create
your own password.
Quick Setup-Wireless 2.4GHz & 5GHz
Wireless Network Name:
Next
Wireless
Connect wirelessly by using
the default network name
Or
(SSID) and password on the
product label printed on the
bottom of the modem
router.
Back Next
TP-LINK_XXGHz_XXXXXX
Channel:
Mode:
Security:
Password: XXXXXXXX
Back Next
2
Check the following LED lights to ensure
the hardware connection is correct.
Power
On
Note: Please wait for 1-2 minutes until the ADSL LED is on.
Model:Archer D9
S/No.:XXXXXXXXXXXXX
MAC:XXXXXXXXXXXX
C
Select to auto detect your connection type and then click
Yes
to continue.
Next
Quick Setup-Auto Detection
Auto-Detect Connection Type:
Yes.
No. I want to configure the Internet connection myself.
Back Next
f
Click Save and wait for your settings to take effect. Click
Finish to complete the setup.
Quick Setup-Complete
Success
Time Zone Configuring:
Operation Mode Configuring: Success
WAN Connection Configuring: Success
Gateway and DNS Configuring: Success
Wireless Configuring: Success
Finish
7106505166 REV1.0.2
ADSL LAN
On On
Wireless Password /PIN
ver:1.0
Enjoy!
Now your wired and
wireless devices can
connect to the Internet !
