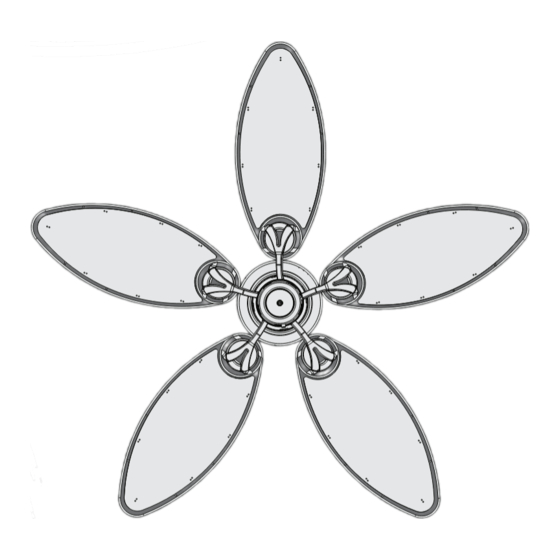

Hunter Caribbean Breeze Instructions Manual

Hide thumbs Also See for Caribbean Breeze:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
www.ventiladoreshunter.com.br
ENGLISH
MD500-01 • 05/21/14 • © Hunter Fan Company

Advertisement

Table of Contents
loading

Related Manuals for Hunter Caribbean Breeze

Summary of Contents for Hunter Caribbean Breeze

  • Page 1 ENGLISH MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 2 Important Instructions: Keep Instructions for future use...
  • Page 3 7 feet Ladder Preparation Downrod Wiring Canopy Blades Maintenance & Switch Housing No Light Kit Option Light Kit Option Cleaning Troubleshooting Warranty Statement MD500-01 • 05/21/14 • © Hunter Fan Company...

  • Page 4: What To Expect With Your Installation

    Check box to see accessory light kits. electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a Select a downrod length fan weight qualified electrician. c.2 - Use only Hunter replacement parts. MD500-01 • 05/21/14 • © Hunter Fan Company...

  • Page 5: Tools Needed

    Ladder Pliers Wire Strippers Screwdrivers 3.5 mm Drill 8 mm Drill Bit Hammer Power Drill Bit (optional) (optional) (optional) (optional) If mounting to a support structure, you will also need these tools. MD500-01 • 05/21/14 • © Hunter Fan Company...

  • Page 6: Mounting Options

    The support structure must be able to support 5 Carefully choose the installation location times the weight of the fan. The weight of the fan is that allows for optimal air flow. located on the product packaging. MD500-01 • 05/21/14 • © Hunter Fan Company...

  • Page 7: Ceiling Bracket

    To avoid possible electrical shock, before installing your fan, disconnect the power by Refer to warning w.1 on pg. 2 turning off the circuit breakers to the outlet box associated with the wall switch location. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 8 Save the screws. They will be needed for blade iron installation. Note: Some fans will have a shipping ring instead of shipping blocks. Please remove the ring and save the screws. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 9 Steps 1-5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 3 m or higher Shorter Downrod for fans installed close to ceiling Steps 6-10 to reassemble with new pipe MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 10 4-5 full turns) until it stops. with pliers. DO NOT can be inserted. extending from the top of HAND TIGHTEN. the downrod. 20 cm 1 cm If the setscrew is not tightened securely, the fan may fall. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 11 DO NOT PICK THE FAN UP BY THE CANOPY Put the wires and downrod through the canopy. Let the canopy sit loosely on top of the fan. OR WIRES. Place the downrod ball into the slot in the ceiling bracket. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 12 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 13 Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown. Note: Fan style may vary. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 14 Your blades are shielded with Dust Armor® which is a nanotechnology coating that repels dust. For cleaning the fan, use soft brushes or cloths to prevent scratching. Cleaning agents may damage the finishes. MD500-01 • 05/21/14 • © Hunter Fan Company...

  • Page 15: Switch Housing

    Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 16 Tighten all three screws. Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all three assembly screws could result in the light fixture falling. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 17 See page 18 for fan stripe wire from the lower switch housing to the black with white stripe wire from the light operation instructions. kit. Twist a wire connector onto the bare wires clockwise until tight. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 18 Install the three switch switch housing by turning the threaded rod housing screws, found in the hardware clockwise into the threaded hole. Continue bag. Tighten all three screws. turning until tight. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 19 Finally, thread only the off. The light pull chain controls light pull chain through the hole in the light fixture: on and off. the finial and screw the finial onto the threaded rod. MD500-01 • 05/21/14 • © Hunter Fan Company...

  • Page 20: Maintenance And Cleaning

    Cleaning products threaded rod. Remove the finial cap. Carefully remove the globe. may damage the finishes. Unscrew bulbs and replace with bulbs of same type and wattage. Reinstall the globe assembly. MD500-01 • 05/21/14 • © Hunter Fan Company...

  • Page 21: Troubleshooting

    • Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 10. • Check the plug connection in the switch housing. MD500-01 • 05/21/14 • © Hunter Fan Company...
  • Page 22 1. Warranty repairs shall only be performed by an Authorized Service Center appointed by Hunter Fan do Brasil, which 1. Hunter Ceiling Fans are warranted by Hunter Fan do Brasil for a period of 1 (one) year from the date of purchase by the provides specialized technicians and original parts, guaranteeing the service provided.
