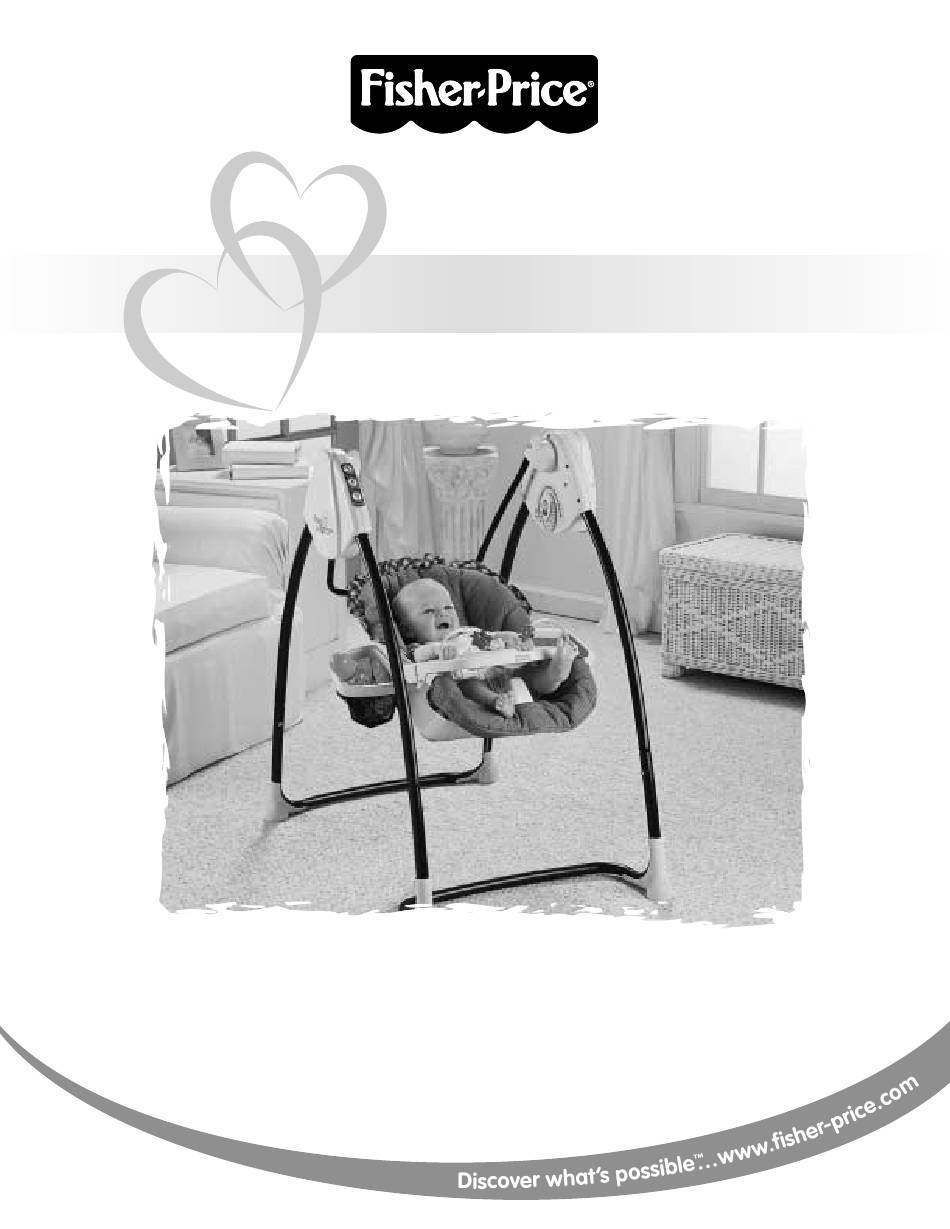

Smart Response
Swing
Model Number: 79645, 79646, 79647
Please keep this instruction sheet, as it contains important information.
Adult assembly is required.
Tool needed for assembly: Phillips Screwdriver (not included).
Requires four "D" (LR20) alkaline batteries for operation.
Maximum Weight Limit: 24 lbs. (10.9 kg).
IMPORTANT! The maximum weight limit for this product is 24 lbs. If your child weighs
less than 24 lbs., but is really active and appears to be able to climb
out of the swing, immediately discontinue its use.
Advertisement
Table of Contents
Related Manuals for Fisher-Price 79645
Summary of Contents for Fisher-Price 79645
- Page 1 Smart Response Swing Model Number: 79645, 79646, 79647 Please keep this instruction sheet, as it contains important information. Adult assembly is required. Tool needed for assembly: Phillips Screwdriver (not included). Requires four “D” (LR20) alkaline batteries for operation. Maximum Weight Limit: 24 lbs. (10.9 kg).
-
Page 2: Warnings And Caution
• To prevent falls, never use with an replacement parts. Please call Fisher-Price® Consumer Relations, toll-free at 1-800-432-KIDS, 8 AM - 6 PM EST active child who may be able to Monday through Friday. - Page 3 Parts Housing 2 Accessory Bins 2 Front Legs (Longer) 2 Rear Legs (Shorter) Motor Housing Front Base Bracket Rear Base Seat with Restraint 2 Seat Tubes Tray 2 Seat Wire Caps Seat Wire M4 Screw - 4 #8 x 1 "...
- Page 4 Assembly IMPORTANT! Before assembly, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never substitute parts. Hubs...
- Page 5 Assembly Pull Up Pull Up Pull Rear Pull Rear Rear Legs Rear Base • Pull both rear legs out until they “snap” into place. • While standing on the rear base, pull the rear legs up. They should remain secured to the rear base. If you can remove the rear legs, you have not assembled them cor- rectly to the rear base.
- Page 6 Assembly M4 Lock Nut Rounded Side Bracket Grooves Shown Actual Size Tall Lock Nut Seat Tubes Bottom Edge of Seat Hexagonal Opening • Position the bracket so that the tall end is toward the bottom edge of the seat. Seat Hint: The M4 lock nuts have been assembled to the bracket at Tubes the factory.
- Page 7 Assembly Accessory Bin Accessory Bin Seat Wire Grooves Slots #8 x 1 ” Screw - 4 Seat Shown Actual Size • Lift the seat tubes slightly. • Turn the seat face down. • With the seat wire hanging down, insert the ends of the seat •...
- Page 8 Assembly Elastic Loops Frame Hubs Crotch Belt Holes #8 x 1 ” Screw - 2 Shown Actual Size Seat Bottom • Lift the bottom of the pad. • Insert a #8 x 1 " screw through each frame hub and into •...
-
Page 9: Battery Installation
Battery Installation Battery Tips Hint: We recommend using alkaline batteries for longer battery life. 1.5V x 4 “D” (LR20) SHOWN ACTUAL SIZE • When swinging, sounds or lights slows/dims/stops, it’s time to change the batteries! • Do not mix old and new batteries. •... -
Page 10: Securing Your Child
IMPORTANT! Before each use, inspect this product for dam- aged hardware, loose joints, missing parts or sharp edges. DO NOT use if any parts are missing or broken. Contact Fisher-Price® for replacement parts and instructions if needed. Never substitute parts. WARNING... -
Page 11: Adjusting The Seat
Adjusting the Seat Using the Tray Tray Semi-Recline Upright Recline Adjust the seat angle in any of three positions: Upright, Semi-Recline or Recline. To adjust the seat angle: • Fit the tray onto the seat armrests. • Push down on the seat back to position the seat wire in the desired groove in the bracket for Upright, Semi-Recline or Recline. - Page 12 Swing Modes The Smart Response Swing has two modes: Baby Sounds Activated and Parent Activated Parent Activated Baby Sounds Activated IMPORTANT! The maximum weight limit for this product is 24 lbs. If your child weighs less than 24 lbs., but is really active and appears to be able to climb out of the swing, immediately discontinue its use.
- Page 13 Baby Sounds Activated Speed Dial Sound Sensitivity Dial Power L.E.D. Swing Mode Switch Music/Volume Switch Sound Sensitivity Dial Swing Mode Switch • Slide the switch to high sensitivity for incoming • Slide the switch to baby sounds activated. The sounds (listens for shallow sounds). power L.E.D.
- Page 14 Parent Activated Power L.E.D. Swing Mode Switch Speed Dial Music/Volume Switch Swing Mode Switch Music/Volume Switch • Slide the switch to parent activated. The power L.E.D. • Select for music highest volume. lights and the swing begins swinging. • Select for music high volume.
- Page 15 Storage Care The pad is machine washable. Wash the pad separately in cold water on the gentle cycle. Do not use bleach. Tumble dry sep- arately on low heat and remove promptly. The frame and tray may be wiped clean using a mild cleaning solution and a Press Buttons damp cloth.
-
Page 16: One (1) Year Limited Warranty
Richmond, Victoria 3121 Australia. Consumer Advisory Service 1300 135 312. New Zealand: 16-18 William Pickering Drive, Albany 1331, Auckland. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. Printed in China ©2002 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc.
