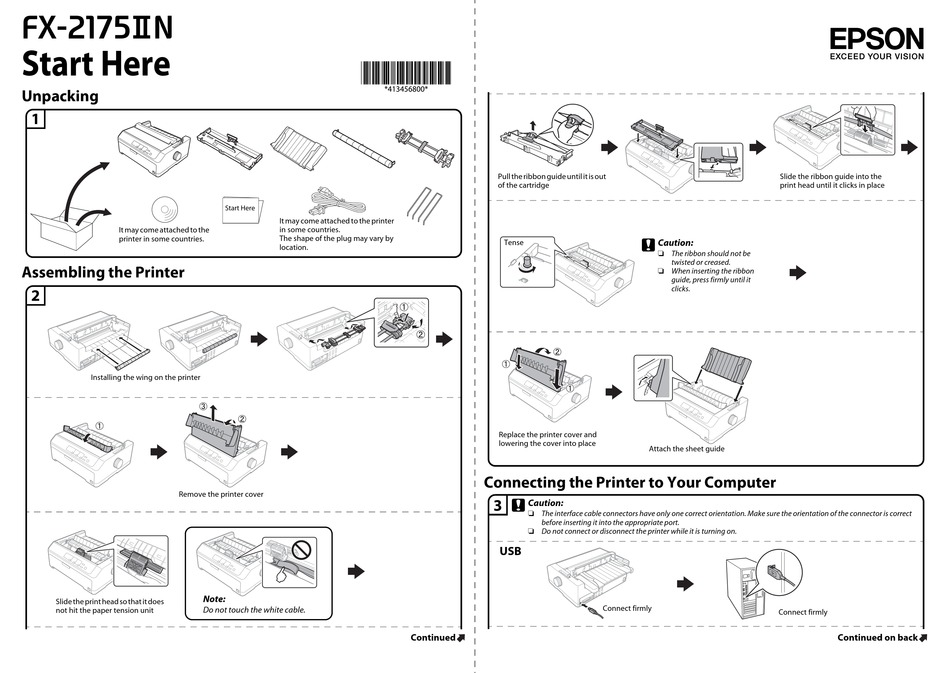

Epson FX-2175IIN Start Here

Start Here

Unpacking
1
It may come attached to the
printer in some countries.

Assembling the Printer

2
Installing the wing on the printer
Remove the printer cover
Slide the print head so that it does
not hit the paper tension unit
Start Here
It may come attached to the printer
in some countries.
The shape of the plug may vary by
location.
Note:
Do not touch the white cable.
Pull the ribbon guide until it is out
of the cartridge
Tense
Replace the printer cover and
lowering the cover into place

Connecting the Printer to Your Computer

Caution:
3
c
❏ The interface cable connectors have only one correct orientation. Make sure the orientation of the connector is correct
before inserting it into the appropriate port.
❏ Do not connect or disconnect the printer while it is turning on.
USB
Continued
Slide the ribbon guide into the
print head until it clicks in place
Caution:
c
❏ The ribbon should not be
twisted or creased.
❏ When inserting the ribbon
guide, press firmly until it
clicks.
Attach the sheet guide
Connect firmly
Connect firmly
Continued on back
