Summary of Contents for Smeg FR310P

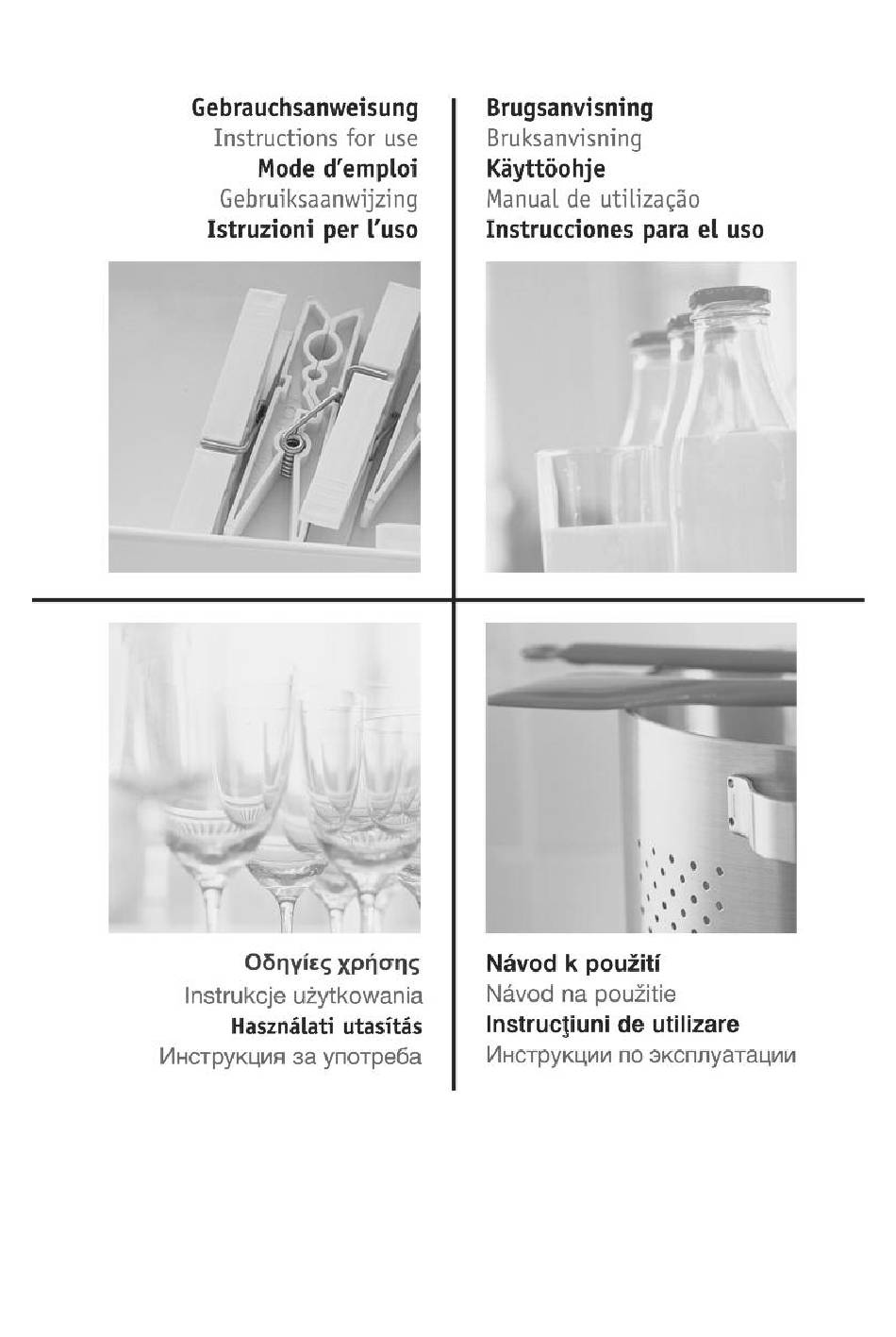

- Page 2 DEUTSCH Gebrauchsanweisung Seite 4 ENGLISH Instructions for use Page 12 FRANÇAIS Mode d’emploi Page 21 NEDERLANDS Gebruiksaanwijzing Pagina 29 ESPAÑOL Instrucciones para el uso Página 37 PORTUGUÊS Manual de utilização Página 45 ITALIANO Istruzioni per l’uso Pagina 53 ΕΛΛΑΣ Οδηγίες χρήοης Σελίδα...
- Page 4 PRODUCT SHEET A. Refrigerator Compartment B. Freezer compartment (if present) 1. Crisper drawer 1. Ice cube tray (inside the compartment) 2. Shelves / Shelf area 2. Freezer compartment inner door 3. Control panel with LED light 3. Grille (inside compartment) 4.
- Page 5 QUICK GUIDE LED Light Stand-by LEDs last longer Press the “Temp.” button (1) for 3 seconds to than traditional deactivate the appliance (the control panel and light bulbs, improve lights remain off). internal visibility and Press the button again briefly to reactivate the are environmentally- appliance.
- Page 6 What to do if... Possible causes: Cures: The control panel is There may be an appliance Make sure: switched off, the appliance power supply problem. - there is not a power outage does not work. - the plug is properly inserted in the power socket and the mains double-pole switch (if present) is in the correct position (i.e.
-
Page 7: How To Operate The Refrigerator Compartment
How to operAte tHe refrIgerAtor compArtmeNt Switching on the appliance 1. Plug in the appliance 2. When the appliance is plugged in, it is normally factory set to a temperature of 5°C. Adjusting the temperature For temperature adjustment, see the enclosed product sheet. - Page 8 meAt & fISH BoX (depending on model) The Meat & Fish box was designed specially to keep foods fresher for longer, without altering nutritional values or original freshness. Do not store fruit or vegetables in this box, as the temperature may drop below 0°C, causing water contained in the food to freeze. temperature Adjustment The temperature inside the Meat & Fish box is indicated by the position of the arm on the door of the box, and depends on the general temperature of the refrigerator compartment. We recommend setting the temperature of the refrigerator compartment between +2° and +6°. To work out if the temperature inside the Meat & Fish box is correct, refer to the pictures below: When the arm points to the left, you need When the arm is in the middle, the...
- Page 9 “Zero DegreeS” BoX (depending on the model) The “Zero Degrees” box is specifically designed to maintain a low temperature and a suitable humidity level, in order to keep foods fresher for longer (e.g. meat, fish, fruit and winter vegetables). Activating and deactivating the box The temperature inside the box, when active, is approximately 0°. To activate the compartment, press the button shown in the figure for more than 1 second, until the symbol lights up The symbol lit indicates that the compartment is functioning. Press the button again for more than 1 second to deactivate the compartment The following factors are vital for the “Zero Degrees” box to work properly: - the refrigerator compartment must be switched on...
- Page 10 removing the “Zero Degrees” box: The “Zero Degrees” box can be removed to create more space inside the refrigerator. In this case proceed as follows: - to facilitate removal, we recommend emptying (and if necessary, removing) the two lower door trays - switch off the box - pull out the drawer and the white plastic shelf underneath the box. Note: the upper shelf and the side supports cannot be removed. To restore “Zero Degrees” box operation, make sure you replace the white plastic shelf underneath the box before inserting the drawer and reactivating the function. To optimise energy consumption, we recommend you deactivate the “Zero Degrees” box and remove it. Clean the box and all its parts regularly, using a cloth and a solution of warm water and neutral detergent specifically formulated for refrigerator interiors (take care not to immerse the white plastic shelf underneath the box in water). Before cleaning the box (including the outside), remove the drawer so as to disconnect the box from the electricity supply. Never use abrasive detergents.
-
Page 11: How To Use The Freezer Compartment
How to uSe tHe freeZer compArtmeNt (if present) the freezer compartment also be used for freezing fresh food. the quantity of fresh food that can be frozen in 24 hours is shown on the rating plate. freezing fresh food • The recommended position for fresh food is that indicated in fig. -
Page 12: How To Defrost The Appliance
How to DefroSt tHe ApplIANce Before defrosting the appliance, unplug it or switch off the power at the mains. Defrosting of the refrigerator compartment is completely automatic. Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress. -
Page 13: Cleaning And Maintenance
cleANINg AND mAINteNANce Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply. • Clean the inside of the refrigerator compartment periodically with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products. • The separators must not be washed in water but simply cleaned with a damp sponge. -
Page 14: After Sales Service
After-SAleS Service Before contacting the After-Sales Service: • The Service number (the number after the 1. See if you can solve the problem yourself word SERVICE on the rating plate inside the with the help of the Trouble-shooting guide. appliance) 2. Switch the appliance off and then on again • Your full address to check if the problem has been eliminated. • Your telephone number and area code If it has not, switch off the appliance again and repeat the operation after one hour. 3. If the problem persists after this course of action, contact After-sales Service. Note: Specify: the direction of door opening can be • the type of fault changed. - Page 15 electrIcAl coNNectIoN for greAt BrItAIN AND IrelAND oNlY warning - this appliance must be earthed fuse replacement If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows: 1. Remove the fuse cover (A) and fuse (B). 2. Fit replacement 13A fuse into fuse cover. 3. Refit both into plug. Important: The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a...
- Page 16 REFRIGERATORS AND FREEZERS PRODUCT FICHE BRAND NAME SMEG COMMERCIAL CODE FR310P CATEGORY Refrigerator ENERGY EFFICIENCY CLASS Energy consumption 296 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located.
- Page 17 5019 600 00387 12/12...
