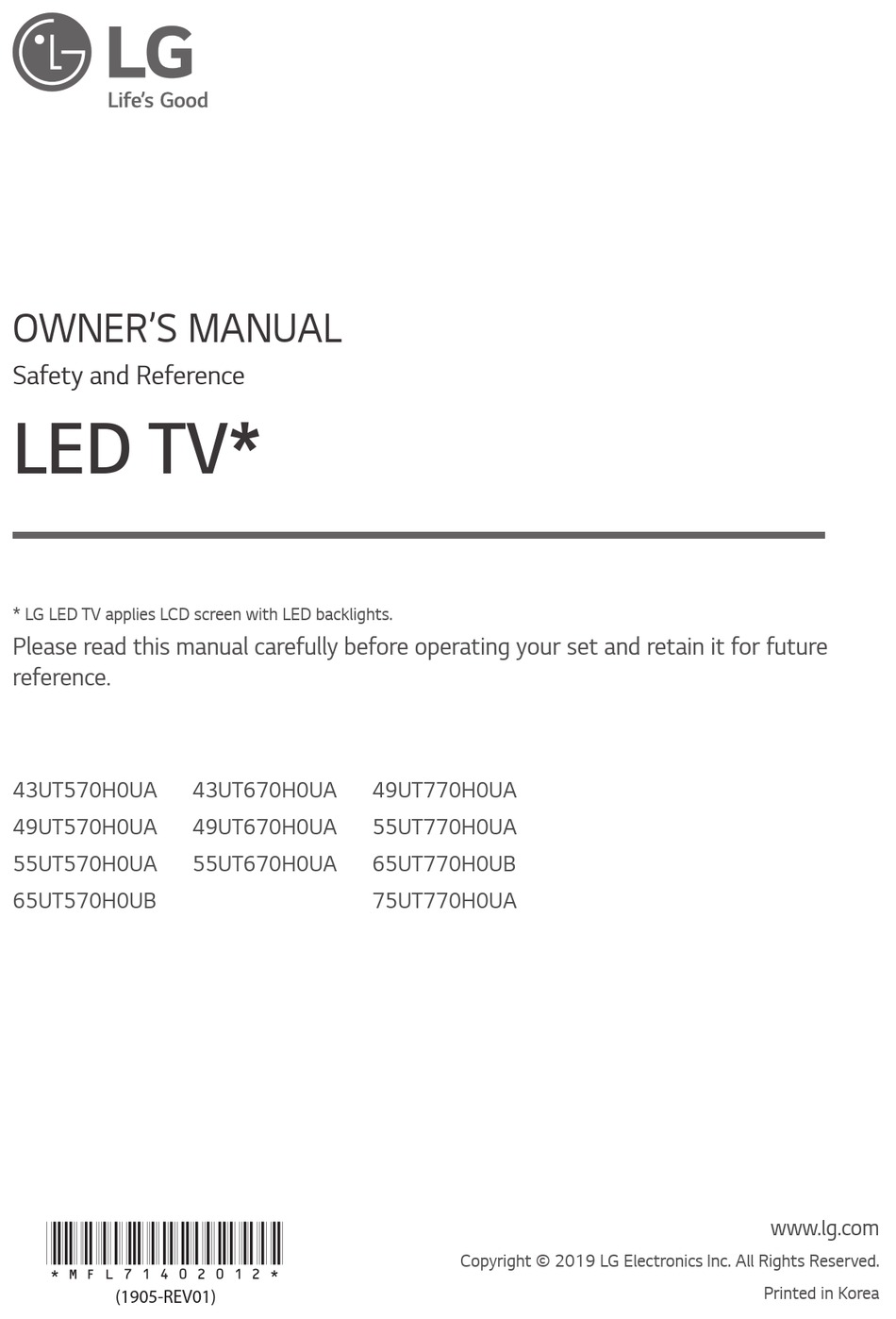

OWNER'S MANUAL
Safety and Reference
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future
reference.
43UT570H0UA
49UT570H0UA
55UT570H0UA
65UT570H0UB
*MFL71402012*
(1905-REV01)
43UT670H0UA
49UT670H0UA
55UT670H0UA
49UT770H0UA
55UT770H0UA
65UT770H0UB
75UT770H0UA
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
www.lg.com
Printed in Korea

Advertisement

Table of Contents
loading

Related Manuals for LG 43UT570H0UA

Summary of Contents for LG 43UT570H0UA

  • Page 1 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 43UT570H0UA 43UT670H0UA 49UT770H0UA 49UT570H0UA 49UT670H0UA 55UT770H0UA 55UT570H0UA 55UT670H0UA...

  • Page 2: Important Safety Instruction

    Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •...
  • Page 3 Warning! Safety instructions - Near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. - Do not install in excessively dusty places. Otherwise, this may result in fire, electric shock, CAUTION combustion/ explosion, malfunction or product deformation.
  • Page 4 • Use only an authorized attachments / accessories - TV with a three-prong grounded AC plug must be approved by LG Electronics. Otherwise, this may connected to a three-prong grounded AC outlet. result in fire, electric shock, malfunction, or product Ensure that you connect the earth ground wire to damage.
  • Page 5 • Moving • The device must be easily accessed to a location - When moving, make sure the product is turned outlet near the access. Some devices are not made off, unplugged, and all cables have been removed. by turning on / off button, turning off the device It may take 2 or more people to carry larger TVs.

  • Page 6: Optional Extras

    Make sure to use screws and wall mounts that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. • Use at least two people to move a large TV. 49UT570H0UA 43UT570H0UA 55UT570H0UA Model 43UT670H0UA 49UT670H0UA...

  • Page 7: Mounting On A Table

    Mounting on a Table • When transporting the TV by hand, hold the TV as shown in the following illustration. 1 Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

  • Page 8: Using The Kensington Security System (Optional)

    Using the Kensington Security (TYPE A) System (optional) (Depending upon model) The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http:// www.kensington.com.

  • Page 9: Mounting On A Wall

    Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall (Depending upon model)
  • Page 10 Connections • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. You can connect various external devices to the TV. • For more information of screws and wall For more information on external device’s connection, mount bracket, refer to the Separate refer to the manual provided with each device.

  • Page 11: Other Connections

    Other connections External Devices Supported external devices are: Blu-ray player, HD Connect your TV to external devices. For the best receivers, DVD players, VCRs, audio systems, USB picture and audio quality, connect the external device storage devices, PC, gaming devices, and other and the TV with the HDMI cable.

  • Page 12: External Speakers

    External Speakers Method of volume control port (Depending upon model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL SPEAKER OUT SPEAKER OUT CPU detects transition GND / UP / DOWN LINE OUT from 3.3 V to GND level for volume VOLUME...

  • Page 13: Network Setup

    Using the Button Network setup (Depending upon model) You can simply operate the TV functions, using the button. Wired network connection This TV can be connected to a Pro:Centric server via the port. After making the physical connection, the TV needs to be set up for network communication.

  • Page 14: Adjusting The Angle Of The Tv To Suit View

    Adjusting the Angle of the (TYPE A) TV to suit view (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ • When adjusting the angle of the product, watch out for your fingers.
  • Page 15 (TYPE B) (Power) Turns the TV on or off. Not functional. Selects the remote’s operating mode: TV. Selects the remote’s operating mode: DVD. Changes the input source. Not functional. Number button Enters numbers. (Dash) Inserts a dash between numbers such as 2-1 and 2-2.

  • Page 16: Troubleshooting

    Displays and removes Pro:Centric Application. performance. The customer is responsible to ensure Shows the information of the current the compatibility of their equipment with any LG program. Electronics software. If needed, please consult with Displays and removes the electronic program LG Electronics and update new software versions guide of Pro:Centric Application.
  • Page 17 • Generated Sound • The TV turns off suddenly. - Cracking noise A cracking noise that occurs - Check the power control settings. The power when watching or turning off the TV is supply may be interrupted. generated by plastic thermal contraction due to - Check if the auto-off function is activated on the temperature and humidity.
  • Page 18 Settings To set additional picture options ) [Picture] [Picture Mode Settings] [Picture Options] To select Picture Mode Adjusts detailed setting for images. • [Noise Reduction] Eliminates noise in the picture. ) [Picture] [Picture • [MPEG Noise Reduction] Eliminates noise generated Mode Settings] [Picture Mode] while creating digital picture signals.

  • Page 19: Specifications

    Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). Broadcasting Specifications Television system ATSC, NTSC-M, 64 &...
  • Page 20 HDMI (DTV) supported mode HDMI (PC) supported mode • Use HDMI IN 1 for PC mode. Horizontal Vertical (Depending upon model) Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.46 59.94 Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.50 60.00 640 x 350 31.46 70.09 31.47...

  • Page 21: Supported Audio Formats

    Composite, AV supported mode Supported Audio Formats Horizontal Vertical File Format Info Resolution Frequency (kHz) Frequency (Hz) (Bit rate) 32 Kbps - 320 Kbps 15.73 59.94 720 x 480i (Sample freq.) 16 kHz - 48 kHz 15.73 60.00 .mp3 (Support) MPEG1, MPEG2 31.47 59.94 (channels) mono, stereo...

  • Page 22: Supported Video Formats

    • ULTRA HD Video : 3840 x 2160, 4096 x 2160 File • Some HEVC encoded ULTRA HD videos other than Codec Format the content officially provided by LG Electronics may not be played. VC-1 Advanced Profile • Some codecs can be supported after a software Video (except for WMVA), VC-1 .asf...
  • Page 23 KEY CODES (TYPE A) * This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button (Green) R/C Button R/C Button (Red) R/C Button R/C Button (Yellow) R/C Button R/C Button (Blue) R/C Button R/C Button R/C Button R/C Button...
  • Page 24 KEY CODES (TYPE B) * This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button (Green) R/C Button R/C Button (Red) R/C Button R/C Button (Yellow) R/C Button R/C Button (Blue) R/C Button R/C Button R/C Button R/C Button...

  • Page 25: Usb To Serial Converter With Usb Cable

    (TV) (TV) (PC) (PC) • LG TV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which is RS-232C IN (CONTROL & SERVICE) not made nor provided by LG. (TV) (PC) •...
  • Page 26 (PC) (TV) (PC) RS-232C with RS-232C Cable (TV) (PC) (TV) (PC) DE9 (D-Sub 9pin) Type RS-232C IN RS-232C IN (CONTROL & SERV (PC) (CONTROL & SERVICE) (PC) RS-232C IN (TV) (CONTROL & SERVICE) (PC) (TV) RS-232C IN (CONTROL & SERVICE) (PC) (TV) (TV)
  • Page 27 RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 RS-232C configurations (75UT770H0UA Only) 7-Wire or 3-Wire Configuration IR-OUT D-Sub 9 Phone-Jack Set ID For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”. 1 Press to access the main menus.

  • Page 28: Communication Parameters

    Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list * (Depending upon model) COMMAND1 COMMAND2...

  • Page 29: Transmission / Receiving Protocol

    TRANSMISSION / RECEIVING PROTOCOL * (Depending upon Model) Transmission (Command1)(Command2)( )([Set ID])( )(Data)(Cr) (Command 1) : First command to control the TV. (j, k, m or x) (Command 2) : Second command to control the TV. ([Set ID]) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99.
  • Page 30 1 Power (Command: k a) 3 Screen Mute (Command: k d) ► To control power on or off of the set. ► To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )(Data)(Cr) (k)(d)( )([Set ID])( )(Data)(Cr) Data 00 : [Off] Data 00 : Screen mute off (Picture on) / Video mute off Data 01 : [On] Data 01 : Screen mute on (Picture off)
  • Page 31 7 [Brightness] (Command: k h) 11 OSD Select (Command: k l) ► To adjust screen brightness. You can also adjust ► To select OSD (On Screen Display) on/off when brightness in the picture settings. controlling remotely. Transmission Transmission (k)(h)( )([Set ID])( )(Data)(Cr) (k)(l)( )([Set ID])( )(Data)(Cr) Data Min : 00 to Max : 64 Data 00 : [Off]...
  • Page 32 13 [Balance] (Command: k t) 16 Tune Command (Command: m a) * This command may work differently Depending ► To adjust balance. You can also adjust balance in upon model and signal. the audio settings. * For Europe, Mid-East, Colombia, Asia except South Transmission Korea and Japan Model (k)(t)( )([Set ID])( )(Data)(Cr)
  • Page 33 • Tune Command Examples: • Analog Antenna/Cable 1 Tune to the Analog antenna (PAL) Channel 10. Data 00 : Physical Channel Number [Set ID] = All = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 00 & 01 = Channel Data is 10 = 00 0a - Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125) Data 02 = Analog Antenna TV = 00...
  • Page 34 • Tune Command Examples: • Digital Antenna/Satellite 1 Tune to the Analog cable (NTSC) channel 35. Data 00 : xx (Don’t care) (Data 01)(Data 02) : Major Channel Number [Set ID] = All = 00 Data 01 : High byte Channel Data Data 00 = Channel Data is 35 = 23 Data 02 : Low byte Channel Data Data 01 &...
  • Page 35 17 [Channel] Skip/Add (Command: m b) 20 Input select (Command: x b) (Main Picture Input) ► To skip current channel for next time. ► To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )(Data)(Cr) (x)(b)( )([Set ID])( )(Data)(Cr) Data 00 : Del(ATSC,ISDB)/Skip(DVB) Data 00 : DTV Data 01 : Add...
  • Page 36 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.

  • Page 37: Open Source Software Notice Information

    Dolby Atmos, and the double-D symbol are available for download. trademarks of Dolby Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 38: Fcc Notice

    Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) (For USA) FCC Notice High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. (For USA) These radar stations can cause interference with and/ This equipment has been tested and found to or damage this device.

  • Page 39: Industry Canada Statement

    Industry Canada Statement RSS-247 Requirement (For Canada) (For Canada) [For having wireless function (WLAN, Bluetooth,...)] [For product having the wireless function using 5 GHz frequency bands] This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and (1) The device for operation in the band 5150–5250 Economic Development Canada’s licence-exempt MHz is only for indoor use to reduce the potential for RSS(s).
  • Page 40 NOTE TO CABLE/TV INSTALLER Symbols (For USA and Canada) Refers to alternating current (AC). This reminder is provided to call the CATV system Refers to direct current (DC). installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines Refers to class II equipment.

  • Page 43: Child Safety

    CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER ELECTRONICS INDUSTRY CARES • Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable. • As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations.
  • Page 44 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 1000 Sylvan Ave Englewood Cliffs, NJ 07632 Telephone (201)266-2215 LG Customer Information Center The model and serial number of the product are located on the back and on one side of the product.

  • Page 45: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com P/NO : MFL71445401 (1901-REV00)

  • Page 46: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 47 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial(RS-232C) RS-232C IN converter which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.

  • Page 48: Customer Computer

    EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
  • Page 49 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
  • Page 50 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 51 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 52 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 53 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
  • Page 54 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 55 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) 2. Tune to the BS (ISDB-BS) channel 30. Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
  • Page 56 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.

  • Page 58: Network Settings

    Connection / Sound Programmes Connection Add a Hidden Wireless Network General Connect via WPS PBC Safety Connect via WPS PIN Advanced Wi-Fi Settings Accessibility For wireless AP (Router) that have the symbol, www.lg.com you need to enter the security key.

  • Page 59: Troubleshooting Network Problems

    Troubleshooting Network Problems 1 Press the (Settings) on the remote to Check the AP (Router) or consult your Internet access the settings menu. Point the ( ) [All service provider. Settings] icon and select by pressing the Wheel (OK) button on the remote. When X appears next to Gateway: Unplug the power cord of the AP (Router) and All Settings...

  • Page 60: Updating The Tv Firmware

    1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network. 2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones). 3 Enable your smartphone to share content files with other devices.
