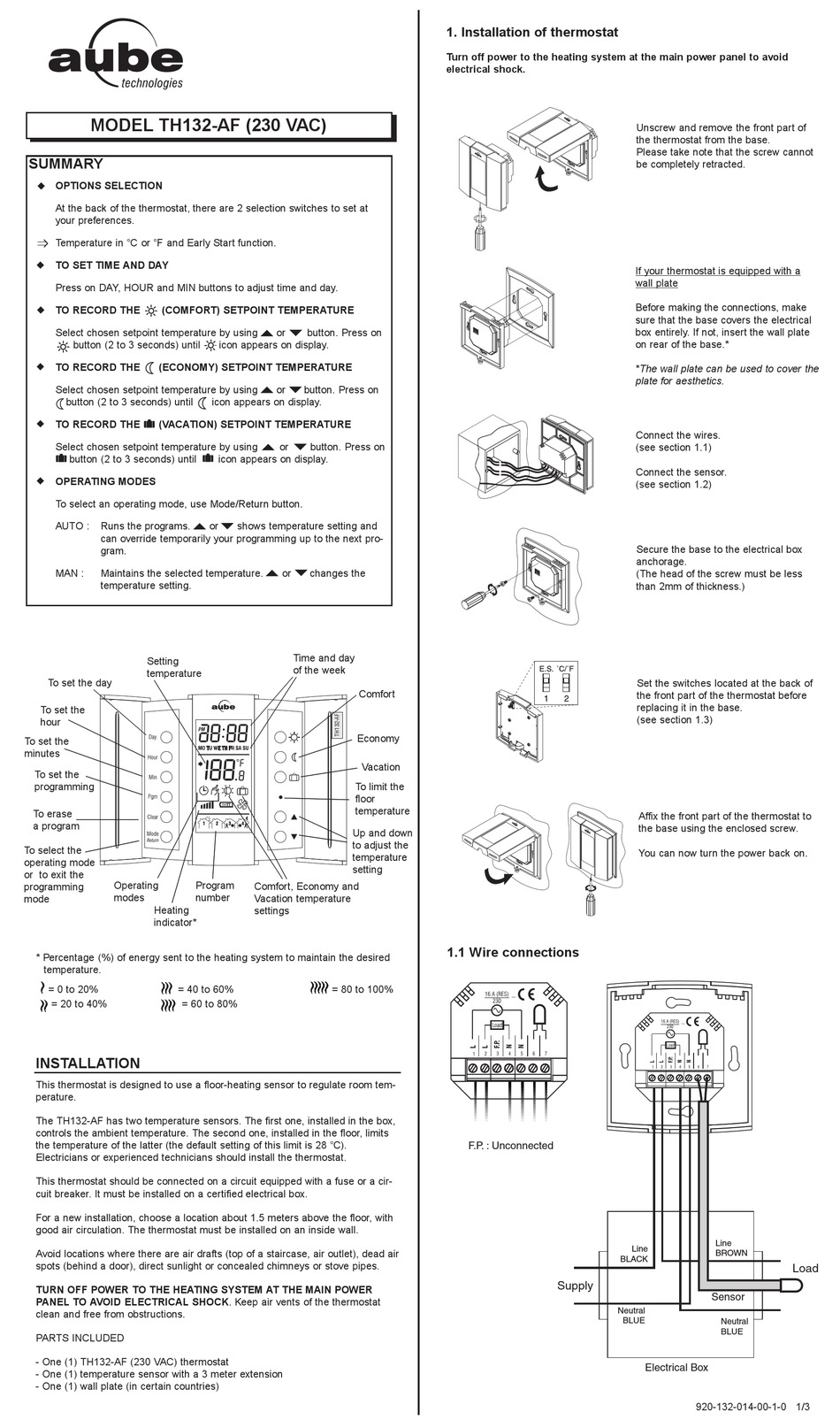

Aube Technologies TH132-AF Quick Start Manual

MODEL TH132-AF (230 VAC)
SUMMARY
u
OPTIONS SELECTION
At the back of the thermostat, there are 2 selection switches to set at
your preferences.
Temperature in °C or °F and Early Start function.
u
TO SET TIME AND DAY
Press on DAY, HOUR and MIN buttons to adjust time and day.
u
TO RECORD THE (COMFORT) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
button (2 to 3 seconds) until
u
TO RECORD THE (ECONOMY) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
button (2 to 3 seconds) until
u
TO RECORD THE (VACATION) SETPOINT TEMPERATURE
Select chosen setpoint temperature by using
button (2 to 3 seconds) until
u
OPERATING MODES
To select an operating mode, use Mode/Return button.
AUTO : Runs the programs.
can override temporarily your programming up to the next pro-
gram.
MAN : Maintains the selected temperature.
temperature setting.
Setting
temperature
To set the day
To set the
hour
To set the
minutes
To set the
programming
To erase
a program
To select the
operating mode
or to exit the
Operating
programming
modes
mode
Heating
indicator*
* Percentage (%) of energy sent to the heating system to maintain the desired
temperature.
= 0 to 20% = 40 to 60%
= 20 to 40% = 60 to 80%
INSTALLATION
This thermostat is designed to use a floor-heating sensor to regulate room tem-
perature.
The TH132-AF has two temperature sensors. The first one, installed in the box,
controls the ambient temperature. The second one, installed in the floor, limits
the temperature of the latter (the default setting of this limit is 28 °C).
Electricians or experienced technicians should install the thermostat.
This thermostat should be connected on a circuit equipped with a fuse or a cir-
cuit breaker. It must be installed on a certified electrical box.
For a new installation, choose a location about 1.5 meters above the floor, with
good air circulation. The thermostat must be installed on an inside wall.
Avoid locations where there are air drafts (top of a staircase, air outlet), dead air
spots (behind a door), direct sunlight or concealed chimneys or stove pipes.
TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN POWER
PANEL TO AVOID ELECTRICAL SHOCK. Keep air vents of the thermostat
clean and free from obstructions.
PARTS INCLUDED
- One (1) TH132-AF (230 VAC) thermostat
- One (1) temperature sensor with a 3 meter extension
- One (1) wall plate (in certain countries)
or button. Press on
icon appears on display.
or button. Press on
icon appears on display.
or button. Press on
icon appears on display.
or shows temperature setting and
or changes the
Time and day
of the week
Up and down
to adjust the
temperature
setting
Program
Comfort, Economy and
number
Vacation temperature
settings
= 80 to 100%
1. Installation of thermostat
Turn off power to the heating system at the main power panel to avoid
electrical shock.
Comfort
Economy
Vacation
To limit the
floor
temperature
1.1 Wire connections
F.P. : Unconnected
Unscrew and remove the front part of
the thermostat from the base.
Please take note that the screw cannot
be completely retracted.
If your thermostat is equipped with a
wall plate
Before making the connections, make
sure that the base covers the electrical
box entirely. If not, insert the wall plate
on rear of the base.*
*The wall plate can be used to cover the
plate for aesthetics.
Connect the wires.
(see section 1.1)
Connect the sensor.
(see section 1.2)
Secure the base to the electrical box
anchorage.
(The head of the screw must be less
than 2mm of thickness.)
Set the switches located at the back of
the front part of the thermostat before
replacing it in the base.
(see section 1.3)
Affix the front part of the thermostat to
the base using the enclosed screw.
You can now turn the power back on.
Line
BLACK
Supply
Sensor
Neutral
BLUE
Electrical Box
920-132-014-00-1-0 1/3
Line
BROWN
Load
Neutral
BLUE
