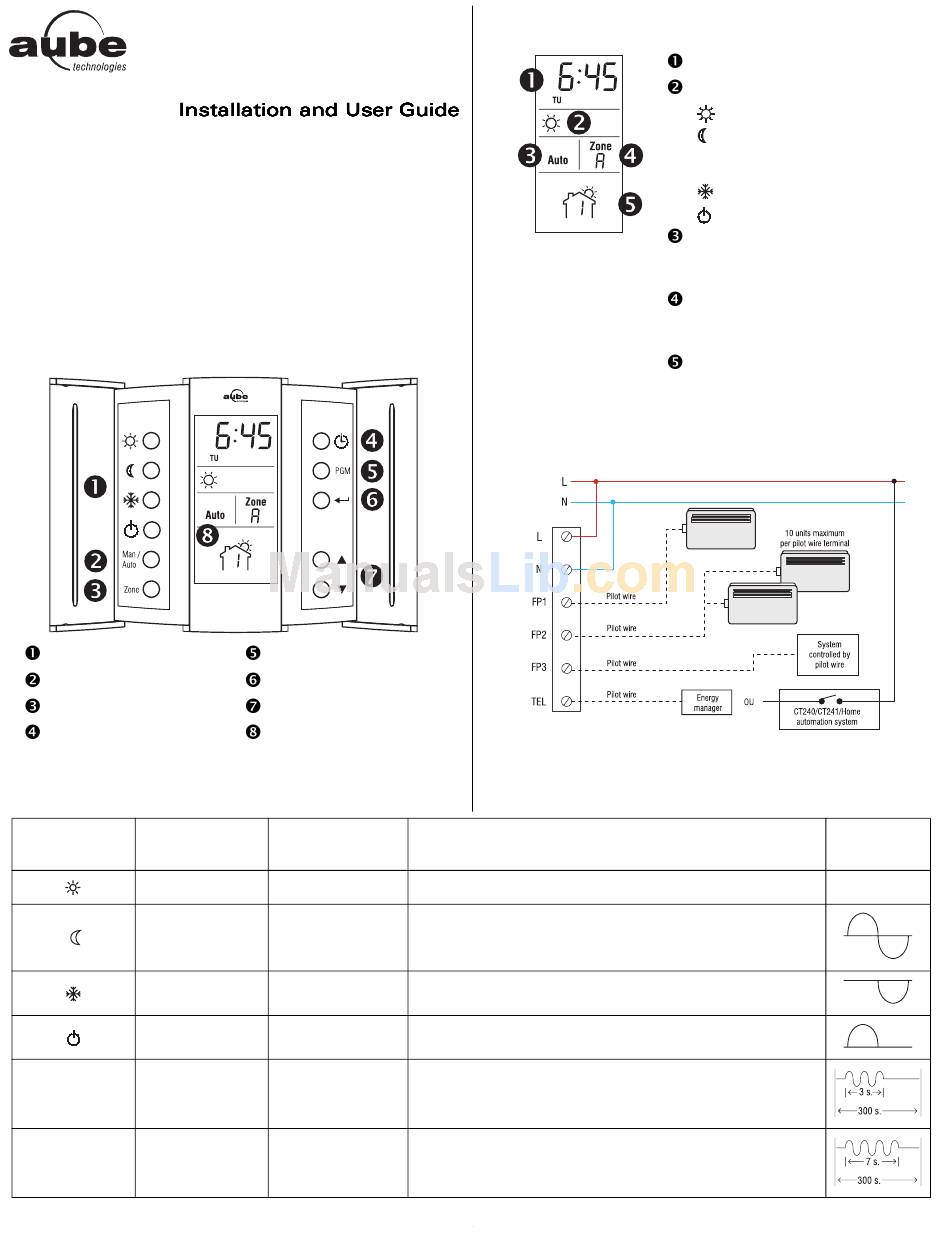

TH134 is an electronic six-order pilot-wire programmer that allows
separate temperature control of three zones using four programs
per day. The TH134 programmer has three pilot-wire outputs can
be connected to thermostats or controller that accept pilot-wire sig-
nals.
The TH134 programmer has a remote input to which a telephone
controller (such as Aube's CT240), a home automation system
(HAS) or an energy manager can be connected. When a signal is
received from any of these devices, TH134 forwards the order to
the heating units.
Order buttons
Mode selection button
Zone selection button
Time/day setting button
TH134
Program button
Return button
Selection button
Display
√
√
√
√
√
√
The following table shows the different means of initiating an order.
Maintain temperature at setpoint (Comfort)
Maintain temperature at setpoint minus 3,5°C (3,5k setback)
Maintain temperature at 7°C (frost protection)
Turn heating Off (Off)
Maintain temperature at setpoint minus 1°C (1k setback)
Maintain temperature at setpoint minus 2°C (2k setback)
Time
Heating modes
:Comfort mode
: Setback modes
(icon is steady in 3,5k setback;
flashes in 1k and 2k setbacks)
: Frost protection
: Off
Operating modes
- Manual mode
- Auto mode
Zone selected (the letter A
appears when all 3 zones are
selected)
Current program (applicable to
automatic mode only)
No signal
400-134-000-A
1/27/05
1/4
