Summary of Contents for Barco MVSP10
- Page 1 MVSP10 Getting Started Guide...
- Page 2 (This page intentionally left blank.) (This page intentionally left blank.)
- Page 3 Barco N.V. or Barco, Inc., for use only under the specific terms of a software license agreement between Barco N.V. or Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any form, is authorized.
- Page 4 (This page intentionally left blank.)
-
Page 5: Table Of Contents
Table of Contents Table of Contents Preface..................6 CE mark notice ................. 6 Environmental information ............. 7 Safety Instructions ................8 Explanation of symbols..............10 Introduction ................12 Parts, controls and connectors ............12 Front ..................12 Rear ..................14 Marking of the unit................ -
Page 6: Preface
Preface Preface CE mark notice Declaration of Conformity in accordance with Article 10 (1) of the CE directive This product has been designed and manufactured in accordance with the essential requirements of the Directives 89/336/EEC and MDD 93/42/EEC (class II b product), and for this product the procedures of Annex II have been applied to mark the product with the CE label. -
Page 7: Environmental Information
Preface Environmental information Disposal Information This product consists of devices that may contain mercury, which must be recycled or disposed of in accordance with local, state, or country laws. This equipment has required the extraction and use of natural resources for its production. It may contain hazardous substances for health and environment. -
Page 8: Safety Instructions
Preface Safety Instructions General Recommendations Read the safety and operating instructions before operating the equipment. Retain safety and operating instructions for future reference. Adhere to all warnings on the equipment and in the operating instructions manual. Follow all instructions for operation and use. Electrical shock Type of protection (electrical): Equipment with internal power supply: Class II equipment. - Page 9 Preface Power cords: • Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 300 V min., provided with a hospital-grade type plug 5-15P configuration for 120V application, or 6-15P for 240V application. • Do not overload wall outlets and extension cords as this may result in fire or electric shock.
-
Page 10: Explanation Of Symbols
Preface Explanation of symbols Symbols on the equipment On the equipment, you may find the following symbols (nonrestrictive list): Indicates compliance to the essential require- ments of the Directive 93/42/EEC Indicates the equipment is approved accord- ing to the UL regulations Indicates the equipment is approved accord- ing to the c-UL regulations Indicates the equipment is approved accord-... - Page 11 Preface Indicates this apparatus must not be thrown in the trash but must be recycled, according to the European WEEE (Waste Electrical and Electronic Equipment) directive Symbols used throughout the manual: Warning: Risk of Caution: Risk of injury to human damage to the beings product...
-
Page 12: Introduction

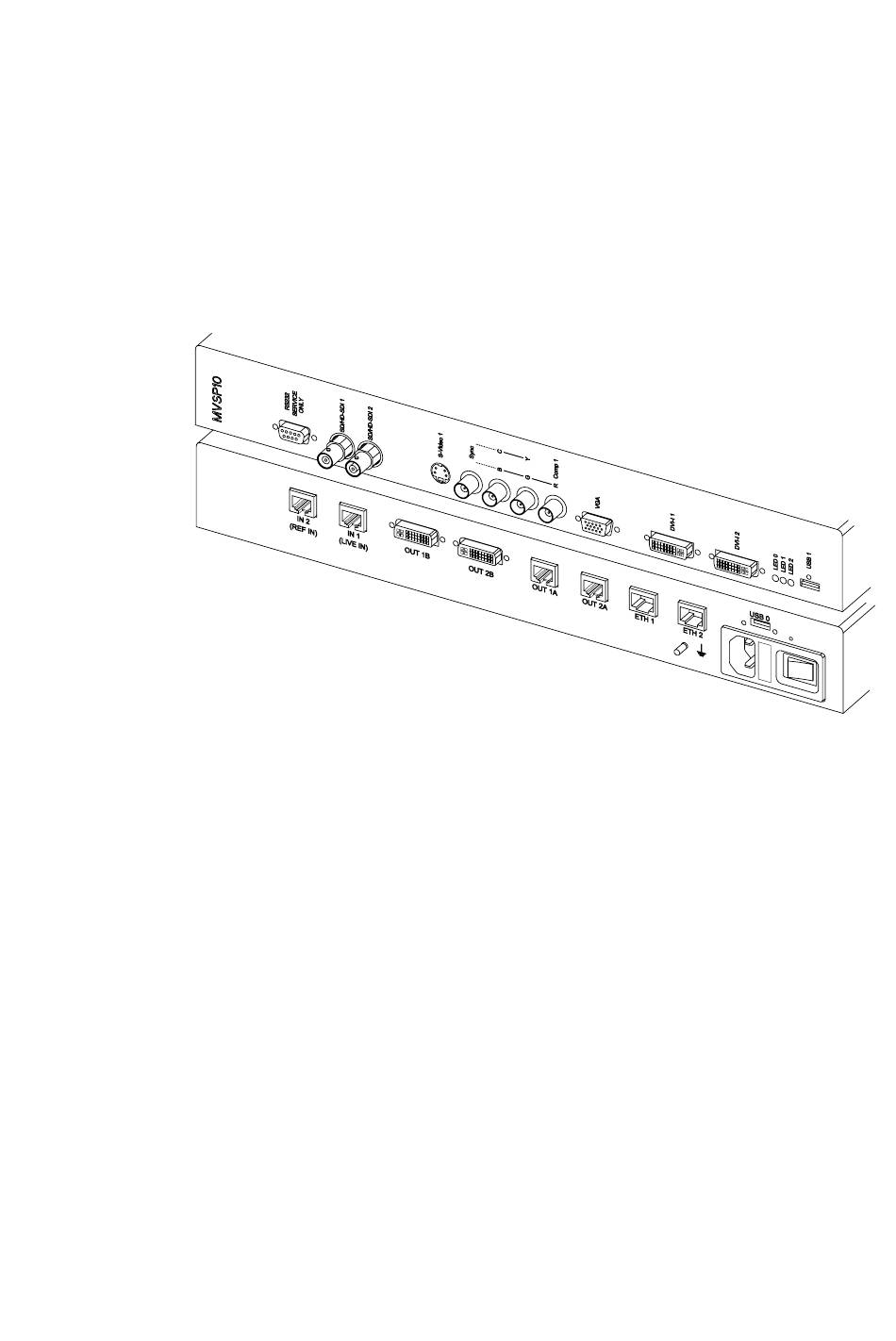

Introduction Introduction The MVSP10 (Medical Video Switcher and Processor) video interface is intended as an interface between different video sources from different modalities and is generating a single video format to be connected to standard displays equipped with a DVI-D interface. The... - Page 13 Introduction N° Description Lay-out RS-232 connector (for service only) SD/HD-SDI 1 connector SD/HD-SDI 2 connector S-Video input Sync input B / COMP3 / Pb / C input G / COMP2 / Y / Y / Y input R / COMP1 / Pr / COMP1 input VGA input DVI-I 1 input...
-
Page 14: Rear
Introduction N° Description Lay-out DVI-I 2 input LED 0 LED 1 LED 2 USB 1 connector Rear Figure 2: Parts, controls and connectors (rear) N° Description Lay-out CAT6 2 input (REF... - Page 15 Introduction N° Description Lay-out CAT6 1 input (LIVE DVI-I 1B output DVI-I 2B output CAT6 1A output CAT6 2A output Ethernet 1 con- nector Ethernet 2 con- nector Functional GND connector Power input Power switch USB 0 connector...
-
Page 16: Marking Of The Unit
Introduction Marking of the unit The unit is affixed with a label containing symbols and manufacturer-, regulatory-, safety-, power- and administrative information. An example label is shown in the figure below. Figure 3: Label 1... - Page 17 Introduction The unit is also affixed with a second label containing the model and serial number. An example is shown in the following figure. Figure 4: Label 2...
-
Page 18: Installation
Installation Installation Installation precautions Precautions • Keep your original packaging. It is designed for this unit and is the ideal protection during transport. • Wear gloves during installation to keep the unit free from stains and fingerprints. Fixing the unit You can fix the unit into place by using the 7 fixation holes provided in the metal housing. - Page 19 Installation Figure 6: Fixation holes (bottom)
-
Page 20: Connecting The Signal Cables
Installation Connecting the signal cables Below is an overview of how to connect the signal cables of the MVSP10 with other devices. Connect the unit as shown in the following drawings: Front Figure 7: Connecting the signal cables (front) N°... -
Page 21: Rear
Installation N° Device VGA generator DVI-I generator DVI-I generator USB mouse Rear Figure 8: Connecting the signal cables (rear) N° Device DVI-D generator (+ DVI to CAT6 convertor) DVI-D generator (+ DVI to CAT6 convertor) DVI-I monitor... - Page 22 Installation N° Device DVI-I monitor DVI-D monitor (+ CAT6 to DVI convertor) DVI-D monitor (+ CAT6 to DVI convertor) Network Network Funtional GND Power source USB mouse...
-
Page 23: Cleaning Instructions
Cleaning instructions Cleaning instructions Precautions • Disconnect all signal cables before cleaning the unit. • Do not apply or spray liquid directly to the unit- as excess liquid may cause damage to internal electronics. Instead, apply the liquid to the cleaning cloth. •... - Page 24 Cleaning instructions Do NOT use: • Alcohol/solvents at higher concentration > 5% • Strong alkalis lye, strong solvents • Acid • Detergents with fluoride • Detergents with ammonia • Detergents with abrasives • Steel wool • Sponge with abrasives • Steel blades •...
-
Page 25: Technical Information
Technical information Technical information Connector pin assignments Below is a detailed description of the pin assignments for all multi-pin connectors. USB connector: Figure 9: DVI-I pin layout Pin N° Signal Pin N° Signal +5V POWER DATA + DATA - S-Video connector: Figure 10: 4-pin mini DIN pin layout Pin N°... - Page 26 Technical information DVI-I connector: C1 C2 Figure 11: DVI-I pin layout Pin N° Signal Pin N° Signal TMDS DATA 2- HOT PLUG DETECT TMDS DATA 2+ TMDS DATA 0- TMDS DATA 0+ DDC CLOCK DDC DATA Analog VS TMDS CLOCK+ TMDS DATA 1- TMDS CLOCK- TMDS DATA 1+...
- Page 27 Technical information CAT6 connector: Figure 12: CAT6 pin layout Pin N° Signal Pin N° Signal TMDS DATA 2+ TMDS DATA 1- TMDS DATA 2- TMDS CLOCK- (AC) TMDS CLOCK+ TMDS DATA 0+ (AC) TMDS DATA 1+ TMDS DATA 0- Ethernet connector: Figure 13: Ethernet pin layout Pin N°...
- Page 28 Technical information D-Sub (VGA) 15 connector: Figure 14: D-Sub 15 pin layout Pin N° Signal Pin N° Signal Red in DDC 5V IN Green in VGA PRES Blue in DDC SDA HS IN VS IN DDC SCL Shielded Ground...
- Page 29 Technical information D-Sub 9 female (RS-232) connector: Figure 15: D-Sub 9 pin layout Pin N° Signal Pin N° Signal Not used Not used Transmit data Not used (TXD) Receive data Not used (RXD) Not used Not used Shielded Ground...
-
Page 30: Technical Specifications
Technical information Technical specifications Item Specification Resolution SXGA: 1280 x 1024 WUXGA: 1920 x 1200 Controls Push / turn control wheel for stand-by switching and OSD controls Digital video input Complying to DVI Rex 1.0 specifications specifications DVI-I analog video 500-950 mV signal level DB15 analog video... - Page 31 Technical information Item Specification Power source Mains voltage range: 100 - 240 VAC Mains max. current: 1 A Mains frequency: 50 / 60 Hz Power consump- 72 Watt (maximum, at 90 VAC) tion Dimensions 415 x 54,5 x 365 mm unpacked (W x H x Dimensions 520 x 173 x 478 mm...
-
Page 32: Warranty Statement
Any claim under the Warranties must be notified to Barco in writing within 8 days from the date the defect or failure has been discovered or noticed the first time. The Customer, upon the occurrence of... - Page 33 All software installed on the system, whether they are acquired from Barco nv, MID or third party. An exception is made for software delivered by Barco nv, MID that would prove to be a cause for the mal functioning of the hardware covered under this Agreement.
- Page 34 LCD luminance uniformity that is in within the product specifications or luminance uniformity performance that is inherent to LCD technology. Barco nv, MID does not warrant a minimum life time nor a performance of any of the consumables.
- Page 35 If there is an indication that the equipment was used – even temporary – outside its specifications, Barco nv, MID is entitled not to perform warranty repairs and terminate the warranty agreement. Any actions that have been taken by Barco nv, MID in this respect, may be invoiced to the Customer at normal pricing.
- Page 36 Barco nv, MID shall not be responsible for machine failure and/or its failure to render service or maintenance due to causes beyond its reasonable control.
- Page 37 Warranty Statement...
- Page 38 Warranty Statement...
- Page 39 Warranty Statement...
- Page 40 K5903011-00 December 2009 Barco nv Medical Imaging President Kennedypark 35 B-8500 Kortrijk, Belgium www.barco.com...
