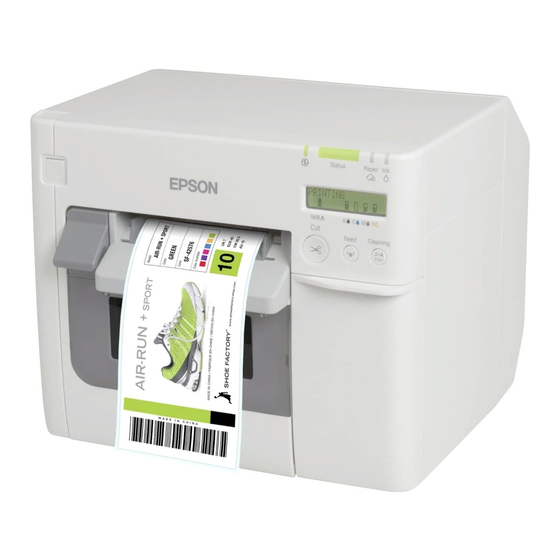

USER MANUAL Roll to roll system for EPSON TM-C3500 this product is certified...
Page 2
The Unwinder and the Rewinder can handle media up to 127mm (5”) on rolls having 76mm (3”) inside diameter and up to 250mm (9.84”) outside diameter. All devices are equipped with an external auto switching 100/240VAC - 2,5A at 24V power supply and an electronic circuit controls all functions.
Page 3
STEP 4 Attach the rewinder to the printer plate. STEP 5 Load a cardboard core onto the core holder. Load the outside disk making sure it adheres to the cardboard. STEP 6 Push the media under the tension arm and stick it on the cardboard core.
Page 4
smart solutions for the labeling industry Label rewinder, label unwinder, electronic label dispenser and more... - FOR MORE INFO CONTACT YOUR RESELLER -...
