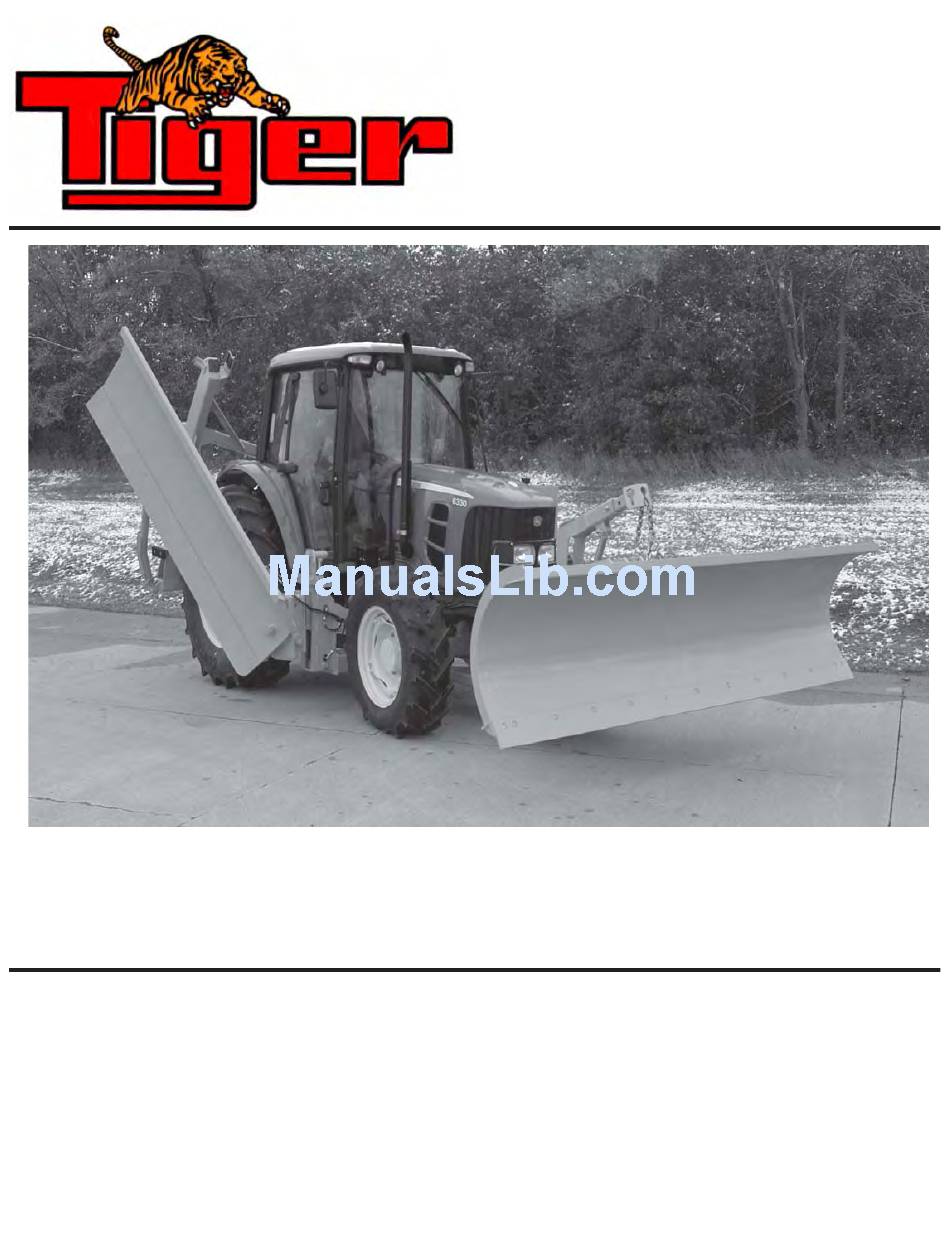

- Page 1 SNOW PLOW ASSEMBLIES JD 62-6430 Current as of 11/10/2010 PARTS LISTING WITH MOUNTING AND OPERATING INSTRUCTIONS Tiger Corporation 3301 N. Louise Ave. Sioux Falls, SD 57107 1-800-843-6849 1-605-336-7900 www.tiger-mowers.com 06011008...
- Page 2 TO THE OWNER / OPERATOR / DEALER All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly at- tached to minimize the chance of accidents.
- Page 3 • Classify the problem • Hydraulic, electrical or mechanical - Read the trouble shooting section • Tractor or Truck chassis - Contact vehicle dealer • If unable to correct the problem yourself, contact your local Tiger Dealer after gathering: • Machine model _______________________ •...
-
Page 5: Table Of Contents
MAINTENANCE SECTION______________________________ PARTS SECTION______________________________________ WARRANTY INFORMATION____________________________ This symbol means: CAUTION – YOUR SAFETY IS AT RISK! When you see this symbol, read and follow the associated instructions carefully or personal injury or damage may result. Tiger is a registered trademark. -
Page 7: Safety Section
SAFETY SECTION Safety Section 1-1 © 2009 Alamo Group Inc. - Page 8 GENERAL SAFETY INSTRUCTIONS AND PRACTICES A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions.
- Page 9 Repeated or substantial breathing of hazardous dusts, including crystalline silica, could cause fatal or serious respiratory disease including silicosis. Concrete, masonry, many types of rock, and various other materials contain silica sand. California lists respirable crystalline silica as a substance known to cause cancer. Operation of this equipment under certain conditions may generate airborne dust particles that could contain crystalline silica.
- Page 10 All Safety Shields, Guards and other Protective Safety devices should be used and maintained in good working condition. carefully at least daily for missing or broken components. PROTECTIVE SHIELDS AND GUARDS! NEVER MODIFY OR CUT PROTECTIVE SHIELDS OR GUARDS! When shields or guards are removed to access areas for maintenance, they must be replaced and be in good condition before operating.
- Page 11 Prolonged operation of the Snow Plow may cause operator boredom and/or fatigue affecting the safe operation of the Snow Plow and Truck or Power unit. It is recommended that the operator take scheduled work breaks to help prevent these potentially impaired operating conditions.
- Page 12 Always wear a seat belt while driving the equipment during operation and transport. Serious injury or even death could result from falling from the operator’s station or from being involved in a collision. Start the engines only when seated and belted in the operator’s seat. equipment controls only while properly seated with the seat belt secured around you.
- Page 13 Unplowed snow, piled ice and debris, and snow drifts left behind the equipment might pose a driving hazard to vehicle traffic colliding with the debris or losing traction on the material. It is recommended to post warning signs alerting driver’s of the equipment operation presence and the need to reduce vehicle speed.
- Page 14 Allow passengers only in situations where their presence is involved in the operation (operator training, supervision, maintenance inspection). Never carry passengers whose presence distracts from the safe operation or transport of the equipment. Passengers must be seated securely and belted in the cab’s passenger seat. Never allow any person to ride on any other location of the Truck, Power Unit or Snow Plow during operation or transport.
- Page 15 Always turn on all safety lights and flashers when you operate the Snow Plow. Be particularly careful in transport. The Implement has raised and moved the center of gravity to the front of the Power Unit increasing the possibility of overturn and tipping forward.
- Page 16 MAINTENANCE AND SERVICE SAFETY INSTRUCTIONS AND PRACTICES Perform service, repairs and lubrication according to the maintenance section. Ensure the unit is properly lubricated as specified in the lubrication schedule and all bolts and nuts are properly torqued. Failure to properly service, repair and maintain this Implement in good operating condition could cause component failure and possible serious injury or even death.
- Page 17 Never leave the Snow Plow unattended while the plow is in the raised position. Accidental operation of the lifting lever or a hydraulic failure may cause a sudden drop of the unit which could result in injury or death by crushing. If the plow must be raised for inspection or service securely block up and support the Plow to prevent it falling.
- Page 18 Do not operate this equipment with hydraulic oil or fuel leaking. Oil and fuel are expensive and their presence could present a hazard. Do not check for leaks with your hand! High-pressure oil streams from breaks in the line could penetrate the skin and cause tissue damage including gangrene.
- Page 19 TRANSPORTING SAFETY INSTRUCTIONS AND PRACTICES Secure the wing for transport when not plowing. Secure wing in transport position using wing transport safety chain. Sudden or unexpected dropping of wing could result in serious injury. Transport the Truck, Power Unit, and Snow Plow only at safe speeds. Serious accidents and injuries can result from driving this equipment at unsafe speeds.
- Page 20 This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such. Employer-Employee Operator Regulations U.S.
-
Page 21: Assembly / Mounting Section
ASSEMBLY SECTION Assembly Section 2-1... - Page 22 Always use a floor jack, hoist or fork lift to lift and raise heavy parts. Read and understand the entire assembly section instructions before attempting to mount your Tiger mower. Refer to the parts section of this manual for detailed illustrations to locate all parts.
- Page 23 MULTIPLIER VALVE CONTROLLER MOUNTING The Multiplier Valve Controller comes with two worm-screw ties that are used to attach the Controller to the Tractor Joystick as shown below. The Multiplier Valve Controller can also be attached to the tractors’ joystick by removing the joystick handle, drilling two holes, and using the 10-32 machine screws and nylock nuts which are provided.
- Page 24 HYDRAULIC MULTIPLIER VALVE MOUNTING Align the mounting bracket to the existing holes on rear of the tractor by the PTO. Secure the bracket to the tractor with the existing hardware. Then align the holes and secure the valve to the mounting bracket as shown in the parts section. Install the electrial control wires from the controller that are routed through the rear window of the cab.
- Page 25 ASSEMBLY HYDRAULIC SYSTEM DIAGRAM Assembly Section 2-5...
- Page 26 3-POINT PUSH ARM STOP MOUNTING Install the Push Arm Stop onto the 3-point hitch using the pins as shown in the parts illustration. Adjust the bottom arms so the Push Arm Stop is 17” to the ground at the Pivot Boss. Adjust the top link so that the Push Arm Stop is approximately level with the ground.
- Page 27 WELDING MAIN FRAME Make sure you use the appropriate safety equipment. Weld the Tangs onto your existing Main Frame as shown below. Next, weld on the Boss’ making sure the orientation of the cross holes for the bolts are correct. ITEM PART NO.
- Page 28 FINAL PREPARATION FOR OPERATION Place operators safety and operation decals on the steering column and side counsel where they are clearly visible to the operator. These decals should be understood by each operator of the machine in conjunction with the safety and operation section of this book.
-
Page 29: Operation Section
OPERATION OPERATION SECTION Snow Plow Operation Section 3-1... - Page 30 Safety is of primary importance to the owner / operator and to the manufacturer. The first section of this manual includes a list of Safety Messages, that, if followed, will help protect the operator and bystanders from injury or death. Many of the messages will be repeated throughout the manual.
- Page 31 PUSH ARM STOP POSITION The Push Arm Stop height is controlled with the 3-point hitch control lever. Follow the instructions for this control is the tractor operators manual. The 3-point should be set in its lowest position. With the 3-point in its lowest position, adjust the 3-point arms so that the Push Arm Stop is level to the ground After the first day of operation, all bolts should be checked and tightened securely.
- Page 32 TRANSPORTING MOWER ON A TRAILER Transporting unit by flatbed trailer: Most tractors with a side mounted plow attached will be over legal transporting width (102” wide). For this reason, one of the following procedures must be followed. 1: Transporting with side plow attached: Use a loading dock or ramp to load tractor onto the trailer.
- Page 33 OPERATION TRACTOR PRE-OPERATION Inspection Tractor ID#____________ Make_____________________ Date:__________________ Shift______________________ Before conducting the inspection, make sure the Tractor engine is off, all rotation has stop and the tractor is in the Park with the parking brake engaged. The Mower head is resting on the ground (or is securely blocked up and supported) and all hydraulic pressure has been relieved.
- Page 34 OPERATION Snow Plow Operation Section 3-6...
-
Page 35: Maintenance Section
MAINTENANCE SECTION Maintenance Section 4-1... - Page 36 IN SEASON MAINTENANCE Snow removal equipment must be cared for and maintained regularly. Daily or pre-route inspection and maintenance are necessary. Failure to do so may affect efficiency and safety. A visual inspection must be carried out after every 8 hours of operation. Look for damaged components, bends, cracked welds or hydraulic leaks.
- Page 37 END OF SEASON MAINTENANCE GROUND ENGAGING COMPONENTS CUTTING EDGES & GUARDS Replace any broken cutting edges, unevenly or excessively worn cutting edges, and broken or worn wear guards. RUNNING GEAR Replace broken, worn, or missing running gear shoes, and any damaged adjuster leg components.
- Page 38 NOTES...
-
Page 39: Parts Section
JD62-6430 SNOW PLOW PARTS SECTION Parts Section 5-1... - Page 40 Direct any questions regarding parts to: Tiger Corporation 3301 N. Louise Ave. Sioux Falls, SD 57107 JD6030 SNOW PLOW Parts Section 5-2 Tiger replacement parts.
- Page 41 PARTS SECTION TABLE OF CONTENTS SECTION TRACTOR SPECIFIC PARTS: TRACTOR MOUNT KIT - MAIN FRAME TRACTOR MOUNT KIT - FRONT HYDRAULICS TRACTOR MOUNT KIT - PUMP HOSES TRACTOR MOUNT KIT - SIDE HYDRAULICS 3-POINT STOP & PUSH ARM MULTIPLIER VALVE MOUNTING 3 &...
-
Page 42: Tractor Mount Kit - Main Frame
TRACTOR MOUNT KIT - MAIN FRAME ITEM PART NO. 06300118 21688 06420125 21677 06300116 33764 21777 06300113 33880 ------ 32382 28399 6T2289 21835 6T2607 22021 21993 21825 6T3001 JD6030 SNOW PLOW Parts Section 5-4 DESCRIPTION MAIN FRAME SIDE PLOW WELDMENT CAPSCREW,7/16 x 3-1/4,NC PIN,1.50 X 4 NYLOCK NUT,7/16,NC... -
Page 43: Tractor Mount Kit - Front Hydraulics
TRACTOR MOUNT KIT - FRONT HYDRAULICS ITEM PART NO. 32900 33271 06500510 06503147 33382 06500164 06500228 06503148 JD6030 SNOW PLOW Parts Section 5-5 DESCRIPTION MAIN FRAME QUICK CPLR,MALE,1/2 x 1/2FOR ADAPTER,1/2MOR x 3/8MJ HOSE,1/4 x 170 FITTING,BLKHD,1/2MJ x 1/2MOR ELBOW,1/2MOR x 1/2MJX90 HOSE,1/4 x 216 HOSE,1/4 x 204 QUICK CPLR,FEM,1/2 x 1/2FOR... -
Page 44: Tractor Mount Kit - Pump Hoses
TRACTOR MOUNT KIT - PUMP HOSES REPLACE EXISTING HOSES IF NECESSARY ITEM PART NO. 06500258 TF4852 06500512 JD6030 SNOW PLOW Parts Section 5-6 DESCRIPTION HOSE,1-1/4 x 70 (FROM TANK TO PUMP) FLANGE KIT,#20 HOSE,1 x 70 (FROM PUMP TO BRAKE VALVE) - Page 45 NOTES PAGE INTENSIONALLY LEFT BLANK JD6030 SNOW PLOW Parts Section 5-7...
-
Page 46: Tractor Mount Kit - Side Hydraulics
TRACTOR MOUNT KIT - SIDE HYDRAULICS 12-04-06 JD6030 SNOW PLOW Parts Section 5-8... - Page 47 TRACTOR MOUNT KIT - SIDE HYDRAULICS ITEM PART NO. QTY. 32900 33271 06500345 32810 34073 06503030 06500511 JD6030 SNOW PLOW Parts Section 5-9 DESCRIPTION MAIN FRAME QUICK CPLR,MALE,1/2 x 1/2MOR ADAPTER,1/2MOR x 3/8MJ HOSE,1/4 x 171 ELBOW,1/2ORB x 3/8MJ 90 ADJ ADAPTER,1/2MOR x 1/2FOR ELBOW,3/8MJ x 3/8MJ 90 ADJ HOSE,1/4 x 161...
-
Page 48: 3-Point Stop & Push Arm
3-POINT STOP & PUSH ARM JD6030 SNOW PLOW Parts Section 5-10... - Page 49 3-POINT STOP & PUSH ARM ITEM PART NO. QTY. TB1036 TF1143 TF1120 06300115 7030084 2100-1360 2300-0620 7040006 7020162 7020082 7030030 219-0632 2100-0384 7050028 2100-1280 JD6030 SNOW PLOW Parts Section 5-11 DESCRIPTION PIN,TOP LINK,3-POINT PIN, LYNCH, 7/16 x 2 PIN,(CAPPED),1-1/8 x 3-7/8 3PNT,SNWPLW TOPLOCK NUT,5/8 SPACER,1/4 (USE AS NEEDED)
-
Page 50: Multiplier Valve Mounting
MULTIPLIER VALVE MOUNTING ITEM PART NO. QTY. 32900 33382 06500251 21577 06500122 33528 21579 06505159 06503148 31329 06411034 JD6030 SNOW PLOW Parts Section 5-12 DESCRIPTION QUICK CPLR,MALE,1/2 x 1/2FOR ELBOW,1/2MOR x 1/2MJ X 90 HOSE,1/2 x 28 NYLOCK NUT,5/16,NC HOSE,1/2 x 30 ADAPTER,1/2MOR x 1/2MJIC CAPSCREW,5/16 x 3/4,NC KIT,HYD MULTIPLIER,4 FUNCTION... -
Page 51: 3 & 4 Function Multiplier Valve Breakdown
3 & 4 FUNCTION MULTIPLIER VALVE BREAKDOWN ITEM PART NO. 06505165 06505164 06510231 06505167 JD6030 SNOW PLOW Parts Section 5-13 DESCRIPTION SMALL NUT (NOT FOR PARTS SALE) SOLENOID 12V SP N/C CARTRIDGE (SPOOL W/SHORT NUT) MANIFOLD (NOT FOR PARTS SALE) CONTROLLER,4 BUTTON (NOT SHOWN) O-RING SEAL KIT (NOT SHOWN) - Page 52 2 FUNCTION MULTIPLIER VALVE BREAKDOWN ITEM PART NO. 06505165 06505163 06505164 06510230 06505167 JD6030 SNOW PLOW Parts Section 5-14 DESCRIPTION SMALL NUT (NOT FOR PARTS SALE) SOLENOID 12V SP N/O CARTRIDGE (SPOOL W/SHORT NUT) MANIFOLD (NOT FOR PARTS SALE) N/C CARTRIDGE (SPOOL W/SHORT NUT) CONTROLLER,1 BUTTON (NOT SHOWN) AVAIL O-RING SEAL KIT (NOT SHOWN)
- Page 53 1 FUNCTION MULTIPLIER VALVE BREAKDOWN ITEM PART NO. 06505162 06505161 06505160 31329 32900 06510230 06505166 JD6030 SNOW PLOW Parts Section 5-15 TWO REQUIRED DESCRIPTION TALL NUT (NOT FOR PARTS SALE) SOLENOID 12V SS N/O CARTRIDGE (POPPET W/TALL NUT) MANIFOLD (NOT FOR PARTS SALE) N/C CARTRIDGE (SPOOL W/SHORT NUT) SHORT NUT (NOT FOR PARTS SALE) ADAPTER,1/2ORB x 1/2ORB ADJ...
- Page 54 SAFETY LIGHT ASSEMBLY SAFETY LIGHT INSTALLATION 1. Install marker light asy onto the mounting bracket, running wires inside bracket tube. 2. Remove and retain panel under right rear fender that protects wiring. 3. Remove and discard back three screws and clips securing the right rear fender to the cab. 4.
- Page 55 WARRANTY SECTION Warranty Section 6-1...
-
Page 57: Warranty Information
All Tiger obligation under this warranty shall be terminated if the equipment is modified or altered in ways not approved in writing by Tiger, if repair parts other than genuine Tiger repair parts have been used, or if the equipment has been subject to misuse, neglect, accident, improper maintenance or improper operation. - Page 58 . Common sense should play a large role in the operation of this machine. Since we at Tiger Corporation are constantly striving to improve out products, we reserve the right to change specifications or design at any time.
