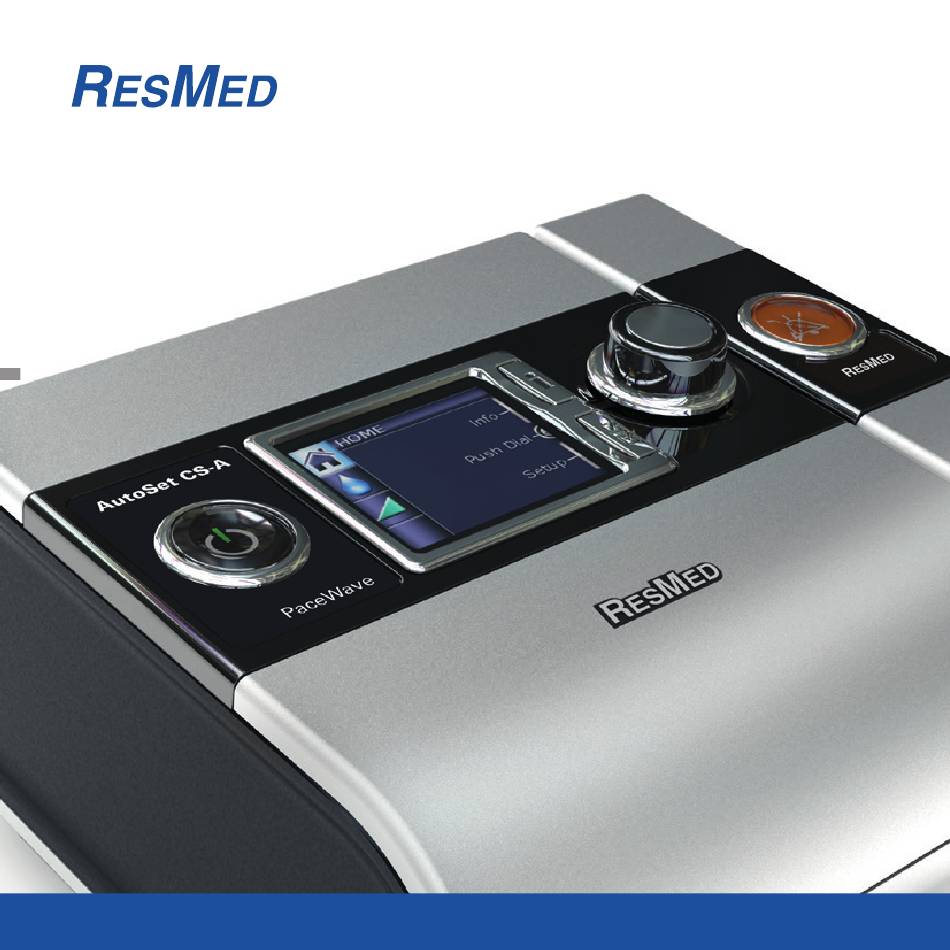

AutoSet CS-A at a glance The AutoSet CS-A system comprises the following elements: • AutoSet CS-A device • Air tubing • 90W power supply unit • S9 Travel bag • SD card • S9 SD card protective folder. Optional components include: •...
Page 3
5. Connect the assembled mask system to the free end of the air tubing. Notes: • Always ensure that the AutoSet CS-A is placed in an area where the alarm LED indicators are clearly visible. • For more information on assembling your mask see your mask user guide.
Page 4
Key: AutoSet CS-A basics Home Humidity Level Setup menu* Allows you to make changes to Ramp settings or exit from the menu. Heated Tube Info menu* Allows you to view your sleep Climate Control statistics or exit from the menu.
Adjusting ramp time Designed to make the beginning of treatment more comfortable, ramp time is the period during which the pressure increases from a low start pressure to the treatment pressure. To adjust your ramp time: 1. From your HOME 2.
S9 Essentials S9 Essentials is designed to make device interaction and menu navigation easier for you. If enabled by the clinician, S9 Essentials disables the Info and Setup functionality so that you can simply start and stop therapy and adjust ramp, humidification and Climate Control. Selecting the mask type To select your type of mask: 1.
Getting started 1. Make sure the power is connected. 2. Adjust the ramp time or humidification level if required. 3. Fit your mask as described in your mask user guide. 4. To start therapy, simply breathe into the mask and/or press 5.
Viewing the treatment screens Depending on how the system has been configured and on which mode has been selected, you will see one of the following example screens once therapy has started: 9 H5i humidifier 9 H5i humidifier 9 H5i humidifier 9 ClimateLine/ClimateLine 9 ClimateLine/ClimateLine 9 Climate Control –...
Page 9
Viewing the Info menu The Info menu has a series of screens showing your sleep quality, sleep report and service information. To view the Info menu, push from your HOME screen. 9 In the Sleep Quality screen, 9 In the Sleep Report, only the 9 In the Service information, you can always view your period can be changed—...
Viewing alarms The AutoSet CS-A is fitted with an alarm module that continuously monitors both therapy and device conditions. Alarms are only activated when therapy is running. An alarm condition is indicated by an audible sound, a flashing yellow alarm LED and a message on the screen. When the device is turned on, the yellow alarm LED will flash, and the alarm will sound to confirm that the alarm is working.
1. Remove the air filter cover from the back of the device. 2. Remove and discard the old air filter. 3. Insert a new ResMed air filter ensuring that it is sitting flat in the air filter cover. 4. Replace the air filter cover.
Page 12
S9 SD Card Protective Folder provided with your device. Please retain the S9 SD Card Protective Folder for future use. Notes: • For Troubleshooting information refer to the Information Guide. • For more product information see www.resmed.com. English...
