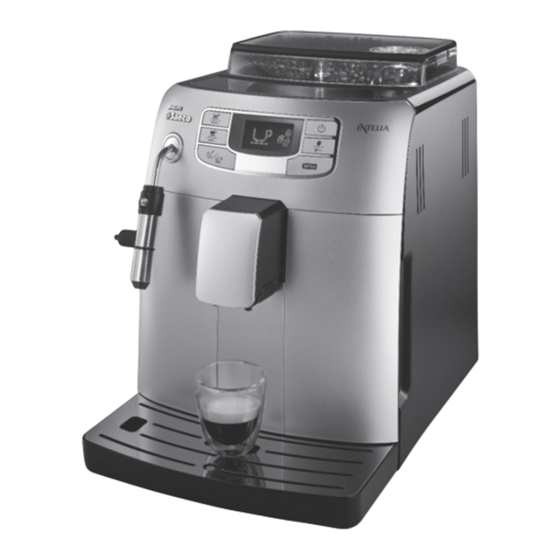

Philips Saeco Intelia HD8752 Cheat Sheet

Saeco
Intelia
HD8752
First time use:
Machine needs to be installed and primed.
1. Insert the drip tray.
2. Rinse and fill the water tank with fresh water up to the MAX level.
3. Pour coffee beans into the coffee bean hopper.
4. Insert the plug at the back. Switch the power button to "I".
5. To turn on the machine, press the "ON/OFF " button on the front.
6. The display will indicate you have to prime the circuit.
7. Place a container under the steam wand/Classic Milk Frother.
8. Press the Espresso button to start the priming. After this he machine starts heating
up and performs an automatic rinse cycle trough the coffee dispensing spout.
9. Perform a manual rinse by dispensing some hot water and brew a pre-ground
coffee without adding coffee.
Buttons and symbols:
Espresso
button
Coffee
button
Steam/
Hot water
button
Machine Settings
:
• Memo setting, cup volume.
Espresso and Coffee button can be adjusted
and set to your preference.
1. Place a cup under the dispensing spout.
2. Press and hold the espresso/coffee button until the
"MEMO" icon is displayed. Then release the button.
3. Press the espresso button when the desired amount
is reached. Also when adjusting the coffee button.
Aroma Setting:
3 strength choices are possible by pressing
the "Aroma" button
= mild aroma
= medium aroma
= strong aroma
Confidential
= pre-ground coffee
Product dimensions and information
• Product dimensions (L x D x H): 256 x 440 x 340 mm
• Coffee bean capacity: 300 gr
Waste container capacity: 10 servings
•
Water tank capacity: 1.5 l
•
Maximum cup height: 130 mm
•
Product weight: 8.9 kg
•
• Grind settings:
The grinder can be set with the grinder
ON/OFF
button
adjustment key. There are 5 settings.
Aroma/ pre-
Adjust while the machine is grinding.
ground coffee
1. Coarse grind: lighter taste, for dark roasted
button
coffee blends
Menu
2. Fine grind: bolder taste, for
light roasted coffee blends.
• Water hardness setting:
The water hardness can be measured with
the supplied tester strip.
1. Immerse the strip 1 sec. in water.
2. Check how many squares have changed to
red and consult the table.
3. The numbers on the strip correspond to the
water hardness adjustment settings.
4. To set the hardness on the machine; Press the
Menu button scroll with the aroma
button until the hardness setting appears and
select the number.
Divison, MMMM dd, yyyy, Reference
• Water pressure in pump: 15 bar
• Supported coffee types: Ground coffee
and Whole coffee beans
• Automatic Milk Frother
Prime the circuit:
To get air out of the internal circuit the
system needs to be primed.
Prime the system when the machine indicates this, it will
show this symbol in the display. Press the Espresso button
to start the priming.
You can also manually prime the circuit at any time by
simply dispensing some hot water.
Brew group:
How to remove:
1. Remove the coffee grounds drawer and open the service
door.
2. Remove and clean the coffee residues drawer.
3. To remove the brew group, press the PUSH button and
pull it out by its handle.
How to insert, set in rest position:
Important! If the brew group does not stand in the rest
position, it cannot be reinserted.
How to set the brew group in the rest position:
1. The lever must be in contact with the brew group base.
Push it down.
2. The two arrow heads on the side of the brew group will
now match.
3. The locking hook on the side of the brew group needs to
be in uppermost position. Push it upwards until you hear a
soft click.
