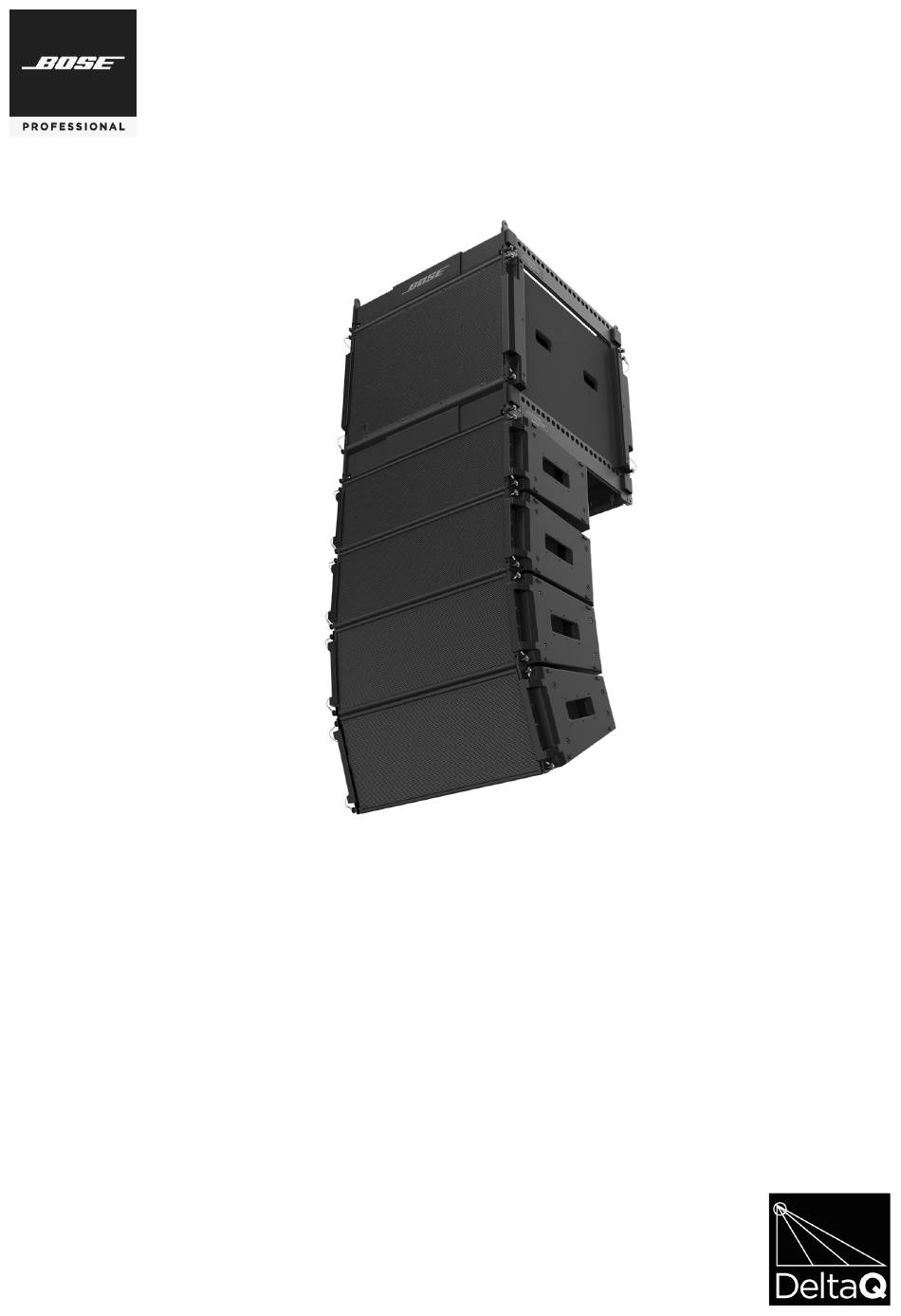

- Page 1 ShowMatch DeltaQ Array Rigging Frames Installation and Safety Guidelines...
-
Page 2: Important Safety Instructions
Obtain all mounting system components from reputable manufacturers. Select a mounting system appropriate for your loudspeaker system and its intended application. We recommend Bose mounting accessories when available. A licensed professional engineer must review the design and fabrication of any custom mounting hardware. -
Page 3: Product Applications
For more information and complete installation instructions for ShowMatch DeltaQ loudspeaker modules and compatible accessories, refer to the installation guide available at pro.Bose.com. To request a printed copy, use the phone numbers provided in the Contact Information section of this guide. -
Page 4: Technical Information
Technical Information pro.Bose.com Product Descriptions and Dimensions ShowMatch Array Frame (SMAF) Product Weight: 83.0 lbs (37.6 kg) Product weight includes one shackle adapter. Each shackle adapter is 1.5 lbs (0.7 kg). Single Point, 10:1 Working Load Limit (in accordance with ANSI E1.8-2012) - Page 5 Technical Information ShowMatch T-Bar Array Frame (SMAFT) Product Weight: 40.5 lbs (18.4 kg) Product weight includes one shackle adapter. Each shackle adapter is 1.5 lbs (0.7 kg). Single Point, 10:1 Working Load Limit (in accordance with ANSI E1.8-2012) ShowMatch T-Bar Array Frame (SMAFT)
- Page 6 Technical Information pro.Bose.com ShowMatch Array Pullback Bracket (SMPULL) Product Weight: 15 lbs (18.4 kg) Single Point, 10:1 Working Load Limit (in accordance with ANSI E1.8-2012) ShowMatch Array Pullback Bracket ShowMatch Array Pullback Bracket (SMPULL) Center Suspension Point (SMPULL) Side Suspension Point...
-
Page 7: Installation
ShowMatch DeltaQ array loudspeakers are shipped with integrated link-bar rigging hardware. The rigging system is designed to allow fast setup of typical concert-touring or fixed-installation arrays of up to 24 full-range or 18 subwoofer modules while maintaining a 10:1 Safety Factor when used with Bose® ShowMatch Array Frame Rigging Accessories. - Page 8 To connect a ShowMatch Array Frame or T-Bar Array Frame to a full-range loudspeaker module: 1. Use Bose® Modeler® software or the Bose Array Tool to determine appropriate rigging points on array frames for required aiming angles, and to confirm that array does not exceed load limits of frame. For more information on Modeler and the Bose Array Tool, see pro.Bose.com.
-
Page 9: Connect Array Frame To Subwoofer
To connect a ShowMatch Array Frame to a subwoofer: 1. Use Bose® Modeler® software or the Bose Array Tool to determine appropriate rigging points on array frames for required aiming angles, and to confirm that array does not exceed load limits of frame. For more information on Modeler and the Bose Array Tool, see pro.Bose.com. - Page 10 Use Bose Modeler software or the Bose Array Tool to determine if the pull back bracket is required and to confirm that the pullback angle and working load is within acceptable safe limits.
-
Page 11: Contact Information
Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Tel: 886 2 2514 7977 Mexico Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Tel: 001 800 900 2673 Limited Warranty Your product is covered by a limited warranty, Visit pro.Bose.com for warranty details. - Page 12 ©2016 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM772786 Rev. 00...
