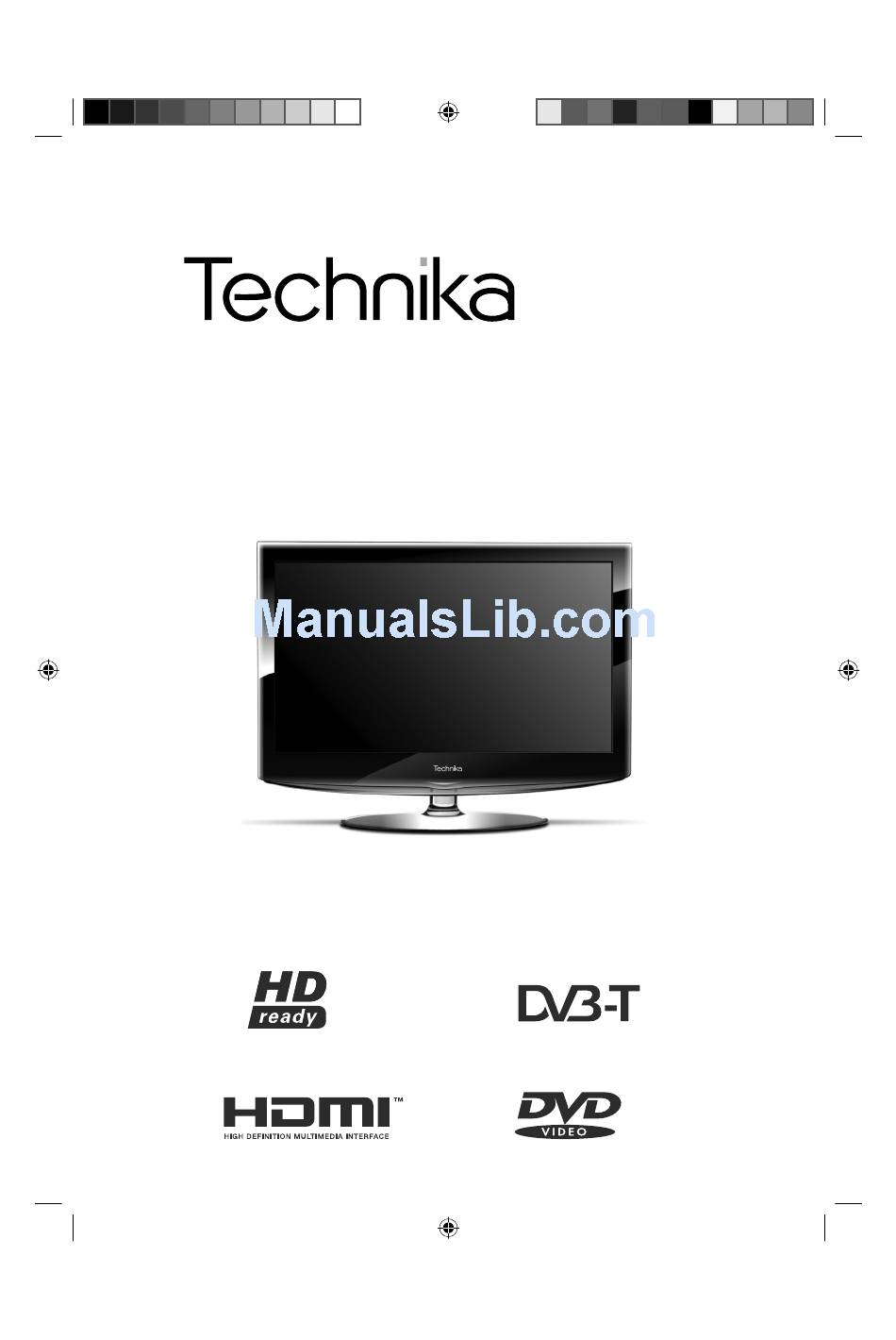

- Page 1 IDTV User Guide Technika Manual19-22-228.indd 1 Technika Manual19-22-228.indd 1 Model No 19-228 22-228 6/24/2010 11:41:48 AM 6/24/2010 11:41:48 AM...
- Page 2 Technika Manual19-22-228.indd Sec1:2 Technika Manual19-22-228.indd Sec1:2 6/24/2010 11:41:50 AM 6/24/2010 11:41:50 AM...
-
Page 3: Manufacturers Guarantee Information
2) Date of purchase ______________________________________ (You can fi nd this on your sales receipt) 3) Serial Number ______________________________________ (You can fi nd this on the rear of the TV) Technika Manual19-22-228.indd Sec1:3 Technika Manual19-22-228.indd Sec1:3 enjoyment from your purchase. purchase. -
Page 4: Important Safety Instructions
• You will need original box/packaging in the event of warranty/service repair or support. We are unable to carry out warranty/service if you are unable to package it correctly. Technika Manual19-22-228.indd Sec1:4 Technika Manual19-22-228.indd Sec1:4 6/24/2010 11:41:50 AM 6/24/2010 11:41:50 AM... - Page 5 USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. Technika Manual19-22-228.indd Sec1:5 Technika Manual19-22-228.indd Sec1:5 6/24/2010 11:41:50 AM...
- Page 6 Technika Manual19-22-228.indd Sec1:6 Technika Manual19-22-228.indd Sec1:6 6/24/2010 11:41:50 AM 6/24/2010 11:41:50 AM...
-
Page 7: Table Of Contents
Index ............29 Technika Manual19-22-228.indd Sec1:7 Technika Manual19-22-228.indd Sec1:7... -
Page 8: What Is Included In The Box
The safest way to package your item in the event of warranty/service repair is in it’s original box/packaging. Technika Manual19-22-228.indd Sec1:8 Technika Manual19-22-228.indd Sec1:8 What is included in the box... -
Page 9: Detaching The Stand And Wall Mounting
Using other screws which are longer could cause irreparable damage to internal parts. Technika Manual19-22-228.indd Sec1:9 Technika Manual19-22-228.indd Sec1:9 2) Twist the TV into the CLOSE position until it clicks into place fi... - Page 10 Technika Manual19-22-228.indd Sec1:10 Technika Manual19-22-228.indd Sec1:10 6/24/2010 11:41:52 AM 6/24/2010 11:41:52 AM...
-
Page 11: Getting Started - Initial Set Up
‘signal booster’ in between the TV and the TV aerial socket. If this does not solve the problem, you will need to upgrade the TV aerial to a digital hi-gain compatible aerial Technika Manual19-22-228.indd Sec1:11 Technika Manual19-22-228.indd Sec1:11... -
Page 12: Tv Buttons And Input Source Menu
1) Press [SOURCE] 2) Scroll up / down using CH+/ CH- buttons to the input/source you require 3) Press Vol+ to change input/source to the one selected. Technika Manual19-22-228.indd Sec1:12 Technika Manual19-22-228.indd Sec1:12 TV Buttons and Source Menu VOL+ VOL-... -
Page 13: Remote Control
TITLE/REVEAL - DVD mode - To display the DVD title menu Teletext mode - To reveal or hide the hidden words. HOLD - Teletext mode - Hold current page which is displayed Technika Manual19-22-228.indd Sec1:13 Technika Manual19-22-228.indd Sec1:13 6/24/2010 11:42:00 AM... -
Page 14: Connections
Connecting a DVD Player/Recorder, Video Recorder or Cable/Satellite Box TVs Input/Source should be set to SCART DVD or VCR TV Aerial SCART Wall Socket Technika Manual19-22-228.indd Sec1:14 Technika Manual19-22-228.indd Sec1:14 HEADPHONES RF IN AUDIO IN (R/L) Component HD VIDEO COAX Audio Out... - Page 15 If you are supplied with a cable from the device which has RED, GREEN, BLUE, RED & WHITE connectors you must connect via Component (for picture) and by phono cable (for sound). TV Source should be set to Component. Green Blue Audio L/R Component White Technika Manual19-22-228.indd Sec1:15 Technika Manual19-22-228.indd Sec1:15 Yellow Video White Audio In L/R HDMI...
-
Page 16: Tv Menu Operation
Tip: If you do not press any buttons for 10 seconds, the menu will automatically exit. You can change the length of time before the menu exits automatically - see ‘OSD Timer’ section. Technika Manual19-22-228.indd Sec1:16 Technika Manual19-22-228.indd Sec1:16 TV Menu Operation buttons. -
Page 17: Sound Menu
(True digital signal) Select this option if you are connecting to a Stereo Hi-fi via coax cable (Pulse-code modulation (PCM) is a digital representation of an analogue signal) Technika Manual19-22-228.indd Sec1:17 Technika Manual19-22-228.indd Sec1:17 buttons. To confi rm... -
Page 18: Channel Menu
- Select the start channel (which relates to the frequency) and search manually for a channel. Note - This only searches for channels in the current source. i.e. Digital channels on Digital source Technika Manual19-22-228.indd Sec1:18 Technika Manual19-22-228.indd Sec1:18 TV Menu Operation buttons. -
Page 19: Feature Menu
If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a “smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In). Technika Manual19-22-228.indd Sec1:19 Technika Manual19-22-228.indd Sec1:19 buttons. To confi rm... -
Page 20: Setup Menu
(available to download). This menu lets you install the new software/fi rmware onto the television. Further details of how to do this will be issued with the fi rmware. Contact the helpline or refer to the ‘product support’ section of the website. Technika Manual19-22-228.indd Sec1:20 Technika Manual19-22-228.indd Sec1:20 TV Menu Operations... -
Page 21: Dvd Menu
Outputs left side sound Mono R Outputs right side sound Mix Mono Outputs a single channel of sound but mix between right and left Technika Manual19-22-228.indd Sec1:21 Technika Manual19-22-228.indd Sec1:21 buttons. To confi rm 6/24/2010 11:42:01 AM 6/24/2010 11:42:01 AM... -
Page 22: Pc Operation
1) Connect the laptop to the television 2) On the Laptop push buttons The screen will now switch to the television. Technika Manual19-22-228.indd Sec1:22 Technika Manual19-22-228.indd Sec1:22 PC Operation 3) Left click your mouse on Properties/Personalise... -
Page 23: Pc Settings Menu
Tip: If the computer is left in-active for a period of time, the television will switch into a ‘sleep’ state (the screen will power off to save power). To switch back on press the standby button. Technika Manual19-22-228.indd Sec1:23 Technika Manual19-22-228.indd Sec1:23 buttons. -
Page 24: Day Tv Guide/Usb
Set a reminder by pressing GREEN View a previous day by pressing YELLOW View the next day by pressing BLUE 3) Press [EXIT] to exit the 7 day TV Guide. Technika Manual19-22-228.indd Sec1:24 Technika Manual19-22-228.indd Sec1:24 7 Day TV Guide 6/24/2010 11:42:01 AM... -
Page 25: Usb Mode / Media Player
Music, Photos and Recorded Programmes based on fi le type. You can navigate through the menus using the scroll play/view press [OK] button. Technika Manual19-22-228.indd Sec1:25 Technika Manual19-22-228.indd Sec1:25 buttons. To confi rm the item you wish to 6/24/2010 11:42:02 AM... - Page 26 Technika Manual19-22-228.indd Sec1:26 Technika Manual19-22-228.indd Sec1:26 6/24/2010 11:42:02 AM 6/24/2010 11:42:02 AM...
-
Page 27: General Information
System Lock I have changed the password on the television and now forgotten it Technika Manual19-22-228.indd Sec1:27 Technika Manual19-22-228.indd Sec1:27 There are 2 options: 1) Use Digital COAX output connected to an external amplifi er/surround sound system 2) Use the 3.5mm headphone output and a 3.5mm to phono cable (available separately) to connect to an amplifi... -
Page 28: Technical Specifi Cations
Sound Inputs Sound Outputs HDMI Watts (RMS) Voltage Dimensions including stand (mm) Net weight (Kgs) Technika Manual19-22-228.indd Sec1:28 Technika Manual19-22-228.indd Sec1:28 19-228 18.5"/47cm 1366 x 768 1000:1 75 ohm Antenna / PAL-SECAM 1 x SCART, 1 x Video, 1 x Component (YPbPr - 1080i) 1 x 3.5mm jack for PC audio input, 1 x pair RCA shared for Video &... -
Page 29: Index
Manual Search ... 18 Noise Reduction ... 16 On Screen Display Timer ... 20 Phase (PC) ... 23 Picture Mode ... 16 Technika Manual19-22-228.indd Sec1:29 Technika Manual19-22-228.indd Sec1:29 Remote control ... 13 Reset to default ... 20 Sharpness ... 16 Sleep Timer ... - Page 30 Technika Manual19-22-228.indd Sec1:30 Technika Manual19-22-228.indd Sec1:30 6/24/2010 11:42:02 AM 6/24/2010 11:42:02 AM...
- Page 31 Technika Manual19-22-228.indd Sec1:31 Technika Manual19-22-228.indd Sec1:31 6/24/2010 11:42:02 AM 6/24/2010 11:42:02 AM...
- Page 32 Tesco Stores Ltd. Cheshunt EN8 9SL, UK Technika Manual19-22-228.indd Sec1:32 Technika Manual19-22-228.indd Sec1:32 XMU/MAN/0058 6/24/2010 11:42:02 AM 6/24/2010 11:42:02 AM...
