Technical Reference - Q&A
TSD-QA (2016/06)
1. Q: If I would like to install a mini-PCIe WiFi card on Z170 Extreme7+, how do I connect the WiFi antennas and
mini-PCIe WiFi card?
A:
If the connection wires between WiFi antennas and mini-PCIe WiFi card are less than 26 cm, please refer to
the following steps.

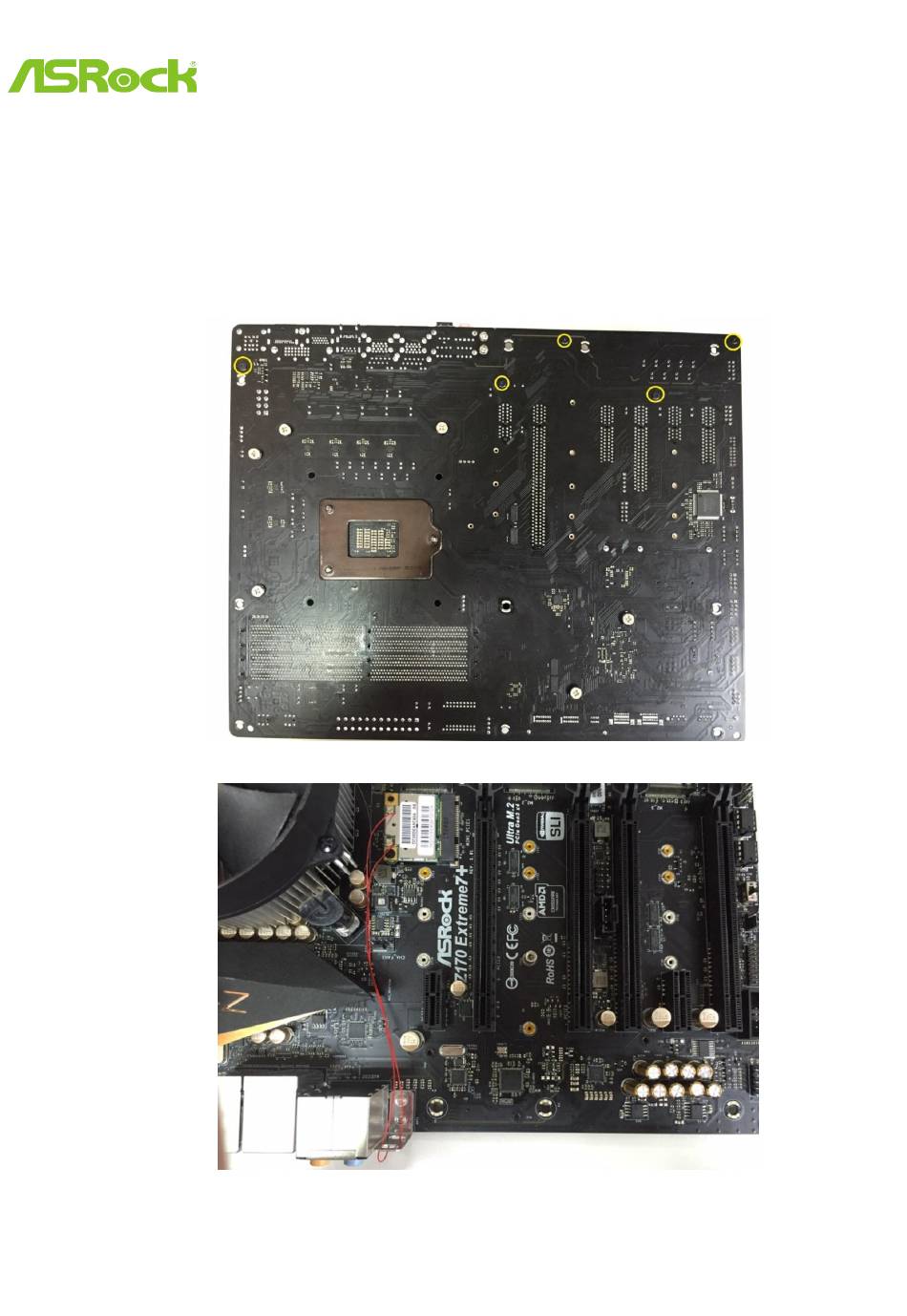

Step 1. Loosen the five screws marked in yellow circles on the back side of Z170 Extreme 7+. Then remove
the I/O cover.
Step 2. Use the red wires to connect the mini-PCIe WiFi card to WiFi antenna ports on the I/O port.
Advertisement
Related Manuals for ASROCK Z170 Extreme7+
Summary of Contents for ASROCK Z170 Extreme7+
- Page 1 Technical Reference - Q&A TSD-QA (2016/06) 1. Q: If I would like to install a mini-PCIe WiFi card on Z170 Extreme7+, how do I connect the WiFi antennas and mini-PCIe WiFi card? If the connection wires between WiFi antennas and mini-PCIe WiFi card are less than 26 cm, please refer to the following steps.
- Page 2 If the connection wires between WiFi antennas and mini-PCIe WiFi card are longer than 26 cm, please follow the steps below. Step 1 –Loosen the five screws marked in yellow circles on the back side of Z170 Extreme 7+. Then remove the IO cover.
- Page 3 Step 3 – Install the IO cover back to Z170 Extreme7+ as below picture.
- Page 4 2. Q: Do ASRock Intel X99 motherboards support Intel Broadwell-E CPU? To support the Intel Broadwell-E CPU, please refer to the following table and update your BIOS version. Download Link: http://www.asrock.com/support/index.asp Model BIOS Version X99 Extreme11 P3.00 X99 Extreme6 P3.00 X99 Extreme6/3.1...
- Page 5 1. Please open the chassis and you can find a white sticker at the edge of board with 12-digit MAC ID. 2. Download the MAC tool form following link : http://www.asrock.com/support/download/mactool.asp 3. Extract (Unzip) the file as “MAC161B” folder then put entire folder into a bootable USB flash drive root directory.
- Page 6 5. Under DOS environment, please key in the command as follow: Cd MAC161B <press Enter> MAC C XXXXXXXXXXXX <press Enter> (XXXXXXXXXXXX is MAC Address; please refer to the step1 to check the MAC Sticker) 6. After Key in the instruction, the system will flash MAC address automatically. 7.
