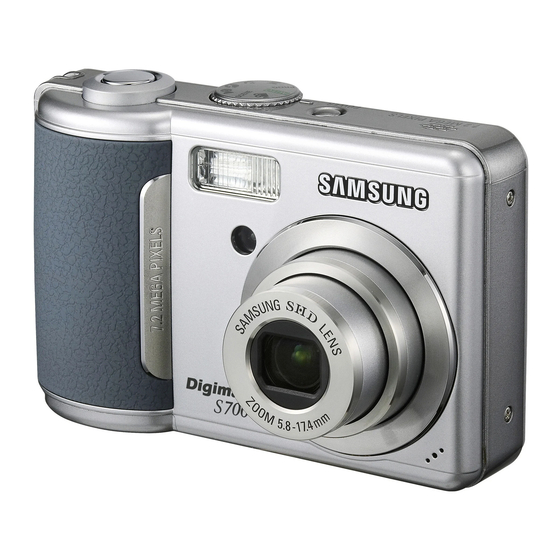

Samsung Digimax S700 Service Manual

Hide thumbs Also See for Digimax S700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Samsung Digimax S700

Summary of Contents for Samsung Digimax S700

  • Page 2: Table Of Contents

    C O N T E N T S Ⅰ Ⅰ . SPECIFICATION 1. CAMERA SPECIFICATION …………………………………………………………………………………… 4 2. SYSTEM REQUIREMENTS …………………………………………………………………………………… 6 3. LCD MONITOR IN DICATOR…………………………………………………………………………………… 6 4. CONNECTION DIAGRAM ……………………………………………………………………………………… 9 5. IDENTIFICATION OF FEATURES …………………………………………………………………………… 10 Ⅱ Ⅱ . INSTALLATION ……………………………………………………………………………………………...
  • Page 3 Ⅵ Ⅵ . CIRCUIT DIAGRAM 1. CIRCUIT DIAGRAM ………………………………………………………………………………………………………… 77 1) MAIN ………………………………………………………………………………………………… 78 2) MAIN_POWER ………………………………………………………………………………………………… 79 3) MAIN_AUDIO …………………………………………………………………………………………………… 80 4) MAIN_KEY …………………………………………………………………………………………………… 81 5) MAIN_FEB …………………………………………………………………………………………………… 82 6) MAIN_LCD ………………………………………………………………………………………… 83 7) MAIN_DSP-COACH-8S ………………………………………………………………………………………………… 84 8) MAIN_CRADLE ……………………………………………………………………………………………………...

  • Page 4: Camera Specification

    Ⅰ. SPECIFICATION 1. CAMERA SPECIFICATION ■ Image Sensor - Type : 1/2.5" CCD - Effective Pixel : Approx. 7.2 Mega-pixel - Total Pixel Approx. 7.4 Mega-pixel ■ Lens - Focal Length : SHD Lens f = 5.8 ~ 17.4mm (35mm film equivalent : 35 ~ 105mm) - F No.
  • Page 5 Fine 1420 1041 1562 Normal * These figures are measured under Samsung’ s standard conditions and may vary depending on shooting conditions and camera settings. ■ Image Play - Type : Single image, Thumbnails, Slide show, Movie Clip - Editing : Trimming, Resizing, Rotate, Effect ■...

  • Page 6: System Requirements

    Ⅰ. SPECIFICATION 2. System Requirements For Windows For Macintosh PC with processor better than Pentium II Power Mac G3 or later 450MHz(Pentium 700MHz recommended) Windows 98/ 98SE/ 2000/ ME/ XP Mac OS 9.0 ~ 10.4 Minimum 64MB RAM Minimum 64MB RAM 200MB of available hard disk space 110MB of available hard-disk space USB port...
  • Page 7 Ⅰ. SPECIFICATION Description Icons Recording mode Battery Aperture Value / Shutter Speed F2.8, 1/30 Continuous shot Flash / Without Sound Self-timer Macro Metering Card inserted indicator Auto focus frame Camera shake warning Date / Time 2006/08/01 01:00 PM Exposure compensation White Balance Sharpness Image quality / Frame rate...
  • Page 8 Ⅰ. SPECIFICATION ■ Play mode ⑫ ① ② ⑪ ISO : 80 ③ ⑩ Av : F 2.8 ④ ⑨ Tv : 1/30 ⑤ Flash : On ⑧ 3072X2304 ⑦ 2006/08/01 ⑥ Description Icons Play mode icon Battery Voice Memo Protect DPOF Recording date...

  • Page 9: Connection Diagram

    Ⅰ. SPECIFICATION 4. CONNECTION DIAGRAM...

  • Page 10: Identification Of Features

    Ⅰ. SPECIFICATION 5. IDENTIFICATION OF FEATURES Front & Top Mode dial Shutter button Power button Strap eyelet Speaker Flash Self-timer lamp / Auto focus lamp Lens / Lens cover Microphone Back & Bottom Camera status lamp Zoom W button (Thumbnail) Zoom T button (Digital zoom) E (Effects) button LCD monitor...
  • Page 11 Ⅰ. SPECIFICATION Bottom / 5-function button 음성메모/ 음성녹음/ 상 버튼 메뉴/OK 버튼 플래시/ 셀프타이머/ 좌 버튼 우 버튼 전지실 덮개 매크로/하 버튼 재생&일시 정지 버튼 메모리 카드 슬롯 전지실 Cradle (Optional) ● Top Camera connection terminal ● Back USB port / AC connection terminal AV connection terminal...

  • Page 12: Ⅱ Ⅱ . Installation

    Ⅱ. INSTALLATION 1. The auto run frame will display. Click the [Install] menu in the Auto run frame. 2. Install the DirectX, Digimax Master by selecting a button shown on the monitor.
  • Page 13 Ⅱ. INSTALLATION...
  • Page 14 Ⅱ. INSTALLATION 3. After restarting the computer, connect the PC to the camera with the USB cable. 4. Turn the camera power on. The [Found New Hardware Wizard] will open and the computer will recognize the camera. ※ If your OS is Windows XP, an image viewer program will open.
  • Page 15 Ⅱ. INSTALLATION ● If you have installed the camera driver, The [Found New Hardware Wizard] may not open. ● On a Windows 98 or 98 SE system, the Found New Hardware Wizard dialog box opens and a window asking you to select a driver file may appear. In this case, specify "USB Driver" in the CD supplied. (for Windows 98 and 98 SE).

  • Page 16: Main Assembly

    Ⅲ. EXPLODED VIEW AND PART LIST 1. MAIN ASSEMBLY...
  • Page 17 Ⅲ. EXPLODED VIEW AND PART LIST ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q9007250701A BATTERY COVER ASSY Q6003042701A SCREW Q6003042701A SCREW SILVER Q9761175007A SCREW BLACK...

  • Page 18: Body Assembly

    Ⅲ. EXPLODED VIEW AND PART LIST 2. BODY ASSEMBLY 2-27 2-25 2-26 2-24 2-16 2-13 2-17 2-15 2-14 2-18...
  • Page 19 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q9002146501A BARREL ASSY Q2904003602A IR CUT FILTER Q7309048601A OLPF CUSHION Q9008107101A CCD_FPCB_ASSY Q0961900301A SCREW Q9008107001A MAIN_PCB_ASSY Q3003001201A Q9004088801A STROBO_ASSY Q9008110901A STROBO_FPCB_ASSY 2-10 Q2401008501A...

  • Page 20: Barrel Assembly

    Ⅲ. EXPLODED VIEW AND PART LIST 3. BARREL ASSEMBLY 3-41 3-14 3-42 3-23 3-24 3-40 3-13 3-25 3-12 3-10 3-19 3-24 3-16 3-20 3-15 3-24 3-21 3-17 3-22 3-26 3-18 3-37 3-11 3-36 3-35 3-34 3-32 3-33 3-31 3-28 3-30 3-29 3-38 3-39...
  • Page 21 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q7012083901B AF CLIP Q9002138701A 3rd LENS ASS'Y Q7012084602A AF GUIDE HOLDER Q7411119702A AF GUIDE BAR-A Q7411119801A AF GUIDE BAR-B Q9002137701A AF MOTOR ASS'Y Q7012085702A AF CLIP HOLDER...
  • Page 22 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks 3-21 Q0608001001A PHOTO INTERRUPTER 3-22 Q0608000701A PHOTO REFLECTOR 3-23 Q4101035001A MAIN F PCB 3-24 Q0961900301A SCREW 3-25 Q6003000201A SCREW 3-26 Q0994913101A SCREW 3-27...
  • Page 23 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks 3-32 Q7012083801A F-PCB GUIDE 3-33 Q7411120101A OCB PIN 3-34 Q7212191102A CAM BARREL 3-35 Q7212187001A GUIDE PLATE 3-36 Q7212187302A OUTER GUIDE BARREL 3-37 Q7212187202A OUTER CAM BARREL...

  • Page 24: Barrier Assembly

    Ⅲ. EXPLODED VIEW AND PART LIST 4. BARRIER ASSEMBLY...
  • Page 25 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q7212191201A FRONT PANEL Q6107064103A BARRIER CLOSE SPRING Q7212187601A BARRIER-A Q7012084201A BARRIER BASE Q9002139601A BARRIER LEVER ASS'Y Q6107064202A BARRIER OPEN SPRING Q6003047001A BARRIER SCREW Q9002146701A...

  • Page 26: Front Cover Assembly

    Ⅲ. EXPLODED VIEW AND PART LIST 5. FRONT COVER ASSEMBLY...
  • Page 27 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q9007270901A FRONT_COVER_ASSY_DIGIMAX_S700 SILVER Q9007270901B FRONT_COVER_ASSY_DIGIMAX_S700 BLACK Q9007270901C FRONT_COVER_ASSY_KENOX_S700 SILVER Q9007270901D FRONT_COVER_ASSY_KENOX_S700 BLACK Q7217390401A FRONT_COVER_DIGIMAX_STS2_73 SILVER Q7217390401B FRONT_COVER_DIGIMAX_STS2_73 BLACK Q7217390401C FRONT_COVER_KENOX_STS2_73 SILVER Q7217390401D FRONT_COVER_KENOX_STS2_73...

  • Page 28: Middle Cover Assembly

    Ⅲ. EXPLODED VIEW AND PART LIST 6. MIDDLE COVER ASSEMBLY 6-18 6-10 6-14 6-15 6-16 6-17...
  • Page 29 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q9007270701A MIDDLE_COVER_ASSY Q7217368104B MIDDLE_COVER Q7409213501A RELEASE DECO TAPE Q7217369501A RELEASE DECO Q6107059701A RELEASE SPRING Q7217369101A RELEASE BUTTON Q7017039003A MODE CLICK PLATE Q7217368802B MODE DIAL Q9008060101A...

  • Page 30: Back Cover Assembly

    Ⅲ. EXPLODED VIEW AND PART LIST 7. BACK COVER ASSEMBLY...
  • Page 31 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q9007271001A REAR_COVER ASSY SILVER Q9007271001B REAR_COVER ASSY BLACK Q7217391601A REAR_COVER SILVER Q7217391601B REAR_COVER BLACK Q7011058801A LCD_CUSHION Q7011058801A AF LED LAMP Q7217368903A NAVI KEY Q7017050802A...

  • Page 32: Packing Item

    Ⅲ. EXPLODED VIEW AND PART LIST 8. PACKING ITEM 8-19 8-13 8-14 8-21 8-18 8-17 8-16 8-20 8-10 8-11 8-12 8-15...
  • Page 33 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks QP960210101A PE BAG (FOR CAMERA) Q6909018202A PE BAG (FOR ACCESSORY) Q6901225401A INNER PAD_SBC-N1 INNER PAD_ DURACEL ULTRA Q6901226001A Q6901250801A INNER PAD_KOR Q7409222401A STRAP_KOR/EXP Q4609015401A...
  • Page 34 Ⅲ. EXPLODED VIEW AND PART LIST ▶ ▶ PARTS LIST Fig.No Parts No. Parts Name Q’ty Supply Available Parts Remarks Q6806029301A U/MANUAL_KENOX_S700_KOR Q6806043001A U_MANUAL_Digimax_S700_ENG Q6806043301A U_MANUAL_Digimax_S700_GER Q6806043501A U_MANUAL_Digimax_S700_FRA Q6806043601A U_MANUAL_Digimax_S700_SPA Q6806043901A U_MANUAL_Digimax_S700_ITA Q6806044401A U_MANUAL_Digimax_S700_CHI(T) Q6806044501A U_MANUAL_Digimax_S700_DUT Q6806044601A U_MANUAL_Digimax_S700_POR 8-10 Q6806044701A U_MANUAL_Digimax_S700_SWE Q6806044801A U_MANUAL_Digimax_S700_DEN...
  • Page 35 AC CODE CABLE Q7409250801A MIC LABEL_KENOX S700(MADE IN KOREA) Q7409250901A MIC LABEL_KENOX S700(MADE IN CHINA) 8-20 Q7409251001A FCC LABEL_Digimax S700_EXP (MADE IN KOREA) Q7409251101A FCC LABEL_Digimax S700_EXP (MADE IN CHINA) Q7409247401A FCC LABEL_Digimax S700_EXP (MADE BY SAMSUNG) 8-21 Q7409251201A PRODUCT STICKER_KENOX S700...

  • Page 36: Digital Camera Service

    Ⅳ. ADJUSTMENT 1. Digital camera service To take a digital camera service (Repair, Tuning and Checking), the following equipments have to be arranged. The sequences for the camera service are as shown. Receiving the camera 1. Receiving the camera When receiving a camera, check whether the accessories are Checking the camera included or not and ask the customer exact problems.
  • Page 37 Ⅳ. ADJUSTMENT 1) Equipments for checking and inspection To check and inspect the camera malfunction, the following equipments have to be arranged. ⑥ ④ ↓ ③ ② ⑤ → ① ⑦ ⑪ ⑧ ⑨ → ← ⑩ Device Description PC for inspection - Installing a digital camera driver or Checking the removable device - Checking the file transference(upload and download) - Playing back the still image or movie clip...
  • Page 38 Ⅳ. ADJUSTMENT 2) Equipments for camera repair To repair the camera, the following equipments have to be arranged. ⑧ ⑩ → ⑬ ④ ⑫ ⑨ ③ ⑥ ⑦ ② ① ⑪ → ⑤ Device Description A set of tools Pincette/ Screwdriver/ Discharger etc. Cleaning paper For cleaning camera lens and camera parts Detergent container...
  • Page 39 Ⅳ. ADJUSTMENT 3) Equipments for camera tuning To tune the camera, the following equipments have to be arranged. ⑤ ② ④ ① ⑥ ③ Device Description AE TESTER For tuning AE and STROBE AWB LIGHT For checking and tuning AWB SOURCE BOX COLOR chart For checking AWB and color of images...
  • Page 40 - When the cable is inserted, check whether the images play back on the external monitor. Turn on the camera. - Check whether the green LED is blinking, SAMSUNG LOGO is on and the start-up sound sounds. - Check the “L” and “FINE” icon on the LCD monitor.
  • Page 41 Ⅳ. ADJUSTMENT Checking item Check point - Check whether the icon and counter are displayed on the LCD MANUAL focus. monitor. Take a movie clip with TELE zoom - Check whether the recording time is displayed and there are a during 10 seconds.

  • Page 42: Firmware

    Ⅳ. ADJUSTMENT 2. Firmware 1)Reseting Camera 1. Turn on the Camera 2. Press the Up button twice and the Voice recording mode will be selected. 3. Press and hold the Up button and Shutter button and then press the Power button again. 4.
  • Page 43 Ⅳ. ADJUSTMENT 2) Checking Firmware 1. Remove the memory card from the camera. 3. Press the Up button twice to select the Voice Recording mode. 2. Turn on the camera. 5. Check the Firmware and turn off the camera. 4. Press the 5 function button as following order. (Left button Right button Down button...
  • Page 44 Ⅳ. ADJUSTMENT 3) Upgrading Firmware 1. Insert the SD card that has the firmware. ※* Updating the firmware will delete all data in the SD card. Be sure to download all data to your PC before updating the firmware. The firmware file name must be " STS273.elf " and use the AC adapter or fully charged battery.. 2.
  • Page 45 Ⅳ. ADJUSTMENT 4. Press the Up button twice to select the Voice 5. Press the 5 function button as following order. (Left button → Right button → Up button → +/- button) Recording mode. 6. ‘NOW UPGRADING!' message will display and then the firmware will be upgraded. 7.
  • Page 46 Ⅳ. ADJUSTMENT 4) Full Version of Firmware1 How to use the FULL version of Firmware1 When the camera is not turned on, do the Full version upgrade. ▷ Camera Status : When turning on the camera, the power consumption (Checking the POWER SUPPLY) is 200- 300mA and the camera caat be operated.
  • Page 47 Ⅳ. ADJUSTMENT 5) Full Version of Firmware2 How to use the FULL firmware2 Depending on the camera status, do the full version upgrade. ▷ Reference : - Delete all data in the memory card and upgrade with this firmware. - When using the full version upgrade, back up the script file as the files will be deleted by the upgrade. - If the full version upgrade is done by the following way, the script files are saved on the SD card.
  • Page 48 Ⅳ. ADJUSTMENT 3. Turn on the Camera. 4. Press the Up button twice to select the Voice Recording mode. 5. Press the 5 function button as following order. (Left button ? Right button ? Down button ? +/- button)
  • Page 49 Ⅳ. ADJUSTMENT 6. ‘NOW UPGRADING!' message will display and then the firmware will be upgraded. - When the full version firmware is upgrading, the script files are saved on the SD card automatically and if LSCLUT0.BIN, DefectivePixel0.bin, DefectivePixel1.bin files are in the SD card, the back up is done. 7.

  • Page 50: Basic Information Of Adjustment

    Ⅳ. ADJUSTMENT 3. Basic Information of Adjustment 1. To adjust the camera after changing the electronic parts, see the below table. MAIN POWER BARREL PROCESS ASSY ASSY CODE FIRMWARE UPGRADE ● ● ● ● PUNT ADJ ● ● ● CCD DEFECT CELL ●...
  • Page 51 Ⅳ. ADJUSTMENT < Description of TXT file > PROGRAM Description of the codes <1>PROCESS CODE ; 조정하고자 하는 PROCESS..CODE를 입력한다. <2>65535 ; 65535..-->..DEFAULT <3>PROCESS CODE ; 조정하고자 하는 PROCESS..CODE를 입력한다. <4>0 OR 1 ; 조정된 값을 EEPROM에 저장하기 위해 1을 입력한다. <5>0 OR 1 ;...
  • Page 52 Ⅳ. ADJUSTMENT 1) OB SETTING fter changing the MAIN PCB, adjust the black color.. <How to adjust> a...Download program and save it to SD memory card. b... Insert the SD memory card that has the program file and turn on the camera. c...
  • Page 53 Ⅳ. 조 정 < Description of TXT file > When making or modifying the program, see the following program codes. When modify the program, use the Memo Pad of Windows and save it as “STS2_73ADJ.txt”. PROGRAM D D e e s s c c r r i i p p t t i i o o n n o o f f t t h h e e c c o o d d e e s s <1>PROCESS CODE ;...
  • Page 54 Ⅳ. ADJUSTMENT 2) LENS SHADING This menu adjust the brightness gaps between center of the lens and around the lens. Required Equipment : AE TESTER(LV: 8.2) <How to adjust> a...Prepare AE TESTER can be test up to LV8.2 b...Download program file and save it to SD memory card. c...
  • Page 55 Ⅳ. ADJUSTMENT e... Turn on the camera. f...<Figure 2-1> will be displayed on the TFT LCD and the adjustment will be done automatically. <Figure 2-1> e...After completing the upgrade, the camera is turned off automatically. ※If the adjustment is incomplete, <Figure 2-2> will display. In this case, re-try the adjustment process.
  • Page 56 Ⅳ. ADJUSTMENT 3) B/T LEVEL ADJ After changing the MAIN PCB, adjust WARNING LEVEL and LOCK LEVEL. Required Equipment : POWER SUPPLY(2.71V) <How to adjust> a...Prepare the POWER..SUPPLY. b...Connect the camera to the POWER..SUPPLY. c...Set the voltage to 2.71V. d...Downloading the program file and save it to SD memory card. e...Insert the SD memory card and turn on the camera.
  • Page 57 Ⅳ. ADJUSTMENT < Description of TXT file > When making or modifying the program, see the following program codes. When modify the program, use the Memo Pad of Windows and save it as “STS2_73ADJ.txt”. Description of codes PROGRAM <1>5; <1>PROCESS CODE ; <2>65535;...
  • Page 58 Ⅳ. ADJUSTMENT 4) BACK LASH ADJ After changing the MAIN PCB, BARREL and CCD, adjust the BACK LASH. <How to adjust> a...Download the Program file and save it to SD memory card. b...Insert the SD memory card that has program file and turn on the camera. c...
  • Page 59 Ⅳ. ADJUSTMENT < Description of TXT file > When making or modifying the program, see the following program codes. When modify the program, use the Memo Pad of Windows and save it as “STS2_73ADJ.txt”. Description of codes PROGRAM <1>9; <1>PROCESS CODE ; <2>65535;...
  • Page 60 Ⅳ. ADJUSTMENT 5) SHUTTER CLOSE TIME ADJ After changing the MAIN PCB, BARREL and CCD, adjust the SHUTTER CLOSE TIME. Required Equipment: AE TESTER(LV 15.8±0.1.) < How to adjust > a...Prepare AE TESTER that can be test up to LV 15.8±0.1. b...Attach the camera to the AE TESTER.
  • Page 61 Ⅳ. ADJUSTMENT < Description of TXT file > When making or modifying the program, see the following program codes. When modify the program, use the Memo Pad of Windows and save it as “STS2_73ADJ.txt”. Description of codes PROGRAM <1>7; <1>PROCESS CODE ; <2>65535;...
  • Page 62 Ⅳ. ADJUSTMENT 6) FLASH ADJ After changing the MAIN PCB and SUB PCB, adjust the FLASH. Required Equipment : Dark room, Gray chart (36% reflect paper), Tripod < How to adjust > a...Arrange a 36% reflect chart in a darkroom.. b...
  • Page 63 Ⅳ. ADJUSTMENT g... After completing the upgrade, the camera is turned off automatically. If the adjustment is incomplete, <Figure 6-2> will display. In this case, re-try the adjustment process. <Figure 6-2> < Description of TXT file > When making or modifying the program, see the following program codes. When modify the program, use the Memo Pad of Windows and save it as “STS2_73ADJ.txt”.
  • Page 64 Ⅳ. ADJUSTMENT 7) FOCUS ADJ After changing the MAIN PCB and BARREL, adjust the PUNT. Required Equipment : Chart for FOCUS adjustment, Tripod < How to adjust > a... Arrange a chart for adjust the FOCUS. b... Attach the camera to the tripod. c...
  • Page 65 Ⅳ. ADJUSTMENT g... After completing the upgrade, the camera is turned off automatically. If the adjustment is incomplete, <Figure 7-2> will display. In this case, re-try the adjustment process. <Figure 7-2> < Description of TXT file > When making or modifying the program, see the following program codes. When modify the program, use the Memo Pad of Windows and save it as “STS2_73ADJ.txt”.
  • Page 66 Ⅳ. ADJUSTMENT 8) BURNING TEST BURNING TEST : After changing the MAIN PCB and parts, check whether all of the camera functions work correctly. CCD DEFECT CELL : After changing the MAIN PCB and CCD, adjust the DEFECT CELL of CCD. <...
  • Page 67 Ⅳ. ADJUSTMENT < Codes of program > Function code code Function DELETE..ALL MACRO..SHOOTING LCD..ON CONTINUOUS..SHOOTING(2) WIDE SELF..TIMER..(10..sec.) TELE PLAY..MODE NOT..USE SLIDE..SHOW FLASH..ONSHOOTING MOVIE..CLIP..RECORD FLASH..OFF..SHOOTING MOVIE..PLAY NORMAL..SHOOTING b... Save the program on the SD card. c... Insert the SD memory card that has the program file and turn on the camera. d...
  • Page 68 Ⅳ. ADJUSTMENT 9) EEPROM READ To read the data of EEPROM, refer to the below codes. <How to read> a...Insert the codes (from START ADDRESS 0 to END ADDRESS 500) and save the program in the SD card. b... Insert the SD memory card that has the program file and turn on the camera. c...
  • Page 69 Ⅳ. ADJUSTMENT 10) EEPROM WRITE If you want to write the DATA of EEPROM, do as follows. <How to write> a...Insert the codes (from 0 to 540) and save the program in the SD card. b... Insert the SD card to the camera and turn on the camera. c...

  • Page 70: Main_Top

    Ⅴ. PATTERN DIAGRAM 1. PARTS ARRANGEMENT FOR EACH PCB ASS’Y 1) MAIN_TOP...

  • Page 71: Main_Bottom

    Ⅴ. PATTERN DIAGRAM 2) MAIN_BOTTOM...

  • Page 72: Mode

    Ⅴ. PATTERN DIAGRAM 3) MODE...

  • Page 73: Strobo_Top

    Ⅴ. PATTERN DIAGRAM 4) STROBO_TOP...

  • Page 74: Strobo_Bottom

    Ⅴ. PATTERN DIAGRAM 5) STROBO_BOTTOM...

  • Page 75: Ccd_Top

    Ⅴ. PATTERN DIAGRAM 6) CCD_TOP...

  • Page 76: Ccd_Bottom

    Ⅴ. PATTERN DIAGRAM 7) CCD_BOTTOM...

  • Page 77: Main

    Ⅵ. CIRCUIT DIAGRAM Ⅵ. CIRCUIT DIAGRAM 1) MAIN...

  • Page 78: Main_Power

    Ⅵ. CIRCUIT DIAGRAM 2) MAIN_POWER...

  • Page 79: Main_Audio

    Ⅵ. CIRCUIT DIAGRAM 3) MAIN_AUDIO...

  • Page 80: Main_Key

    Ⅵ. CIRCUIT DIAGRAM 4) MAIN_KEY...

  • Page 81: Main_Feb

    Ⅵ. CIRCUIT DIAGRAM 5) MAIN_FEB...

  • Page 82: Main_Lcd

    Ⅵ. CIRCUIT DIAGRAM 6) MAIN_LCD...

  • Page 83: Main_Dsp-Coach-8S

    Ⅵ. CIRCUIT DIAGRAM 7) MAIN_DSP-COACH-8S AUDIO INTERFACE AUDIO INTERFACE DDR INTERFACE DDR INTERFACE ICVN0518X400 ICVN0518X400...

  • Page 84: Main_Cradle

    Ⅵ. CIRCUIT DIAGRAM 8) MAIN_CRADLE...

  • Page 85: Main_Ddr

    Ⅵ. CIRCUIT DIAGRAM 9) MAIN_DDR...

  • Page 86: Main_Top

    Ⅵ. CIRCUIT DIAGRAM 10) MAIN_TOP...

  • Page 87: Main_Memory

    Ⅵ. CIRCUIT DIAGRAM 11) MAIN_MEMORY...

  • Page 88: Main_Motor

    Ⅵ. CIRCUIT DIAGRAM 12) MAIN_MOTOR...

  • Page 89: Main_Strobo

    Ⅵ. CIRCUIT DIAGRAM MAIN_STROBO...

  • Page 90: Strobo Fpcb

    Ⅵ. CIRCUIT DIAGRAM 14) STROBO FPCB...

  • Page 91: Ccd Fpcb

    Ⅵ. CIRCUIT DIAGRAM 15) CCD FPCB...
  • Page 92 Ⅶ. SERVICE INFORMATION 1. The order of disassembly and assembly ■ Caution 1... Do the disassembling and assembling camera where the blocking static electricity mat is on the table. 2... When handling the major PCBs of camera, please wearing the band which cuts off the electric current on the wrist.
  • Page 93 Ⅷ. SERVICE INFORMATION ■ Disassemble the outer camera 1. Remove 2 screws. 2. Remove 2 screws. 3. Remove 2 screws.
  • Page 94 Ⅷ. SERVICE INFORMATION 4. Disassemble the BACK COVER. ■ Disassembling the LCD ASSY 5. Remove 3 screws. 6. Disconnect the PCB from the connector.
  • Page 95 Ⅷ. SERVICE INFORMATION 7. Disassemble the LCD ASSY. 8. Disconnect the PCB from the connector and remove a screw (②). 9. Disassemble the FRONT COVER.
  • Page 96 Ⅷ. SERVICE INFORMATION ■ Disassembling the MAIN PCB ASSY. 10. No.1 : Before removing the PCB soldering, discharge the main condenser. No. 2 : Disassemble the 2 connector, No 3 : Disassemble the 2 wires (Black, Red) 11. Remove the 2 soldering points of battery contacts and 2 screws.
  • Page 97 Ⅷ. SERVICE INFORMATION 13. Remove 2 screws. 12. Disassemble the MAIN PCB. 14. Remove 2 screws.
  • Page 98 Ⅷ. SERVICE INFORMATION 15. Disassemble the Barrel ASSY. 16. Remove a screw. 17. Disassemble the STROBE PCB.
  • Page 99 Ⅷ. SERVICE INFORMATION ■ Assemble Camera 1. Attach the STROBE PCB. 2. Assemble a screw. 3. Attach the Barrel ASSY.
  • Page 100 Ⅷ. SERVICE INFORMATION 4. Assemble 2 screws. 5. Assemble 2 screws. 6. Attach the MAIN PCB.
  • Page 101 Ⅷ. SERVICE INFORMATION 7. Assemble 2 screws and solder 2 points of the battery contacts. 8. No. 1 : solder the PCB, No. 2 : Connect 2 connectors, No.3 : solder 2 wires (Black, Red). 9. Attach the FRONT COVER.
  • Page 102 Ⅷ. SERVICE INFORMATION 10. Assemble a screw and connect the PCB to the connector. 11. Attach the LCD ASSY. 12. Connect the PCB to the connector. 13. Assemble 3 screws.
  • Page 103 Ⅷ. SERVICE INFORMATION 14. Attach the BACK COVER. 15. Assemble 2 screws. 16. Assemble 2 screws. 17. Assemble 2 screws.
  • Page 104 Ⅷ. SERVICE INFORMATION ■ Disassemble Barrel 1. Remove soldering and 4 screws. a..X..3 b..X..1 2...Taking care of the PCB, disassemble the Lens base. After disassembling the Lens base...
  • Page 105 Ⅶ. SERVICE INFORMATION 3... To disassemble the Barrel, remove the screw that holds the F PCB. 4...Disassemble the Outer Cam Barrel and Outer Guide Barrel. 5... Disassemble the Outer Cam Barrel and Outer Guide Barrel. To disassemble the Outer Guide Barrel, rotate it to the guide of Outer Cam Barrel.
  • Page 106 Ⅶ. SERVICE INFORMATION 6...Disassemble the Cam Barrel and Guide Plate. 7..To disassemble the Guide Plate from the Cam Barrel, press the 3 points of the Guide Plate inside and remove it. 8..Disassemble the 2nd Lens Ass'y and Shutter Ass'y.
  • Page 107 Ⅶ. SERVICE INFORMATION 9..To disassemble the Shutter Ass'y from the 2nd Lens Ass'y, disassemble the F PCB Guide and screw. F. Take care of the double glue tape when disassembling the PCB Guide. 10..Disassemble the Shutter Ass'y. After disassembling the Shutter Ass’ y...
  • Page 108 Ⅶ. SERVICE INFORMATION 1..To disassemble the Gear and Motor of the Lens Base, remove 4 screws. b..X..3 f..X..1 12..Remove the Photo Interrupter and Zoom Cover.
  • Page 109 Ⅶ. SERVICE INFORMATION 13..Disassemble the part of Gear. 14..Remove 2 screws and disassemble the Zoom motor. e..X..2 15..To disassemble the AF Guide Holder, remove a screw.
  • Page 110 Ⅶ. SERVICE INFORMATION 16..To disassemble the 3rd Lens Ass'y, remove the spring and disassemble the 3rd Lens Ass'y. 17..To disassemble the AF motor Ass'y, remove the AF Clip Holder and a screw and disassemble the AF Clip. h..X..1...
  • Page 111 Ⅶ. SERVICE INFORMATION 18..Disassemble the F PCB from the Lens Base. After completing the disassembly...
  • Page 112 Ⅶ. SERVICE INFORMATION ■ Assemble Barrel 1. Taking care of the F PCB, assemble the Shutter Ass'y. In this case, assemble the F PCB to 2nd Lens Ass'y firmly.
  • Page 113 Ⅶ. SERVICE INFORMATION 2. Assemble a screw and attach the Shield Tape. 3. Taking care of the direction of the PCB Guide, assemble them. Attach the F PCB to the F PCB Guide firmly.
  • Page 114 Ⅶ. SERVICE INFORMATION 4. Assemble the 2nd Lens Ass'y and Zoom Ring Ass'y. When assembling them, match the groove. The Barrier Lever must be shown. After assembling them 5. Assemble the Cam Barrel and Guide Plate. To assemble them press the Guide Plate as shown. You can hear ‘Click’...
  • Page 115 Ⅶ. SERVICE INFORMATION 6. Match the Boss part of the Outer Guide Barrel and Guide part of the Outer Guide Barrel. 7. Assemble the zoom Ring + 2nd Lens Ass'y and Cam Barrel + Guide Plate. Before assembling them, rotate the Guide Plate until the groove of the Cam Barrel is shown. After completing the assembly...
  • Page 116 Ⅶ. SERVICE INFORMATION 8. Assemble the Outer Cam Barrel and Outer Guide Barrel. When assembling them, take care of the position of the screw hole of Outer Cam Barrel and reflector of Outer Guide Barrel. After completing the assembly 9. Rotate the Outer Cam Barrel for extracting the Barrel, assemble screws and rotate it to the count direction to move the Barrel back.
  • Page 117 Ⅶ. SERVICE INFORMATION 10. Taking care of F PCB, Assemble the Lens Base Ass'y. 11.After assembling, assemble 4 screws and solder the F PCB.
