Daikin MHC Installation & Maintenance Data

Console Water Source Heat Pumps – Model MHC & MHW
Fuse/ Non-Fuse Disconnect (High-Sill Units Only)
WARNING
Installation and maintenance are to be performed by
qualified personnel who are familiar with local codes and
regulations, and experienced with this type of equipment.
CAUTION
Sharp edges can cause personal injury. Avoid contact
with them.
Procedure – Field Installed Accessory
1.
Remove the fuse disconnect components from the
shipping carton and check that all parts are included
in the kit. Compare the parts to the parts list enclosed
with the kit.

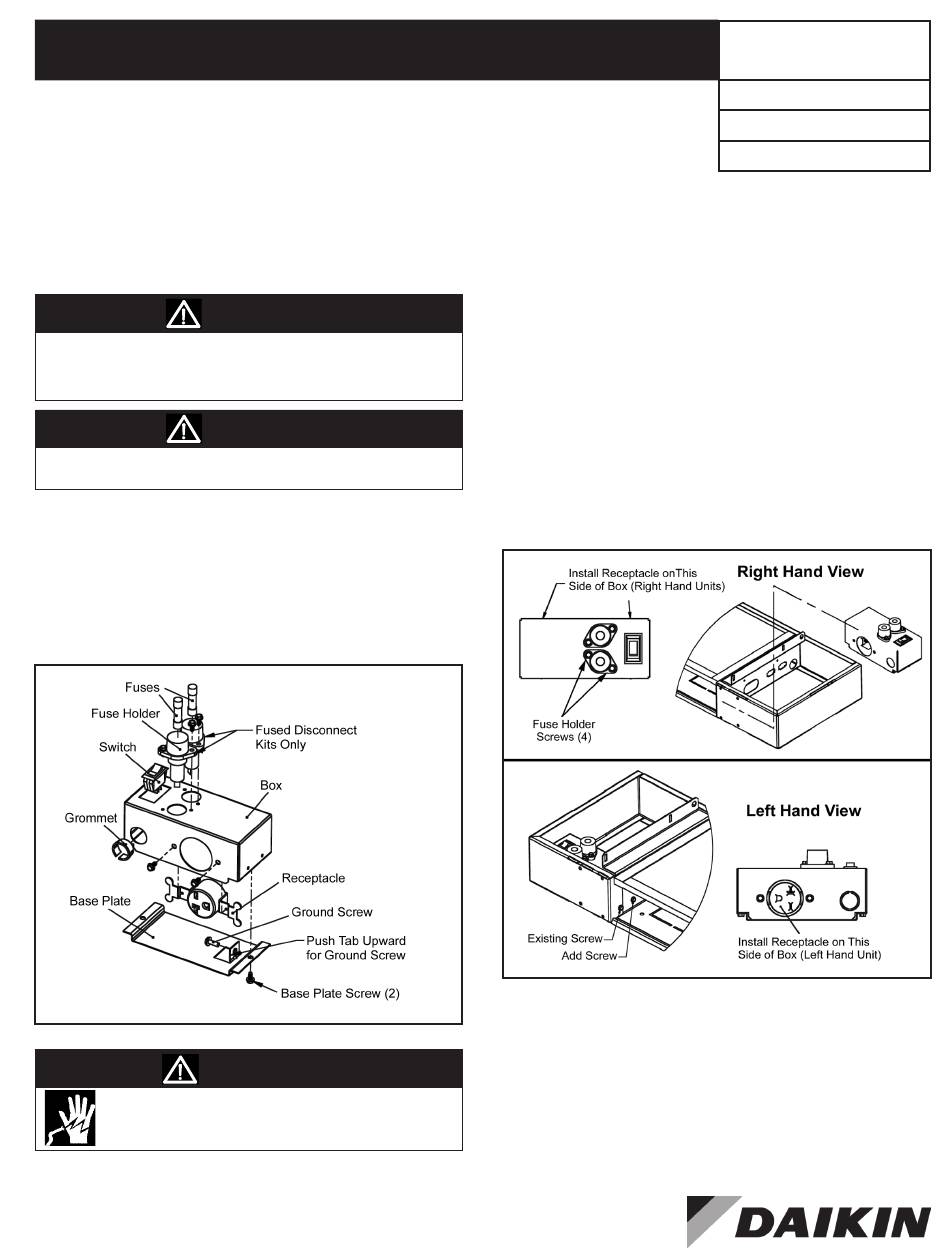

Figure 1. Fused Disconnect Assembly
DANGER
Disconnect all electrical power before servicing unit.
Electrical shock will cause severe injury or death.
©2013 Daikin Applied • www.DaikinAP.com • 800.432.1342
Installation & Maintenance Data
Assembling the Fuse Disconnect
Components
1.
2.
Figure 2. Location of Disconnect Assembly
3.
4.
Remove (2) screws securing the base plate to the
box, and disconnect the base from the cover.
Locate receptacle and plastic bag containing screws
and wire grommet. Assemble the receptacle and
grommet for a right hand or left hand unit installation
(Figure 2).
Knock out top holes for fuse holders. Locate fuses
and fuse holders from kit.
Remove fuse holder top, insert fuse, and reassemble
top to fuse holder. Install fuse holders into box using
(4) screws.
IM 975
Group: WSHP
Part Number: 669286601
Date: October 2013
