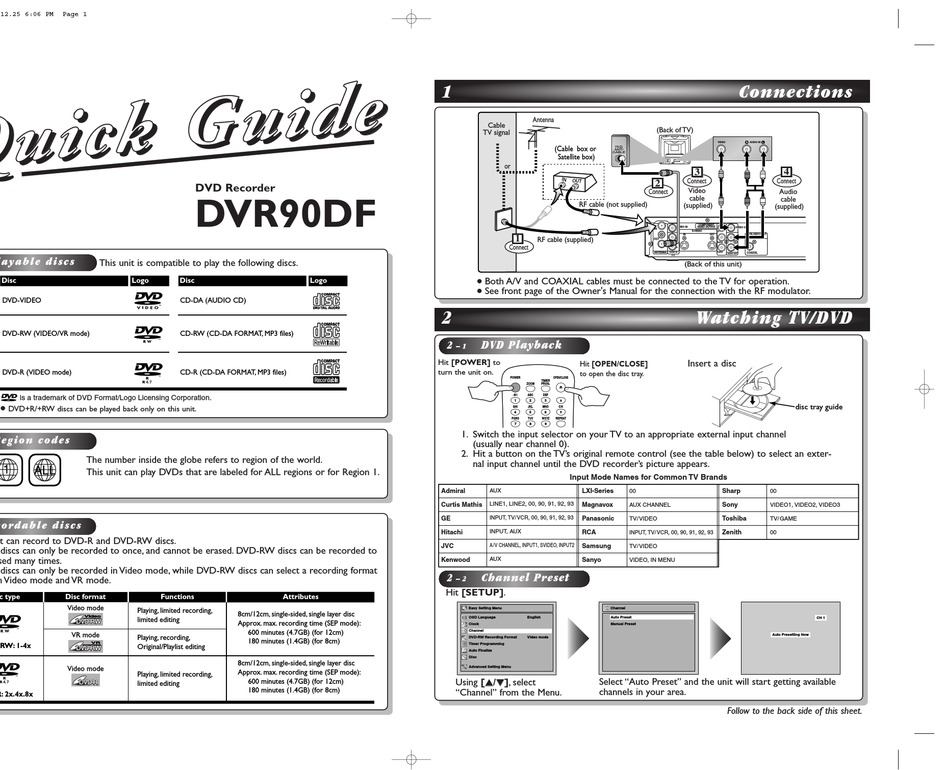

Playable discs
This unit is compatible to play the following discs.
Disc
Logo
DVD-VIDEO
DVD-RW (VIDEO/VR mode)
DVD-R (VIDEO mode)
is a trademark of DVD Format/Logo Licensing Corporation.
DVD+R/+RW discs can be played back only on this unit.
I
Region codes
The number inside the globe refers to region of the world.
This unit can play DVDs that are labeled for ALL regions or for Region 1.
Recordable discs
This unit can record to DVD-R and DVD-RW discs.
DVD-R discs can only be recorded to once, and cannot be erased. DVD-RW discs can be recorded to
and erased many times.
DVD-R discs can only be recorded in Video mode, while DVD-RW discs can select a recording format
between Video mode and VR mode.
Disc type
Disc format
Video mode
Playing, limited recording,
Video
limited editing
DVD-RW
DVD-RW
VR mode
Playing, recording,
VR
DVD-RW: 1-4x
Original/Playlist editing
DVD-RW
DVD-RW
Video mode
Playing, limited recording,
DVD-R
DVD-R
limited editing
DVD-R: 2x.4x.8x
DVD Recorder
DVR90DF
Disc
Logo
CD-DA (AUDIO CD)
CD-RW (CD-DA FORMAT, MP3 files)
CD-R (CD-DA FORMAT, MP3 files)
Functions
Attributes
8cm/12cm, single-sided, single layer disc
Approx. max. recording time (SEP mode):
600 minutes (4.7GB) (for 12cm)
180 minutes (1.4GB) (for 8cm)
8cm/12cm, single-sided, single layer disc
Approx. max. recording time (SEP mode):
600 minutes (4.7GB) (for 12cm)
180 minutes (1.4GB) (for 8cm)
1
Antenna
Cable
TV signal
(Cable box or
Satellite box)
or
RF cable (not supplied)
1
RF cable (supplied)
Connect
Both A/V and COAXIAL cables must be connected to the TV for operation.
I
See front page of the Owner's Manual for the connection with the RF modulator.
I
2
2

DVD Playback

– 1
Hit [POWER] to
Hit [OPEN/CLOSE]
turn the unit on.
to open the disc tray.
POWER
OPEN/CLOSE
TIMER
ZOOM
PROG.
A
.@/:
ABC
DEF
1
2
3
GHI
JKL
MNO
CH
4
5
6
PQRS
TUV
WXYZ
REPEAT
7
8
9
1. Switch the input selector on your TV to an appropriate external input channel
(usually near channel 0).
2. Hit a button on the TV's original remote control (see the table below) to select an exter-
nal input channel until the DVD recorder's picture appears.
Input Mode Names for Common TV Brands
AUX
Admiral
LXI-Series
LINE1, LINE2, 00, 90, 91, 92, 93
Curtis Mathis
Magnavox
INPUT, TV/VCR, 00, 90, 91, 92, 93
GE
Panasonic
INPUT, AUX
Hitachi
RCA
A/V CHANNEL, INPUT1, SVIDEO, INPUT2
JVC
Samsung
AUX
Kenwood
Sanyo
2
Channel Preset
– 2
Hit [SETUP].
Easy Setting Menu
Channel
Auto Preset
OSD Language
English
Clock
Manual Preset
Channel
DVD-RW Recording Format
Video mode
Timer Programming
Auto Finalize
Disc
Advanced Setting Menu
Select "Auto Preset" and the unit will start getting available
Using [ K K / L L ], select
channels in your area.
"Channel" from the Menu.
Connections
(Back of TV)
VIDEO
AUDIO IN
3
4
Connect
Connect
2
Video
Connect
Audio
cable
cable
(supplied)
(supplied)
COMPONENT
VIDEO IN
VIDEO OUTPUT
VIDEO OUT
IN
S-VIDEO
Y
DIGITAL AUDIO OUTPUT
IN
OUT
PCM / BITSTREAM
OUT
L
L
P
B
/C
B
R
R
ANTENNA
AUDIO IN
P
R
/C
R
COAXIAL
AUDIO OUT
(L1)
(Back of this unit)
Watching TV/DVD
Insert a disc
disc tray guide
00
Sharp
00
AUX CHANNEL
Sony
VIDEO1, VIDEO2, VIDEO3
TV/VIDEO
Toshiba
TV/GAME
INPUT, TV/VCR, 00, 90, 91, 92, 93
Zenith
00
TV/VIDEO
VIDEO, IN MENU
Auto Presetting Now
Follow to the back side of this sheet.
