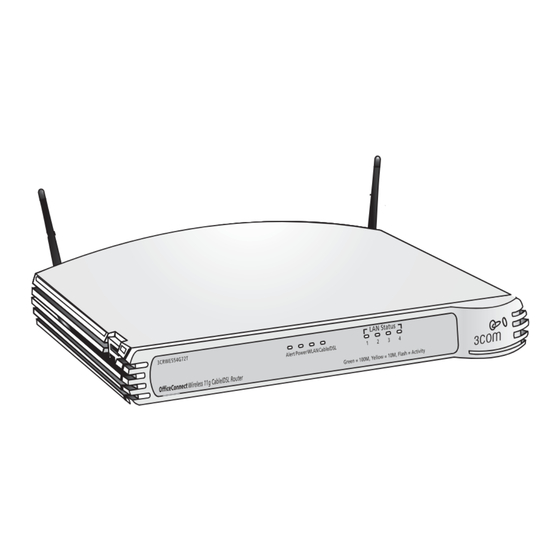

User Manual
OfficeConnect
Wireless 54 Mbps/108 Mbps
11g Cable/DSL Router
3CRWER100-75(Model:WL-537)
3CRWER200-75(Model:WL-537S)
3CRWER100-75, 3CRWER200-75
Installation Guide
Guía de instalación
Guide d'installation
Manuale di installazione
Installationsanleitung
Installations Guide
Guia de Instalação
www.3com.com
Part No. 10014944
Published January 2006
®
Advertisement
Related Manuals for 3Com OfficeConnect 3CRWER100-75
Summary of Contents for 3Com OfficeConnect 3CRWER100-75
- Page 1 OfficeConnect ® Wireless 54 Mbps/108 Mbps 11g Cable/DSL Router 3CRWER100-75(Model:WL-537) 3CRWER200-75(Model:WL-537S) 3CRWER100-75, 3CRWER200-75 Installation Guide Guía de instalación Guide d’installation Manuale di installazione Installationsanleitung Installations Guide Guia de Instalação www.3com.com Part No. 10014944 Published January 2006...
- Page 2 Introduction INTRODUCTION About This Guide: This Guide takes you through the basic steps necessary to install and configure your OfficeConnect Wireless 54 Mbps/108 Mbps 11g Cable/DSL Router, and establish a connection from your computers to the Internet. Throughout, the OfficeConnect Wireless 54 Mbps/108 Mbps 11g Cable/DSL Router is simply referred to as the Router.
-
Page 3: Dimensions And Standards
Dimensions and Standards DIMENSIONS AND STANDARDS Standards Functional: ISO 8802/3, IEEE802.3, IEEE802.11b, 802.11g Safety: UL60950, CSA22.2 #60950, IEC 60950, EN 60950 EMC: EN 55022 Class B, EN55024, CISPR 22, FCC Part 15 Class B* ICES-003 Class B, ETSI EN 301 489-17 Radio: CFR 47 FCC Part 15.207, 15.209, 15.247 and 15.249. -
Page 4: Positioning Your Router
Positioning Your Router POSITIONING YOUR ROUTER When positioning your Router, ensure: • The unit is centrally located to the wireless computers that will connect to the Router. A suitable location might be on top of a high shelf or similar furniture to optimise wireless connections to computers in both horizontal and vertical directions, allowing coverage throughout. - Page 5 About Your Router ABOUT YOUR ROUTER 1. Alert LED Orange Indicates a number of different conditions, as described below. Off - The Router is operating normally. Flashing quickly - Indicates one of the following conditions: • The Router has just been started up and is running a self-test routine, or •...
- Page 6 About Your Router 5. Cable/DSL Status LED Green (100Mbps link) / Yellow (10Mbps link) If the LED is on, the link between the Router and the cable or DSL modem is OK. If the LED is flashing, the link is OK and data is being transmitted or received. If the LED is off, nothing is connected, the modem is switched off or there is a problem (refer to the ‘Problem Solving’...
-
Page 7: Installing Your Router
Hub or Switch. Connect a LAN port of your Router to the Hub or Switch, e.g. OfficeConnect Dual Speed Switch 8. Power Supply Unit Your existing Cable/DSL Modem 3Com OfficeConnect Wireless 54Mbps/108Mbps 11g Cable/DSL Router Wireless Users Your PC Figure 1. Example Network with OfficeConnect Wireless 54 Mbps/108 Mbps 11g Cable/DSL... - Page 8 Changing Your Computer's Configuration 2. CHANGING YOUR COMPUTER'S CONFIGURATION You may need to make some changes to the configuration of your computers in order to communicate with the Router. If you have PPPoE or PPTP client software installed on your computer, you will DSL users with PPPoE or need to disable it.
- Page 9 ISP Connection Methods For computers using Windows 95, 98 and ME. 1. From the Windows Start Menu, select Settings > Control Panel. 2. Double click on Network. Select the TCP/IP item for your network card as shown in Figure 5 and click on Properties. 3.
-
Page 10: Running The Setup Wizard
ISP when you set the account up. 5. 3Com recommends that you leave the LAN IP address for the router at the factory set default address of 192.168.1.1. However, if you should choose to hange it;...
