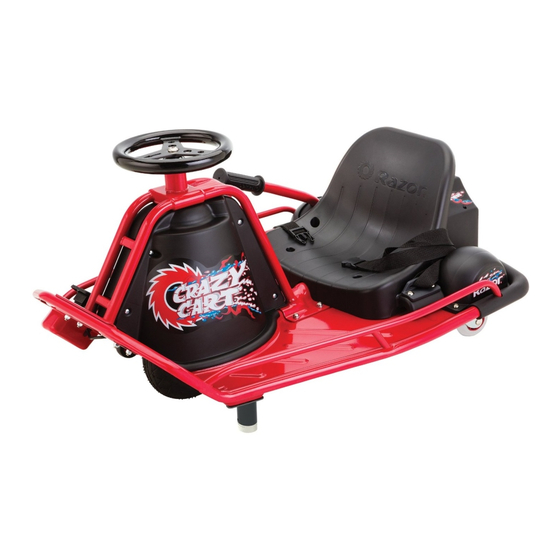

Razor Crazy Cart Installation Instructions

Tools Required:
A. Phillips screwdriver
B. Two (2) 16 mm wrenches
WARNING
CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect charger
before removing or installing the front wheel/chain. Failure to follow these steps in the correct order
may cause irreparable damage.
Step 1
Using a Phillips screwdriver, loosen the eight (8)
screws on the motor cover, four (4) on each side,
and remove.
Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00 AM - 5:00 PM PST.
( )
Not included
Figure 1
INSTALLATION INSTRUCTIONS
Step 2
Loosen the three (3) Phillips screws on the chain
guard and remove.
1

CRAZY CART

FRONT WHEEL/CHAIN
W25143499049
W25143499012
Figure 2
