INFRARED THERMOMETER SPECIFICATION
Ranges:
–4 to 752°F (–20 to 400°C)
Resolution:
0.1°C/0.1°F
Accuracy:
±3% of reading or ±3°C (5°F), whichever is greater.
Emissivity Setting:
* By push button. Setting range: 0.20 to 1.00.
* The default emissivity value is 0.95, which will cover 90% of a typical application.
Field of View:
7:1
TYPE K THERMOMETER SPECIFICATION
Ranges:
–148.0 to 2372.0°F (–100.0 to 1300.0°C)
Resolution:
0.1°C/0.1°F
Accuracy:
±(1% + 2°F) or ± (1% + 1°C)
Sampling Time:
Approx. 1 second.
Hold Function:
To freeze the display reading value.
Memory Recall:
Memorize the Maximum, Minimum reading with recall.
Offset Adjustment: Available for thermocouple thermometer offset adjustment by pushing button
on front panel.
Over Indication:
Show "— — — —".
Data Output:
RS232 PC serial interlace.
Power Supply:
Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 ( PP3) or
equivalent.
Power
Consumption:
Approx. DC 12 mA (w/o laser target light on). Approx. DC 18 mA (with laser
target light on). *Above consumption value is calculated under the function of
IR thermometer.
Size:
7¾ x 4¾ x 2¼ inches
Weight:
9 ounces
FEATURES
2 in 1, Infrared thermometer + Type K thermometer.
Microcomputer circuit with high performance.
Wide temperature measuring range.
Build in °C & °F select button on the front panel.
Data hold function for stored the desired value on display.
Memory function to record the maximum & minimum reading with recall.
Build the REL button, useful for relative measurement.
Sensor select button on the front panel, easy to change different type probe.
Infrared thermometer, non-contact temperature measurement, –20°C to 400°C
( –4 to 752°F).
0.1°C display resolution both for the measurement of IR thermometer and Type K
thermometer.
Emissivity adjustment for IR thermometer.
Laser target guide for IR thermometer.
Computer output, easy cooperate with computer.
Optional data acquisition software for data record.
Auto power shut off saves battery life.
Built—in low battery indicator.
Heavy duty & compact housing case with stand.
Operates from 006P DC 9V battery.
Traceable
is a registered trademark of Control Company ©2009 Control Company. 92-4375-00 Rev. 2 060509
®
®
NONCONTACT TEMPERATURE INDICATOR INSTRUCTIONS

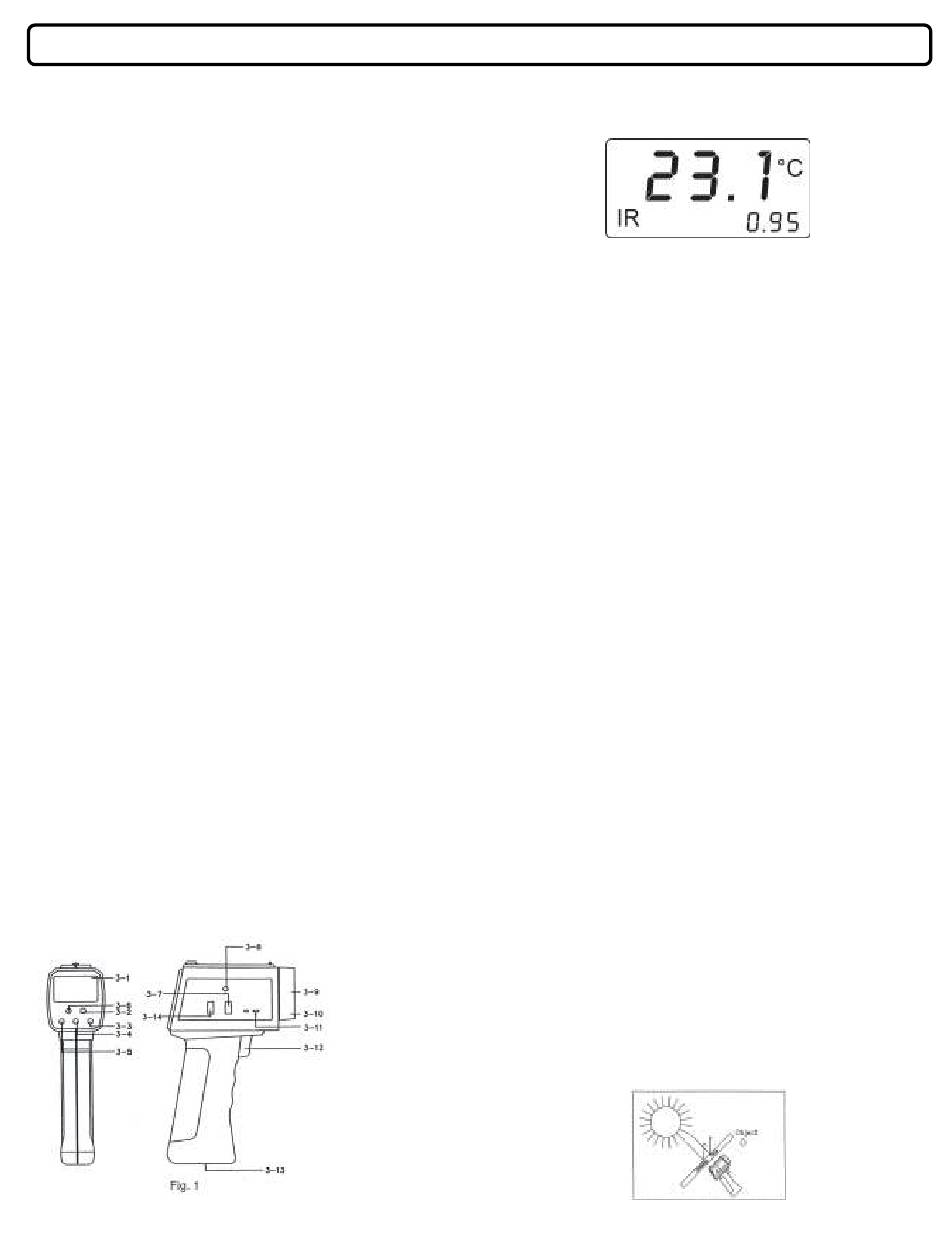

Front Panel Description
3-1. Display
3-2 °C/°F Button (Up Button)
3-3 Emissivity Button
3-4 Rel. Button
3-5 Rec. Button
3-6 Hold Button
3-7 Sensor Button
3-8 RS232 Output Socket
3-9 IR Sensing Head
3-10 Laser target Light Guide
3-11 Type K Input Socket
3-12 Laser Switch
3-13 Battery Compartment
3-14 Power Button
OPERATION
1. Power on the meter by pressing the "Power Button" (3-14, Fig. 1) once then release. The
display will show the internal testing no. (8L-03 ) then 99999, 88888, 77777....00000.
LCD will display the approximate room temperature value & the emissivity value on the right
bottom corner LCD.
Push the "Power Button" again to power off the meter.
Within approx. 10 minutes, the meter will a auto power off.
During measurement, push the "Rec. Button" (3-5, Fig. 1), the LCD will show the "REC" marker.
The meter will make the measurement continuously and not auto power off.
The right lower LCD shows the Emissivity value, for example: 0.95
2. Select the "°C" "°F" display unit by pressing the °C/°F Button (3-2, Fig. 1).
3. Point the "IR Sensing Head" (3-9, Fig. 1) to the measuring object. The meter will display the
spot's temperature values.
Note:
a.
The displayed value may fluctuate lithe meter Is shaken or suddenly moved etc.
during measurement.
b.
The meter automatically compensates for influences by the ambient temperature of
the sensor The thermometer can measure accurately and quickly when measuring at
the normal environment temperature of 23 ±5°C. For a more accurate measurement
at other ambient temperatures, allow the unit to stabilize for approx. 30 mins in the
new ambient.
c.
When low temperature objects are measured directly after high temperature objects,
some time is required for the display to stabilize.
Target Light Guide
During the IR measurement, push the "Laser Switch" (3-12, Fig. 1) continuously will turn on the
"Laser Target Light Guide" (3-10, Fig. 1). The Laser target light guide is a useful tool to
approximately locate the measured target of the IR thermometer. Release the Laser Switch (3-12,
Fig. 1) will power off the "Laser Target Light".
LASER SAFETY!!
Laser should not be aimed at personnel at head height.
Do not stare into the laser light.
Field of View (Distance/Spot (D/S) value)
The object should be larger than the spot size calculated by the measurement Distance/Spot ratio
(Field of View, refer to INFRARED THERMOMETER SPECS). For accurate measurements, it is
recommended that the area to be measured is 1.5 times larger than the spot size calculated.
Careful collimating is required when the object is not large enough. If the temperature of the object
or a part of it is higher (or lower) than the ambient temperature. After aiming the probe, move the
probe slightly away. Ideal collimating is obtained when the display shows a maximum (or minimum)
reading. However the emissivity of the object and its ambient temperature must be roughly the
same.
Disturbance
Objects having low emissivity or objects having a low temperature yet high emissivity emit
little infrared energy.
For this reason, measurement of these objects are adversely effected by powerful infrared
energy radiated from nearby objects having high emissivity or high temperature.
For example, when such objects are measured in sunlight, erratic measurements can result
due to powerful radiated energy from the sun reflecting on the surface of the object and
entering the sensor.
