Table 3 provides information about System 450
sensors, Sensor Types, parameter values, and
specified sensor/transducer product code numbers.
Table 4 provides information, procedures, and
examples regarding Sensor Setup screens and setting
up sensors. Figure 7 provides a System 450 UI and
setup overview example.
Setting Active/Passive Sensor DIP Switches
Before putting your control system into operation, you
must set up each sensor in the system as either
passive or active by positioning the associated switch
(On or Off) on the DIP switch block located below the
sensor terminal block. See Figure 3.
Table 3: System 450 Sensor Types, Setup Values, and Sensor/Transducer Product Codes
Sensor Unit of Measurement
Type Value
(Condition/Units)
°F °F (Temperature/degrees)
°C °C (Temperature/degrees)
rH % (Humidity/%RH)
P 05 INWC (Pressure/in. W.C.)
P 8 bAR (Pressure/bar)
P 10 INWC (Pressure/in. W.C.)
P 15 bAR (Pressure/bar)
P 30 bAR (Pressure/bar)
P 50 bAR (Pressure/bar)
P100 PSI (Pressure/psi)
P200 PSI (Pressure/psi)
P500 PSI (Pressure/psi)
P750 PSI (Pressure/psi)
1. Refer to the System 450 Series Modular Controls Product Bulletin (LIT-12011458), Catalog Page (LIT-1900549), or
Technical Bulletin (LIT-12011459) for complete ordering information for System 450 compatible sensors and transducers.
Table 4: System 450 Sensor Setup Information and Procedures
LCD Screen Name, Description/Function, User Action, and Example
Sensor Setup Start Screen: The Sensor Setup Start screen is the first screen displayed when you
-- -
access the System 450 setup screens. From the Sensor Setup Start screen you can navigate to the
Output Setup Start screens or the Sensor Setup screens. See Figure 7.
SENS
Note: You must setup the input sensors before you can setup the control system outputs. The Sensor
Setup Start screen is view-only, selections are not made in setup start screens.
Press MENU (repeatedly) to scroll through the Output Setup Start screens. (See Setting up a
Relay Output (OUTR#) and Setting up an Analog Output (OUTA#) for information and procedures on
setting up outputs.)
1. Press NEXT to go to the first Sensor Type Selection screen (Sn-1) and begin setting up the
sensors in your control system.
Example shows the Sensors Setup Start screen with four flashing dashes.
6 System 450™ Series Control Modules with Analog Outputs Installation Instructions
Temperature sensors are passive (2-wire) sensors and
corresponding switches must be set to ON. Humidity
and pressure transducers are active (3-wire) sensors
and corresponding switches must be set to Off. See
Figure 5 for the switch settings for the System 450
example shown in Figure 3.
Effective Range of
Sensing Usable
Range Values
-46 to 255 -40 to 250
-43 to 124 -40 to 121
1 to 100 10 to 95
0 to 0.5 0.025 to 0.5
-1 to 8 -1 to 8
0 to 10 0.5 to 10
-1 to 15 -1 to 15
0 to 30 0 to 30
0 to 50 0 to 50
0 to 100 0 to 100
0 to 200 0 to 200
0 to 500 90 to 500
0 to 750 150 to 750
Switch 1 sets Sensor
Switch 2 sets Sensor
Switch 3 sets Sensor
(No sensor connected to S3 in Figure 3.)

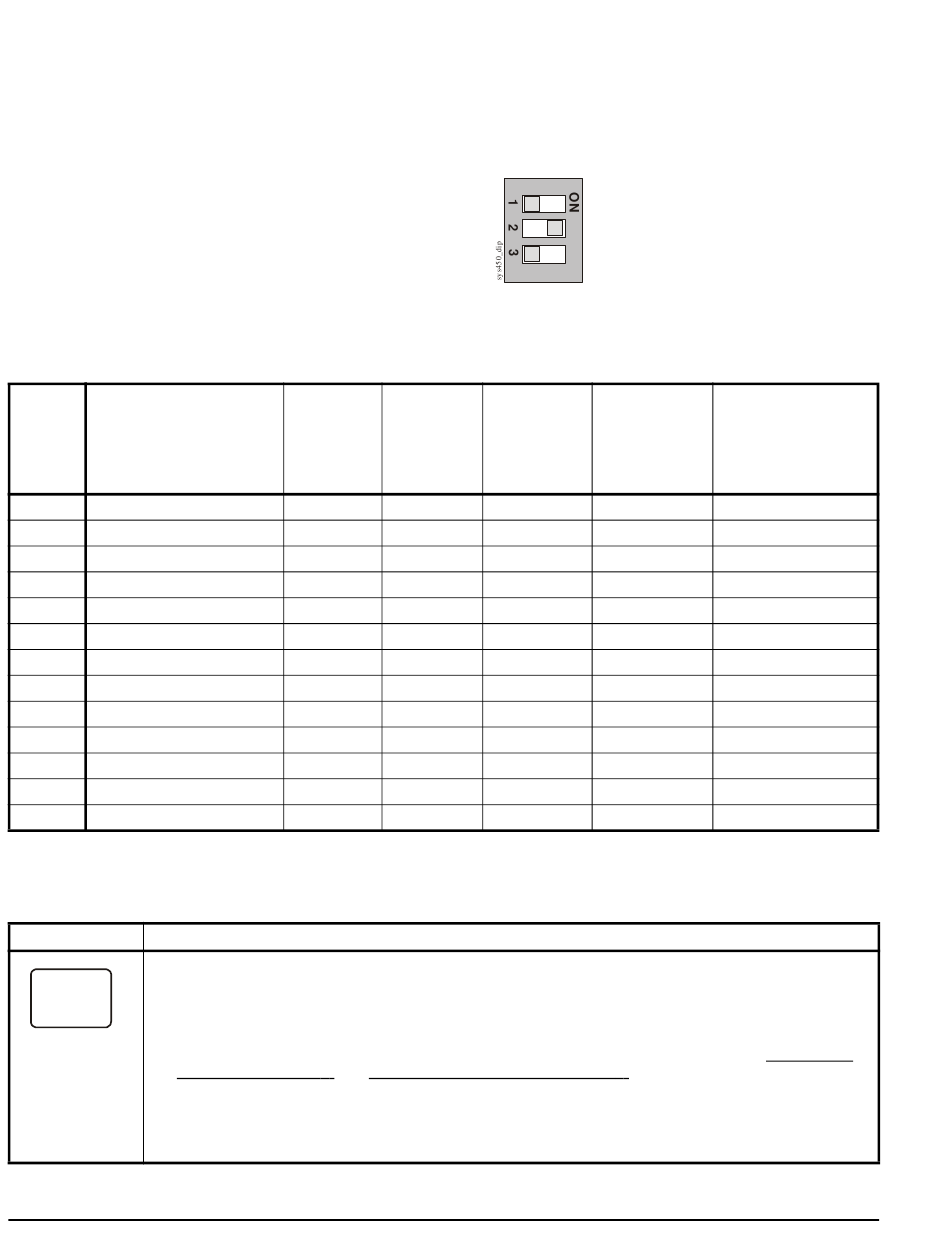

Figure 5: Active/Passive Sensor DIP Switch
Block (Set up for Example in Figure 3)
Resolution Minimum
Increment Differential
Value or
Proportional
Band
1 1
0.5 0.5
1 2
0.005 0.025
0.05 0.1
0.05 0.2
0.1 0.2
0.1 0.4
0.2 0.4
0.5 1
1 1
1 5
2 6
S1 (Set to Active/Off)
S2 (Set to Passive/On)
S3 (Set to Active/Off)
Sensor Product
1
Type Number
A99B-xxx
A99B-xxx
HE67Sx-x
DPT-2650-0R5D-AB
P499Rxx-401C
DPT-2650-010D-AB
P499Rxx-402C
P499Rxx-404C
P499Rxx-405C
P499Rxx-101C
P499Rxx-102C
P499Rxx-105C
P499Rxx-107C
