Dometic Harrier Lite HL36H401RI Operating Manual

Roof air conditioner
Hide thumbs Also See for Harrier Lite HL36H401RI:
Table of Contents

Advertisement

Quick Links

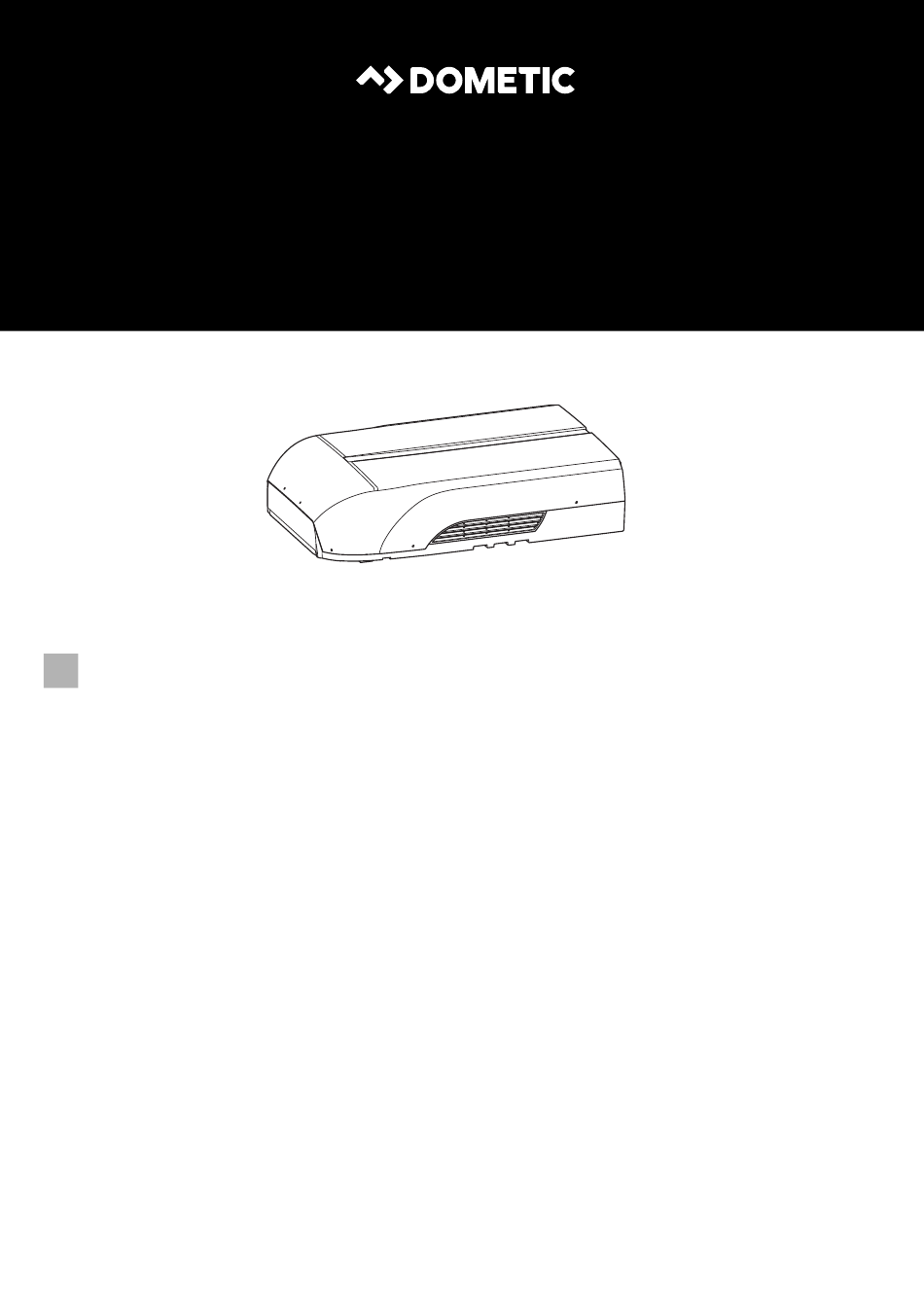

CLIMATE CONTROL
HARRIER
Harrier Lite
HL36H401RI, HL36H401RIY
Roof air conditioner
EN
Operating manual
More information https://www.caravansplus.com.au

Advertisement

Table of Contents
loading

Related Manuals for Dometic Harrier Lite HL36H401RI

Summary of Contents for Dometic Harrier Lite HL36H401RI

  • Page 1 CLIMATE CONTROL HARRIER Harrier Lite HL36H401RI, HL36H401RIY Roof air conditioner Operating manual More information https://www.caravansplus.com.au...
  • Page 2 More information https://www.caravansplus.com.au...

  • Page 3: Table Of Contents

    If you pass on the product to another person, hand over this instruction manual along with it. You find the installation manual online at: “dometic.com/manuals”. The instructions in the installation manual are intended for qualified personnel at workshops who are familiar with the guidelines and safety precautions to be applied.

  • Page 4: Explanation Of Symbols

    Explanation of symbols Harrier Lite 7.10 Activating the sleep function .......18 7.11 Operating the ambient lights .

  • Page 5: General Safety

    Harrier Lite Safety instructions In particular, the manufacturer will not be liable for any consequential damage, especially consequential damage caused by failure of the roof air conditioner. General safety WARNING! • Electrical devices are not toys. The appliance is not to be used by persons (including chil- dren) with reduced physical, sensory or mental capabili- ties, or lack of experience and knowledge, unless they are under supervision or have been given instruction.

  • Page 6: Operating The Device Safely

    Target group for this manual Harrier Lite • Make sure no combustible objects are stored or installed near the air outlet. A distance of at least 50 cm must be kept. • Do not reach into air outlets or insert any foreign objects in the roof air conditioner.

  • Page 7: Intended Use

    Harrier Lite Intended use Intended use The Harrier Lite roof air conditioner is designed for installation on the roof of a caravan or recreational vehicle to provide reverse cycle heating and cooling. It is intended for vehicles with roofs with a thickness of 20 to 100 mm. The roof air onditioner must be installed so that it is within ±10°...

  • Page 8: Control Panel

    Technical description Harrier Lite Control panel The control panel (1) is at the air outlet unit of the roof air conditioner. AUTO More information https://www.caravansplus.com.au...

  • Page 9: Remote Control

    Harrier Lite Technical description Control and display elements (fig. 2): Symbol Explanation Switches the roof air conditioner on or to stand-by mode. + button: Increases the currently displayed value. – button: Reduces the currently displayed value. Switches ON or OFF the ambient lights in the air outlet unit. Activates the sleep function (chapter “Additional functions”...
  • Page 10 Technical description Harrier Lite °F °C ON OFF The following control and display elements are available on the remote control (fig. 3, page 10) : No./ Explanation Button Display Displays the following: • Selected room temperature (target value) in °C or °F •...

  • Page 11: Air Conditioning Modes

    Harrier Lite Technical description No./ Explanation Button Switches between temperature units Celsius (°C) and Fahrenheit (°F) Switches the roof air conditioner on or to stand-by mode. + button: Increases the currently displayed value. – button: Reduces the currently displayed value. Selects the turbo mode.

  • Page 12: Additional Functions

    Before initial use Harrier Lite Air conditioning Display Explanation mode message Ventilation The fan operates to circulate air without heating or cooling. Dehumidification Dehumidification removes moisture from the air with- out heating or cooling the inside. The fan speed is Low.

  • Page 13: Operating The Roof Air Conditioner

    Harrier Lite Operating the roof air conditioner Set the remote control ➤ Insert the batteries (see chapter “Replacing the remote control batteries” on page 19). ✓ The display shows all symbols for 5 seconds. ✓ The remote control is ready for operation. Operating the roof air conditioner Basic notes on operation The roof air conditioner has three operating modes:...

  • Page 14: Using The Remote Control

    Operating the roof air conditioner Harrier Lite Using the remote control AUTO The remote control must be pointed at the IR receiver (1) on the control panel during operation. ➤ Press a button. ✓ The value is transmitted directly to the roof air conditioner. ✓...

  • Page 15: Hints For Improved Use

    Harrier Lite Operating the roof air conditioner Hints for improved use The following hints will optimise the performance of your roof air conditioner: • Improve the heat insulation of your vehicle by sealing gaps and hanging reflective blinds or curtains on your windows. •...

  • Page 16: Setting The Temperature

    Operating the roof air conditioner Harrier Lite In all modes, except for the “Automatic”( ) mode, the fan speed can be selected manually. Display message Explanation 1, 2, 3 Fan icon will show plus the number 1, 2 or 3 to indicate Low, Med or Hi speeds.

  • Page 17: Adjusting The Air Nozzles

    Harrier Lite Operating the roof air conditioner Adjusting the air nozzles The air supply within the vehicle can be regulated by setting the air nozzles. ➤ Turn the slats (1) in the air nozzles independently in the required directions. The air flow can be adjusted along the ceiling or towards the floor.

  • Page 18: Activating The Sleep Function

    Operating the roof air conditioner Harrier Lite ✓ The switch-on time is set on the roof air conditioner. The roof air conditioner is switched on with the selected air conditioning mode at the specified time. ✓ The OFF symbol flashes on the display of the remote control. If no OFF time is needed press the button again without changing the hour value.

  • Page 19: Operating The Ambient Lights

    Harrier Lite Operating the roof air conditioner 7.11 Operating the ambient lights NOTE button on the remote control is active even if the remote control is switched off. Switching the lights on/off with the control panel ➤ Briefly press the button to switch the lights on or off.

  • Page 20: Cleaning The Roof Air Conditioner

    Cleaning the roof air conditioner Harrier Lite Cleaning the roof air conditioner NOTICE! Beware of damage • Do not clean the roof air conditioner with a high-pressure cleaner. Exposure to water can damage the air conditioner. • Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the roof air conditioner.

  • Page 21: Maintenance Of The Roof Air Conditioner

    Harrier Lite Maintenance of the roof air conditioner ➤ Clean the housing of the roof air conditioner and the air outlet unit occasionally with a damp cloth. ➤ Clean the remote control with a slightly damp cloth from time to time. We recommend using a cleaning cloth for glasses to clean the display.
  • Page 22 Maintenance of the roof air conditioner Harrier Lite Interval Inspection/maintenance Regularly Clean the filter of the air discharge unit: ➤ Insert a flat screwdriver or knife into the handle (1) to pull the filters (2) slightly out. ➤ Remove the filters by hand. ➤...

  • Page 23: Troubleshooting

    16 °C. One of the temperature sensors is ➤ Contact an authorised service defective. agent or Dometic. The evaporator fan is damaged. The condenser fan is damaged. Not heating well The roof air conditioner is not set to ➤ Set the roof air conditioner to heating.
  • Page 24 The fan is defective. ➤ Contact an authorised service agent or Dometic. Water enters the The condensation water drainage ➤ Clean the drainage openings vehicle. openings are clogged up.

  • Page 25: Warranty

    Harrier Lite Warranty Warranty The statutory warranty period applies. If the product is defective, please contact the service partner in your country (addresses on the back of the instruction manual). Our experts will be happy to help you and will discuss the warranty process with you in more detail.
  • Page 26 Disposal Harrier Lite For more information on correct dismantling of our products please refer to the recycling handbooks at dometic.com. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. ➤ When in operation or undergoing repairs and maintenance work, make sure that the refrigerant circuit is not damaged and refrigerant cannot escape.

  • Page 27: Technical Data

    Harrier Lite Technical data Technical data Contains fluorinated greenhouse gases. Hermetically sealed equipment. Harrier Lite HL36H401RI, HL36H401RIY Compressor cooling capacity: 3600 W Cooling capacity based on ISO 5151: 2413 W Heating capacity based on ISO 5151: 2421 W Rated input voltage: 220 to 240 Vw/ 50 Hz Power consumption in cooling mode: 7.4 A...
  • Page 28 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic More information https://www.caravansplus.com.au DOMETIC GROUP AB...

This manual is also suitable for:

Harrier lite hl36h401riy
