DESIGO 30

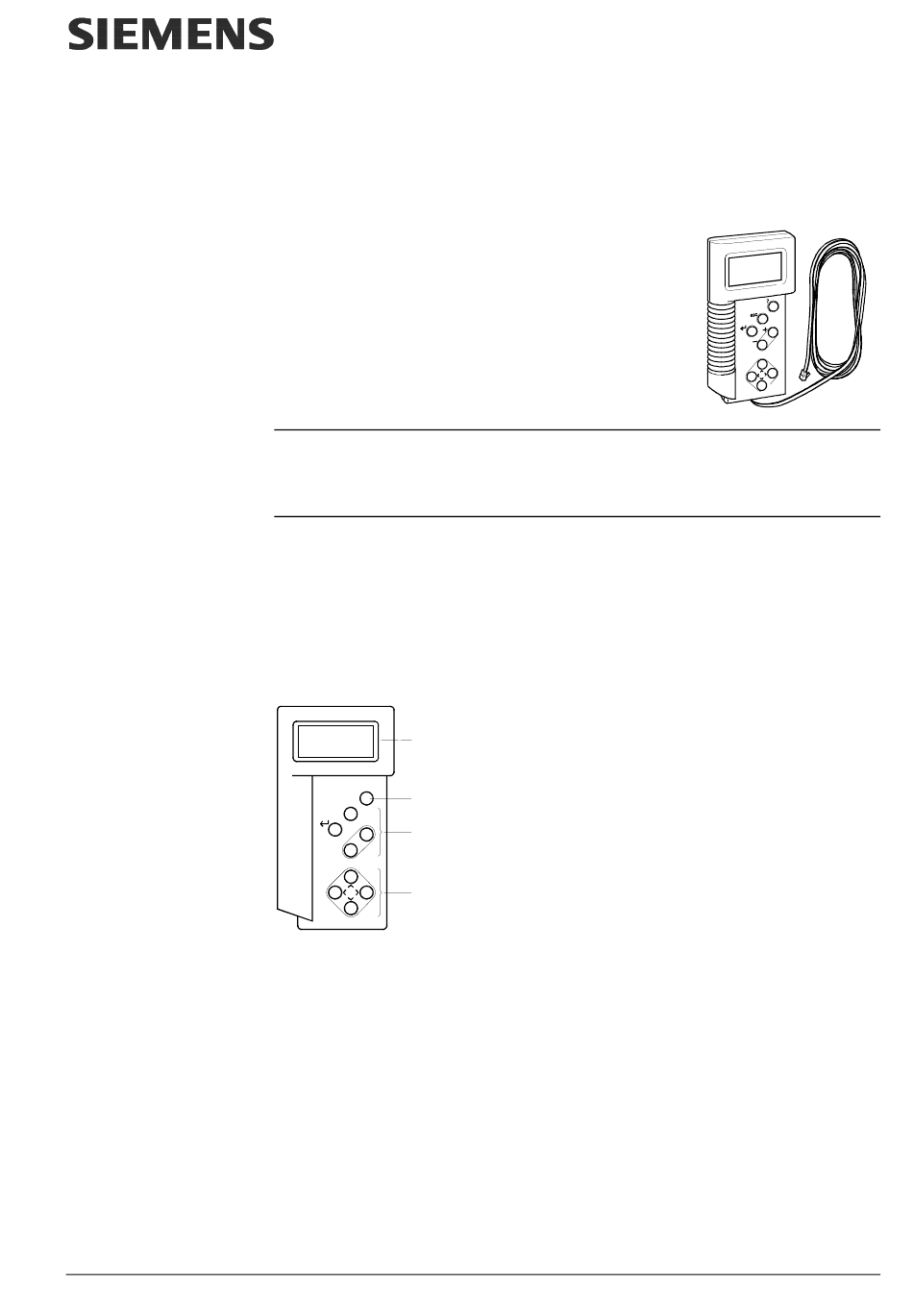

Service terminal
Hand-held terminal with three operating levels, easy-to-read display panel and
user-friendly key pad, for commissioning, tuning and servicing of HVAC systems
incorporating controllers in the DESIGO 30 range.
The service terminal is connected to the LON bus, so allowing the user access
(depending on operating level) to the data from the connected DESIGO 30 devices.
The basic procedure for operation is as follows:
Menu and data points are selected using the four navigation keys. Selected points are
displayed in inverse video, and adjustable values can be modified with the + and –
keys. Modified values are accepted with enter , and functions are terminated with the
esc key.
50169A
1
?
2
esc
+
3
–
4
Operating level 1: (level on start-up): For access to all the controller values needed
for normal operation (plant status, all inputs and outputs, set-
points and time programmes). Simple commissioning using the
check lists.
Operating level 2: Controller tuning based on the check list.
Operating level 3: Access to all controller data (for specially trained service
engineers and system contractors).
Factory settings:
– Operating level 1 = A
– Operating level 2 = B
– Operating level 3 = C
Key
1 Display
2 Info key
3 Edit keys
4 Navigation keys
295
3
BCS
CA2N3295E / 03.1999
1/4
