Kohler Englefield VALENCIA ELITE Installation Instructions Manual

Round pivot
Hide thumbs Also See for Englefield VALENCIA ELITE:
Table of Contents

Advertisement

Quick Links

Download this manual

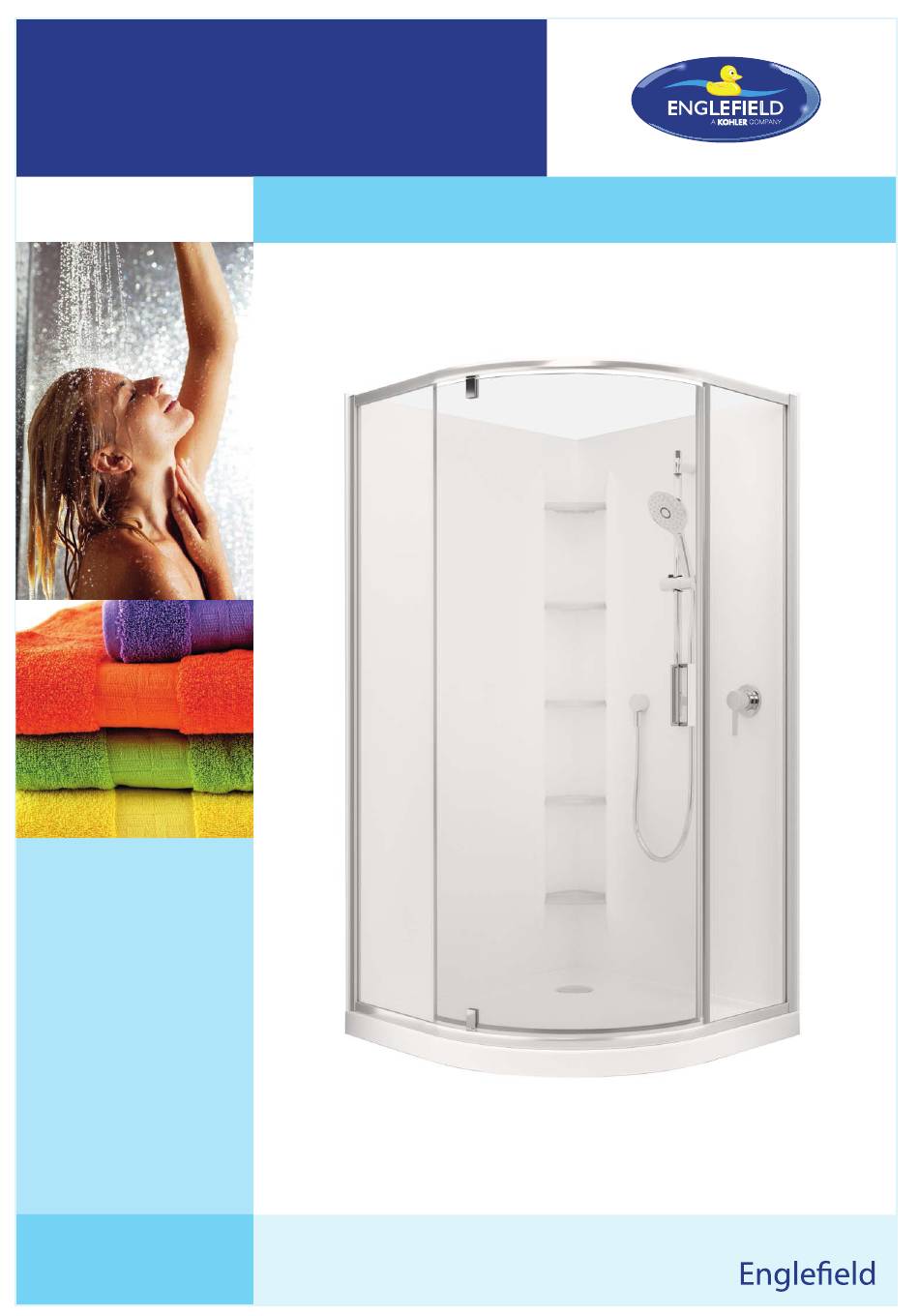

INSTALLATION
INSTRUCTIONS
SHOWER
Englefield has a history
of making superb showers
and their popularity is
testament to their quality
and affordability.
It's the details that Englefield
cares about - from pioneer-
ing the latest technology, to
innovative design, it's all to
make your showering
experience the very best it
can be.
1371378-A02-C
July 2019
VALENCIA ELITE
Round Pivot
Note: Tapware and accessories not included.

Advertisement

Table of Contents
loading

Related Manuals for Kohler Englefield VALENCIA ELITE

Summary of Contents for Kohler Englefield VALENCIA ELITE

  • Page 1 INSTALLATION INSTRUCTIONS VALENCIA ELITE SHOWER Round Pivot Englefield has a history of making superb showers and their popularity is testament to their quality and affordability. It’s the details that Englefield cares about - from pioneer- ing the latest technology, to innovative design, it’s all to make your showering experience the very best it...

  • Page 2: Before You Begin

    VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS BEFORE YOU BEGIN Before installing the shower please read these instructions carefully to familiarise yourself with the required tools, materials and installation sequences. Please leave these instructions for the consumer after installation. Refer to the separate care and maintenance guide for important care and cleaning information.

  • Page 3: Tools And Materials Required

    VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS TOOLS AND MATERIALS REQUIRED Square Drive & Phillips 2.0 mm - supplied 3.0 mm PARTS IDENTIFICATION    2 x Wall 2 x Fixed Panels  2 x Corner 2 x Seal Packs Channels (1 hinge side &...
  • Page 4 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS  8x Wall Plugs  1 x Fittings Kit  4x Cover Caps  1x Hex Key  2x ST4*8 Screws   16x Fixing Screws 8x Retainer Screws  1 x Handle Kit ...

  • Page 5: Construction Requirements

    VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS CONSTRUCTION REQUIREMENTS ATTENTION Due to the weight of the glass panels Englefield strongly recommends constructing double studs (as below) to fix the wall retainers to. Size Dim ‘A’ Dim ‘B’ 900 x 900 1000 x 1000 1000 1000 Double...

  • Page 6: Installation Options

    INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot INSTALLATION - Options OPTION 1 - Acrylic Wall & Tray Tray: For tray installation refer to the instructions supplied with the tray. Wall: For wall installation refer to the instructions supplied with the wall. - Proceed to Door and Return Installation.
  • Page 7 INSTALLATION INSTRUCTIONS VALENCIA ELITE Round Pivot INSTALLATION Caution: Ensure tray or tiled floor is level & walls are vertical & square. ± 0 mm ± 0 mm Tip: Cover the waste to prevent the loss of small parts. If installing onto a tray protect the tray surface during installation.
  • Page 8 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS 3 mm 10 mm Position the wall channels on the wall. The flange with pre-drilled holes should face inside the shower enclosure. Using a level, make sure that the channel is upright. Mark the position of the fixing holes down the centre of the channel, then remove the channel.
  • Page 9 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS Caution! Logo badge on This process requires two persons. outside of shower (CleanLess ® glass Assemble outside the shower area. protection to inside) Glass notch & pivot block must be on same side. Swap rails around to match. Pivot point at the left end indicates that the handle will be on the right hand side.
  • Page 10 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS Logo badge on outside of shower (CleanLess ® glass protection to inside) Insert the second glass panel into the lower rail, making sure the glass locates correctly into the seal. Install the fixing screws to secure the glass panel frame to the bottom rail. Place the top curved rail in position, making sure that it locates correctly over the glass panels Install the fixing screws to secure the glass panel frames to the top rail.
  • Page 11 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS Note! This process requires two persons. Make sure the enclosure is kept parallel when lifting into place. Lift the shower assembly into position and fit the upright frame posts into the fixed wall channels on both sides of the enclosure. Centralise the enclosure within the wall channels and make sure everything is level.
  • Page 12 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS ± 0 mm Ø 3 mm From the inside of the shower enclosure, drill four 3mm holes in the door frame. The hole locations are centre marked on the inside of the wall channel. Caution! Take care not to drill all the way through or damage the shower.
  • Page 13 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS ST4*8 screw Carefully lift the door panel and locate the bottom pivot pin into the pivot block on rail. Lift the top rail up until the door hinge pivot pin can be fitted into top rail pivot block. Fix the ST4*8 screw into the return panel tightening bracket from the top side of rail.
  • Page 14 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS Magnetic Strip Door Seal Door Door Seal Door Seal Install the door seals onto the door. Trim seals as required. Apply silicone to the seal and fixed panel where they meet the bottom rail. Page 13 ENGLEFIELD...
  • Page 15 VALENCIA ELITE Round Pivot INSTALLATION INSTRUCTIONS 24hrs full length full length 200mm up 200mm up full length wall board finishing wall retainer strip silicone or liner channel adhesive silicone Install the door handle, ensuring that the grub screws are on the underside. Fit the caps to the top of the extrusions.

  • Page 16: Contact And Warranty Information

    (left hinge): ** Colour code must be specified when ordering CONTACT AND WARRANTY INFORMATION NEW ZEALAND AUSTRALIA KOHLER NZ LTD KOHLER AUSTRALIA Free Ph: 0800 100 382 Free Ph: 1 800 ENGLEFIELD Free Fax: 0800 664 488 (1 800 364 533) www.englefield.co.nz...
