- Page 1 SL 6-A22 English Printed: 22.10.2018 | Doc-Nr: PUB / 5458870 / 000 / 00...
- Page 2 Printed: 22.10.2018 | Doc-Nr: PUB / 5458870 / 000 / 00...
-
Page 3: Information About The Documentation
Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. - Page 4 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product.
- Page 5 In this case, always contact your Hilti Service. English Printed: 22.10.2018 | Doc-Nr: PUB / 5458870 / 000 / 00...

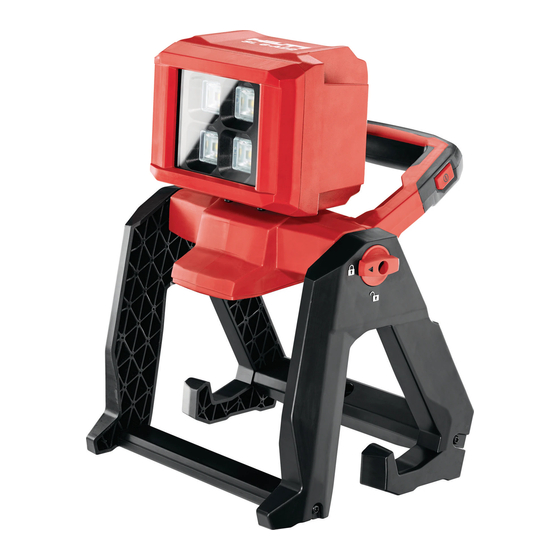

- Page 6 Description 3.1 Product overview Lamp head Heat sink LEDs Carrying handle Vertical pivot joint Battery state of charge indica- § Battery Battery release button Switch for mode change & Suspension/attachment hook (brightness) Locking switch, vertical 5/8" thread for tripod mount ∙...
- Page 7 5/8" thread. ▶ Use only Hilti Liion batteries of the B 22 series with this product. ▶ Use only the Hilti battery chargers of the C4/36 series to charge these batteries.
-
Page 8: Technical Data
Technical data SL 6-A22 Voltage 21.6 V Brightness 3,000 lm Weight 3.2 kg 4.1 Battery Battery operating voltage 21.6 V Ambient temperature for operation −17 ℃ … 60 ℃ Storage temperature −20 ℃ … 40 ℃ Battery charging starting temperature −10 ℃... - Page 9 2. Make sure that the contacts on the battery and the contacts on the charger are clean and dry. 3. Use an approved charger to charge the battery. 5.1.4 Switching on Whenever you engage the product on the universal hook or mount it on a tripod, make sure that the product is secure.
-
Page 10: Care And Maintenance
• Do not operate the product if signs of damage are found or if parts malfunction. Have it repaired immediately by Hilti Service. • After cleaning and maintenance, fit all guards or protective devices and check that they function correctly. -
Page 11: Transport And Storage Of Cordless Tools
To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group | USA: www.hilti.com 6.1 Light source... -
Page 12: Manufacturer's Warranty
The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appli- ances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information. - Page 13 Printed: 22.10.2018 | Doc-Nr: PUB / 5458870 / 000 / 00...
- Page 14 Hilti = registered trademark of Hilti Corp., Schaan 20180801 Printed: 22.10.2018 | Doc-Nr: PUB / 5458870 / 000 / 00...
