User Manual
SMX24Z1SMB
60.96cm

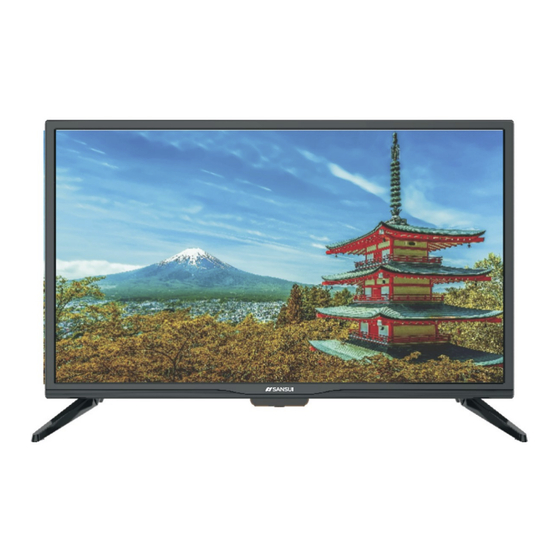

24" LED SMART HD TV
BEFORE USING THIS PRODUCT PLEASE READ THE INSTRUCTION AND CONSERVE FOR FUTURE REFERENCE, IF A
INCREASING CORD BECOMES A FULL OR PARTIAL DAMAGE, DO NOT ATTEMPT TO REPAIR IT GO TO THE SERVICE CENTER
MARKED IN YOUR GUARANTEE; WITH A SPECIALIST TECHNICIAN, OR, WITH YOUR MANUFACTURER.
.
IMPORTED BY:
CTM DIGITAL S.A. de C.V.
Av. Lago Zurich No. 219, 12th floor, Plaza Carso Building, Col. Amplicon Granada, 11529
Mexico, Mexico City. Tel. (55) 4124-0114
ELECTRICAL SPECIFICATIONS: 100-240 See 50/60 Hz 70W
THE REMOTE CONTROL USES 2 "AAA" TYPE BATTERIES OF 1.5 V DC each (3 Vcc)
1
Advertisement
Table of Contents
Related Manuals for Sansui SMX24Z1SMB
Summary of Contents for Sansui SMX24Z1SMB
- Page 1 User Manual SMX24Z1SMB 60.96cm 24” LED SMART HD TV BEFORE USING THIS PRODUCT PLEASE READ THE INSTRUCTION AND CONSERVE FOR FUTURE REFERENCE, IF A INCREASING CORD BECOMES A FULL OR PARTIAL DAMAGE, DO NOT ATTEMPT TO REPAIR IT GO TO THE SERVICE CENTER MARKED IN YOUR GUARANTEE;...
-
Page 2: Safety Information
Safety information High voltages are used in the CAUTION operation of this product, to avoid the risk of electric shock, do not remove the back cover of the TV. Please go to the RISK OF ELECTRIC SHOCK qualified personnel for service. DO NOT OPEN The use of controls, adjustments or carrying out procedures other than those specified here, may cause dangerous... - Page 3 Important security 1. Read these instructions. 2. Keep this instruction manual. 3. Follow all warnings. 4. Follow all instructions. 5. Do not use this equipment near water. 6. Clean only with soft and dry cloth. 7. Do not block the ventilation slots. Install according to the manufacturer's instructions.
-
Page 4: Important Security Instructions
Important security instructions Installing the TV on the wall 1. First, put the TV on a flat table, on which you must put something soft to prevent the panel from being scratched or damaged. 2. Use the screwdriver to remove the 4 screws that hold the base of the TV (the direction of the arrows, reference image 1) and, remove the base (guard the screws and the base carefully). -
Page 5: Button Functions
TV buttons and connection Button functions Function Icons Bar. Show \ Hide Function Icons: Press the button, to show the bar icons. The function icons will be shown on the screen, the bar will be hidden automatically after 5 seconds of inactivity. Function Selection: Press the button momentarily or press again to scroll to the right and select the icon of the desired function. - Page 6 Installation and Connection of the TV TV installation Put the TV in a firm place, which must support the weight of the TV. To avoid risks, please do not expose the TV to hot or humid places (as well as near lights, candles heaters), and do not block the ventilation on the back of the TV.
-
Page 7: Remote Control
Remote Control Operation of the remote control POWER NUMERIC BUTTONS Turn on or off (standby) the TV Press 0-9 to select a channel directly when it is watching TV. Mute The channel changes after 2 Press to suspend the sound. seconds. - Page 8 Installation of the batteries in the remote control 1. Open the back cover. 2. Use AAA batteries. When inserting the batteries, make sure that the polarity is correct, that is, that the "+" marks are oriented as indicated in the compartment. 3.
-
Page 9: Initial Installation
Initial installation Connect one RF cable to the "RF-ln" input on the TV, and the other end to your Aerial antenna. Press the ENTER button to select and start the configuration (start establish). Press the buttons [▼ ] /[▲ ] to select your preferred language. Press ENTER and press the button [▶] to select the time zone. - Page 10 Initial Installation Press the ENTER button to configure your preferred network connection. Press the [►] button to select the preferred signal source. Press the [▼] / [▲] buttons to select the preferred signal source.
- Page 11 Initial Installation Press the ENTER button to display the sources of available input signals. Press the [▼] / [▲] buttons to select the desired option. Press ENTER to select the desired entry. Main menu Press MENU to display the main menu. HOME (Main Screen) Press the [▼] / [▲] buttons to select the desired option.
- Page 12 Main menu APPLICATIONS / FAVORITE APPLICATIONS Press the [▼] / [▲] buttons to select Applications / Add Applications. Press the [▼] / [▲] / [◄] / [►] buttons to select Install Application.
- Page 13 Adjustments Press the [▼] / [▲] / [◄] / [►] buttons to select Settings. IMAGEN Press the [◄] / [►] buttons to select the option. Press the ENTER button to enter the image menu. 1. Press the [▼] / [▲] buttons to select Picture Mode / Contrast / Brightness / Color / Sharpness / Backlight / Noise Reduction / Temperature Color / More Settings.
-
Page 14: Image Mode
Adjustments Image Mode Press the [▼] / [▲] buttons to select the Picture mode, press the buttons [◄]/'[►] to select the desired option: Standard, Movie, Lived, Energy Saving, User Image). Standard Default mode for a high quality image experience in normal light. Movie Recommended mode for movies. - Page 15 Adjustments Press the [▼] / [▲] buttons to select DLC, press the [◀] buttons. [►] to select Dark / Normal / Bright / Off. Sound Press the MENU button to display the menu. Press the [◄] / [►] buttons to select SOUND in the menu.
- Page 16 Adjustments More Adjustments SPDIF Press the [▼] / [▲] buttons to select SPDIF, press [◄] / [►] to select OFF / RAW / PCM. Delay SPDIF Press the [▼] / [▲] buttons to select SPDIF Delay, press [◄] / [►] buttons to adjust. Surround Sound It allows to generate a greater sound effect.
- Page 17 Channel Channel Press the MENU button to display the channel menu. Press [◄] / [►] to select CHANNEL. Press the[▼] / [▲] buttons to select and press ENTER [◄] / [►] to activate your selection. Type of Antenna (Air) Select Air / Cable to tune channels. Automatic Search Press the [▼] / [▲] buttons to select Auto Search, press ENTER to start the search automatically.
- Page 18 EPG (Electronic Programming Guide) Press the [▼] / [▲] buttons to select EPG. Type of Antenna (Cable) Select Air / Cable to tune channels. Automatic Search Press the [▼] / [▲] buttons to select Automatic Search press ENTER To start the automatic search. Preferred Audio Language Press the buttons [▼] / [▲] to select Preferred Audio Language, press ENTER to select the preferred language.
- Page 19 Lock (Block) Press the MENU button to display the main menu. Press the [ ] / [►) buttons to select Lock (Bock). ◄ Press the [▼] / [▲] buttons to select Change Password / Lock. Press ENTER / [ ] / [►] to select. ◄...
- Page 20 Lock (Block) USA Parental Control Press the [▼] / [▲] / [◄] / [►] buttons to lock / unblock programs. Canada Parental Control Press the [◄] / [►] buttons to select and the [▼] / [▲] buttons to ON / OFF.
-
Page 21: Auto Shutdown
General (Common) Press the MENU button to display the menu. Press the [◄] / [►] buttons to select common in the main menu. Press the [▼] / [▲] buttons to select: OSD Time / Auto Power Off / Blue Screen / Subtitles / Menu Rainelle Press ENTER [◄] / [►] to select. - Page 22 CC Configuration (Subtitle) Press the [▼] / [▲] buttons to select CC Setup. Subtitle Press the [◄] / [►] buttons to select. Basic Selection Press the [◄] / [►] buttons to select. HDMI CEC Press the [▼] / [▲] buttons to select HDMI CEC. Press ENTER to select ON / OFF.
- Page 23 Media Press [MEDIA] to enter the Media menu.
- Page 24 Video Press the ◄ / ► buttons to select video. Press for previous video playback. Press to go back playback. Press to pause / start playback. Press to fast forward. Press to play the next video. Press to view the video information. (Resolution / Size / Duration / Bit Rate) Press to set: Audio Track / Select Subtitle / Language Region / Play Mode / Appearance Ratio.
- Page 25 Music Press the ◄ / ► buttons to select music. Press to go back playback. Press to pause / start playback. Press to fast forward. Press to display the Audio information (Type / Size / Bit Rate) Press to set playback (Repeat All / Repeat once / Random / None).
- Page 26 Image (Photography) Press the ◄ / ► buttons to select music. Press to rotate the image counterclockwise. Press to stop / play the image. Press to rotate the image clockwise. Press to view the image information. (Size / Resolution) Press to set the playback mode (Aspect Ratio / Playback Duration).
- Page 27 Faults Guide It does not turn on Check that the AC power cord of the TV is connected. If the continuous problem, disconnect the TV and connect it again after 60 seconds and try to turn on the TV again. The received The cause of double image or ghosts is caused by tall signal is not...
- Page 28 Horizontal Adjust the horizontal Audio sound in the main menu to interference lines clean the horizontal lines. (PC mode) The image is very Adjust the contrast or brightness level in the main menu. light or very dark (PC mode) The PC function Check the computer settings if the resolution is does not respond compatible.
