S82 W18717 Gemini Drive
Muskego, WI 53150
Phone: (877) 622-2694
Fax: (888) 679-3319
www.nabcoentrances.com

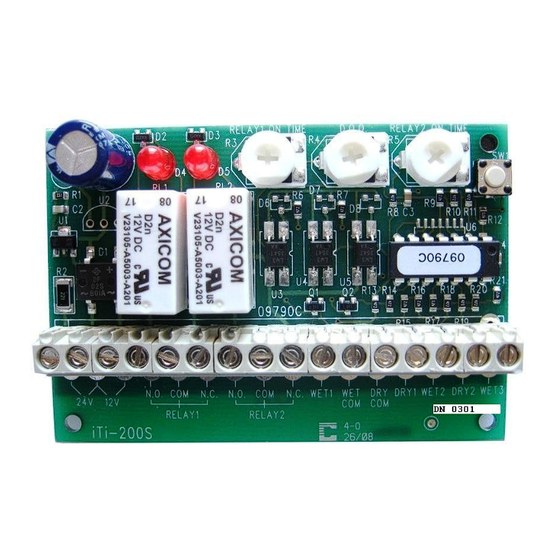

Nabco Multi-Module
Multifunction Module
for the Control of
Swing, Slide, and Fold Doors
WARNING
Do not install or service this product unless you have read and understood the Safety Practices,
Warnings, Installation and Operating Instructions contained in this manual.
Failure to do so may result in property damage or bodily injury.
P/N 15-12241
R
5-7-10
EV
Advertisement
Table of Contents
Related Manuals for Nabco GYRO TECH Nabco Multi-Module
Summary of Contents for Nabco GYRO TECH Nabco Multi-Module
- Page 1 S82 W18717 Gemini Drive Muskego, WI 53150 Phone: (877) 622-2694 Fax: (888) 679-3319 www.nabcoentrances.com Nabco Multi-Module Multifunction Module for the Control of Swing, Slide, and Fold Doors WARNING Do not install or service this product unless you have read and understood the Safety Practices, Warnings, Installation and Operating Instructions contained in this manual.
- Page 2 Nabco Multi-Module Interactive Parts Diagrams, Installation Manuals, Service Bulletins, AutoCAD Drawings, Specifications, Sales Literature, Unit Pricing, Online Ordering, News Releases, Promotional Materials, and much more. Just log in with your distributor account number and password to access all of the above or call 1-877-622-2694 for more information.
-
Page 3: Table Of Contents
Mode 5 - Acugard Lock-out Relay Diagram - Analog Control ............... 17 Mode 6 - Washroom Control Relay Diagram - Magnum 4 Control ............... 18 Mode 6 - Washroom Control Relay Diagram - Analog Control ..............19 NABCO ENTRANCES Return Policy ......................14 Page 3 www.NabcoEntrances.com... -
Page 4: To The Installer
Nabco Multi-Module To The Installer The purpose of this manual is to familiarize the installer with the proper installation and operation of this module. It is essential that this equipment be properly installed and operational before the door is used by the public. It is the installer’s responsibility to inspect the operation of the entrance system to be sure it complies with any appli-... - Page 5 Nabco Multi-Module Size 3 1/4" x 2 1/4" x 3/4" Mounting Double sided foam tape Operating voltage 12/24 volts Ac or Dc Current Draw 18 mA Standby, 40 mA Max. 2 - dry contacts Inputs 3 - wet inputs 12-24 VAC or DC, optically isolated, non-polarity sensitive...
- Page 6 Nabco Multi-Module Refer to the Figure 1 below: To enter the program mode, push and hold SW1 Mode Switch for 2 seconds. The mode that is presently selected will be “flashed”. Example: if the Multi-Module is in mode 3, the relays will click and the Indicator LEDs will flash 3 times. The user now has 3 seconds to press the mode select button again to select the next mode.
-
Page 7: Mode 1 - Electric Strike Sequence Diagram - Magnum 4 Control
MODE 1 - ELECTRIC STRIKE SEQUENCER DIAGRAM - MAGNUM 4 CONTROL MULTI MODULE PN 14-12240 Note: A black circle indicates a wire connection. Power supply inputs not EXTERIOR KEY SWITCH RELAY 1 RELAY 2 polarity sensitive. Normally Open - Dry Contacts ON TIME (DELAY ON TIME... -
Page 8: Mode 1 - Electric Strike Sequence Diagram - Analog Control
MODE 1 - ELECTRIC STRIKE SEQUENCER DIAGRAM - ANALOG CONTROL EXTERIOR KEY SWITCH Note: RELAY 1 RELAY 2 Normally Open - Dry Contacts A black circle indicates ON TIME (DELAY ON TIME (IF USED) SW 1 a wire connection. MODE OPERATE) SWITCH iti-200S... -
Page 9: Mode 1 - Bi-Directional Door Sequencer Diagram - Magnum 4 Control
MODE 1 - BI-DIRECTIONAL DOOR SEQUENCER DIAGRAM - MAGNUM 4 CONTROL RELAY 1 RELAY 2 ON TIME (DELAY ON TIME SW 1 MODE OPERATE) SWITCH iti-200S RELAY 2 INTERIOR PUSH SWITCH RELAY1 RELAY2 Normally Open - Dry Contacts COM COM WET2 WET3 N.O. -
Page 10: Mode 1 - Bi-Directional Door Sequencer Diagram - Analog Control
MODE 1 - BI-DIRECTIONAL DOOR SEQUENCER DIAGRAM - ANALOG CONTROL RELAY 1 RELAY 2 ON TIME (DELAY ON TIME SW 1 MODE OPERATE) SWITCH iti-200S RELAY 2 INTERIOR PUSH SWITCH RELAY1 RELAY2 Normally Open - Dry Contacts WET2 WET3 N.O. N.C. -
Page 11: Mode 2 - Apartment Or Access Control Diagram - Magnum 4 Control
MODE 2 - APARTMENT OR ACCESS CONTROL DIAGRAM - MAGNUM 4 CONTROL RELAY 1 RELAY 2 ON TIME (DELAY ON TIME SW 1 MODE OPERATE) SWITCH Exterior Switch iti-200S RELAY 2 (Only active when someone "buzzes RELAY1 RELAY2 down") Switch opens door. WET2 WET3 Normally Open - Dry Contacts... -
Page 12: Mode 2 - Apartment Or Access Control Diagram - Analog Control
MODE 2 - APARTMENT OR ACCESS CONTROL DIAGRAM - ANALOG CONTROL RELAY 1 RELAY 2 ON TIME (DELAY ON TIME SW 1 MODE OPERATE) SWITCH Exterior Switch iti-200S RELAY 2 (Only active when someone "buzzes RELAY1 RELAY2 down") Switch opens door. COM COM WET2 WET3... -
Page 13: Mode 3 - Ratchet Or Latching Operation Diagram - Analog Control
MODE 3 - RATCHET OR LATCHING OPERATION DIAGRAM - ANALOG CONTROL Mode 3 not required with Magnum control - Magnum control includes this feature This potentiometer has no effect NOTES: Pushing either switch once unlocks and opens door. Door will remain open until RELAY 1 RELAY 2 ON TIME... - Page 14 MODE 4 - ELECTRIC STRIKE DIAGRAM WITH HOLD OPEN SWITCH - MAGNUM 4 CONTROL MULTI MODULE PN 14-12240 Note: A black circle indicates a wire connection. EXTERIOR KEY SWITCH RELAY 1 RELAY 2 Power supply inputs not Normally Open - Dry Contacts ON TIME (DELAY ON TIME...
-
Page 15: Mode 4 - Smoke Evacuation Diagram - Magnum 4 Control
MODE 4 - SMOKE EVACUATION DIAGRAM - MAGNUM 4 CONTROL NOTES: In smoke evacuation or This potentiometer has no effect maintained operator mode the RELAY 1 RELAY 2 module can be triggered by a ON TIME (DELAY ON TIME wet input or a dry contact like a SW 1 MODE Fire Alarm Panel... -
Page 16: Mode 4 - Smoke Evacuation Diagram - Analog Control
MODE 4 - SMOKE EVACUATION DIAGRAM - ANALOG CONTROL NOTES: In smoke evacuation or This potentiometer has no effect maintained operator mode the module can be triggered by a RELAY 1 RELAY 2 ON TIME (DELAY ON TIME wet input or a dry contact like a SW 1 MODE Fire Alarm Panel... -
Page 17: Mode 5 - Acugard Lock-Out Relay Diagram - Magnum 4 Control
MODE 5 - ACUGARD LOCK OUT RELAY DIAGRAM - MAGNUM 4 CONTROL These Potentiometers have no effect NOTES: Sensor only active after push RELAY 1 RELAY 2 plate is actuated. It will stay Magnetic Door Position Switch ON TIME ON TIME (DELAY SW 1 active until the door shuts and... -
Page 18: Mode 5 - Acugard Lock-Out Relay Diagram - Analog Control
MODE 5 - ACUGARD LOCK OUT RELAY DIAGRAM - ANALOG CONTROL These Potentiometers have no effect NOTES: Sensor only active after push plate is actuated. It will stay RELAY 1 RELAY 2 Magnetic Door Position Switch ON TIME (DELAY ON TIME active until the door shuts and SW 1 P/N 14-11313... -
Page 19: Mode 6 - Washroom Control Relay Diagram - Magnum 4 Control
MODE 6 - WASHROOM CONTROL RELAY DIAGRAM - MAGNUM 4 CONTROL Interior Push Plate NOTES: RELAY 1 RELAY 2 Normally Open - Dry Contacts Fail Safe Strike Used ON TIME (DELAY ON TIME SW 1 A black circle indicates a MODE OPERATE) wire connection. -
Page 20: Mode 6 - Washroom Control Relay Diagram - Analog Control
MODE 6 - WASHROOM CONTROL RELAY DIAGRAM - ANALOG CONTROL Interior Push Plate NOTES: RELAY 1 RELAY 2 Normally Open - Dry Contacts Fail Safe Strike Used ON TIME (DELAY ON TIME SW 1 A black circle indicates a MODE OPERATE) wire connection. -
Page 21: Nabco Entrances Return Policy
NABCO must be promptly notified (within 2 weeks of failure) of all warranty claims. All parts for warranty claims must be returned to NABCO within the following two (2) weeks for US locations and six (6) weeks for all other locations.
