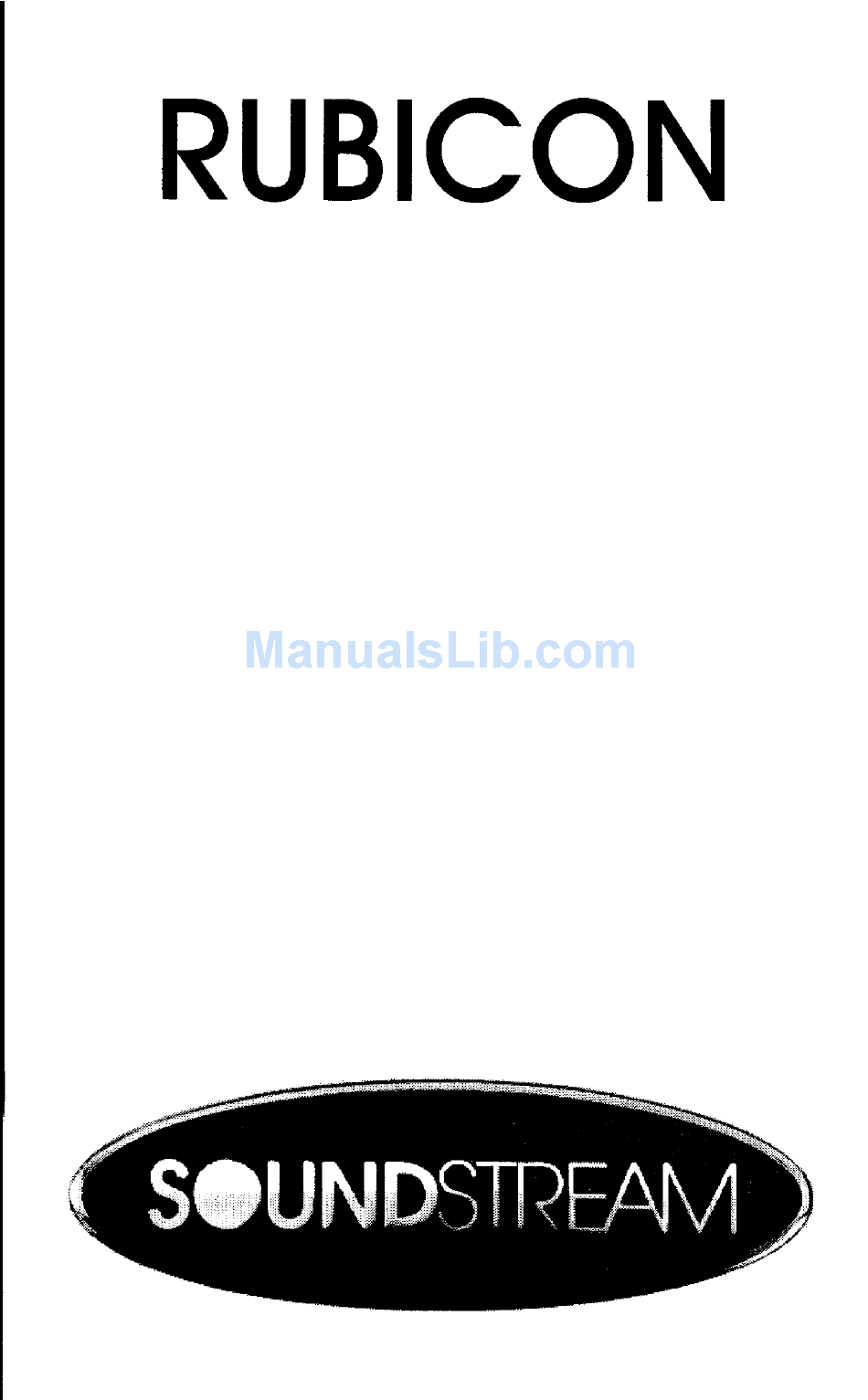

- Page 1 RUBICON Angina Power Amplifiers Owner’s Manual Installation Guide...
- Page 2 Conuru fulations! You now own a Soundstream RUBICON amplifier, the product of an uncom- promising design and engineering philosophy. Your Soundstream RUBICON amplifier will outperform any other amplifier in the world. To maximize the performance of your system, we recommend that you thor- oughly acquaint yourself with its capabilites and features.
- Page 3 Desiun features of the An&a SLA/SHTM (Speaker Load Adapting I Subwoofer Hyper-Efficient) This new dual function technology currently operates in two different ways in different models. In subwoofer applications the power supply tracks the incoming audio signal and increases or decreases its own voltage level to mirror the input.
- Page 4 Desiun Features of the A4 RUBITM Power Supply (Rapid-Use Branched Impulse) Our new power supply eliminates “power sags” during low frequency reproduction by rapidly increasing the duty cycle, stabilizing the power supply and allow- ing it to deliver the power required when reproducing low frequencies. Also, greater reserve gate power is now stored for low voltage conditions that occur during extreme conditions.
- Page 5 Cal/outs for the An&a SOUNDSTREW Power LED - Indicates amplifier power. Subsonic / Hawkins Bass Control Switch - Select “Subsonic” to engage the Subsonic filter at 13Hz. Select ‘Hawkins E&s Confrol”to engage the +6dB boost @I 45Hz for the lowpass channel. Input Selection Switch - Select “SPKR IN / RCA OUT”...
- Page 6 Callouis for the A4 Top Panel View Subsonic / Hawkins Bass Control Switch - Select “Subsonic” to engage the Subsonic filter at 13Hz. Select ‘Hawkins Bass Contro/“to engage the +6dB boost @ 45Hz for the lowpass channel. ST/MO(S)/LP Switch - Select “ST” for normal stereo operation. “MO” for bridged mono operation with a single input signal (number 2 input only).
- Page 7 Crossover Adiustmen ts ANGINA CROSSOVER The ANGINA is designed as a mono subwoofer amplifier. This means the amplifier will direct 200 watts of pure hard-core bass to your subwoofers. It handles these low frequencies with a Butterworth, 12dB/octave low pass filter.
- Page 8 Wiring POWER A ND GROUND To ensure maximum output from your RUBICON amplifier, use high quality, low- oss power and ground cables and connections. The RUBICON amplifiers will Iccept an 8 gauge power and ground cables. Determine from the chart below the ninimum and maximum gauge power and ground wire for your application.
- Page 9 Level Setting The input levels are adjusted by means of the input level controls located on the front of the amplifier as shown below in the shaded area. This is a unique dual- stage circuit that adjusts both level and gain. This topology maintains better S/N Ratio even when using sources with minimal output.
- Page 11 An&a and A4 Sarnde System feti Complete while using a Factory Radio Spmkrr Lwcl O”, R A D I O Front Speakers Troubleshoo thy PROBLEM 1. No power or ground at the power LED No Sound and is not 2. No remote turn-on signal 3.
- Page 12 SDecifica tions for the An&a 4 Sz Mono MODEL (12.6 Vdc) 100wx1 Angina I <O.l% Signal to Noise >90dB 20Hz (+0.5dB) to 100Hz (-3dB) Frequency Response Stereo Separation Damping >lOO 200mV to 5.0 Volts Input Sensitivity 1 Ok Ohms Input Impedance Cross0 ver Specifications Low Pass: Select between 60,80 and 1 OOHz @ 12dB/Octave...
