- Page 1 Surveillance Camera FUJIFILM SX-800 Owner’s Manual: Stand-Alone Mode BL00005034-200...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions For Your Safety ....................................1 WARNINGS ............................................1 CAUTIONS ............................................1 General Precautions ..........................................1 NOTICES Caution: ................................................2 FCC Warning: ............................................2 For Customers In Canada .........................................2 About the Icons ............................................2 Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Iceland and Liechtenstein: ..........................................3 Precautions for Use Operating Environment ................................4... - Page 3 Table of Contents Camera Menus Using the Menus ..................................12 SHOOTING MENU 1 ..................................14 FOCUS ................................................ 14 IRIS ................................................14 SHUTTER SPEED ........................................... 14 GAIN ................................................15 DAY/NIGHT ............................................. 15 EXTERNAL TRIGGER ........................................... 15 IR WAVELENGTH ........................................... 16 SHOOTING MENU 2 ..................................17 IMAGE STABILIZATION ........................................
- Page 4 Table of Contents Troubleshooting Defaults SHOOTING MENU ..........................................25 SET-UP ................................................ 25 Specifi cations...
-
Page 5: Safety Precautions
Safety Precautions For Your Safety This section lists important precautions that must be followed to ensure safe and correct use of the product. Read them before using the product and observe them during use. WARNING and CAUTION indications in this document indicate the following: Failure to observe warnings could result in death or serious injury. -
Page 6: Notices
Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by FUJIFILM Corporation for this product or product family. This compliance is indicated by the following conformity marking placed on the product: This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g.Bluetooth). -
Page 7: Disposal Of Electrical And Electronic Equipment In Private Households In The European Union, Norway, Iceland And Liechtenstein
NOTICES Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Iceland and Liechtenstein: Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. -
Page 8: Precautions For Use
Precautions for Use Operating Environment • The camera can be used at temperatures of from −10 to +50 °C (temperatures below freezing are only supported if the power supply is not interrupted) and at humidities of from 10 to 80% (no condensation). •... -
Page 9: Introduction
Introduction Parts of the Camera (handle screws attach here) Lens Base (mounting screws Control panel Memory attach here) card slot The Control Panel The Control Panel 1 2 3 4 5 6 7 8 Item Name Item Name A Power switch K TELE button B Power lamp L NEAR button... -
Page 10: Installation And Connection
Installation and Connection Installation Use the screw holes on the base to secure the camera to a mount or other surface. Attach the product securely to a surface that can safely bear the combined weight of the camera and associated hard- ware. -
Page 11: Connection Schematic
Installation and Connection Connection Schematic The schematic below illustrates how the camera can be installed for stand-alone use. 1 2 3 4 5 6 7 8 HD-SDI connection VIDEO connection HDMI connection SX800 Monitor Control panel When the camera is connected to a monitor via an HD-SDI, VIDEO, or HDMI cable, you can view the live feed, control the camera, and adjust camera settings via the control panel on the back of the camera. -
Page 12: Connecting To A Monitor
Installation and Connection Connecting to a Monitor Connect the supplied plug to the power cable and plug the cable into the camera power connector. Use only DC 12 V power. CAUTION Customers must supply their own power cable. Connect the camera to the monitor using the appropriate cable. 1 2 3 4 5 6 7 8 The camera cannot be connected via HD-SDI while connect- HD-SDI connection... -
Page 13: Camera Controls
Camera Controls Use the control panel on the back of the camera for live feed or camera control or adjusting camera settings. To display the menus, press and hold the OK/MENU button for 3 seconds. 1 2 3 4 5 6 7 8 Control panel The following buttons are used to navigate the menus and control the camera: Function... -
Page 14: Basic Setup
Basic Setup The fi rst time you turn the camera on, you will be prompted to choose a language and set the camera clock. Choosing a Language and Setting the Clock Turn the camera on. A splash screen will be displayed, followed by a lan- guage-selection dialog. -
Page 15: Memory Card Warning
Basic Setup Set the clock, using NEAR (g) and FAR (h) to highlight options and TELE DATE/TIME NOT SET (e) and WIDE (f) to edit the highlighted option. Press OK when the pro- cess is complete. 24-2020 20:00 • You can skip the current step by pressing the BACK button in the control panel. You will be prompted to complete any steps you skipped the next time you turn the camera on. -
Page 16: Camera Menus
Camera Menus Using the Menus Use the menus to adjust camera settings. Press and hold the control panel OK button to display the menus and use the TELE (e), WIDE (f), NEAR (g), and FAR (h) buttons to move the cursor up, down, left, and right, the OK button to select highlighted items, and the BACK button to exit to the previous menu. - Page 17 Camera Menus Press TELE (e) and WIDE (f) to highlight the desired item. SHOOTING MENU OPTICAL FILTER(VLC) BACKLIGHT CORRECTION HEAT HAZE REDUCTION FOG REDUCTION NOISE REDUCTION DIGITAL ZOOM EXIT Press FAR (h) to view options for the highlighted item. NOISE REDUCTION Choose the desired option and press OK.
-
Page 18: Shooting Menu 1
Camera Menus SHOOTING MENU 1 SHOOTING MENU FOCUS C-AF IRIS AUTO SHUTTER SPEED AUTO GAIN DAY/NIGHT AUTO EXTERNAL TRIGGER IR WAVELENGTH VISIBLE LIGHT EXIT FOCUS FOCUS Choose how the camera focuses. Option Description The camera adjusts focus continuously in response to changes in the distance to the subject. Choose from the following focus-area selection and subject-tracking options. -
Page 19: Gain
Camera Menus GAIN GAIN Adjust image brightness. Option Description MANUAL Choose a value for gain. The camera adjusts gain automatically to brighten the image when lighting is poor. HYPER-AGC Choose for automatic gain control adapted to low light conditions. DAY/NIGHT DAY/NIGHT In day/night mode, the camera records in color when the subject is brightly lit and in black-and-white when the subject is poorly lit. -
Page 20: Ir Wavelength
Camera Menus IR WAVELENGTH IR WAVELENGTH Match the IR wavelength to the infrared light source used. See “Specifi cations” (page 26) for supported values. The SHOOTING MENU 1 > DAY/NIGHT, EXTERNAL TRIGGER, and IR WAVELENGTH and the SHOOTING MENU 3 > OPTICAL FILTER (VLC) preferences are linked. For more information, see “Lighting Triggers” below. Lighting Triggers Day/night selection can be confi... -
Page 21: Shooting Menu 2
Camera Menus SHOOTING MENU 2 SHOOTING MENU IMAGE STABILIZATION AUTO EXIT IMAGE STABILIZATION IMAGE STABILIZATION Choose an image stabilization option adapted to the scene. Option Description AUTO The camera chooses the type of image stabilization best suited to the scene. Reduce the eff... -
Page 22: Shooting Menu 3
Camera Menus SHOOTING MENU 3 SHOOTING MENU OPTICAL FILTER(VLC) BACKLIGHT CORRECTION HEAT HAZE REDUCTION FOG REDUCTION NOISE REDUCTION DIGITAL ZOOM EXIT OPTICAL FILTER(VLC) OPTICAL FILTER(VLC) Enable or disable the VLC (Visible Light Cut) fi lter. Option Description Enable the VLC fi lter, blocking visible light and recording only infrared footage. Enable the clear (CLEAR) or infrared cut-off... -
Page 23: Shooting Menu 4
Camera Menus SHOOTING MENU 4 SHOOTING MENU USE SETTING SURVEILLANCE BRIGHTNESS CONTRAST SATURATION SHARPNESS WHITE BALANCE AUTO EXIT USE SETTING USE SETTING Choose a shooting preset. Option Description SURVEILLANCE Emphasize outlines. Choose for accurate color reproduction when shooting non-surveillance footage at social gatherings or other MOVIE PRODUCTION events. -
Page 24: Shooting Menu 5
Camera Menus SHOOTING MENU 5 SHOOTING MENU DAY & TIME DISPLAY BOTTOM RIGHT TITLE DISPLAY BOTTOM RIGHT EDIT TITLE ID DISPLAY BOTTOM RIGHT EXIT DAY & TIME DISPLAY DAY & TIME DISPLAY Position the date and time display. TITLE DISPLAY TITLE DISPLAY Position the video title. -
Page 25: Set-Up 1
Camera Menus SET-UP 1 SET-UP SET DATE & TIME VIDEO SYSTEM NTSC VIDEO FORMAT 1080p ASPECT FOR VIDEO SIDE CUT ID NAME RS485 BAUD RATE 9600bps RS485 TERMINATION EXIT SET DATE & TIME SET DATE & TIME Set the camera clock. VIDEO SYSTEM VIDEO SYSTEM Choose the standard used for video output from the camera. -
Page 26: Set-Up 2
Camera Menus SET-UP 2 SET-UP PROTOCOL Pelco-D SD CARD OVERWRITE FORMAT SD CARD IP ADDRESS INFORMATION IP ADDRESS SETTINGS RESET FIRMWARE COPY LOG DATA EXIT PROTOCOL PROTOCOL Choose a communications protocol for RS485 connections. SD CARD OVERWRITE SD CARD OVERWRITE Choose whether the camera overwrites existing data when the memory card is full. -
Page 27: Set-Up 3
Camera Menus SET-UP 3 SET-UP RESET LANG. ENGLISH 言語/ EXIT RESET RESET Selecting this option displays a confi rmation dialog; select OK to reset camera settings to their default values. Settings can also be reset by pressing and holding the control panel RESET button for 3 seconds. /LANG. -
Page 28: Troubleshooting
Troubleshooting Should the product fail to function as expected, consult the table below. If you are unable to fi nd a solution here, contact your local Fujifi lm distributor. Problem Solution • The camera is off : Check that the cables are correctly connected, the power lamp is lit, and the correct voltage is being supplied to the lens. -
Page 29: Defaults
Defaults The RESET option in the setup menu restores settings to the following default values: SHOOTING MENU SHOOTING MENU SET-UP SET-UP Option Default Option Default CONTINUOUS AF • TIME DISPLAY: 24h SET DATE & TIME FOCUS • FOCUS AREA: CENTER •... -
Page 30: Specifi Cations
Specifi cations Model FUJIFILM SX800 Focal length 20–800 mm 40× Optical zoom Digital zoom 1.25× Iris range f/4–f/16 Minimum object distance 10 m “at focal lengths of 20–400 mm” (M.O.D.) 20 m “at focal lengths of 401–800 mm” Image sensor CMOS sensor • File format: MOV Video •... - Page 31 MEMO...

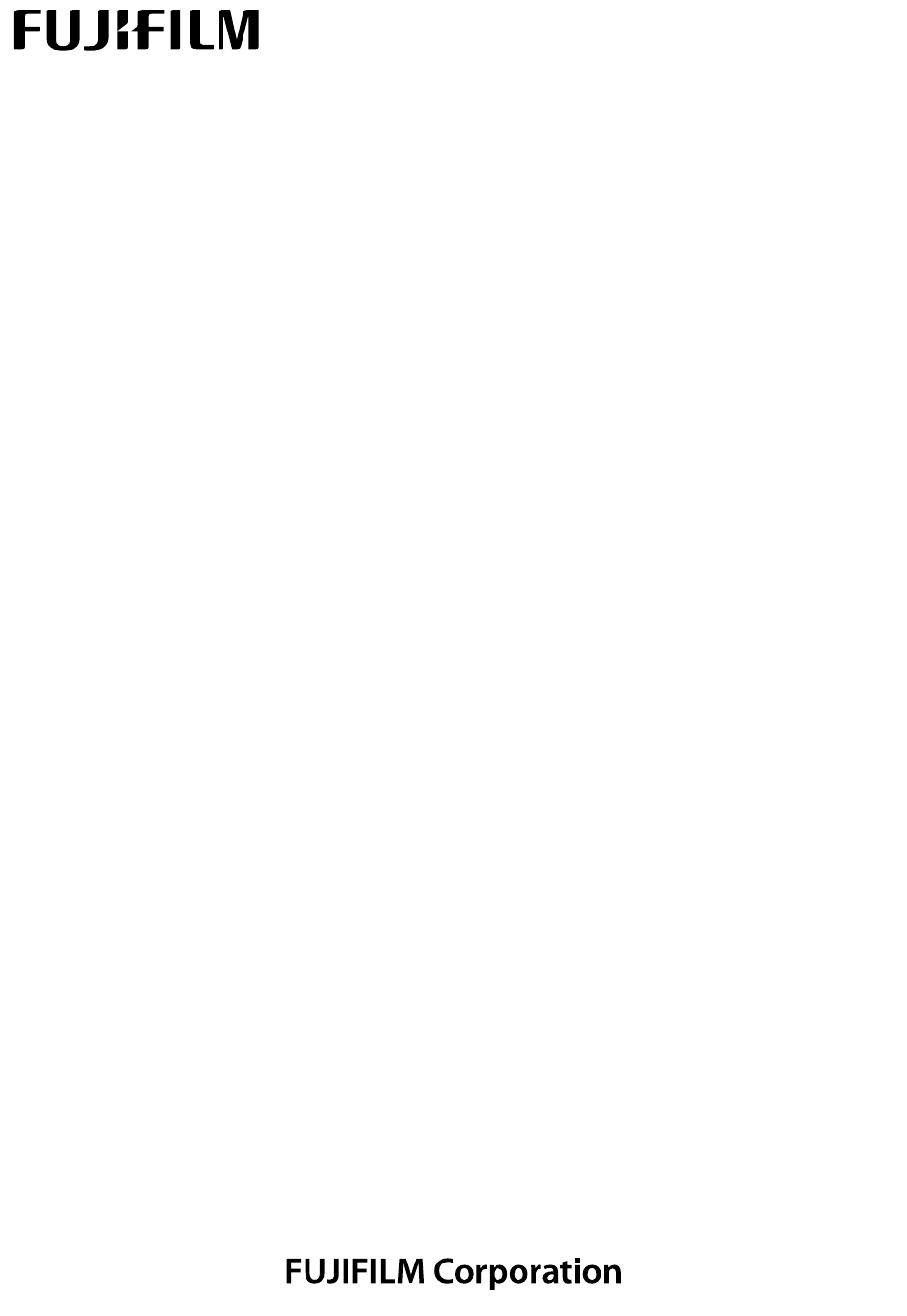

- Page 32 http://www.fujifilm.com/...
