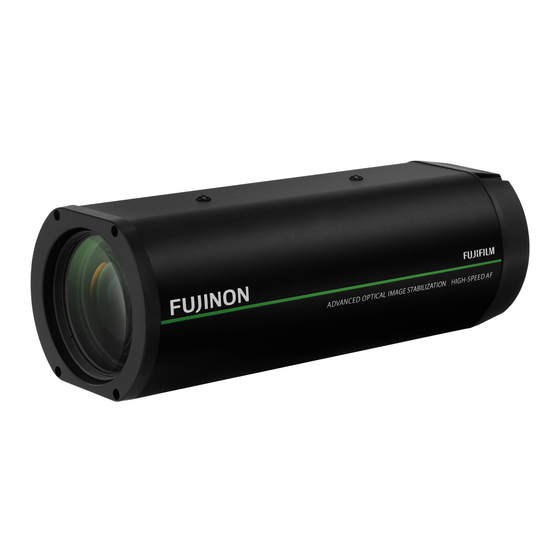

- Page 1 Surveillance Camera FUJIFILM SX-800 Owner’s Manual: IP ONVIF ConnectionsP BL00005029-200(1)
-
Page 2: Table Of Contents
Table of Contents Safety Precautions For Your Safety ....................................1 WARNINGS ............................................1 CAUTIONS ............................................1 General Precautions ..........................................1 NOTICES Caution: ................................................2 FCC Warning: ............................................2 For Customers In Canada .........................................2 About the Icons ............................................2 Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Iceland and Liechtenstein: ..........................................3 Precautions for Use Operating Environment ................................4... - Page 3 Table of Contents Preferences CAMERA SETTING ..................................11 AF SETTING ............................................. 11 FOCUS AREA ............................................11 AF SENSITIVITY ............................................11 IRIS ................................................11 SHUTTER SPEED ........................................... 11 GAIN ................................................11 DAY/NIGHT ............................................. 12 EXTERNAL TRIGGER ........................................... 12 IR WAVELENGTH ........................................... 12 IMAGE STABILIZATION ........................................
- Page 4 Table of Contents PTZ SETTING ....................................17 RS485 BAUD RATE..........................................17 RS485 ID ..............................................17 RS485 TERMINATION ......................................... 17 Pelco-P/Pelco-D ........................................... 17 SYSTEM MAINTENANCE ................................18 REBOOT ..............................................18 RESET SETTINGS ..........................................18 IMPORT CONFIGURATION FILE ....................................18 EXPORT TO CONFIGURATION FILE ................................... 18 FW UPDATE .............................................
-
Page 5: Safety Precautions
Safety Precautions For Your Safety This section lists important precautions that must be followed to ensure safe and correct use of the product. Read them before using the product and observe them during use. WARNING and CAUTION indications in this document indicate the following: Failure to observe warnings could result in death or serious injury. -
Page 6: Notices
Compliance with these directives implies conformity to applicable harmonized European standards (European Norms) which are listed on the EU Declaration of Conformity issued by FUJIFILM Corporation for this product or product family. This compliance is indicated by the following conformity marking placed on the product: This marking is valid for non-Telecom products and EU harmonized Telecom products (e.g.Bluetooth). -
Page 7: Disposal Of Electrical And Electronic Equipment In Private Households In The European Union, Norway, Iceland And Liechtenstein
NOTICES Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Disposal of Electrical and Electronic Equipment in Private Households In the European Union, Norway, Iceland and Liechtenstein: Iceland and Liechtenstein: This symbol on the product, or in the manual and in the warranty, and/or on its packaging indicates that this product shall not be treated as household waste. -
Page 8: Precautions For Use
Precautions for Use Operating Environment • The camera can be used at temperatures of from −10 to +50 °C (temperatures below freezing are only supported if the power supply is not interrupted) and at humidities of from 10 to 80% (no condensation). •... -
Page 9: Introduction
Introduction Parts of the Camera (handle screws attach here) Lens Base (mounting screws Control panel Memory attach here) card slot The Control Panel The Control Panel 1 2 3 4 5 6 7 8 Item Name Item Name A Power switch K TELE button B Power lamp L NEAR button... -
Page 10: Installation And Connection
Installation and Connection Installation Use the screw holes on the base to secure the camera to a mount or other surface. Attach the product securely to a surface that can safely bear the combined weight of the camera and associated hard- ware. -
Page 11: Connection Schematic
Installation and Connection Connection Schematic The schematic below illustrates how the camera can be installed for use with IP connections. IP connection ONVIF SX800 RS485 (Pelco D/P) connection Computer Remote-control mount ONVIF-compatible remote control When the camera is connected to a computer via Internet protocols (IP), a web browser can be used to adjust camera settings and an ONVIF application to view the live feed and control the camera. -
Page 12: Connecting To A Computer
Installation and Connection Connecting to a Computer Connect the supplied plug to the power cable and plug the cable into the camera power connector. Use only DC 12 V power. CAUTION Customers must supply their own power cable. Use an Ethernet cable to connect the camera to a computer. Select LAN ONVIF by setting DIP switch B to “ON”... -
Page 13: Viewing And Recording The Live Feed
Viewing and Recording the Live Feed The camera’s live feed can be viewed and recorded using a web browser. Launching a Web Browser Supported operating systems Windows 7, Windows 10 Supported web browsers Internet Explorer 11, Google Chrome 71 or later For information on using the web browser, see the browser’s online help. -
Page 14: Preferences
Preferences Adjust camera settings. Choosing a category ( A ) displays the associated settings ( B ). Category Description CAMERA SETTING Adjust basic camera settings. IMAGE QUALITY SETTING Adjust image quality settings. View the fi rmware version and other information. You can also set the camera clock and adjust other sys- SYSTEM tem-related settings. -
Page 15: Camera Setting
Preferences CAMERA SETTING Adjust basic camera settings. AF SETTING AF SETTING Choose how the camera focuses when autofocus is enabled via ONVIF. Options CONTINUOUS AF QUICK AF ONE PUSH AF FOCUS AREA FOCUS AREA Choose how the camera selects the focus area when CONTINUOUS AF is selected for AF SETTING . Option Description CENTER... -
Page 16: Day/Night
Preferences DAY/NIGHT DAY/NIGHT In day/night mode, the camera records in color when the subject is brightly lit and in black-and-white when the subject is poorly lit. This option is available when OFF is selected for both EXTERNAL TRIGGER and OPTICAL FILTER (VLC). Option Description The camera selects day or night mode automatically according to lighting conditions. -
Page 17: Image Stabilization
Preferences IMAGE STABILIZATION IMAGE STABILIZATION Choose an image stabilization option adapted to the scene. Option Description AUTO The camera chooses the type of image stabilization best suited to the scene. Reduce the eff ects of camera shake using optical image stabilization. Reduce the eff... -
Page 18: Image Quality Setting
Preferences IMAGE QUALITY SETTING Adjust image quality settings. OPTICAL FILTER (VLC) OPTICAL FILTER (VLC) Enable or disable the VLC (Visible Light Cut) fi lter. Option Description Enable the VLC fi lter, blocking visible light and recording only infrared footage. Enable the clear (CLEAR) or infrared cut-off fi lter (IRCF). The CAMERA SETTING >... -
Page 19: Use Setting
Preferences USE SETTING USE SETTING Choose a shooting preset. Option Description SURVEILLANCE Emphasize outlines. Choose for accurate color reproduction when shooting non-surveillance footage at social gatherings or other MOVIE PRODUCTION events. BRIGHTNESS BRIGHTNESS Adjust brightness. The higher the value, the greater the eff ect. CONTRAST CONTRAST Adjust contrast. -
Page 20: System
Preferences SYSTEM View the fi rmware version and other information. You can also set the camera clock and adjust other system-related settings. MODEL NAME MODEL NAME View the camera model name. SERIAL NO. SERIAL NO. View the product serial number. FW VER. -
Page 21: Ptz Setting
Preferences PTZ SETTING Adjust settings for remote-control mounts. You will need to turn the camera off and then on again after adjusting settings in this menu. RS485 BAUD RATE RS485 BAUD RATE Choose the baud rate for data transmitted via RS485. Options 115200bps 38400bps... -
Page 22: System Maintenance
Preferences SYSTEM MAINTENANCE Restart the camera, update camera fi rmware, and perform other forms of system maintenance. REBOOT REBOOT Select OK to restart the camera. RESET SETTINGS RESET SETTINGS Select OK to restore camera settings to their default values. Items in the following menus are not aff ected: •... -
Page 23: Network Setting
Preferences NETWORK SETTING Adjust basic network settings. IPv4 ADDRESS IPv4 ADDRESS Enter the camera’s IPv4 address. IPv4 SUBNET MASK IPv4 SUBNET MASK Enter the camera’s IPv4 subnet mask. IPv4 DEFAULT GATEWAY IPv4 DEFAULT GATEWAY Enter the camera’s default IPv4 gateway. MAC ADDRESS MAC ADDRESS View the camera’s MAC address. -
Page 24: Display/Osd Setting
Preferences DISPLAY/OSD SETTING Adjust display settings. DATE DISPLAY DATE DISPLAY Select ON to show the date in the live feed. TIME DISPLAY TIME DISPLAY Choose whether times are displayed using a 12- or 24-hour clock. DATE DISPLAY FORMAT DATE DISPLAY FORMAT Choose the order in which the year, month, and day are displayed. -
Page 25: Troubleshooting
Troubleshooting Should the product fail to function as expected, consult the table below. If you are unable to fi nd a solution here, contact your local Fujifi lm distributor. Problem Solution • The camera is off : Check that the cables are correctly connected, the power lamp is lit, and the correct voltage is being supplied to the lens. -
Page 26: Defaults
Defaults Selecting OK for SYSTEM MAINTENANCE > RESET SETTINGS restores settings to the following default values: CAMERA SETTING CAMERA SETTING PTZ SETTING PTZ SETTING Option Default Option Default AF SETTING CONTINUOUS AF RS485 BAUD RATE 9600bps FOCUS AREA CENTER RS485 ID AF SENSITIVITY RS485 TERMINATION IRIS... -
Page 27: Specifi Cations
Specifi cations Model FUJIFILM SX800 Focal length 20–800 mm 40× Optical zoom Digital zoom 1.25× Iris range f/4–f/16 Minimum object distance 10 m “at focal lengths of 20–400 mm” (M.O.D.) 20 m “at focal lengths of 401–800 mm” Image sensor CMOS sensor • File format: MOV Video •... - Page 28 http://www.fujifilm.com/...
