Central Machinery 62203 Owner's Manual & Safety Instructions

Portable electric pipe threader
Hide thumbs

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2007 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
Email our technical support at: productsupport@harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
REV 15h

Advertisement

loading

Related Manuals for Central Machinery 62203

Summary of Contents for Central Machinery 62203

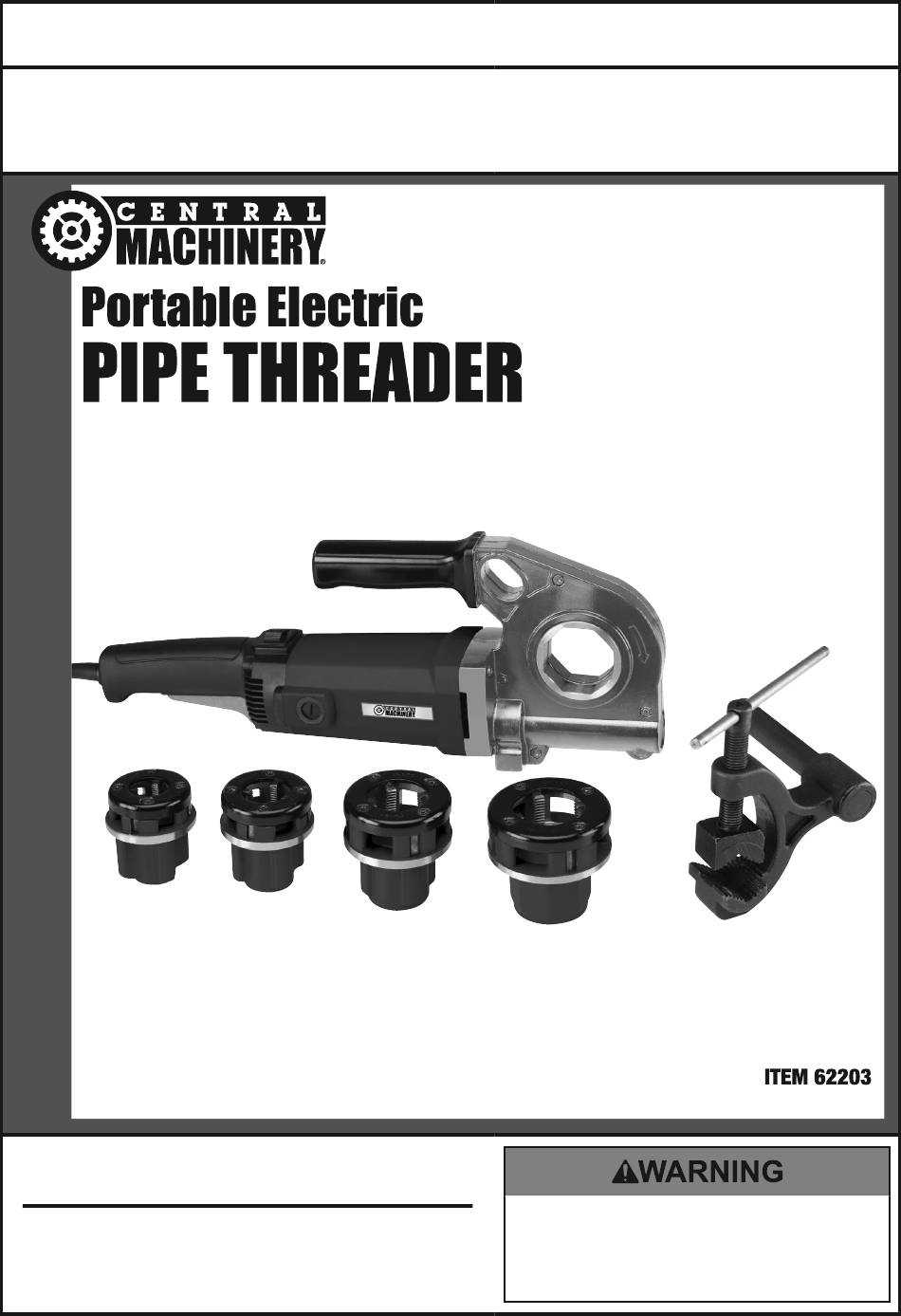

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Page 2 For technical questions, please call 1-888-866-5797. Item 62203...

  • Page 3: Safety

    Trigger is dangerous and must be repaired. with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Item 62203 For technical questions, please call 1-888-866-5797. Page 3...
  • Page 4 • Do not use with Trigger locked on. • Properly maintain and inspect to avoid electrical shock. • Properly ground power cord. Ground Fault Circuit Interrupter (GFCI) should also be implemented – it prevents sustained electrical shock. Page 4 For technical questions, please call 1-888-866-5797. Item 62203...
  • Page 5 If any abnormal as tingling, numbness, and white or blue fingers), vibration occurs, stop use immediately. seek medical advice as soon as possible. SAVE THESE INSTRUcTIONS. Item 62203 For technical questions, please call 1-888-866-5797. Page 5...
  • Page 6 Association, and the National Electrical Code. 2. Double insulated tools may be used in either of the 120 volt outlets shown in the preceding illustration. (See Outlets for 2-prong plug.) Outlets for 2-prong plug Page 6 For technical questions, please call 1-888-866-5797. Item 62203...
  • Page 7 Risk of Fire. Alternating Current Do not cover ventilation ducts. Keep flammable objects away. WARNING marking concerning Amperes Risk of Electric Shock. Properly connect power cord to appropriate outlet. Item 62203 For technical questions, please call 1-888-866-5797. Page 7...

  • Page 8: Specifications

    Parts List and Diagram on page 14. Functions clamp Front Rod Slot Direction Handle Die Holder Switch Safety button clamp on other side Lever clamp Rod Trigger clamp Dies Page 8 For technical questions, please call 1-888-866-5797. Item 62203...

  • Page 9: Operation

    Pipe Threader. (See Figure A.) Make sure the Die is secured in place before proceeding. 3. Fill the Oil Can with Thread Cutting Oil (not included). Keep it nearby during the threading operation. Figure A Item 62203 For technical questions, please call 1-888-866-5797. Page 9...
  • Page 10 6. Install Clamp Rod into Clamp Rod Slot. Ensure Clamp Lever can be adjusted easily from above. Be certain that pipe has enough clearance to proceed. pipe Figure B Page 10 For technical questions, please call 1-888-866-5797. Item 62203...
  • Page 11 Clean, then store to apply slight pressure on the end of the Die tool indoors out of children’s reach. until it engages pipe. (See Figure D.) Figure D Item 62203 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Maintenance

    Die Blade is at the top and in sequence. b. Remove the Chrome Ring from the Die. e. Once the Die Blades are properly inserted, replace the Chrome Ring and four Screws. Die Blade Blade Number chrome Ring Page 12 For technical questions, please call 1-888-866-5797. Item 62203...
  • Page 13 See To replace the Die Blades section on page 12. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service. Item 62203 For technical questions, please call 1-888-866-5797. Page 13...

  • Page 14: Parts List And Diagram

    Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Page 14 For technical questions, please call 1-888-866-5797. Item 62203...
  • Page 15 Assembly Diagram Item 62203 For technical questions, please call 1-888-866-5797. Page 15...

  • Page 16: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
