Emerson Fisher Baumann Little Scotty 24000C Instruction Manual

Carbon steel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
D103356X012
Baumann
™
Little Scotty
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

Baumann 24000C carbon steel Little Scotty industrial control valves (figure 1) are intended for general utility service in
pressure, flow, and temperature control applications.

Scope of Manual

This instruction manual includes installation, maintenance, and parts information for the Baumann 24000C control
valve.
Do not install, operate, or maintain Baumann 24000C control valves without being fully trained and qualified in valve,
actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is
important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and
warnings. If you have any questions about these instructions, contact your
www.Fisher.com
24000C Carbon Steel
Control Valve
™
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .

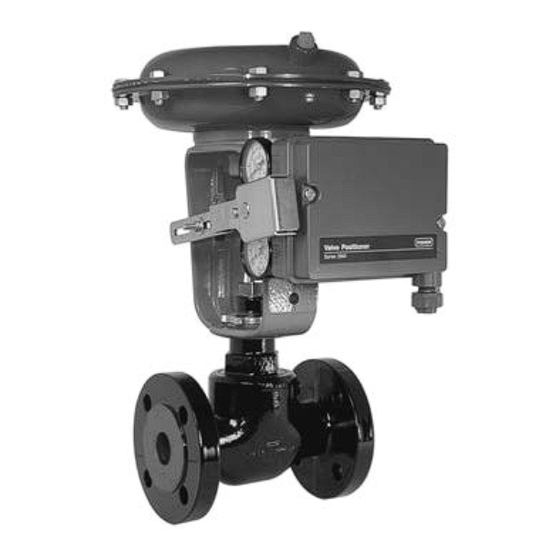

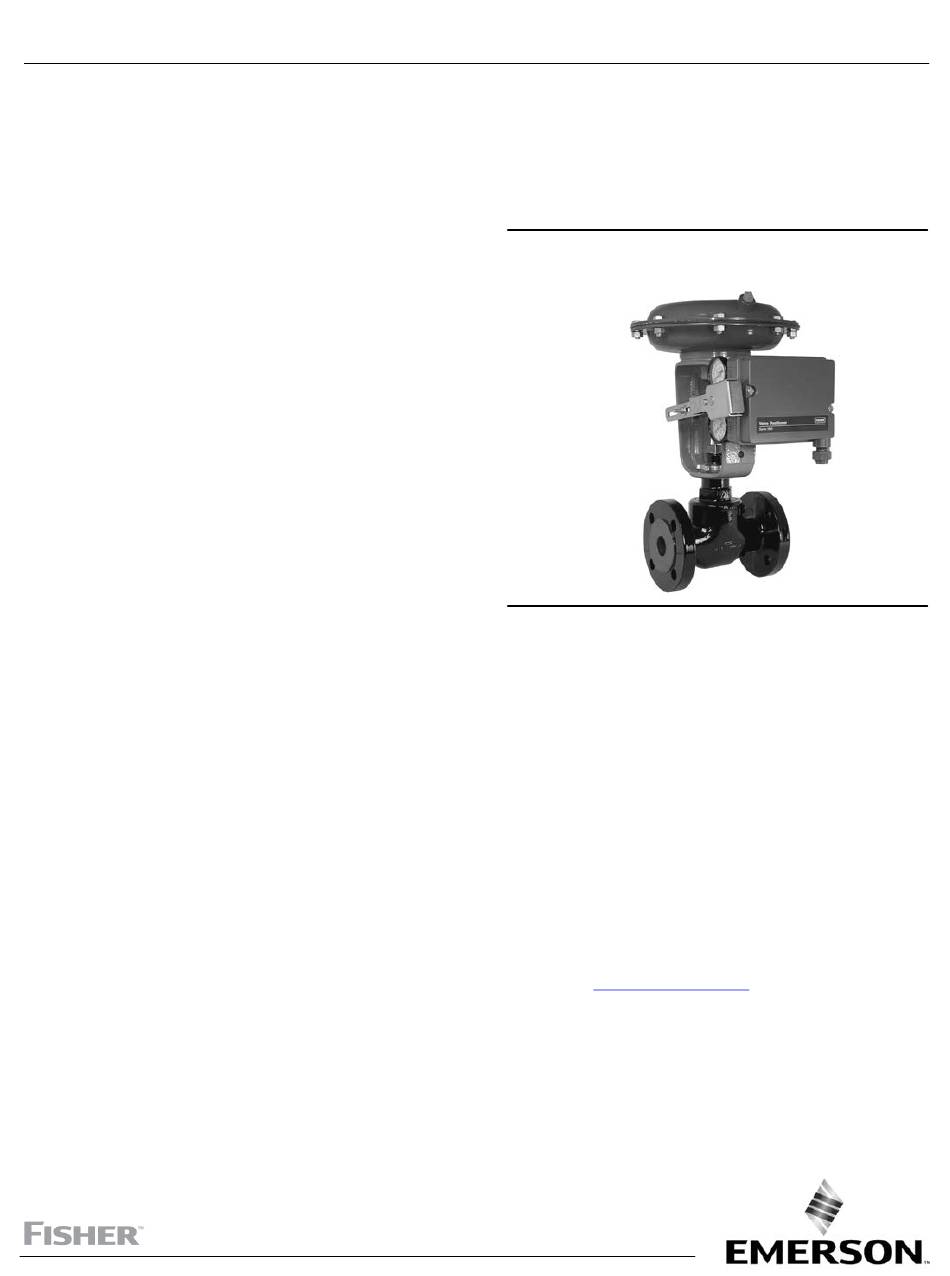

Figure 1. 24000C Control Valve with Baumann 32
Actuator and Fisher
1
1
2
3
3
4
4
6
6
6
8
14
W9744
Emerson sales office
24000C Valve
February 2019
3661 I/P Positioner
™
before proceeding.

Advertisement

Table of Contents
loading

Related Manuals for Emerson Fisher Baumann Little Scotty 24000C

Summary of Contents for Emerson Fisher Baumann Little Scotty 24000C

  • Page 1: Table Of Contents

    To avoid personal injury or property damage, it is important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you have any questions about these instructions, contact your Emerson sales office before proceeding. www.Fisher.com...

  • Page 2: Safety Precautions

    Do not expose this product to service conditions or variables other than those for which the product was intended. If you are not sure what these conditions are you should contact your Emerson sales office for more complete specifications.

  • Page 3: Maintenance

    Instruction Manual 24000C Valve D103356X012 February 2019 Maintenance WARNING Avoid personal injury and property damage from sudden release of process pressure or bursting of parts. Before performing any maintenance operations: D Do not remove the actuator from the valve while the valve is still pressurized. D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations.

  • Page 4: Air Piping

    Instruction Manual 24000C Valve February 2019 D103356X012 Air Piping 1. For an air-to-extend actuator (air-to-close action), connect the actuating air pressure line to the 1/4 NPT opening in the upper diaphragm case. For an air-to-retract actuator (air-to-open action) connect the actuating air pressure line to the 1/4 NPT opening in the lower diaphragm case.
  • Page 5 Instruction Manual 24000C Valve D103356X012 February 2019 Figure 2. Seat Ring Tool Dimensions .502−.508 .502−.508 SQUARE DRIVE SQUARE DRIVE NPS 2 NPS 1 1/2 NPS 1/2, 3/4, 1 MAX ALLOWABLE CENTER DRILL 4 0.532 Table 1. Seat Ring Tool Dimensions (see figure 2) Part Number Inch GE96219X012...

  • Page 6: Lapping The Metal Seat

    Instruction Manual 24000C Valve February 2019 D103356X012 Table 2. Seat Ring Assembly and Torque Tool VALVE SIZE NPS (Inch) (DN) 24000C 1-1/2 (15) (20) (25) (40) (50) 0.25 GE96219X012 GE96219X012 GE96219X022 - - - - - - 0.375 GE96219X012 GE96219X012 GE96219X022 - - - - - -...
  • Page 7 Instruction Manual 24000C Valve D103356X012 February 2019 2. Insert a new valve body gasket (key 49) and install the bonnet assembly (key 8) with the plug and stem assembly in the valve. The O-ring (key 12) must be reinstalled by gently stretching over the bonnet and snapping into the gap between the top of the valve body (key 1) and the bonnet (key 8).

  • Page 8: Parts Ordering

    WARNING Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Automation Solutions should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance of the valve, and could cause personal injury and property damage.
  • Page 9 Instruction Manual 24000C Valve D103356X012 February 2019 Figure 3. Baumann 24000C Valve Body Assembly with Standard PTFE Spring-Loaded Packing E1239 Table 3. Baumann 24000C Common Parts VALVE SIZE DESCRIPTION DN15 DN20 DN25 DN40 DN50 (NPS 1/2) (NPS 3/4) (NPS 1) (NPS1-1/2) (NPS 2) Valve Body, Carbon Steel, EN PN10-40...
  • Page 10 Instruction Manual 24000C Valve D103356X012 February 2019 Table 4. Plug for NPS 1/2, 3/4, and 1 Valves - Metal Seat ORIFICE VALVE SIZE PLUG DESCRIPTION PLUG TYPE DIAMETER DN 15 (NPS 1/2) DN 20 (NPS 3/4) DN 25 (NPS 1) mm (Inch) Metal Seat, 0.17...
  • Page 11 Instruction Manual 24000C Valve D103356X012 February 2019 Table 5. Seat Ring for NPS 1/2, 3/4, and 1 Valves - Metal Seat VALVE SIZE ORIFICE DIAMETER KEY NO. DESCRIPTION mm (Inch) DN 15 (NPS 1/2) DN 20 (NPS 3/4) DN 25 (NPS 1) 6.3 (0.25 inch) 007635-001-163 24000-341...
  • Page 12 Instruction Manual 24000C Valve D103356X012 February 2019 Table 7. Plug and Seat Ring for NPS 1-1/2 and 2 Valves VALVE SIZE PLUG ORIFICE DIAMETER DESCRIPTION PLUG TYPE mm (Inch) DN 40 (NPS 1-1/2) DN 50 (NPS 2) 31.8 (1.25) 17.2 24411-102-577 24884-102-577 14.62...
  • Page 13 Instruction Manual 24000C Valve D103356X012 February 2019 Figure 4. Spring Loaded PTFE V-Ring Packing Kit Figure 5. Molded Graphite (Flexible Graphite) P/N 24494T001 Packing Kit P/N 24492T001 (Optional) E1240 E1241 Table 8. Spring Loaded PTFE V-Ring Packing Kit P/N 24494T001 Key No.

  • Page 14: Dimensions And Weights

    Instruction Manual 24000C Valve February 2019 D103356X012 Figure 6. Dimensional Drawings (413.1) (9.0) (411.0) (48.5) 3/4 INCH (2.4) SQUARE (5.0) (5.5) (10.7) (10.9) (9.0) BAUMANN 54 ACTUATOR WITH FIELDVUEt DVC2000 DIGITAL BAUMANN 70 ACTUATOR WITH VALVE CONTROLLER FIELDVUE DVC6010 DIGITAL VALVE CONTROLLER 24000C WITH BAUMANN 32 ACTUATOR AND FISHER...
  • Page 15 Instruction Manual 24000C Valve D103356X012 February 2019 Table 10. Valve Dimensions VALVE SIZE A FACE-TO-FACE B BONNET ASME EN 10-40 CL150 7.25 7.25 7.25 1-1/2 8.75 10.00 Table 11. Valve Assembly Weights VALVE SIZE WEIGHT ASME 1-1/2 Table 12. Actuator Weights WEIGHT ACTUATOR TYPE 11.3...
  • Page 16 Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Baumann, Little Scotty, Fisher, and FIELDVUE are marks owned by one of the companies in the Emerson Automation Solutions business division of Emerson Electric Co.
