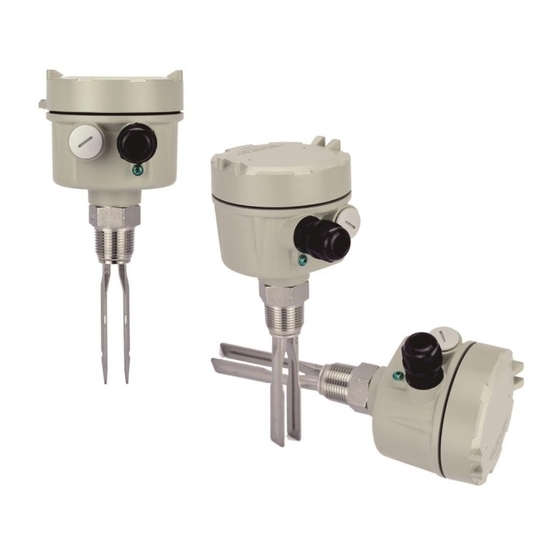

Omega LTUR Series User Manual

Tuning fork level switch

Advertisement

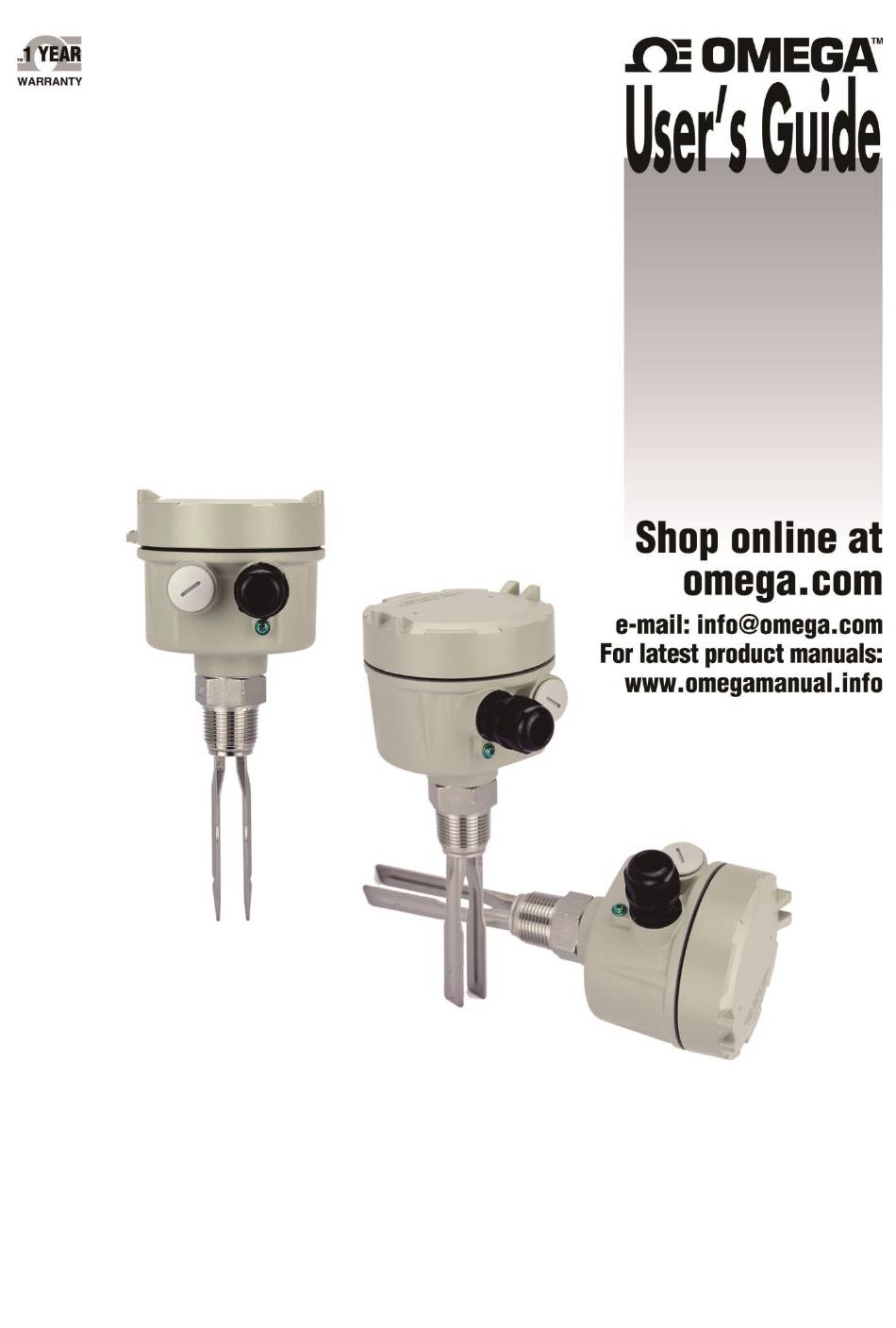

LTUR Series
Tuning Fork Level Switch
1

Advertisement

loading

Summary of Contents for Omega LTUR Series

  • Page 1 LTUR Series Tuning Fork Level Switch...
  • Page 3: Table Of Contents

    Contents 1. Introduction ...................... 4 2. Feature ......................4 3. Dimensions ....................... 5 4. Terminals Arrangement ................... 6 5. Output Description ................... 7 6. Panel Function ....................8 7. Output Mode ..................... 9 8. Installation For Tuning Fork ................10...
  • Page 4: Introduction

    1. Introduction The tuning fork level switch is a mechanical resonant device which excited by piezoelectric (PZT) elements. When the measured medium comes into contact with the tuning fork, it will change the feedback resonant frequency due to the damping resonances between the exciting PZT and receiving PZT. By detecting the frequency and appropriately tuning the sensitivity of tuning fork level switch on measured material, such device can easily operate for monitoring the alarm level of measured material.
  • Page 5: Dimensions

    3. Dimensions...
  • Page 6: Terminals Arrangement

    4. Terminals Arrangement Fig-1. SPDT contact output model Terminal Description:  L+, N-: Power Supply  NC, COM, No: Relay Output  RT1, RT2: Remote-Test  : Ground Connection  COM, NO: PNP/NPN Output Description of terminal functions:  L+, N-: Power Supply ...
  • Page 7: Output Description

    5. Output Description 1. Make sure provide power supply (L+/N-) in range of 20 to 250 (Vac or Vdc,50/60Hz) and output relay (Relay or PNP/NPN before wiring. Detail please see Fig-1. 2. RT1 and RT2 are the testing points that easy user to verify the situation. When the RT1 and RT2 are in electric short, it means the measured material is in contact with the tuning fork level switch.
  • Page 8: Panel Function

    6. Panel Function  PWR: Power Supply (Green Light)  SIGNAL: Output Indication (Red Light)  FSH: Power on. The signal LED is on and the relay acts. While the tuning fork level switch contacts with measured material, the signal LED is off and the relay is in not act. ...
  • Page 9: Output Mode

    7. Output Mode FSH (FAIL-SAFE HIGH) PROTECTION: On the OUTPUT MODE, select Fail-Safe High Mode (FSH) and install the tuning fork switch at the high position. Relay Output: Normal Status: NO & COM contact of the relay are conducted and the Signal Lamp lights up when tuning fork level switch doesn't sense any materials.
  • Page 10: Installation For Tuning Fork

    8. Installation For Tuning Fork Horizontal Installation: 1. Can be applied in viscosity, powder, and liquid. Do not install near substance inlet. ( Figure 1) 2. Conduit faces downward at installation. ( Figure 2) 3. To be installed with the surface of two fork blades facing each other horizontally.
  • Page 12 M5734/0119...
