Summary of Contents for Johnson Controls SE-ZEC510-1

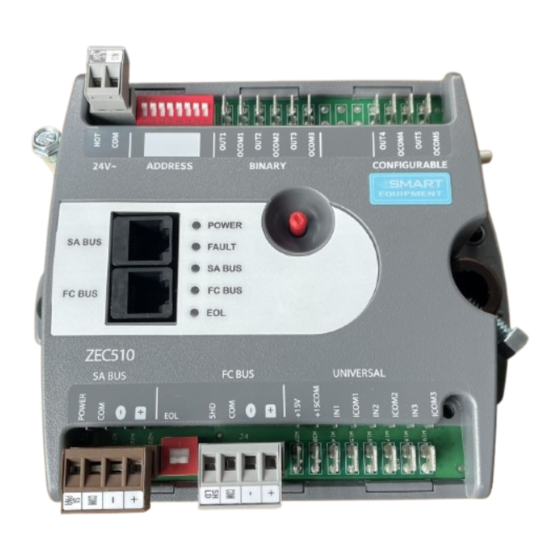

- Page 1 Smart Equipment Controls Installation, Operation and Maintenance Manual Smart Equipment Controls Installation, Operation, and Maintenance Manual Johnson Controls SE-ZEC500-1 and SE-ZEC510-1 Controllers Form No. SECIOM.A Effective Date: 07/05/19 Page 1...
-
Page 2: Table Of Contents
Smart Equipment Controls Installation, Operation and Maintenance Manual Table of Contents Initial Setup ....................................3 Mounting ....................................3 Networking ..................................4 Field Controller (FC) Bus ..............................4 SE-ZEC Controller Address ............................4 End-of-line (EOL) Switch ..............................5 Optional Components ................................. 5 Sensor Actuator (SA) Bus ............................... -
Page 3: Initial Setup
Smart Equipment Controls Installation, Operation and Maintenance Manual Initial Setup Mounting To mount the SE-ZEC Controllers: 1. Ensure that you have the appropriate personal protective equipment (PPE), such as a hard hat, safety glasses, steel toe boots, and gloves. 2. Disconnect power to the VAV unit. 3. -
Page 4: Networking
Smart Equipment Controls Installation, Operation and Maintenance Manual 12. Push the manual override button, and turn the actuator coupling manually to ensure the actuator can rotate from full-closed to full-open positions without binding. 13. Complete the mounting by rotating the damper to the full-open position. Networking Field Controller (FC) Bus The field controller (FC) Bus terminal block is a blue, removable, 4-terminal plug that is keyed to only fit in to the board-... -
Page 5: End-Of-Line (Eol) Switch
Smart Equipment Controls Installation, Operation and Maintenance Manual address range (4, 5, 6, and so on). The field controllers do not need to be physically connected on the Bus in their numerical device address order. 4. Write each field controller’s device address on the white label below the DIP switch block on the controller’s cover. End-of-line (EOL) Switch The EOL switch must be set to ON for the two devices located at either end of each bus segment on an FC bus. -
Page 6: Discharge Air Temp. Sensor
Smart Equipment Controls Installation, Operation and Maintenance Manual Discharge Air Temp. Sensor Factory or field supplied discharge air temperature sensors can be used to measure the temperature of the air being discharged from the VAV box. The discharge air temperature sensor is wired between terminals ICOM1 and IN1 on the SE-ZEC controller. -
Page 7: Control Sequences
Smart Equipment Controls Installation, Operation and Maintenance Manual states. The occupancy sensor can be occupancy sensor (wired to IN2 and a room occupancy sensor or another ICOM2 on the controller) can be used kind of occupancy detection (such as to temporarily set the VAV box to a duct pressure switch*). - Page 8 Smart Equipment Controls Installation, Operation and Maintenance Manual Menu 1 Menu 2 Parameter Name Parameter Description Parameter Values Actuator Stroke Sets the damper actuator stroke time. Note: The Adjustable: Home Page Setup Time SE-ZEC5X0-1 actuator is a 60 second motor. 30-120 seconds Adjustable: Home Page...
- Page 9 Smart Equipment Controls Installation, Operation and Maintenance Manual Menu 1 Menu 2 Parameter Name Parameter Description Parameter Values Unoccupied when open, Closed = Unoccupied when closed. Enables determining occupancy by reading IN2 and ICOM2 on the controller via an occupancy Occupancy sensor.
- Page 10 Smart Equipment Controls Installation, Operation and Maintenance Manual Menu 1 Menu 2 Parameter Name Parameter Description Parameter Values Effective Heating Home Page Setpoints Effective Heating Setpoint Read Only Setpoint When occupied the thermostat controls cooling to Occupied Cooling Adjustable: Home Page Setpoints this level.
-
Page 11: Application Specific Parameters
Smart Equipment Controls Installation, Operation and Maintenance Manual Menu 1 Menu 2 Parameter Name Parameter Description Parameter Values Sets the minimum supply air flow of the VAV box Unoccupied Adjustable: Home Page Commissioning when unoccupied heating and in the heating Heating Min Flow 0 cfm to 10000 cfm mode. -
Page 12: Factory Programmed Parameters
Smart Equipment Controls Installation, Operation and Maintenance Manual When the space temperature drops below the heating setpoint the zone controller will start from Discharge Air the supply air temperature setpoint and reset to the Home Adjustable: ● Setpoints Setpoint supply air setpoint heating max. Once the heating Page 45°F to 140°F Heating Max... -
Page 13: Size Dependent Parameters
Smart Equipment Controls Installation, Operation and Maintenance Manual Supply Air Temperature Offset Discharge Air Temperature Offset Heating Limit Enable TRUE Heating Supply Air Limit Rotation Warmup Min Flow Occupied Cooling Setpoint Occupied Heating Setpoint Unoccupied Cooling Setpoint Unoccupied Heating Setpoint Standby Cooling Setpoint Standby Heating Setpoint Standalone Min Occupied Time... -
Page 14: Sequence Dependent Parameters
Smart Equipment Controls Installation, Operation and Maintenance Manual Occupancy Determination Flow Setpoint Sequence Dependent Parameters The following section shows factory programming for SE-ZEC Controller parameters that are control sequence specific. Table 7: Factory Programmed Sequence Specific Parameters 6102, 7102, 6105, 7105, Control Code 6101, 7101 6103, 7103... - Page 15 Smart Equipment Controls Installation, Operation and Maintenance Manual FAN-TYPE Series Series Series Series Series Series Series Number of Heating No Heat No Stages No Stages No Heat Stages Damper Polarity Reverse Reverse Reverse Reverse Reverse Reverse Reverse Supplemental FALSE FALSE FALSE FALSE FALSE...
-
Page 16: Commissioning
The MAP Gateway can be used to see field bus devices on Metasys® systems, Facility Explorer systems, and Smart Equipment rooftop units (RTUs) with unit control boards (UCBs). The MAP Gateway supports Johnson Controls® branded Field Controllers, including FEC, FAC, VMA, PCA, PCG, and PCV Series devices. MAP Gateway also supports the TEC3000 Series Thermostats. -
Page 17: Vav Handheld Balancing Tool
Pickup Gain – K Factor [K] dP Offset [DPO] 4. To Exit, Press the enter button when Exit appears on the screen at the highest sub menu. For more information on the VAV Handheld Balancing Tool reference the following Johnson Controls documents: Catalog Page: LIT-1900348... -
Page 18: Power Status Led
SE-ZEC Controller Parts and Accessories Part Number Part Description PC-01-0189 SE-ZEC500-1 Standalone Controller (Un-programmed) PC-01-0190 SE-ZEC510-1 BACnet Controller (Un-programmed) PC-01-0159 TE-631GV-2 Supply Air or Discharge Air Temperature Sensor PC-01-0206 TL-MAP1810-0P Mobile Access Portal Gateway 15037701 NS-ATV7003-0 VAV Handheld Balancing Tool... -
Page 19: Additional Information
Smart Equipment Controls Installation, Operation and Maintenance Manual Additional Information Refer to Johnson Controls LIT-24-10143-01493 for more information on the SE-ZEC Controllers. Refer to Johnson Controls LIT-1900217 for more information on the TE-631GV-2 supply air or discharge air temperature sensors.
