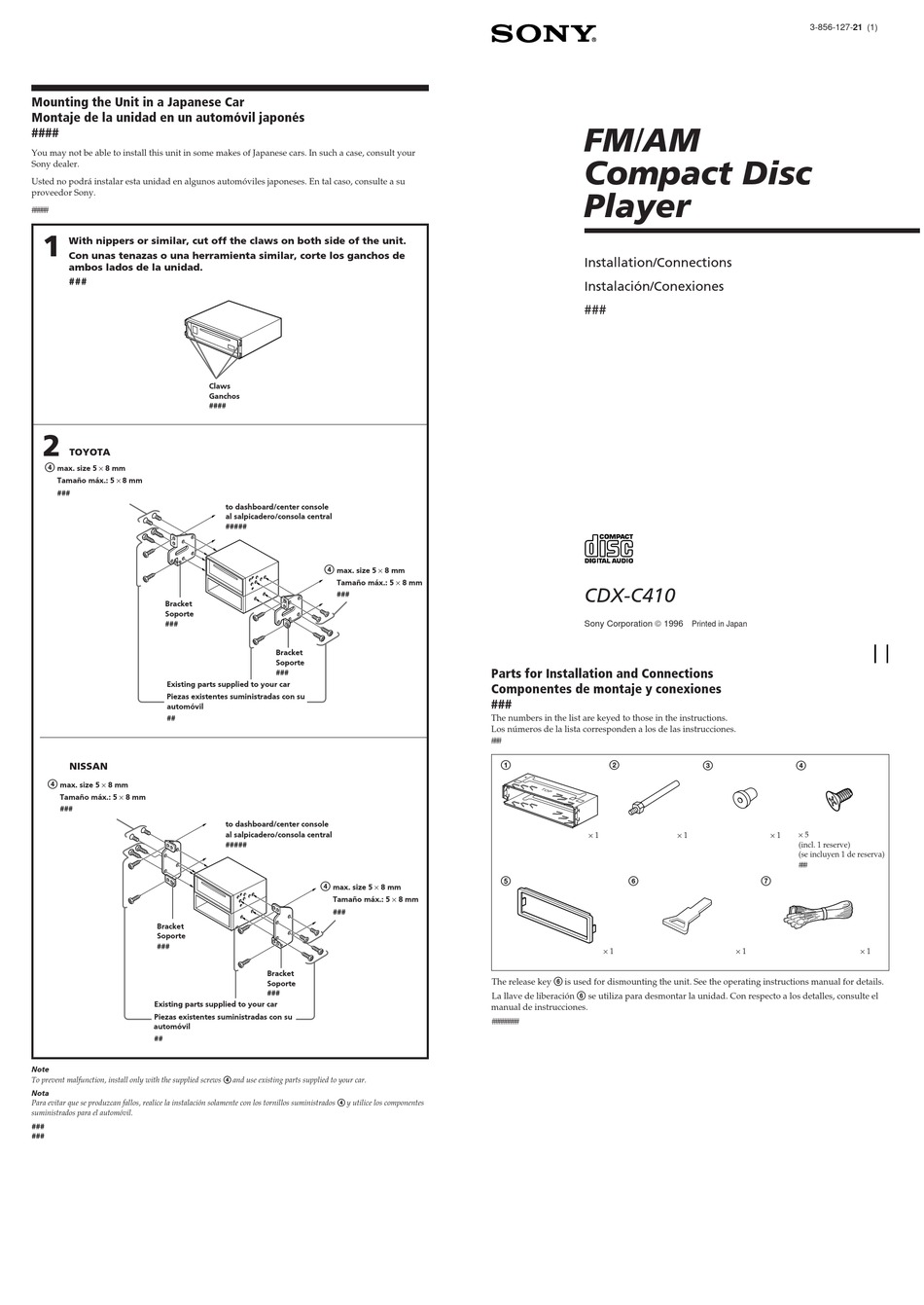

Mounting the Unit in a Japanese Car
Montaje de la unidad en un automóvil japonés
####
You may not be able to install this unit in some makes of Japanese cars. In such a case, consult your
Sony dealer.
Usted no podrá instalar esta unidad en algunos automóviles japoneses. En tal caso, consulte a su
proveedor Sony.
#####
1
With nippers or similar, cut off the claws on both side of the unit.
Con unas tenazas o una herramienta similar, corte los ganchos de
ambos lados de la unidad.
###
2
TOYOTA
4
max. size 5
8 mm
Tamaño máx.: 5 8 mm
###
Bracket
Soporte
###
Existing parts supplied to your car
Piezas existentes suministradas con su
automóvil
##
NISSAN
4
max. size 5
8 mm
Tamaño máx.: 5
8 mm
###
Bracket
Soporte
###
Existing parts supplied to your car
Piezas existentes suministradas con su
automóvil
##
Note
To prevent malfunction, install only with the supplied screws 4 and use existing parts supplied to your car.
Nota
Para evitar que se produzcan fallos, realice la instalación solamente con los tornillos suministrados 4 y utilice los componentes
suministrados para el automóvil.
###
###
Claws
Ganchos
####
to dashboard/center console
al salpicadero/consola central
#####
4
max. size 5
Tamaño máx.: 5
###
Bracket
Soporte
###
to dashboard/center console
al salpicadero/consola central
#####
4
max. size 5
8 mm
Tamaño máx.: 5
###
Bracket
Soporte
###
8 mm
8 mm
Parts for Installation and Connections
Componentes de montaje y conexiones
###
The numbers in the list are keyed to those in the instructions.
Los números de la lista corresponden a los de las instrucciones.
###
1
5
8 mm
The release key 6 is used for dismounting the unit. See the operating instructions manual for details.
La llave de liberación 6 se utiliza para desmontar la unidad. Con respecto a los detalles, consulte el
manual de instrucciones.
########
FM/AM
Compact Disc
Player
Installation/Connections
Instalación/Conexiones
###
CDX-C410
Sony Corporation
1996
Printed in Japan
2
3
1
1
6
1
1
3-856-127-21 (1)
4
1
5
(incl. 1 reserve)
(se incluyen 1 de reserva)
###
7
1
