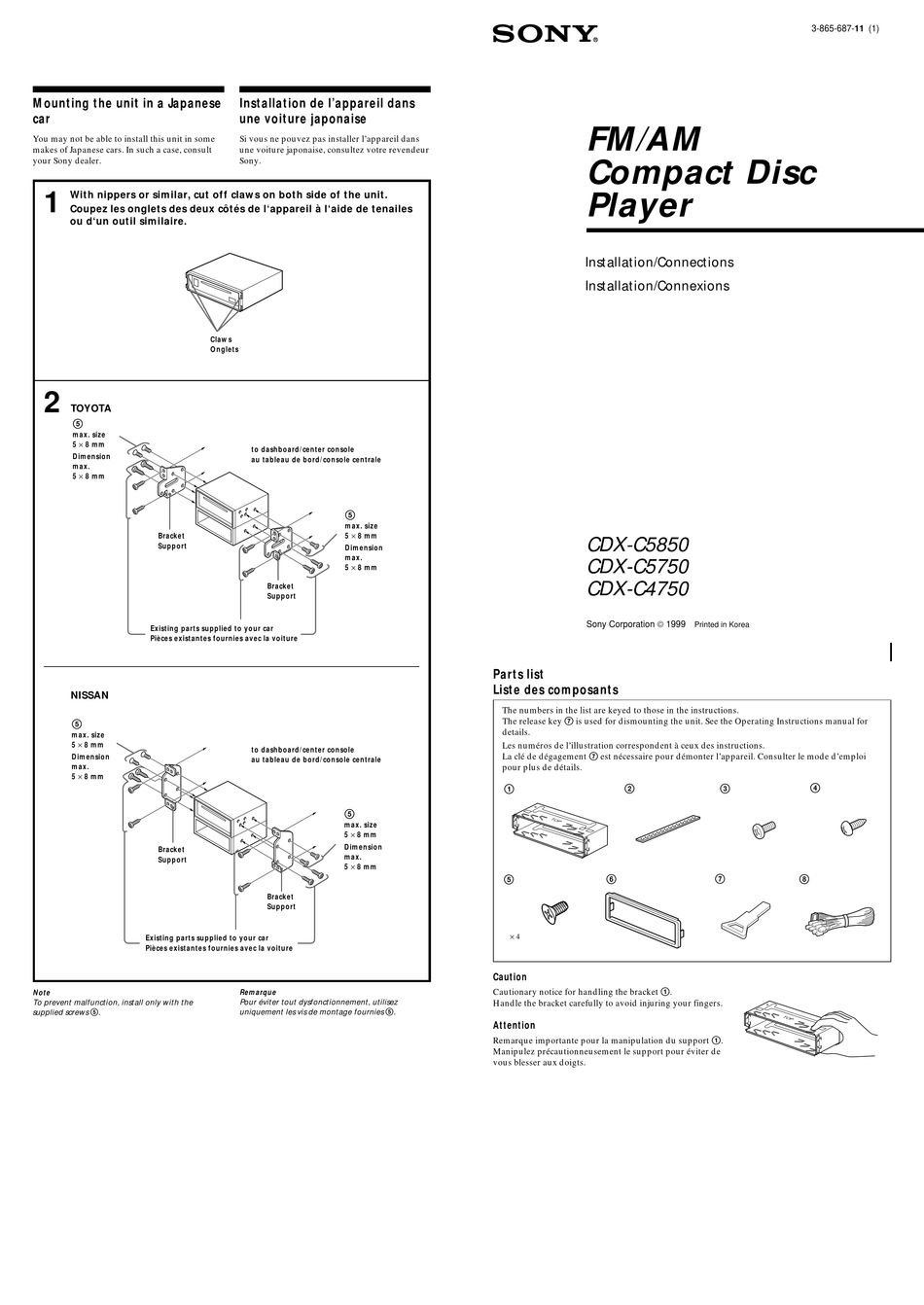

Mounting the unit in a Japanese
car
You may not be able to install this unit in some
makes of Japanese cars. In such a case, consult
your Sony dealer.
1
With nippers or similar, cut off claws on both side of the unit.
Coupez les onglets des deux côtés de l'appareil à l'aide de tenailes
ou d'un outil similaire.
2
TOYOTA
5
max. size
5
8 mm
Dimension
max.
5
8 mm
Bracket
Support
Existing parts supplied to your car
Pièces existantes fournies avec la voiture
NISSAN
5
max. size
5
8 mm
Dimension
max.
5
8 mm
Bracket
Support
Existing parts supplied to your car
Pièces existantes fournies avec la voiture
Note
To prevent malfunction, install only with the
supplied screws 5.
Installation de l'appareil dans
une voiture japonaise
Si vous ne pouvez pas installer l'appareil dans
une voiture japonaise, consultez votre revendeur
Sony.
Claws
Onglets
to dashboard/center console
au tableau de bord/console centrale
5
max. size
5
8 mm
Dimension
max.
5
8 mm
Bracket
Support
to dashboard/center console
au tableau de bord/console centrale
5
max. size
5
8 mm
Dimension
max.
5
8 mm
Bracket
Support
Remarque
Pour éviter tout dysfonctionnement, utilisez
uniquement les vis de montage fournies 5.
FM/AM
Compact Disc
Player
Installation/Connections
Installation/Connexions
CDX-C5850
CDX-C5750
CDX-C4750
Sony Corporation
1999
Parts list
Liste des composants
The numbers in the list are keyed to those in the instructions.
The release key 7 is used for dismounting the unit. See the Operating Instructions manual for
details.
Les numéros de l'illustration correspondent à ceux des instructions.
La clé de dégagement 7 est nécessaire pour démonter l'appareil. Consulter le mode d'emploi
pour plus de détails.
1
2
6
5
4
Caution
Cautionary notice for handling the bracket 1.
Handle the bracket carefully to avoid injuring your fingers.
Attention
Remarque importante pour la manipulation du support 1.
Manipulez précautionneusement le support pour éviter de
vous blesser aux doigts.
3-865-687-11 (1)
Printed in Korea
4
3
7
8
