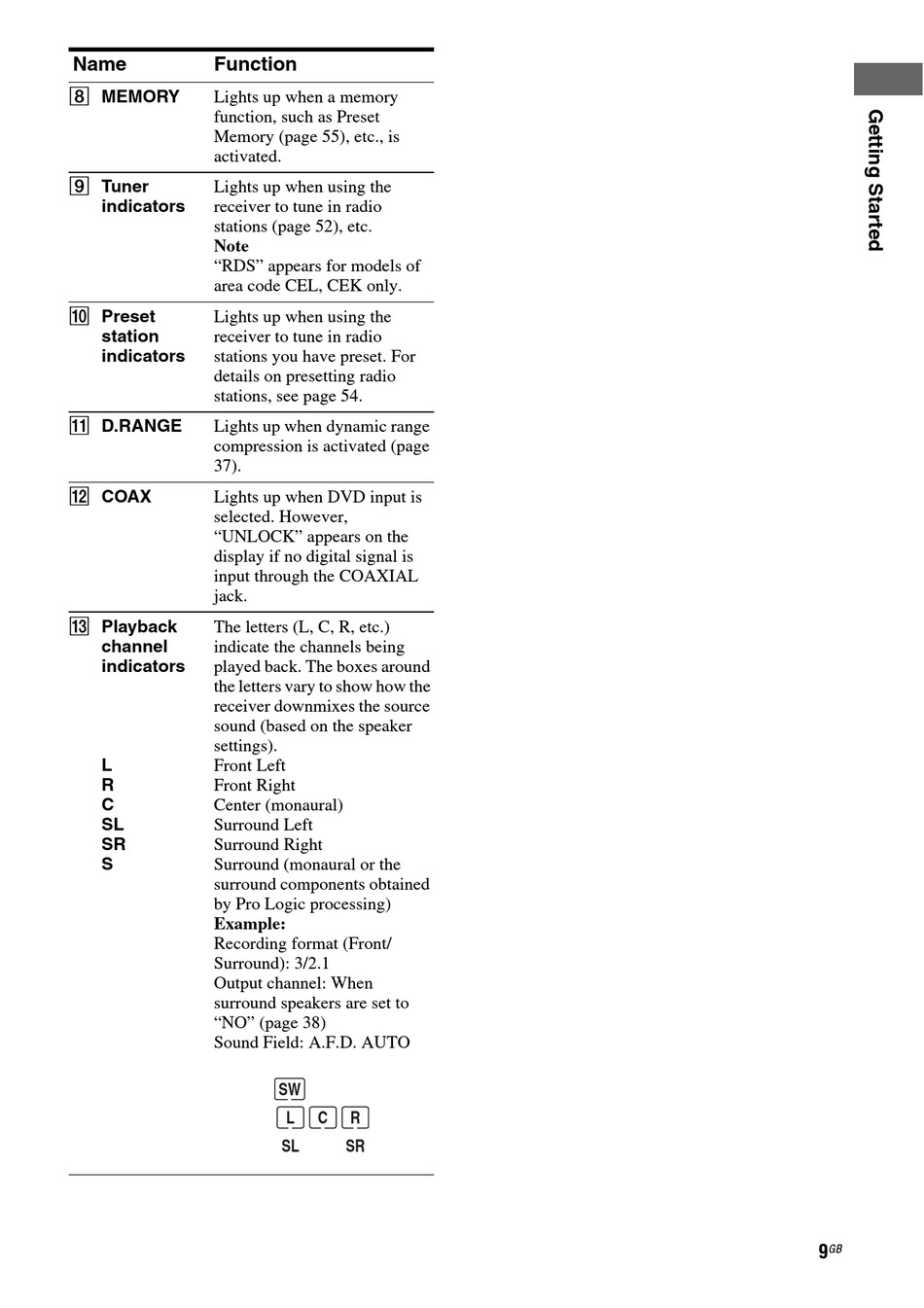

Sony STR-DG510 Operating Instructions Manual page 9

Name Function
H MEMORY
Lights up when a memory
function, such as Preset
Memory (page 55), etc., is
activated.
I Tuner
Lights up when using the
indicators
receiver to tune in radio
stations (page 52), etc.
Note
"RDS" appears for models of
area code CEL, CEK only.
J Preset
Lights up when using the
station receiver to tune in radio
indicators stations you have preset. For
details on presetting radio
stations, see page 54.
K D.RANGE
Lights up when dynamic range
compression is activated (page
37).
L COAX
Lights up when DVD input is
selected. However,
"UNLOCK" appears on the
display if no digital signal is
input through the COAXIAL
jack.
M Playback
The letters (L, C, R, etc.)
channel indicate the channels being
indicators played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound (based on the speaker
settings).
L Front Left
R
Front Right
C Center (monaural)
SL Surround Left
SR
Surround Right
S Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: When
surround speakers are set to
"NO" (page 38)
Sound Field: A.F.D. AUTO
SW
L C R
SL SR
9 GB
