CALIBRATION PROCEDURE

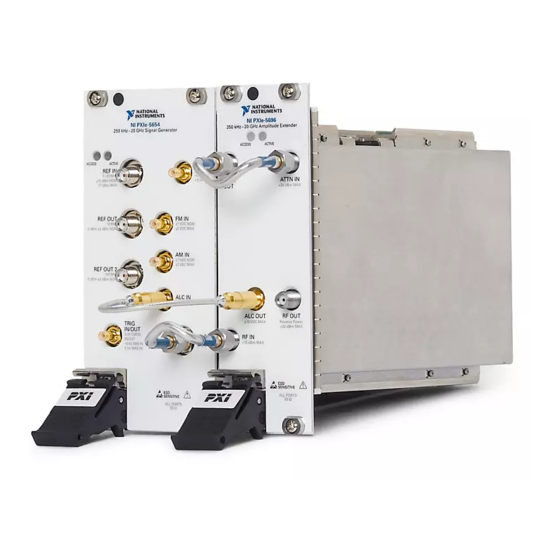

PXIe-5654 with PXIe-5696
250 kHz to 20 GHz RF Analog Signal Generator with Amplitude
Extender
This document contains the verification and adjustment procedures for the PXIe-5654 RF
Analog Signal Generator when used with the PXIe-5696 Amplitude Extender.
Refer to
ni.com/calibration
Contents
Required Software.....................................................................................................................2
Related Documentation.............................................................................................................2
Test Equipment..........................................................................................................................2
Test Conditions..........................................................................................................................6
Initial Setup............................................................................................................................... 7
Test System Characterization....................................................................................................7
Zeroing and Calibrating the Power Sensor....................................................................... 7
Characterizing the Power Splitter..................................................................................... 7
As-Found and As-Left Limits................................................................................................... 9
Verification..............................................................................................................................10
Verifying RF OUT Frequency Accuracy........................................................................ 10
Verifying RF OUT Phase Noise......................................................................................12
Verifying RF OUT Amplitude Accuracy........................................................................ 15
Verifying RF OUT Maximum Power..............................................................................22
Optional Verification...............................................................................................................24
Verifying PULSE IN Operation...................................................................................... 24
Adjustment.............................................................................................................................. 26
Measuring RF Attenuator Path Input Power...................................................................26
Adjusting RF Attenuator Path.........................................................................................28
Adjusting RF Attenuator Accuracy.................................................................................29
Measuring Amplifier Path Input Power.......................................................................... 31
Adjusting Amplitude Accuracy (Low Harmonic Paths).................................................32
Adjusting Amplitude Accuracy (High Power Paths)...................................................... 34
Adjusting ALC................................................................................................................ 35
Reverification..........................................................................................................................37
Updating Calibration Date and Time...................................................................................... 37
Worldwide Support and Services............................................................................................ 37
for more information about calibration solutions.
