Table of Contents Title Page Introduction ......................1 Contacting Fluke ....................2 Safety Information ....................2 Symbols ......................3 Specifications ..................... 4 Getting Acquainted with the Meter ..............5 Maintenance ....................... 7 Cleaning the Meter ..................7 Battery Replacement ..................7 Performance Tests .....................
The instrument should be calibrated after repair, or if it fails a performance test. The 771 Calibration Manual provides the following information: • Precautions and safety information • Specifications • Basic maintenance • Calibration verification procedure • Replaceable parts and accessories For complete operating instructions, refer to the 771 Instruction Sheet.
Milliamp Process Clamp Meter Symbols • Comply with local and national safety codes. Use personal protective equipment (approved rubber gloves, face protection, and flame-resistant clothes) to prevent shock and arc blast injury where hazardous live conductors are exposed. • Hold the Product behind the tactile barrier. See Figure 1. •...
Calibration Manual Specifications Current Ranges ±20.99 mA ±21.0 mA to ±99.9 mA Resolution 0.01 mA 0.1 mA Accuracy 20.99 mA range 0.2 % reading ±5 digits 99.9 mA range 1 % reading ±5 digits Maximum Reading ±99.9 mA Influence of Earth’s Field <0.20 mA Battery 2 AA 1.5 V Alkaline, IEC LR6...

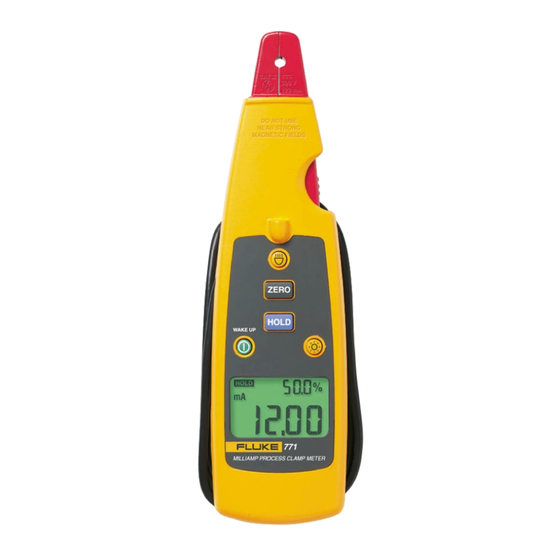

Removes interference and zeros the display Measurement spotlight LED button Measurement spotlight LED Detachable clamp Turn on and turn off the backlight Tactile Barrier docked and un-docked Figure 1. The 771 Milliamp Process Clamp Meter...
Page 10
Calibration Manual h Static Awareness h Semiconductors and integrated circuits can be damaged by electrostatic discharge during handling. This notice explains how to minimize damage to these components. 1. Understand the problem. 2. Learn the guidelines for proper handling. 3. Use the proper procedures, packaging, and bench techniques. Follow these practices to minimize damage to static sensitive parts.
Milliamp Process Clamp Meter Maintenance Maintenance XWWarning To prevent possible electric shock or personal injury, repairs or servicing not covered in this manual should be performed only by qualified personnel. Cleaning the Meter XWWarning To prevent electrical shock, remove any input signals before cleaning.
Page 12
Calibration Manual ege02.emf Figure 2. Changing the Batteries...
The following tests are used to verify the functions of the Meter. If the Meter fails any of the verification tests, repair is necessary. For service, see Contacting Fluke. Required Equipment Required equipment for the performance tests is listed in Table 2. If the recommended models are not available, equipment with equivalent specifications may be used.
Calibration Manual Testing the Display 1. Press and hold while powering on the Meter. 2. Compare the Meter display to Figure 3. 3. Check all display segments for clarity and contrast. fdp1.emf Figure 3. Display Test Display Hold Test 1.
7. Complete steps 2-4 for each calibrator output setting in Table 3. 8. If the Meter fails to meet any of the Display Reading Limits, it requires calibration adjustment, or repair. See Calibration Adjustment or Contacting Fluke. Table 3. Accuracy Tests Unit Under Test...
Calibration Manual Calibration Adjustment Adjustment Subroutines The Meter features closed-case calibration adjustment using a known reference source. The Meter measures the applied reference source, calculates correction factors, and stores the correction factors in nonvolatile memory. There are four adjustment subroutines in the Meter adjustment procedure: •...
Milliamp Process Clamp Meter Calibration Adjustment Calibration Button fdp3.emf Figure 4. Accessing the Calibration Button Calibration Error Messages Table 4 lists the calibration error messages that can be shown on the Meter display. The suggested actions to eliminate messages are also listed. Table 4.
Calibration Manual Temperature Adjustment Procedure The percentage display should show t23, if not: 1. Press for >1 second until t23 appears. 2. Wait at least 60 seconds for the internal temperature to balance. 3. Press to adjust the temperature. Low Range Adjustment Procedure 1.
Milliamp Process Clamp Meter Calibration Adjustment Phase Adjustment Procedure 1. Clamp the Meter’s current clamp around an insulated 18-gauge, copper wire, with 6-inch diameter. Current flow should be in the direction of the arrow on the current clamp. 2. Press >1 second until the percentage display indicates the Meter’s currently saved 3-digit phase value.
(does not include fastener, order separately) Access door fastener 948609 LED housing 2720319 Soft case, black/yellow 2726174 771 Instruction Sheet 2567301 [1] If the Jaw Assembly has been replaced, complete the Calibration Adjustment Procedure and Phase Adjustment Procedure.
