Worcester WAAIU5 Installation Manual

GREENSOURCE AIR/AIR HEAT PUMP
INSTALLATION MANUAL
CAUTION ACCESSORIES
This room air conditioner uses new
refrigerant R410A. ITEMS
1. Keep any open ends of pipes be sealed
1 MOUNTING PLATE
with a cap, etc. until connected with the
equipment.
2. Exercise great care when performing piping
installation so as water, dust, etc. will not
2 WALL PLUG
enter into the piping and equipment.
3. Pipes connected to the indoor and outdoor
units must be used new. (This air condi-
tioner using R410A incurs pressure higher
3 LONG SCREW
compared with R22, it is necessary to
choose adequate materials.)
4. Use only R410A refrigerant when charging
additional refrigerant to the equipment.
4 REMOTE CONTROL
Never add lubricating oil to the equipment
in any case.
5. In order to prevent any other refrigerant
from being charged accidentally, the ser-
5 DRY BATTERY
vice port diameter of the 3-way valve has
been changed. (1/2" UNF screw)
NOTES ON LOCATIONS
Indoor unit Outdoor unit
a. Keep the air outlet clear of any obstacle so a. Place the outdoor unit on a stable base.
that outgoing air fl ows smoothly in the entire b. Provided suffi cient space around the unit. It should also be well
room. ventilated.
b. Make a drain hose hole for easy drainage. c. The unit should not be exposed to strong wind nor splashed with
c. Provide suffi cient space on both sides and rain water.
above the unit.
d. Water drain from the unit should be let out without problem. Lay
d. The air fi lters should be easily taken in and a drain hose if required. In cold regions, installation of the drain
out. pipe is not advisable as freezing could result.
e. Keep TV set, radio and the like 1 m or more e. Keep TV set, radio and the like 1 m or more away from the unit.
away from the unit and the remote control.
f. Avoid locations exposed to machine oil vapor, salty air (facing the
f. Keep the air inlet clear of obstacles that could seashore, for example), hot spring vapor sulfur gas, etc. Such
block incoming air. location can cause breakdown.
g. The remote control may not function prop- g. Also, avoid locations exposed to muddy water (along a road, for
erly in a room equipped with an electronic
example) or where the unit can be tampered with.
simultaneous-start or rapid-start fl uorescent h. Select a location where the outgoing air or operating noise can-
lighting. not annoy others.
h. Select a location that does not cause loud i. Install the unit on a stable base not to allow louder noise.
operation noise and extreme vibrations. j. Keep the air outlet opening free of any obstacle. This could affect
the performance of the unit and create loud noises.

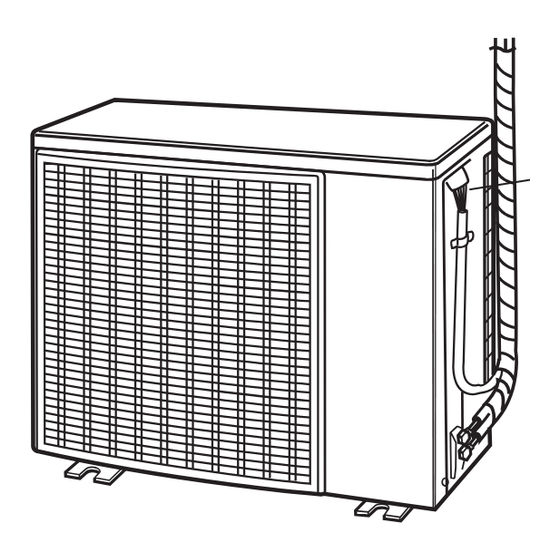

LOCATIONS OF INDOOR AND OUTDOOR UNIT
MIN.50
MIN.50
MIN.50
MIN.70
4
MIN.50
MIN.100
MIN.200
MIN.200
Length unit: mm
Provide as much installation space as
possible for effi cient air-conditioning.
OUTDOOR UNIT MOUNTING SCREW HOLES
OPEN PANEL - OPENING AND CLOSING
Opening
540
To open, hold the left
and right bottom cor-
ners of the panel and
lift it up.
O R C E S T E R . i n d d 1
Carefully read and follow
INDOOR UNIT OUTDOOR UNIT
these instructions for smooth
WAAIU5 WAAIU5
and trouble-free installation.
Q'ty APPLICATION Q'ty
ITEMS APPLICATION
6 SPECIAL SCREW
To mount the indoor unit To mount the remote
1
1 on the wall. control on the wall.
To fi x the mounting plate To fi x the CORD HOLDER.
7 SHORT SCREW
with the long screws. 1
8
To fi x the remote control
with the special screw.
To secure the electrical
To fi x the mounting plate 8 CORD HOLDER
with the wall plugs. cable.
1
7
9 MANUALS
To control remotely. 1
Installation manual
1
1 Operation manual
For the remote control. 10 AIR PURIFYING
To remove dust and to-
2
AAA batteries. FILTER
bacco smoke from the air.
2
Piping
Max. piping length A (m) Max. level difference B (m)
15
a. Piping length should be 1m or more in order to decrease
vibration propagated from the outdoor unit.
b. If piping length exceeds 10m, add 20g of refrigerant per 1m.
c. When the outdoor unit is placed at a higher level than the
indoor units, provide a trap near the hose's lead-in port.
Indoor Unit
A
B
Outdoor Unit
NOTES ON DRAIN HOSE
The drain hose can be connected at either side of the indoor unit.
The unit has been shipped with the drain hose
connected at left (viewed from the back of the unit)
and the drain cap applied at right.
Reposition the drain hose and drain cap as re-
quired.
(1) Remove the fi xed screw in the hose holder at
Drain Hose
the end of the drain hose.
(2) Hold the end of the drain hose, and pull it out.
Screw (1)
Hose holder
(3) Pull out the drain cap.
(3)
(4) Reconnect the drain hose to the right and in-
sert the drain cap to the left.
Fully insert the drain hose until it stops and
(4)
use the screw that was previously removed
in STEP (1) to secure the hose holder to the
drain pan.
Insert a hexagon socket screw key (4mm di-
Drain Hose
agonal) into the drain cap, and press it fully.
(4)
Caution:
After replacing, make sure that both the drain
hose and drain cap are fi rmly inserted.
Drain cap
Closing
To close, press-fi t
the arrow-marked
points.
B166
After installation, be sure to explain to
the customer enough about the system.
1 PLACING THE MOUNTING PLATE AND MAKING A TUBE HOLE
(1) Referring to the fi gure below, mark the location for the wall plugs and the
tube hole. Recommended fi xing holes are marked in circle around the
hole.
(unit size)
860
175
I
D
I
D
F
Center of wall hole:
115
Leftward piping.
F
Outline of indoor unit
2 SETTING UP THE INDOOR UNIT
Piping route
7
For directions 1, 2, 4 and 5, cut out the specifi c zone
without leaving any sharp edge.
(Keep the cut-out plate for possible future use.)
B
Cut-out
Notch
Trap
Notch
Cut-out
Cut the plate along
notch.
Cut the plate along notch.
For left side Piping
(1) Reverse the positions of the drain hose and drain
cap. Refer to NOTES ON DRAIN HOSE.
(2) Connect the pipes and coil tape around the pipes
and electrical cable.
Drain Cap
(3) Store the pipes within the back cavity of the unit,
and secure the pipes by attaching the piping
holder. (Refer to steps 1 and 2 as shown on the
(2) right.)
(4) Coil tape around the drain hose together with the
pipes and electrical cable.
Drain Hose
(5) Hook the unit onto the mounting plate.
Drain Cap
3 CONNECTING THE ELECTRICAL CABLE TO THE INDOOR UNIT
(1) Process the end of the electrical cable for the indoor side.
• Use a copper cable.(Cross-section area 2mm
• Use a cable which is not lighter than polychloroprene sheathed fl exible
cord (design 245 IEC 57).
Hexagon socket screw key
40mm
8mm
(2) Open the open panel by about 70°.
(3) Connect the electrical cable.
• Be very careful not to confuse the terminal connections. Wrong cabling
may damage the internal control circuit.
• The markings on the indoor unit's terminal board must match with
those of the outdoor unit.
(4) Fix the cable with the accompanying cord holder and the short screw.
(5) Close the open panel.
(2) Drill diameter 6.5mm, depth 32mm
holes and fi t the wall plug.
(3) Secure mounting plate and check the
Ceiling
stiffness. Fix mounting plate to wall at 7
125
50mm or more
points.
J
E
E
J
A
(4) Drill a piping hole with 70mm diameter
concrete drill or a hole saw with a 5mm
down ward slant to the outside.
108
Center of wall hole:
A Backward piping
(5) Set the sleeve and caps.
Length unit: mm
Mounting the indoor unit
If the wall is 250 mm or thicker, connect the pipes fi rst.
(1) For rear exit piping, pass the auxiliary pipe and the drain
hose through the piping hole, and hook the unit onto the
mounting plate.
(2) Push the unit and apply the bottom hooking points to the
mounting plate's support. (Take this step after cabling be-
tween the indoor and outdoor units.)
(3) Pull the bottom of the unit to check that the unit is fi xed in
place.
Detaching the unit from the mounting plate
Push the " " marks at the bottom of the indoor unit and
pull the bottom of the unit. When the hooks are released
from the mounting plate, support the bottom of the unit and
lift the unit upwards.
Drain Hose
Drain Cap
Insert
Tape
Unit Piping Holder
Unit
1. Insert the top of the piping
holder into the square opening.
2
or more)
Earth wire
CORD HOLDER 8
SHORT SCREW 7
ENGLISH
Fix the mounting plate horizontally.
6.5 mm
32 mm
WALL PLUG 2
WALL PLUG 2
LONG
MOUNTING
SCREW 3
PLATE 1
Indoor Outdoor
Cut with a saw.
WALL
Cap
(Downward to outdoor)
5 mm
Sleeve
MOUNTING PLATE
Taping
Piping Holder
Hook
Unit
2. Hook the bottom of piping
holder to the unit.
Terminal board
N 1 2
Electrical cable
