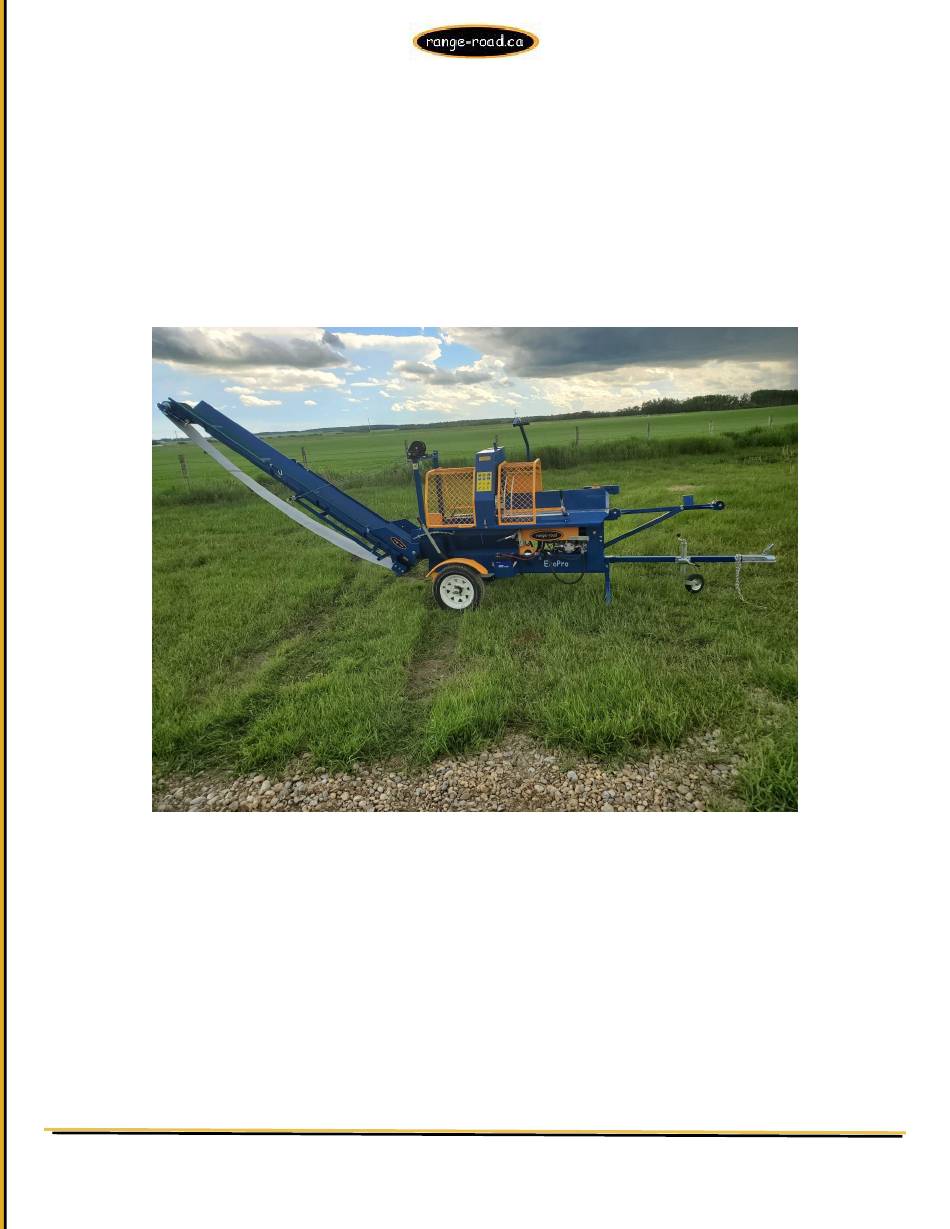

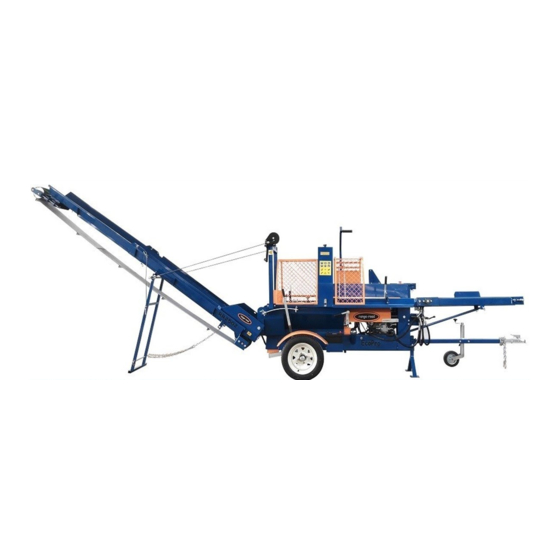

- Page 1 EcoPro300 Range Road EcoPro300 Firewood Processor Crated Unit Assembly Manual Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 2 2.) Lift top of Metal crate off and move out of work area. 3.) Remove Shrinkwrap. 4.) Remove and Unwrap components 5.) Lift Unit off of the crate, if using straps be careful not to bend or stress any components Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 3 10.) Grease all 4 bearing cones with wheel bearing grease 11.) Re-install bearings and dust seals 12.) Remove the nuts from the axle shaft 13.) Install wheel and hub onto the axle and install the outside bearing cones. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 4 7mm socket fits over the end of the spring and allows you to safely apply downward pressure to put the spring in place under the tab Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 5 (if using gas cylinder to return sawbar and not using the spring in step 20) - If you are using the spring skip steps 25 & 26 Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 6 13mm nuts. 29.) Remove 10mm nut & bolt from safety cage pivot point and remove cotter pin from round bar on safety cage 30.) Set safety cage in place Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 7 37.) Place drawbar in receiver tube by the engine, re-install 16mm bolt and 17mm nut, tighten. 38.) Tig hten both 18mm bolts on the receiver tube, tighten the lock nuts. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 8 46.) The nut goes on a few threads, once everything is in position you can tighten this to adjust the tension of the wedge adjuster to where you prefer it. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 9 52.) Tighten the tensioner bolt until the bar has the tension on it that you prefer. 53.) Mount the battery ground cable to the 10mm ground bolt on the engine. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 10 58.) Remove the outfeed conveyor from it’s box. 59.) Unwrap all the components. 60.) Mount the conveyor base section to the rear of the processor using the 2 bolts provided. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 11 63.) Lift the conveyor section up and line up the holes in the leg with the tab holes and push the long pin through. 64.) Loosen the winch cable and mount rollers to the pins and put in safety clips Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 12 69.) Swing upper section of conveyor out and install the roller head Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 13 73.) when the conveyor is extended for use the safety clasp should be engaged 74.) This short wire is for use when folding the conveyor, it holds the belt in place. Disconnect this from one side when using the conveyor. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 14 79.) The safety cage by-pass valve must be adjusted so that when the cage is closed the plunger is all the way down with no polished surface showing. Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 15 95.) Add 26L AW32 hydraulic oil, in cold climates AW22 can be used and in hot conditions AW46 can be used 96.) Check all bolts, hoses and fittings, including engine mount bolts to make sure nothing is loose Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 16 103.) Shut unit off 104.) Check all nuts, bolts, hose and fittings one more time, check for leaks Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
- Page 17 Again – this is set at the factory – do not adjust unless there is a problem. Optional: If the customer is only cutting and splitting shorter lengths, the bar can be reversed to shorten the stroke and reduce the cycle time Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0...
- Page 18 EcoPro300 Range Road Enterprises Ltd Box 944 Eckville AB T0M 0X0 www.range-road.ca...
