Summary of Contents for Midland M Zero

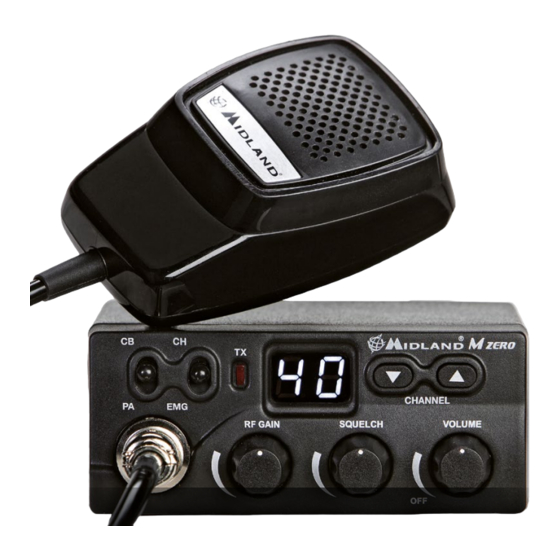

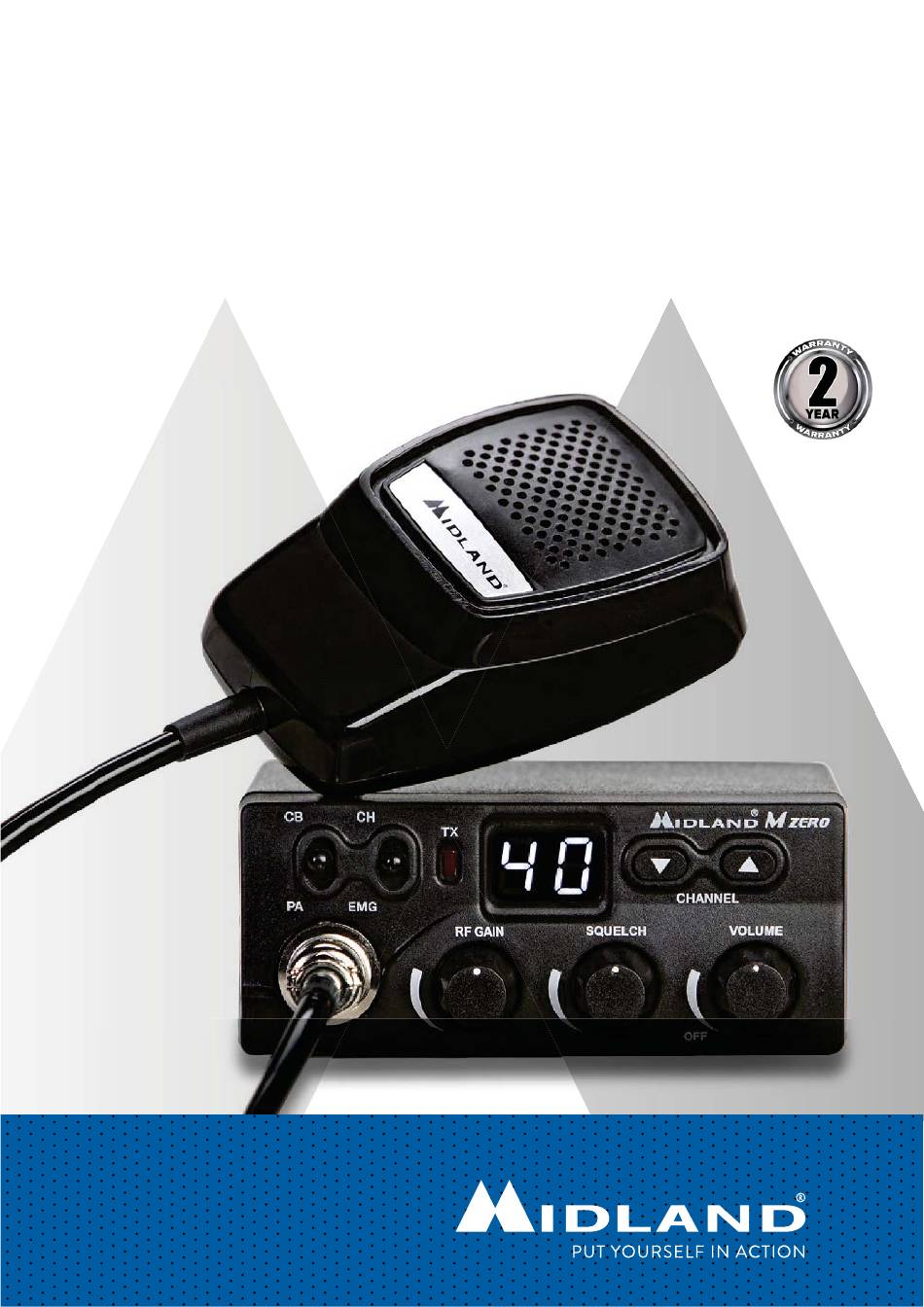

- Page 1 M Zero 40 C H A M M O B I L E T R A N S C E I V E R |...
-
Page 3: Table Of Contents
CONNECTING THE MICROPHONE ..............6 ANTENNA ................... USING YOUR TRANSCEIVER .......9 SELECTION OF BANDS .................10 QUICK SCROLL ....................10 KEYPAD BEEP .......................11 EMERGENCY CHANNEL MEMORY ..............11 EXTERNAL SPEAKER ...................11 PA FUNCTION .......................11 TECHNICAL SPECIFICATIONS ......12 M Zero Instruction Guide... -
Page 4: Main Functions
SQUELCH: liminates the background noise in best sensitivity the squelch should be adjusted the level when background noise disappears; • CH/EMG: his switch to the emergency channel. The emergency channel can be set by the user. M Zero Instruction Guide... -
Page 5: Controls And Functions
PTT button on the microphone CH-EMG: Channel in use /Emergency channel. between the emergency channel and the channel in use; CB/PA use the radio as ( n optional speaker M Zero Instruction Guide... - Page 6 Power supply cable: nsert the power cable with lighter plug into the vehicle’s lighter External speaker jack. connect an external speaker PA jack: onnect an optional speaker to use radio as audio amplifier (the CB/PA selector must be in position PA) M Zero Instruction Guide...
-
Page 7: Installation
When the best location for mounting , use the mounting bracket as a template to mark mounting holes. Take care that you do not drill into wiring, trim or other accessories. M Zero Instruction Guide... -
Page 8: Replacing Fuse
CONNECTING THE MICROPHONE Your transceiver has a microphone connector. This ensures that you won’t accidentally pull out or loosen the plug connection when the microphone. M Zero Instruction Guide... -
Page 9: Antenna
Generally, the longer it is, the more efficient will be. There are many possible antenna locations on a car. Four of the most popular are shown and discussed on the following. Roof Mount In this position the antenna radiates equally in all directions. Since the M Zero Instruction Guide... -
Page 10: Antenna
Despite its fairly irregular pattern, a bumper mounted full-length whip antenna will normally give the best results. Removing the antenna is simple and will leave no holes in the car. M Zero Instruction Guide... -
Page 11: Using Your Transceiver
Turn on the unit by rotating the VOLUME control clockwise. Turn the RF-GAIN knob totally clockwise. Set channel selector to the desired channel. Adjust VOLUME for a suitable listening level. Adjust Squelch to cut out annoying background noise when no signal is being received. M Zero Instruction Guide... -
Page 12: Selection Of Bands
With the UP / DOWN buttons select the desired band: (40 C AM - 26.96 27.40 ) (40 CH AM - 26. Push PTT to exit the selection QUICK SCROLL To scroll the channels, keep the UP or DOWN controls seconds. 10 | M Zero Instruction Guide... -
Page 13: Keypad Beep
The PA function allows you to use the radio as an audio amplifier. Connect a speaker with a power of 3-10 Watt to the PA jack; move the CB/PA knob PA position; press the PTT button of the microphone and talk. M Zero Instruction Guide | 11... -
Page 14: Technical Specifications
Frequency Tolerance ..............better than 0.002% Antenna impedance ..................50 Ohm Power supply ................. .12 6 V Max Current Drain ....................2A Dimensions ..................110x45x140 mm Weight ........................665 g Specifications are subject to change without notice. NOTE: 12 | M Zero Instruction Guide...
