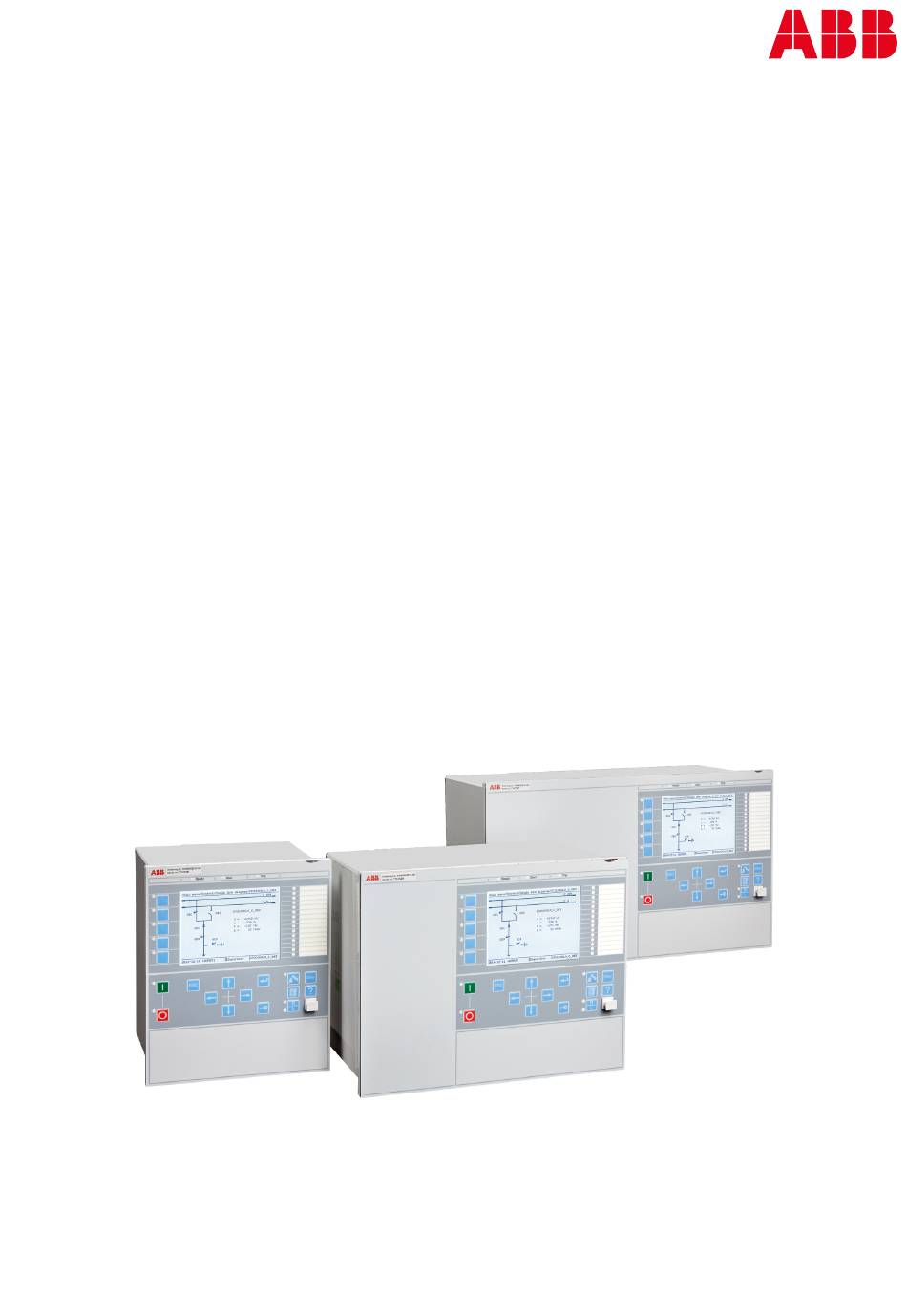

R E L I O N ® 670 SERIES
Phasor measurement unit RES670
Version 2.1
Product guide

Advertisement

Table of Contents
loading

Related Manuals for ABB Relion RES670

Summary of Contents for ABB Relion RES670

  • Page 1 — R E L I O N ® 670 SERIES Phasor measurement unit RES670 Version 2.1 Product guide...

  • Page 2: Table Of Contents

    Disclaimer The information in this document is subject to change without notice and should not be construed as a commitment by ABB. ABB assumes no responsibility for any errors that may appear in this document. Drawings and diagrams are not binding.

  • Page 3: Application

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Issued: March 2019 Revision: D • PMU Phasor Measurement Unit, including all accessories for time synchronization 1. Application • TCP/IP and/or UDP/IP communication network infra- GUID-CF75762E-73C1-40AF-8D6F-6EC3D8395982 v3 RES670 is a Phasor Measurement Unit (PMU) that structure provides power system AC voltages and currents as •...
  • Page 4 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D binary inputs and outputs on the IED I/O modules (BOM, In addition, each data stream includes 8 analog and 8 BIM, IOM & SOM) can be forced to arbitrary values. binary reporting channels over IEEE C37.118/1344 in the standard configuration.
  • Page 5 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D RES670 A20 – Phasor Measurement Unit, 3 bays, single busbar, 12AI (9I+3U) WA1_VT df/dt SA PFRC f> SA PTOF f< SA PTUF 2(3U<) UV2 PTUV 2(3U>) OV2 PTOV V MMXU Usqi DFR/SER DR V MSQI...
  • Page 6 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D binary reporting channels can be extended to maximum Description of configuration B20 24 channels per PMU instance (on each data stream) on GUID-E8A586F6-E450-4B5E-AF00-1DC9A197A2A6 v3 The configuration of the IED is shown in figure request.
  • Page 7 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D RES670 B20 – Phasor Measurement Unit, 6 bays, double busbar, 24AI (9I+3U, 9I+3U) WA1_VT WA2_VT df/dt df/dt SA PFRC SA PFRC f> f> SA PTOF SA PTOF f< f< SA PTUF SA PTUF 2(3U<) 2(3U<)

  • Page 8: Available Functions

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D 2. Available functions Wide area measurement functions GUID-8A114D7E-8D1A-46ED-A928-B819ED163A52 v3 IEC 61850 ANSI Function description Phasor Phasor Measurement Unit measurement unit RES670 (Customized) PMUCONF Configuration parameters for IEEE1344 and C37.118 protocol PMUREPORT Protocol reporting via IEEE1344 and C37.118 1–2...
  • Page 9 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Back-up protection functions GUID-A8D0852F-807F-4442-8730-E44808E194F0 v10.1.1 IEC 61850 ANSI Function description Phasor measurement unit RES670 (Customized) Impedance protection ZMRPSB Power swing detection 1-B23 1-B23 OOSPPAM Out-of-step protection 2-B23 2-B23 Current protection OC4PTOC Four step phase overcurrent protection 3-C26...
  • Page 10 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Control and monitoring functions GUID-E3777F16-0B76-4157-A3BF-0B6B978863DE v12.1.1 IEC 61850 ANSI Function description Phasor Phasor measurement measurement unit unit RES670 Control QCBAY Apparatus control LOCREM Handling of LRswitch positions LOCREMCTRL LHMI control of PSTO SLGAPC Logic rotating switch for function selection and LHMI presentation VSGAPC...
  • Page 11 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D IEC 61850 ANSI Function description Phasor Phasor measurement measurement unit unit RES670 ANDQT, Configurable logic blocks Q/T (see Table 2) 0–1 INDCOMBSPQT, INDEXTSPQT, INVALIDQT, INVERTERQT, ORQT, PULSETIMERQT, RSMEMORYQT, SRMEMORYQT, TIMERSETQT, XORQT AND, GATE, INV, Extension logic package (see Table 3)
  • Page 12 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D IEC 61850 ANSI Function description Phasor Phasor measurement measurement unit unit RES670 RANGE_XP Measured value expander block SSIMG Gas medium supervision SSIML Liquid medium supervision SSCBR Circuit breaker monitoring 0-18 9-M17 I103MEAS Measurands for IEC 60870-5-103...
  • Page 13 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 2. Total number of instances for configurable logic blocks Q/T Configurable logic blocks Q/T Total number of instances ANDQT INDCOMBSPQT INDEXTSPQT INVALIDQT INVERTERQT ORQT PULSETIMERQT RSMEMORYQT SRMEMORYQT TIMERSETQT XORQT Table 3.
  • Page 14 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Communication GUID-5F144B53-B9A7-4173-80CF-CD4C84579CB5 v12.1.1 IEC 61850 ANSI Function description Phasor measurement unit RES670 (Customized) Station communication LONSPA, SPA SPA communication protocol LON communication protocol HORZCOMM Network variables via LON PROTOCOL Operation selection between SPA and IEC 60870-5-103 for SLM RS485PROT Operation selection for RS485 RS485GEN...
  • Page 15 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D IEC 61850 ANSI Function description Phasor measurement unit RES670 (Customized) LPHD Physical device information PCMACCS IED Configuration Protocol SECALARM Component for mapping security events on protocols such as DNP3 and IEC103 FSTACCS Field service tool access via SPA protocol over ethernet FSTACCSNA...
  • Page 16 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Basic IED functions GUID-C8F0E5D2-E305-4184-9627-F6B5864216CA v9 Table 4. Basic IED functions IEC 61850 or function Description name INTERRSIG SELFSUPEVLST Self supervision with internal event list TIMESYNCHGEN Time synchronization module SYNCHCAN, Time synchronization SYNCHCMPPS, SYNCHPPS, SNTP, SYNCHCMPPS...

  • Page 17: Differential Protection

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 4. Basic IED functions, continued IEC 61850 or function Description name CAMSTATUS Central account management status TOOLINF Tools Information component SAFEFILECOPY Safe file copy function Table 5. Local HMI functions IEC 61850 or function ANSI Description...

  • Page 18: Wide Area Measurement System

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D performs a simple summation of the currents of the two Application Manual under section C37.118 Phasor channels I3P1 and I3P2. Measurement Data Streaming Protocol Configuration. Multiple PMU functionality can be configured in RES670, which can stream out same or different data at different reporting rates or different performance (service) 5.

  • Page 19: Voltage Protection

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Residual current can be calculated by summing the three The three-phase current measuring protection has an I phase currents or taking the input from neutral CT characteristic with settable time constant and a thermal memory.

  • Page 20: Frequency Protection

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D OV2PTOV has two voltage steps, each of them with discriminate between a positive or negative change of inverse or definite time delayed. frequency. A definite time delay is provided for operate. OV2PTOV has a high reset ratio to allow settings close SAPFRC is provided with an undervoltage blocking.

  • Page 21: Secondary System Supervision

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D for example, be used to build sub-synchronous resonance protection for synchronous generator. 10. Secondary system supervision Current circuit supervision CCSSPVC M12444-3 v10 Open or short circuited current transformer cores can 11.

  • Page 22: Logic

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-16E60E27-F7A8-416D-8648-8174AAC49BB5 v3 Single point generic control 8 signals SPC8GAPC The group alarm logic function ALMCALH is used to SEMOD176462-4 v8 The Single point generic control 8 signals SPC8GAPC route several alarm signals to a common indication, LED function block is a collection of 8 single point and/or contact, in the IED.
  • Page 23 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D the flip-flop resets or returns to the state it had • Applicable to long time integration (≤999 999.9 before the power interruption. The SET input has seconds). priority. • Supervision of limit transgression conditions and overflow.

  • Page 24: Monitoring

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D A disturbance is defined as an activation of an input to the AnRADR or BnRBDR function blocks, which are set to 13. Monitoring trigger the disturbance recorder. All connected signals from start of pre-fault time to the end of post-fault time Measurements CVMMXN, CMMXU, VNMMXU, will be included in the recording.
  • Page 25 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D SEMOD55713-5 v7 Trip value recorder DRPRDRE Generic communication function for Single Point M12128-3 v7 Information about the pre-fault and fault values for indication SPGAPC is used to send one single logical currents and voltages are vital for the disturbance signal to other systems or equipment in the substation.

  • Page 26: Metering

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D signals for limit violation of energy values and maximum Event counter with limit supervison L4UFCNT power demand, can be found. GUID-13157EAB-1686-4D2E-85DF-EC89768F3572 v5 The 30 limit counter L4UFCNT provides a settable counter with four independent limits where the number The values of active and reactive energies are calculated of positive and/or negative flanks on the input signal...

  • Page 27: Basic Ied Functions

    IEC 61850-9-2LE process bus communication is SPA communication protocol used. SEMOD120134-5 v1 A single glass or plastic port is provided for the ABB SPA Only GPS and IRIG-B (Optical IRIG-B 00X is protocol. This allows extensions of simple substation recommended), with IEEE1344 support, are the...

  • Page 28: Remote Communication

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D and evaluation of operation of the IED and for all IEC 62439-3 Parallel Redundancy Protocol associated electrical circuits. GUID-A90FDBA7-D4D7-4CBD-9F05-13DCC9971779 v5 Redundant station bus communication according to IEC 62439-3 Edition 1 and IEC 62439-3 Edition 2 parallel Binary output module BOM M6938-3 v4 redundancy protocol (PRP) are available as options when...
  • Page 29 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D IRIG-B Time synchronizing module SEMOD141113-4 v7 The IRIG-B time synchronizing module is used for accurate time synchronizing of the IED from a station clock. Electrical (BNC) and optical connection (ST) for 0XX and 12X IRIG-B support.
  • Page 30 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Mounting alternatives See ordering for details about available mounting M16079-3 v12 • 19” rack mounting kit alternatives. • Flush mounting kit with cut-out dimensions: – 1/2 case size (h) 254.3 mm/10.01” (w) 210.1 mm/ 8.27”...

  • Page 31: Connection Diagrams

    Connection diagrams for Customized products Connectivity package DVD as part of the product Connection diagram, 670 series 2.1 1MRK002802-AF delivery. The latest versions of the connection diagrams can be downloaded from http://www.abb.com/substationautomation. Connection diagrams for Customized products Connection diagram, 670 series 2.11MRK002801-AF...

  • Page 32: Technical Data

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D 21. Technical data General M10993-1 v3 IP11376-1 v2 Definitions Reference value The specified value of an influencing factor to which are referred the characteristics of the equipment Nominal range The range of values of an influencing quantity (factor) within which, under specified conditions, the equipment meets the specified requirements Operative range The range of values of a given energizing quantity for which the equipment, under specified conditions, is able to...
  • Page 33 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Analog inputs M16988-1 v11 IP15842-1 v1 Table 6. TRM - Energizing quantities, rated values and limits for protection transformer Description Value Frequency Rated frequency f 50/60 Hz Operating range ± 10% Current inputs Rated current I 1 or 5 A...
  • Page 34 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 7. TRM - Energizing quantities, rated values and limits for measuring transformer Description Value Frequency Rated frequency f 50/60 Hz Operating range ± 10% Current inputs Rated current I Operating range (0-1.8) ×...
  • Page 35 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Auxiliary DC voltage M12286-1 v4 IP15843-1 v3 Table 10. PSM - Power supply module Quantity Rated value Nominal range Auxiliary dc voltage, EL (input) EL = (24 - 60) V EL ±20% EL = (90 - 250) V EL ±20%...
  • Page 36 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Maximum 176 binary input channels The stated operate time for functions may be activated simultaneously with include the operating time for the influencing factors within nominal binary inputs and outputs. range.
  • Page 37 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Maximum 176 binary input channels The stated operate time for functions may be activated simultaneously with include the operating time for the influencing factors within nominal binary inputs and outputs. range.
  • Page 38 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 14. SOM - Static Output module data (reference standard: IEC 61810-2): Electromechanical relay outputs Function of quantity Trip and signal relays Max system voltage 250 V AC/DC Min load voltage 24VDC Number of outputs Test voltage across open contact, 1 min...
  • Page 39 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D M12441-1 v10 The stated operate time for functions include the operating time for the binary inputs and outputs. Table 15. BOM - Binary output module contact data (reference standard: IEC 61810-2) Function or quantity Trip and Signal relays Binary outputs...
  • Page 40 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 17. Auxiliary DC supply voltage influence on functionality during operation Dependence on Reference value Within nominal Influence range Ripple, in DC auxiliary voltage max. 2% 15% of EL 0.01%/% Operative range Full wave rectified...
  • Page 41 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 19. Electromagnetic compatibility Test Type test values Reference standards 1 MHz burst disturbance 2.5 kV IEC 60255-26 100 kHz slow damped oscillatory wave immunity test 2.5 kV IEC 61000-4-18, Class III Ring wave immunity test, 100 kHz 2-4 kV IEC 61000-4-12, Class IV...
  • Page 42 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 21. Environmental tests Test Type test value Reference standard Cold operation test Test Ad for 16 h at -25°C IEC 60068-2-1 Cold storage test Test Ab for 16 h at -40°C IEC 60068-2-1 Dry heat operation test Test Bd for 16 h at +70°C...
  • Page 43 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Differential protection...
  • Page 44 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Impedance protection M16036-1 v10 Table 24. Power swing detection ZMRPSB Function Range or value Accuracy Reactive reach (0.10-3000.00) W/phase ±2.0% static accuracy Conditions: Voltage range: (0.1-1.1) x U Current range: (0.5-30) x I Angle: at 0 degrees and 85 degrees Resistive reach (0.10–1000.00) W/loop...
  • Page 45 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D standard), the compliancy to the standard is limited to Wide area measurement system the current range between 50% and 200% of rated GUID-F0BAEBD8-E361-4D50-9737-7DF8B043D66A v3 RES670 is compliant with the synchrophasor current for both P and M classes of the standard.
  • Page 46 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Current protection M12342-1 v21 Table 26. Directional phase overcurrent protection, four steps OC4PTOC Function Range or value Accuracy lBase Operate current, step 1-4 (5-2500)% of ±1.0% of I at I ≤ I ±1.0% of I at I >...
  • Page 47 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D M15223-1 v18 Table 27. Directional residual overcurrent protection, four steps EF4PTOC Function Range or value Accuracy Operate current, step 1-4 (1-2500)% of IBase ±1.0% of I at I ≤ I ±1.0% of I at I >...
  • Page 48 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-E83AD807-8FE0-4244-A50E-86B9AF92469E v5 Table 28. Four step negative sequence overcurrent protection NS4PTOC Function Range or value Accuracy lBase Operate current, step 1 - 4 (1-2500)% of ±1.0% of I at I £ I ±1.0% of I at I >...
  • Page 49 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D SEMOD173350-2 v13 Table 29. Sensitive directional residual overcurrent and power protection SDEPSDE Function Range or value Accuracy lBase (0.25-200.00)% of Operate level for 3I ·cosj ±1.0% of I at I £ I directional residual ±1.0% of I at I >...
  • Page 50 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D M12352-1 v15 Table 30. Thermal overload protection, one time constant LCPTTR/LFPTTR Function Range or value Accuracy Reference current (2-400)% of IBase ±1.0% of I Reference temperature (0-300)°C, (0 - 600)°F ±1.0°C, ±2.0°F Operate time: IEC 60255-149, ±5.0% or ±200 ms whichever is greater...
  • Page 51 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D SEMOD175159-2 v8 Table 32. Directional overpower protection GOPPDOP Function Range or value Accuracy Power level (0.0–500.0)% of SBase ±1.0% of S at S ≤ S for Step 1 and Step 2 ±1.0% of S at S >...
  • Page 52 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Voltage protection M13290-1 v14 Table 33. Two step undervoltage protection UV2PTUV Function Range or value Accuracy UBase Operate voltage, low and high step (1.0–100.0)% of ±0.5% of U UBase Absolute hysteresis (0.0–50.0)% of ±0.5% of U UBase...
  • Page 53 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D M13304-1 v12 Table 34. Two step overvoltage protection OV2PTOV Function Range or value Accuracy UBase Operate voltage, step 1 and 2 (1.0-200.0)% of ±0.5% of U at U ≤ U ±0.5% of U at U >...
  • Page 54 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Frequency protection M13360-1 v13 Table 35. Underfrequency protection SAPTUF Function Range or value Accuracy Operate value, start function, at symmetrical (35.00-75.00) Hz ±2.0 mHz three phase voltage Operate time, start at f + 0.02 Hz to f - 0.02 Min.
  • Page 55 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D M14976-1 v10 Table 37. Rate-of-change of frequency protection SAPFRC Function Range or value Accuracy Operate value, start function (-10.00-10.00) Hz/s ±10.0 mHz/s Operate value, restore enable frequency (45.00-65.00) Hz ±2.0 mHz Definite restore time delay (0.000-60.000) s ±0.2% or ±100 ms whichever is...
  • Page 56 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Multipurpose protection M13095-2 v7 Table 39. General current and voltage protection CVGAPC Function Range or value Accuracy Measuring current input phase1, phase2, phase3, PosSeq, - NegSeq, -3*ZeroSeq, MaxPh, MinPh, UnbalancePh, phase1-phase2, phase2- phase3, phase3-phase1, MaxPh-Ph, MinPh-Ph, UnbalancePh-Ph Measuring voltage input...
  • Page 57 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 39. General current and voltage protection CVGAPC , continued Function Range or value Accuracy Independent time delay, undervoltage at 1.2 to 0.8 x U (0.00 - 6000.00) s ±0.2% or ±35 ms whichever is greater step 1 - 2 Overvoltage:...
  • Page 58 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Secondary system supervision M12358-1 v9 Table 40. Current circuit supervision CCSSPVC Function Range or value Accuracy Operate current (10-200)% of IBase ±10.0% of I at I ≤ I ±10.0% of I at I > I Reset ratio, Operate current >90% Block current...
  • Page 59 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Logic M12380-1 v9 Table 42. Tripping logic common 3-phase output SMPPTRC Function Range or value Accuracy Trip action 3-ph, 1/3-ph, 1/2/3-ph Minimum trip pulse length (0.000-60.000) s ±0.2% or ±15 ms whichever is greater 3-pole trip delay (0.020-0.500) s ±0.2% or ±15 ms whichever is greater...
  • Page 60 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-45DF373F-DC39-4E1B-B45B-6B454E8E0E50 v1 Table 49. Number of GATE instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms GATE GUID-0EC4192A-EF03-47C0-AEC1-09B68B411A98 v1 Table 50. Number of INV instances Logic block Quantity with cycle time 3 ms 8 ms...
  • Page 61 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-0B07F78C-10BD-4070-AFF0-6EE36454AA03 v1 Table 57. Number of XOR instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms GUID-23D4121A-4C9A-4072-BBE3-6DB076EDAB79 v1 Table 58. Number of ANDQT instances Logic block Quantity with cycle time 3 ms 8 ms...
  • Page 62 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-94C803B4-6C5A-4072-AB5C-20DDE98C9A70 v1 Table 65. Number of RSMEMORYQT instances Logic block Quantity with cycle time 3 ms 8 ms 100 ms RSMEMORYQT GUID-341562FB-6149-495B-8A63-200DF16A5590 v1 Table 66. Number of SRMEMORYQT instances Logic block Quantity with cycle time 3 ms 8 ms...
  • Page 63 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-3820F464-D296-4CAD-8491-F3F997359D79 v1 Table 71. Number of BTIGAPC instances Function Quantity with cycle time 3 ms 8 ms 100 ms BTIGAPC GUID-B45901F4-B163-4696-8220-7F8CAC84D793 v1 Table 72. Number of IB16 instances Function Quantity with cycle time 3 ms 8 ms 100 ms...
  • Page 64 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Monitoring M12386-1 v14.1.1 Table 77. Measurements CVMMXN Function Range or value Accuracy Frequency (0.95-1.05) x f ±2.0 mHz Voltage (10 to 300) V ±0.3% of U at U≤ 50 V ±0.2% of U at U>...
  • Page 65 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-ED634B6D-9918-464F-B6A4-51B78129B819 v5 Table 80. Phase-neutral voltage measurement VNMMXU Function Range or value Accuracy Voltage (5 to 175) V ±0.5% of U at U ≤ 50 V ±0.2% of U at U > 50 V Phase angle (5 to 175) V ±0.5 degrees at U ≤...
  • Page 66 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D M12760-1 v9.1.1 Table 84. Disturbance report DRPRDRE Function Range or value Accuracy Pre-fault time (0.05–9.90) s Post-fault time (0.1–10.0) s Limit time (0.5–10.0) s Maximum number of recordings 100, first in - first out Time tagging resolution 1 ms See table...
  • Page 67 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D GUID-83B0F607-D898-403A-94FD-7FE8D45C73FF v6 Table 86. Insulation liquid monitoring function SSIML Function Range or value Accuracy Oil alarm level 1.00-100.00 ±10.0% of set value Oil lockout level 1.00-100.00 ±10.0% of set value Temperature alarm level -40.00-200.00 ±2.5% of set value...
  • Page 68 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D M12702-1 v4 Table 90. Event recorder Function Value Buffer capacity Maximum number of events in disturbance report Maximum number of disturbance reports Resolution 1 ms Accuracy Depending on time synchronizing M13747-1 v5 Table 91.
  • Page 69 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Metering M13404-2 v5 Table 94. Pulse-counter logic PCFCNT Function Setting range Accuracy Input frequency See Binary Input Module (BIM) Cycle time for report of (1–3600) s counter value SEMOD153707-2 v4 Table 95.
  • Page 70 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Station communication M15031-1 v7 Table 96. Communication protocols Function Value Protocol IEC 61850-8-1 Communication speed for the IEDs 100BASE-FX Protocol IEC 60870–5–103 Communication speed for the IEDs 9600 or 19200 Bd Protocol DNP3.0 Communication speed for the IEDs...

  • Page 71: Electrical Safety

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Hardware M11778-1 v4 SEMOD53385-1 v1 Table 100. Case Material Steel sheet Front plate Steel sheet profile with cut-out for HMI Surface treatment Aluzink preplated steel Finish Light grey (RAL 7035) M12327-1 v3 Table 101.
  • Page 72 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Because of limitations of space, when ring lug terminal is ordered for Binary I/O connections, one blank slot is necessary between two adjacent IO cards. Please refer to the ordering particulars for details.
  • Page 73 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Basic IED functions M11963-1 v5 Table 106. Self supervision with internal event list Data Value Recording manner Continuous, event controlled List size 40 events, first in-first out M12331-1 v7 Table 107. Time synchronization, time tagging Function Value Time tagging accuracy of the synchrophasor data...
  • Page 74 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D SEMOD141136-2 v8 Table 110. IRIG-B Quantity Rated value Number of channels IRIG-B Number of optical channels Electrical connector: Electrical connector IRIG-B Pulse-width modulated 5 Vpp Amplitude modulated – low level 1-3 Vpp –...
  • Page 75 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Inverse characteristic M12388-1 v23 Table 111. ANSI Inverse time characteristics Function Range or value Accuracy Operating characteristic: 0.05 ≤ k ≤ 999.00 ANSI/IEEE C37.112 , 1.5 x I ≤ I ≤ 20 x I ±2.0% or ±40 ms whichever is greater æ...
  • Page 76 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 112. IEC Inverse time characteristics Function Range or value Accuracy Operating characteristic: 0.05 ≤ k ≤ 999.00 IEC 60255-151, ±2.0% 1.5 x I ≤ I ≤ 20 x I or ±40 ms whichever is greater æ...
  • Page 77 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 113. RI and RD type inverse time characteristics Function Range or value Accuracy RI type inverse characteristic 0.05 ≤ k ≤ 999.00 IEC 60255-151, ±2.0% 1.5 x I ≤ I ≤ 20 x I or ±40 ms whichever is greater ×...
  • Page 78 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 115. Inverse time characteristics for undervoltage protection Function Range or value Accuracy Type A curve: k = (0.05-1.10) in steps of 0.01 ±5.0% or ±45 ms whichever is greater æ...

  • Page 79: Ordering For Customized Ied

    Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D 22. Ordering for customized IED GUID-B35852AB-ADB2-42E0-BA3A-55203EBB5C70 v3.2.1 Table 116. General guidelines Guidelines Carefully read and follow the set of rules to ensure problem-free order management. Please refer to the available functions table for included application functions. PCM600 can be used to make changes and/or additions to the delivered factory configuration of the pre-configured.
  • Page 80 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 120. Differential protection Positio Table 121. Impedance protection Posi tion Table 122. Impedance functions Function Function Ordering no Positi Available Selected Notes identification and rules Power swing detection ZMRPSB 1MRK005907-UA 0–1 Out-of-step protection...
  • Page 81 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 129. Multipurpose protection Position Table 130. Multipurpose functions Function Function Ordering no Positi Available Selected Notes identification and rules General current and voltage protection CVGAPC 1MRK005915-AA 0–8 Table 131. General calculation Position Table 132.
  • Page 82 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 141. Station communication Positio Table 142. Station communication functions Function Function Ordering no Positi Available Selected Notes and identification rules Process Bus communication IEC 61850-9-2 1MRK005930-TA 0 if F00 is Note: selected, RES670...
  • Page 83 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 144. Casing selection Casing Selection Notes and Rules 1/2 x 19" case 3/4 x 19" rack 1 TRM slot 3/4 x 19" case 2 TRM slots 1/1 x 19" case 1 TRM slot 1/1 x 19"...
  • Page 84 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 149. Analog system selection Analog system Selection Notes and Rules No first TRM included Compression terminals Note: Only the same type of TRM (compression or ringlug) Ringlug terminals in the same terminal First TRM 12I 1A, 50/60Hz First TRM 12I 5A, 50/60Hz First TRM 9I+3U 1A, 100/220V, 50/60Hz...
  • Page 85 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 151. Maximum quantity of I/O modules, with ringlug terminals Note: Only every second slot can be used. Case sizes BOM/ Maximum in case 1/1 x 19” rack casing, 7 **) possible locations: P3, P5, P7, P9, P11, P13, P15 one (1) TRM 1/1 x 19”...
  • Page 86 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 152. Binary input/output module selection Binary input/output Selection Notes and Rules modules Slot position (rear Note! Max 3 positions in 1/2 view) rack, 8 in 3/4 rack with 1 TRM, 5 in 3/4 rack with 2 TRM, 11 in 1/1 rack with 2 TRM and 14 in 1/1 rack with 1 TRM...
  • Page 87 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Table 152. Binary input/output module selection, continued Binary input/output Selection Notes and Rules modules SOM Static output Note: SOM must not to be module, 12 outputs, placed in following positions: 48-60 VDC 1/2 case slot X51, 3/4 case, 1 TRM slot X101, 3/4 case, 2 TRM...

  • Page 88: Ordering For Pre-Configured Ied

    - 11 - 12 - 13 SOFTWARE Notes and Rules Version number Version no Selection for position #1. Configuration alternatives Notes and Rules 3 bays, single busbar 6 bays, double busbar ACT configuration ABB standard configuration Selection for position #2.
  • Page 89 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Software options Notes and Rules No option All fields in the ordering form do not need to be filled in Power swing and out-of-step protection - PMU Directional power protection - 3 bays Note: Only in A20 Directional power protection - 4 bays Note: Only in B20...
  • Page 90 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Mounting details with IP40 of protection from the front Notes and Rules No mounting kit included 19" rack mounting kit for 1/2 x 19" case of 2xRHGS6 or RHGS12 Note: Only in A20 19"...
  • Page 91 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Binary input/output Notes and Rules module, mA and time synchronizating boards. For pulse counting, for example kWh metering, the BIM with enhanced pulse counting capabilities must be used. Note: 1BIM and 1 BOM included in A20 and B20 Slot position (rear Note: Max 3 positions in 1/2 view)
  • Page 92 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Binary input/output Notes and Rules module, mA and time synchronizating boards. For pulse counting, for example kWh metering, the BIM with enhanced pulse counting capabilities must be used. Note: 1BIM and 1 BOM included in A20 and B20 SOM Static output Note: SOM must not be placed module, 12 outputs,...

  • Page 93: Ordering For Accessories

    IEDs is described in 1MRK 512 001-BEN and 1MRK 1 TRM/2 TRM with external neutral on currents circuits 001024-CA. Please refer to the website: (ordering number RK926 315–DC). www.abb.com/substationautomation for detailed information. Test switches type RTXP 24 is ordered separately. Please...
  • Page 94 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Configuration and monitoring tools M15042-3 v3 IP15162-1 v2 Front connection cable between LCD-HMI and PC Quantity 1MRK 001 665-CA SEMOD131414-4 v3 LED Label special paper A4, 1 pc Quantity 1MRK 002 038-CA LED Label special paper Letter, 1 pc Quantity 1MRK 002 038-DA...
  • Page 95 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D User documentation Rule: Specify the number of printed manuals requested Application manual Quantity 1MRK 511 364-UEN ANSI Quantity 1MRK 511 316-UUS Technical manual Quantity 1MRK 511 365-UEN ANSI Quantity 1MRK 511 317-UUS Commissioning manual Quantity 1MRK 511 366-UEN...
  • Page 96 Phasor measurement unit RES670 2.1 IEC 1MRK 511 367-BEN D Engineering manual, 670 series Quantity 1MRK 511 355-UEN ANSI Quantity 1MRK 511 355-UUS Cyber security guideline Quantity 1MRK 511 356-UEN Reference information M2175-3 v4 For our reference and statistics we would be pleased to be provided with the following application data: Country: End user: Station name:...
  • Page 98 ABB AB Substation Automation Products SE-721 59 Västerås, Sweden Phone +46 (0) 21 32 50 00 Scan this QR code to visit our website www.abb.com/substationautomation © Copyright 2015 ABB. All rights reserved.
