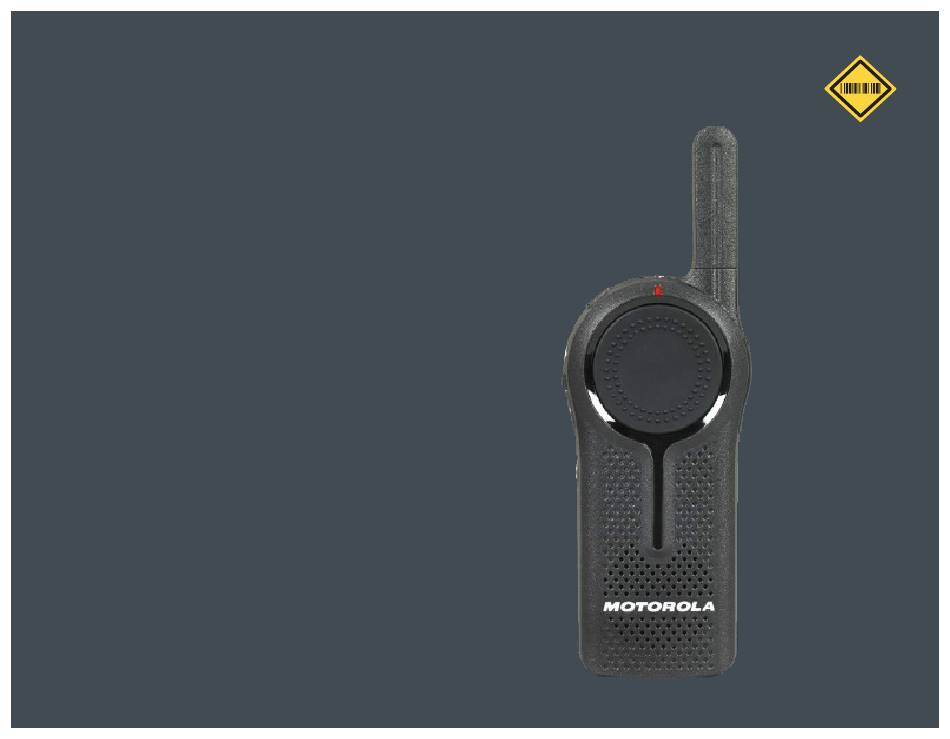

- Page 1 DLR SERIES DIGITAL MADE EASY QUICK REFERENCE GUIDE FOR RADIO FEATURES BarCodeDirect.com...
-
Page 2: Table Of Contents
DLR SERIES QUICK REFERENCE GUIDE TABLE OF CONTENTS MODELS: DLR 1020 – 2 channels Radio Overview Battery – Insert and Charge DLR 1060 – 6 channels Basic Operations Frequency band: ISM 900 MHz Advanced Configuration Special Call Features CPS Software Troubleshooting and FAQ... -
Page 3: Radio Overview
DLR 1020/1060 RADIO OVERVIEW Top Button Power Buttons Antenna Audio Audio accessory accessory connector connector Tx/Rx Indicator Volume/ Up-Down Control Buttons PPT Button Battery Channel/ Menu Button Speaker Holster BarCodeDirect.com... - Page 4 DLR 1020/1060 BATTERY – INSERTING To insert or remove the battery, set the latch in the “unlocked“ position, and open the battery door. Remember to always set the latch back to the “locked” position in order to prevent battery from falling out by accident. Unlocked/Locked latch Battery door...
- Page 5 DLR 1020/1060 RADIO OVERVIEW To charge a battery, insert the radio or a stand-alone battery into the single or multiple unit charger. The light on the charger is red when the radio is charging. It turns to green once the radio is fully charged. Multiple-unit charger LED turns green battery is fully charged...
-
Page 6: Basic Operations
DLR 1020/1060 Basic Operations ON/OFF Power Button – long press to turn the PRIVATE REPLY device ON/OFF, short press to check Press Top Button to queue up battery status. for Private Reply* (while someone is speaking to your channel), then push PTT to call the last person speaking. -
Page 7: Advanced Configuration
DLR 1020/1060 Advanced Configuration The DLR Advanced Menu Mode allows you to configure special settings in your radio without the need programming cables or additional software. Choose a 4-digit number (0000 to 9999). Profile ID # Customize it to ensure interference free/private communications. Max Channels Choose the max. number of channels you want to allow for your radio. Set your Top button with one feature: Private Reply, Direct Call (only if enabled via CPS), Top Button Call All Available, Page All Available, Mute, Disabled. - Page 8 DLR 1020/1060 ADVANCED CONFIGURATION MENU Entering Advanced Menu To enter the Advanced Menu, push Power Button together with PTT and [+]. Power Button Channel/Menu Button – press to check (Push-to-Talk) Button the current channel. You can now use [+] and [-] buttons to switch channels. Press PTT to exit channel browsing.
- Page 9 DLR 1020/1060 ADVANCED CONFIGURATION MENU Browsing Advanced Menu Options Profile ID Number “Programming Mode, Press Menu to continue.” Home Channel Max Channel Voice prompt Mic Gain Top Button Long press PTT to Press Channel/Menu button to cycle exit Advanced through the Advanced Menu options. Menu Mode.
- Page 10 DLR 1020/1060 ADVANCED CONFIGURATION MENU 1. Profile ID Number – current value The radio announces the current PROFILE ID number and prompts you to change it: Current Profile ID: <Digit1, Digit2, Digit3, Digit4>; to Profile ID change, press [+] or [-]” Number Home Channel Max Channel Press [+] or [-] to enter the Profile ID number Sub-Menu.
- Page 11 DLR 1020/1060 ADVANCED CONFIGURATION MENU 1. Profile ID Number – changing values The radio announces the current PROFILE ID As you press the [+] or [-], the radio will announce the first digit value and prompt you to change it: “First digit <number>.To change, press [+] or [-].” Profile ID Number Home Channel Max Channel Press [+] or [-] to enter to change the first Profile ID digit.
- Page 12 DLR 1020/1060 ADVANCED CONFIGURATION MENU 1. Profile ID Number – sub-menu As you press [+] or [-] to change the current digit, radio will announce the values. “zero, one, two, (…), nine, zero…” DIGIT DIGIT DIGIT DIGIT Press Channel/Menu button to set digit and proceed to the next one. Long press PTT to exit Advanced Menu Mode.
- Page 13 DLR 1020/1060 ADVANCED CONFIGURATION MENU 1. Profile ID Number – modification confirmation Once you’ve done setting the 4-digits profile number, the radio will confirm the new Profile ID value. “Profile ID saved as: <digit1, digit2, digit3, Profile ID igit4>. Press Menu to Number continue.” Home Channel Max Channel Press Channel/Menu button o proceed to the next Advanced Menu option. Mic Gain Top Button Long press PTT to exit Advanced Menu Mode.
- Page 14 DLR 1020/1060 ADVANCED CONFIGURATION MENU 2. Maximum Channels The radio announces the current maximum number of channels and prompts you to change it: “Max Channels <number>. To change, Profile ID press [+] or [-].” Number Home Channel Max Channel Press [+] or [-] to enter to change the number of channels.
- Page 15 DLR 1020/1060 ADVANCED CONFIGURATION MENU 3. Top Button – current feature The radio announces the current Top Button feature and prompts you to change it: “Programmable Button <Top Button Feature>. To Profile ID Top Button change, press [+] or [-].” Number Home Channel Max Channel Press [+] or [-] to change...
- Page 16 DLR 1020/1060 ADVANCED CONFIGURATION MENU 3. Top Button – sub-menu options Use [+] / [-] buttons to browse the Top Button functions – you will hear their names read. “<Top feature>” Top Button Private Reply Direct Call Disabled Press [+] or [-] to change Top Button the Top Button feature.
- Page 17 DLR 1020/1060 ADVANCED CONFIGURATION MENU 4. MIC Gain The radio announces the current MIC Gain setting and prompts you to change it: “MIC Gain <MIC gain level>. To change, press Profile ID plus or minus.” Number Home Channel Max Channel Press [+] or [-] to change the MIC Gain level.
- Page 18 DLR 1020/1060 ADVANCED CONFIGURATION MENU 5. Home Channel The radio announces the current Home Channel setting and prompts you to change it: “Home Channel <Home channel setting> to Profile ID change press [+] or [-].” Number Home Channel Max Channel Press [+] or [-] to change the Home Channel setting.
-
Page 19: Special Call Features
SPECIAL CALL FEATURE BarCodeDirect.com... - Page 20 DLR 1020/1060 SPECIAL CALL FEATURES As mentioned before, the Top Button can be configured to serve different functions: Special Call Features: > Private Reply > Direct Call > Page All Available > Call All Available Private Reply Mute: instant mute function Disabled: disables the Top Button Direct Call Disabled Top Button Call All Available Mute *Except for Private Reply and Mute,...
- Page 21 DLR 1020/1060 SPECIAL CALL FEATURES – PRIVATE REPLY Private Call feature allows you to talk privately to the person currently talking to a group after the group radio transmission is over. This allows to free the radio channel from unnecessary back and forward chatter. This function engages the Top Button and the PTT button.
- Page 22 DLR 1020/1060 SPECIAL CALL FEATURES – PRIVATE REPLY Step BY Step 1. User A is talking to a group. 2. You want to talk privately to the User A (currently speaking). You push the Top button and hear a “Private Reply” prompt. The LED light begins to blink, and the private talk is in queue.
- Page 23 DLR 1020/1060 SPECIAL CALL FEATURES – PRIVATE REPLY Step BY Step 1. User A is talking to a group. want to talk privately to the User A (currently speaking). You push the Top button and hear a “Private Reply” prompt. The LED light begins to blink, and the private talk is in queue.
- Page 24 DLR 1020/1060 SPECIAL CALL FEATURES – PRIVATE REPLY Step BY Step 1. User A is talking to a group. want to talk privately to the User A (currently speaking). You push the Top button and hear “Private Reply” prompt. The LED light begins to blink, and the private talk is in queue.
- Page 25 DLR 1020/1060 SPECIAL CALL FEATURES – PRIVATE REPLY During the private communication, the LED on the Top Button illuminates a solid light. If any of the radio users take too long to push the PTT button (10 seconds by default*), the private communication ends with a “Private Over”...
- Page 26 DLR 1020/1060 SPECIAL CALL FEATURES – PRIVATE REPLY A TIP: HOW TO APPLY PRIVATE REPLY IN YOUR DAILY JOB The use of this feature reduces the need for phone extensions or cell phone calls to talk privately. Simply call on the radio the name of the person want to talk to privately.
- Page 27 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL The Direct Call Feature allows you to call one-on-one privately another pre-determined user that has been mapped into the radio Top Button (this feature needs to be pre-programmed*) or to any radio channel instead. Top Button(with LED) –...
- Page 28 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL “<User B> Step BY Step Name” 1. To talk directly to User B press Top Button*. Your radio plays voice prompt with the “Private Name” (as programmed in CPS, if enabled) and top LED starts blinking orange, showing you are in queue waiting to...
- Page 29 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL Step BY Step 1. To talk directly to User B press Top Button*. Your radio plays voice prompt with the “Private Name” (as programmed in CPS, if enabled) and top LED starts blinking orange, showing you are in queue waiting to talk privately to...
- Page 30 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL Step BY Step 1. To talk directly to User B press Top Button*. Your radio plays voice prompt with the “Private Name” (as programmed in CPS, if enabled) and top LED starts blinking orange, showing you are in queue waiting to talk privately to...
- Page 31 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL “Private OVER” Step BY Step 4A. If any of the radio users takes too long to push the PTT and reply back, the radio will time out (“Private Hang Time“ of 10 sec) and end the private communication while a playing “Private Over”...
- Page 32 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL “Private OVER” Step BY Step 4A. If any of the radio users takes too long to push the PTT and reply back, the radio will time out (“Private Hang Time“ of 10 sec) and end the private communication while a playing “Private Over”...
- Page 33 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL Step BY Step 4A. If any of the radio users takes too long to push the PTT and reply back, the radio will time out (“Private Hang Time“ of 10 sec) and end the private communication while a playing “Private Over”...
- Page 34 DLR 1020/1060 SPECIAL CALL FEATURES – DIRECT CALL A TIP: WHY AND HOW TO USE DIRECT CALL: Top Button(with LED) – Set up your employees to be able to contact directly and privately their supervisor, the Manager on Duty or to reach a designated person for special requests. To make a Direct Call simply press the Top Button and then push the PTT button to talk.
- Page 35 DLR 1020/1060 SPECIAL CALL FEATURES – CALL ALL AVAILABLE RADIO INITIATES CALL ALL AVAILABLE Call All Available allows to start a group transmission to Radios anyone not engaged in a call. This creates a Group Call busy in private conversation in a temporary “super channel group”...
- Page 36 DLR 1020/1060 SPECIAL CALL FEATURES – CALL ALL AVAILABLE RADIO INITIATES CALL ALL AVAILABLE A TIP: HOW CALL ALL AVAILABLE CAN BE APPLIED: Radios busy in private An employee in a retail store is trying to see if anyone conversation took the backroom scanner.
- Page 37 DLR 1020/1060 SPECIAL CALL FEATURES – CALL ALL AVAILABLE RADIO INITIATES CALL ALL AVAILABLE A TIP: HOW CALL ALL AVAILABLE CAN BE APPLIED: ONE-WAY Radios GROUP This feature is useful if you have more than 1 or 2 ANNOUNCEMENT busy in private conversation channels.
- Page 38 DLR 1020/1060 SPECIAL CALL FEATURES – PAGE ALL AVAILABLE APPLICATION EXAMPLES: RADIO INITIATES 6 channel radio CALL ALL AVAILABLE Top Button: Private Reply Channel 1: Page All Available Radios Example 1: An employee in a retail store is looking for busy in private anyone (in any of the group radio channels) who can conversation...
-
Page 39: Cps Software
DLR 1020/1060 CUSTOMER PROGRAMMING SOFTWARE – CPS Customer Programming Software (CPS) allows you to program or change features in your radio. To use CPS, you need to download it from the internet and connect your radio with the computer using the CPS Programming Cable. Using CPS, you can set Private Hang Time, Group Hang Time,... - Page 40 DLR SERIES “Need Help?” >> Call BCD HELP DESK DIGITAL > >>1.800.343.1750 MADE EASY Manufacturing Transportation & Logistics Wholesale Distribution Retail Healthcare 41 North Main Street, North Grafton, MA 01536 1.800.343.1750 BarCodeDirect.com...
