TI01384F/00/EN/01.18
71398859
2018-01-26
Products
Technical Information

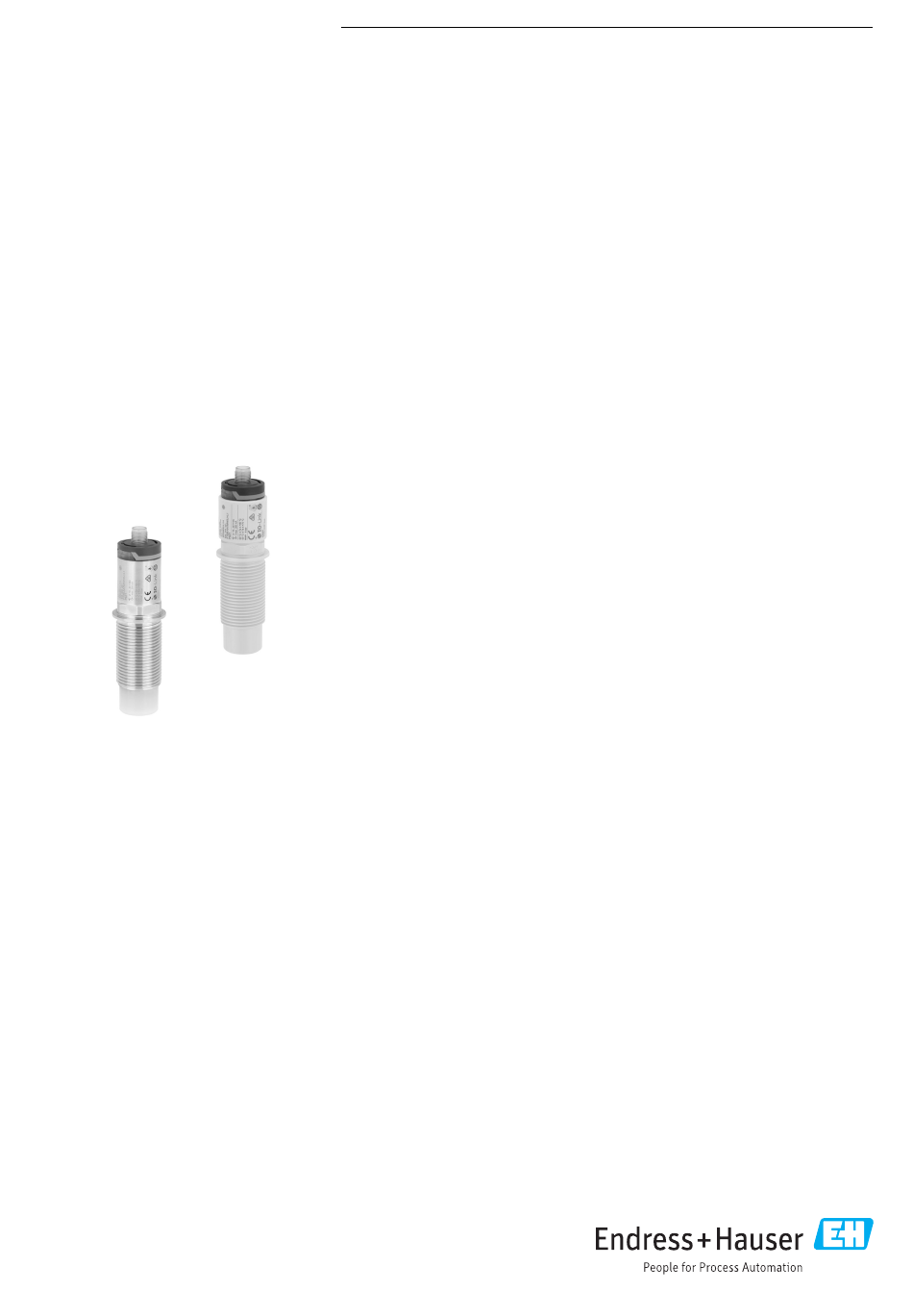

Nivector FTI26
Capacitive
Point level switch for powdered and fine-grained
solids
Application
Reliable minimum or maximum detection of powders or fine-grained bulk solids in
silos.
• Typical application examples: plastic granules, detergent, grain, sugar, spices, milk
powder, animal feed
• Easy installation thanks to compact design - even in tight conditions or where
access is restricted.
• Also suitable for use in
– Food industry
– Hazardous atmospheres formed by combustible dust, zone 20
– Process temperatures of –20 to +80 °C (–4 to +176 °F).
Your benefits
• Onsite function check via LED indication
• Robust stainless steel housing, optionally available with M12x1 connector with
IP69 protection
• Easy and cost-effective commissioning: Precalibration in factory (plug and play)
• Hygienic design, 3-A and EHEDG certificates
• Meets the requirements of EU 1935/2004
• FDA-compliant
• DC-PNP Output and IO-Link communication
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Nivector FTI26
Summary of Contents for Endress+Hauser Nivector FTI26
-
Page 1: Technical Information
Products Solutions Services TI01384F/00/EN/01.18 71398859 2018-01-26 Technical Information Nivector FTI26 Capacitive Point level switch for powdered and fine-grained solids Application Reliable minimum or maximum detection of powders or fine-grained bulk solids in silos. • Typical application examples: plastic granules, detergent, grain, sugar, spices, milk powder, animal feed •... -
Page 2: Table Of Contents
Nivector FTI26 Table of contents About this document ......Materials ........14 Surface roughness . -
Page 3: About This Document
Nivector FTI26 About this document Document conventions Symbols for certain types of information Symbol Meaning Permitted Indicates procedures, processes or actions that are allowed. Preferred Indicates procedures, processes or actions that are preferred. Indicates additional information. Reference to page Refers to the corresponding page number. -
Page 4: Function And System Design
1 Application examples Overfill protection or upper level detection (MAX) Dry-running protection or lower level detection (MIN) System integration For devices with IO-Link, an IO-DD is available in the Downloads area of the Endress+Hauser website → 15. Endress+Hauser... -
Page 5: Input
Nivector FTI26 Input Measured variable Level (point level switch) The change in medium capacitance is detected by the electrode in contact with the process. Measuring range Bulk solids, e. g. foodstuffs in powder form • Dielectric constant (Dk) > 1.3 • Grain size < 10 mm... -
Page 6: Power Supply
Nivector FTI26 Power supply Supply voltage 12 to 30 V DC IO-Link communication is guaranteed only if the supply voltage is at least 18 V. Power consumption < 1.2 W (at max. load:200 mA) Current consumption < 20 mA Electrical connection Voltage source: Non-hazardous contact voltage or Class 2 circuit (North America). The device must be operated with a fine-wire fuse 500 mA (slow-blow). - Page 7 Nivector FTI26 1) 2) Electrical connection Both switch outputs active simultaneously M12 plug 0.5A L– A0035998 Supply voltage + DC-PNP (Q2) Supply voltage - DC-PNP (Q1) Depending on configuration Current consumption with two outputs connected: < 25 mA Function monitoring...
-
Page 8: Cable Specification
Nivector FTI26 Valve plug Depending on the assignment of the connector, the device works in either the MAX or MIN mode. Electrical connection Mode of operation Valve plug – – 0.5A 0.5A L– L– A0022900 Symbols Description Yellow LED (ye) not lit... -
Page 9: Installation
Nivector FTI26 Installation Mounting location Lateral mounting in bulk solids silos, indoors or outdoors, e. g. in silo For installation in metallic or non-metallic bulk solids silos, follow the EMC guidelines→ 11. Installation instructions • Engineering unit mm (in) • Sensor surface ≥ 20 mm (0.79 in) projecting into silo (when installing with weld-in adapter 20 mm (0.79 in) - Page 10 Nivector FTI26 A0036363 6 Installation with Tri-Clamp and NA Connect provided by customer, can be ordered as an accessory → 19 Installation with protector • Protection of point level switch against damage by particularly abrasive or coarse product •...
-
Page 11: Environment
Nivector FTI26 Environment Ambient temperature range 90 (194) 80 (176) 70 (158) 60 (140) 50 (122) 40 (104) 30 (86) 20 (68) 10 (50) 0 (32) 10 (50) 30 (86) 50 (122) 70 (158) 90 (194) 0 (32) 20 (68) -
Page 12: Short-Circuit Protection
Nivector FTI26 Short-circuit protection • Overload protection/short-circuit protection at I > 200 mA • IO-Link communication: 105 mA each if both switch outputs are active Intelligent monitoring: Testing for overload at intervals of approx. 1.5 s; normal operation resumes once the overload/short-circuit has been rectified. -
Page 13: Mechanical Construction
Nivector FTI26 Mechanical construction Exact dimensions are available in the Product Configurator on the Endress+Hauser website: www.endress.com → Product finder → On the product page, click the "Configure" button to the right of the product photo. Engineering unit mm (in) 31.5... -
Page 14: Connector
Polycarbonate See Ex approval, order code 10 → 21 Endress+Hauser supplies DIN/EN process connections with threaded connection in stainless steel in accordance with AISI 316L (DIN/EN material number 1.4404 or 14435). In terms of their stability-temperature property, the materials 1.4404 and 1.4435 are grouped in EN 1092-1 table 18 under 13E0. -
Page 15: Surface Roughness
Nivector FTI26 Surface roughness Sensor surface in contact with process: Ra ≤ 0.76 µm (30 µin), ordering information: Product Configurator order code for "Process connection" option "WDJ" Operability Operating concept for Operator-oriented menu structure for user-specific tasks devices with IO-Link... -
Page 16: Light Signals (Leds)
Nivector FTI26 Light signals (LEDs) A0036482 10 Position of LEDs on housing cover Housing cover with M12 plug, plastic Housing cover with valve plug There is no external signaling via LEDs on the metal housing cover (IP69). A connecting cable with an M12 plug and LED display can be ordered as an accessory if necessary. -
Page 17: Certificates And Approvals
The measuring system is in conformity with the statutory requirements of the applicable EC CE mark Directives. These are listed in the corresponding EC Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. C-tick symbol The measuring system complies with EMC requirements of the "Australian Communications and... -
Page 18: Ex Approval
EU 1935/2004, 10/2011, 2023/2006 and FDA 21 CFR 177.2415 (only for order code for "Process connection", option "WDJ"). By affixing the 3-A symbol to the device, Endress+Hauser confirms compliance with the 3-A Sanitary Standard No. 74-xx and No. 50-xx. -
Page 19: Accessories
Nivector FTI26 Accessories • Accessories can be ordered with the device (optional) or separately. • The adapters are also available with inspection certificate 3.1 EN10204. For more information on process adapters and weld-in adapters, please refer to the supplementary documentation →... -
Page 20: Protection Cover
Nivector FTI26 G 1" 41 mm A0036041 Protection cover • Material: PC • Order number: 71395803 0.6 Nm A0036434 Test magnet Order number: 71267011 Plug-in jack, connection Designation Order number Option adapter Cable, plug-in jack M12 IP69 with LED Engineering unit mm (in) •... -
Page 21: Supplementary Documentation
For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations App: Enter the serial number from the nameplate or scan the 2D matrix code (QR code) on the nameplate • BA01830F → Nivector FTI26 Operating Instructions •... - Page 24 *71398859* 71398859 www.addresses.endress.com...
