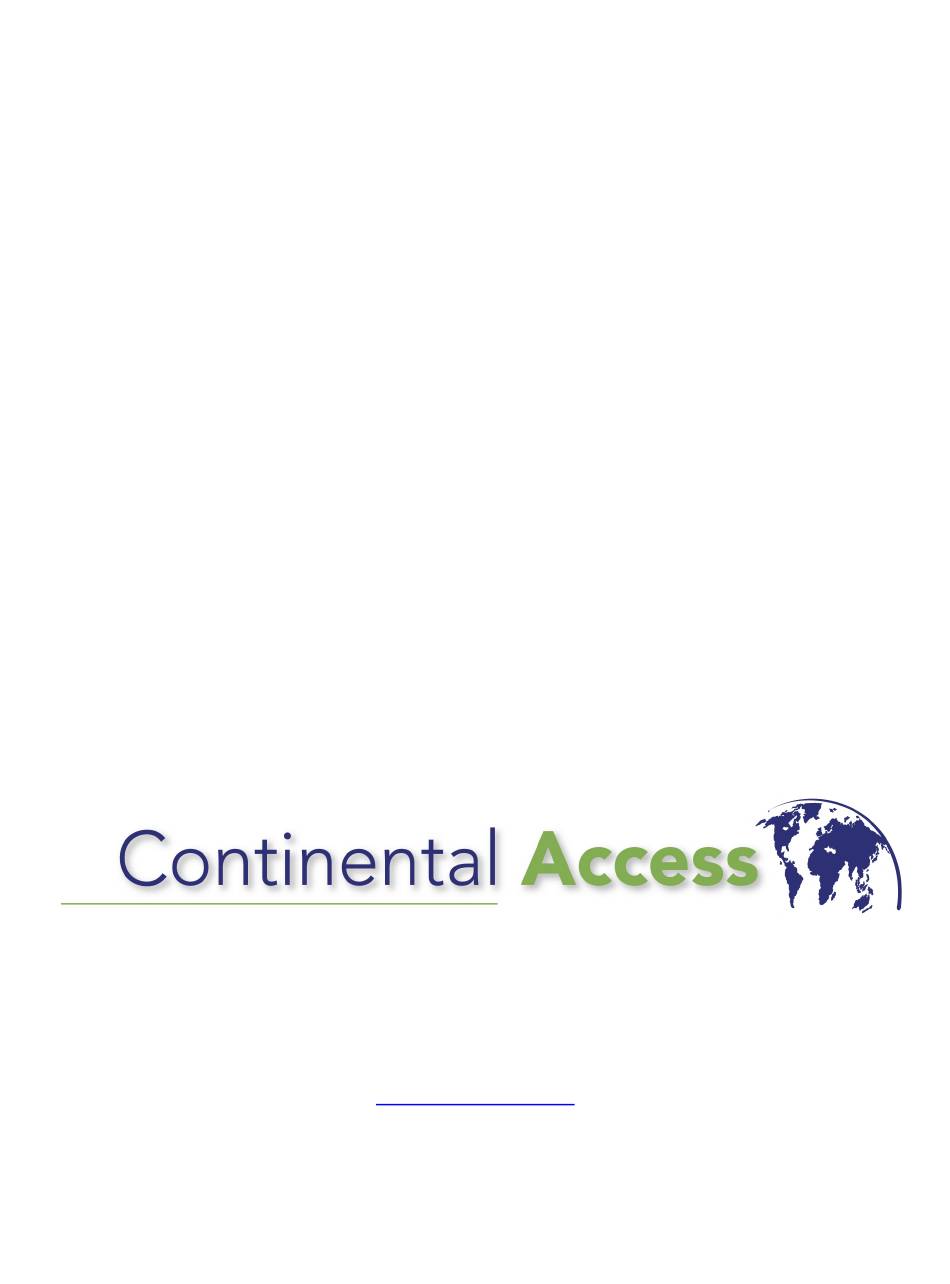

SUPERTERM
®
CIC1800 / CICP1400UL
Access Control Unit
Installation and Service Manual
Version 1
A NAPCO SECURITY TECHNOLOGIES COMPANY
355 Bayview Avenue, Amityville, NY 11701
Phone: 631-842-9400
Fax: 631-842-9135
www.cicaccess.com
Publicly traded on NASDAQ
Symbol: NSSC
WI 1073CLF 5/19

Advertisement

Table of Contents
loading

Related Manuals for Continental Access SUPERTERM CIC1800

Summary of Contents for Continental Access SUPERTERM CIC1800

  • Page 1 SUPERTERM ® CIC1800 / CICP1400UL Access Control Unit Installation and Service Manual Version 1 A NAPCO SECURITY TECHNOLOGIES COMPANY 355 Bayview Avenue, Amityville, NY 11701 Phone: 631-842-9400 Fax: 631-842-9135 www.cicaccess.com Publicly traded on NASDAQ Symbol: NSSC WI 1073CLF 5/19...
  • Page 2 Copyright © 2019 by Continental Instruments LLC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, or stored in a retrieval system, without the prior written permission of Continental Instruments LLC, 355 Bayview Avenue, Amityville, NY 11701, 631-842-9400 A NAPCO SECURITY TECHNOLOGIES COMPANY Superterm CIC1800 / CICP1400UL...
  • Page 3 User maintenance of this unit is limited to O REDUCE THE RISK OF FIRE OR SHOCK HAZARD external cleaning and inspection. For specific NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE recommendations refer to the IMPORTANT SAFEGUARDS sheet packaged with this product Superterm CIC1800 / CICP1400UL...

  • Page 4: Table Of Contents

    Emergency Sensor Connection ............................30   LOCAL Power Door Strike Connection ..........................32   Door Strike Relay Connection - Normally Open ......................... 32   Door Strike Relay Connection - Normally Closed ......................32   REMOTE Power Mode ............................... 34   Superterm CIC1800 / CICP1400UL...
  • Page 5 DI/DO Board Power Cable Requirements .......................... 62   Data/Control Line Ribbon Cable Connections ........................62   DI/DO Alarm Input Connections ............................64   DI/DO Alarm Cable Requirements ............................. 64   DI/DO Alarm Output Connections ............................66   Superterm CIC1800 / CICP1400UL...
  • Page 6 Backup Battery Replacement .............................. 87   Backup Battery In-Line Fuse Replacement ......................... 87   Superterm Step-Down Transformer Replacement ....................... 88   Service Entrance Fuse Replacement ........................... 89   SPECIFICATIONS ................................. 90   POWER RATINGS ................................. 91   Superterm CIC1800 / CICP1400UL...

  • Page 7: Description

    In addition, an internal lithium battery protects the on- procedures for the 4-door version are the same as the 8- board database and programmed operating instructions door version. from loss for a period of ten months. In the event of a Superterm CIC1800 / CICP1400UL...

  • Page 8: Regulatory Considerations

    REGULATORY CONSIDERATIONS REGULATORY CONSIDERATIONS Regulatory Considerations for Superterm Installations The Superterm has been designed to meet UL standards. The Superterm is Listed to UL 294 specifications. Superterm CIC1800 / CICP1400UL...

  • Page 9: Installer Responsibilities (General)

    Host Computer is used or which version of In UL294-compliant installations, a maximum software is installed. of two DI/DO boards may be installed in the expanded version of the Superterm when the optional 12V power supply is installed. Superterm CIC1800 / CICP1400UL...

  • Page 10: Configuration

    280mA, bringing the total load to 760mA, and thus to meet the requirements of managing large meeting the load rating (1 x 380) + (2 x 50) + (8 x cardholder populations. 35) = 760 mA. EXAMPLE: If three Supervised Alarm Boards are Superterm CIC1800 / CICP1400UL...

  • Page 11: Expansion Boards And Accessories

    An AC power supervised alarms, with each alarm having five terminal block and grounding screw provide states (normal, abnormal, open, short, and ground connection points for the three incoming 120VAC fault). service lines. Superterm CIC1800 / CICP1400UL...

  • Page 12: Installation

    Superterm's top LED (see failure. page 52, LED Diagnostics). The top LED will be illuminated if power is present. CAUTION Do not place accessory circuit cables in the same conduit sections containing power cables. Superterm CIC1800 / CICP1400UL...

  • Page 13: Installation Preparation

    Superterm cabinet. Confirm  sufficient access to ceilings and/or walls before Proper installation of the Superterm cabinet fitting the conduit lengths. requires an area of free space measuring: Figure 3 - Superterm Installation Location Superterm CIC1800 / CICP1400UL...

  • Page 14: Cabinet Mounting

    3. Place the Superterm cabinet out of the way. minimum 1/4" toggle bolts. 4. Drill pilot holes to the required depth and size for the mounting screws. Figure 4 - Superterm Cabinet Mounting Hole Dimensions Figure 5 - Superterm Mounting Screws Superterm CIC1800 / CICP1400UL...

  • Page 15: Cable Routing

    NOTE: All wiring must conform to National  Connect the accessory wires to the appropriate Electric Code (NEC), NFPA 70, as well as any terminal strip on the Superterm circuit board. local building codes. Figure 6 - Cabling Conduit Knockouts Superterm CIC1800 / CICP1400UL...

  • Page 16: Power Connections

    AC Input Power Terminal Block. Table 1- AC Input Power Terminal Block Connections Incoming 120VAC Wire Color AC Input Terminal Block Line Black Neutral White Ground Green Figure 7 - AC Input Power Terminal Block Superterm CIC1800 / CICP1400UL...

  • Page 17: Superterm Circuit Board Layout

    (card readers, keypads, alarms, etc.). The following descriptions in this manual reference the Superterm main circuit board, shown below, and use cutaway drawings to identify specific locations on the circuit board. Figure 8 - Superterm Circuit Board Layout Superterm CIC1800 / CICP1400UL...

  • Page 18: Step-Down Transformer Connection

    Pos (+) post Table 4 lists the connections from the Battery Backup to the Superterm Power Input terminal strip. Refer to Figure 9, page 13, while reading Table 3 for Battery Backup to Superterm Circuit Superterm CIC1800 / CICP1400UL...

  • Page 19: Expansion Power Supply Connection

    Using the Expansion Power Supply requires placing a jumper between pins 2 and 3 of the Power Input terminal strip (see Figure 9 and Table 5). Figure 9 - Connecting Transformer, Battery and Power Supply to Superterm Circuit Board Superterm CIC1800 / CICP1400UL...

  • Page 20: Door Connections

    Superterm Brown cabinet. DO NOT ground drain wires and cable Data-1/DAT White shields at any other point. Data-0/CLK Green *Proximity Reader may be powered by either +5VDC or +12VDC. Superterm CIC1800 / CICP1400UL...
  • Page 21 DOOR CONNECTIONS Figure 10 - Wiegand/Proximity Reader Connection to Superterm Board Superterm CIC1800 / CICP1400UL...

  • Page 22: Magnetic Stripe Reader Connection

    Connect drain and cable shield wires to the ground posts located on both sides of Superterm cabinet. DO NOT ground drain wires and cable shields at any other point. Figure 11 - Magnetic Stripe Reader Connection to Superterm Board Superterm CIC1800 / CICP1400UL...

  • Page 23: Keypad Connection

    NOT ground drain wires and cable shields at any other point. Keypad Cable Requirements Keypads require a 22AWG, 7-conductor, stranded, shielded, cable with drain wire between the Superterm and the particular unit (see Figure 12). Figure 12 - Keypad Connection to Superterm Board Superterm CIC1800 / CICP1400UL...

  • Page 24: Door Status Sensor Connection

    Superterm cabinet. DO NOT ground drain wires and cable shields at Door Status Sensor Cable Requirements any other point. Door Status sensors require a 22AWG, 2- Figure 13 - Door Status Sensor to Superterm Connections Superterm CIC1800 / CICP1400UL...

  • Page 25: Request-To-Exit (Bypass) Sensor Connection

    Superterm cabinet. DO NOT ground drain wires and cable shields at any other point. Figure 14 - Request-to-Exit Sensor to Superterm Connection Superterm CIC1800 / CICP1400UL...

  • Page 26: Relay Connections

    RLY 4, RLY 6, RLY 8, RLY 10, RLY 12, RLY 14, and RLY 16, located on the Superterm Circuit Additional MOV's are available form Board (see Figure 15). Continental Instruments as part number 480- 1048 (RV0005). Superterm CIC1800 / CICP1400UL...
  • Page 27 Figure 15 - Superterm Circuit Board Relay Location...

  • Page 28: Door Strike Relay Operation

    Electromagnetic (EM)  Relay circuits in the REMOTE Locks or Electric Strikes. configuration are isolated from one another and isolated from the Superterm power The REMOTE strike power configuration provides supply. conventional dry-contact outputs, typically Superterm CIC1800 / CICP1400UL...
  • Page 29 RELAY CONNECTIONS Figure 16 - LOCAL and REMOTE Power Configurations Superterm CIC1800 / CICP1400UL...

  • Page 30: Local Power Connection

    REMOTE configuration. NOTE: Normally Closed (NC) emergency sensor connections are not sensitive to polarity. If an emergency sensor is not used, install a jumper between Pin 1 (DIS) and Pin 2 (DIS) on the STKPWR terminal strip. Superterm CIC1800 / CICP1400UL...
  • Page 31 RELAY CONNECTIONS Figure 17 - LOCAL Power Supply Connection Figure 18 - Emergency Sensor Connection Superterm CIC1800 / CICP1400UL...

  • Page 32: Local Power Door Strike Connection

    Normally Open (NO) condition (see Figure 19). NOTE: Operating door strike relays on LOCAL power requires setting two jumpers per relay. Refer to page 72, Door Strike Jumper Settings, for specific information about setting the jumpers. Superterm CIC1800 / CICP1400UL...
  • Page 33 RELAY CONNECTIONS Figure 19 - LOCAL Power Door Strike Relay Connection - Normally Open (NO) Condition Figure 20 - LOCAL Power Door Strike Relay Connection - Normally Closed (NC) Condition Superterm CIC1800 / CICP1400UL...

  • Page 34: Remote Power Mode

    Table 23 - Connection Table for Auxiliary Relay Relay - - Normally Closed (NC) Condition Normally Closed (NC) Condition Signal RLY#x Door Strike Signal RLY#x Normally Closed Pin 3 Positive (+) Pin 3 Common Pin 2 Common (-) Pin 2 Superterm CIC1800 / CICP1400UL...
  • Page 35 RELAY CONNECTIONS Figure 21 - REMOTE Power Door Strike Relay Connection - Normally Open (NO) Condition Figure 22 - REMOTE Power Door Strike Relay Connection - Normally Closed (NC) Condition Superterm CIC1800 / CICP1400UL...

  • Page 36: Auxiliary Power

    Observe Positive and Negative wire polarity Function between option boards and the Superterm. Additional +12VDC Power Outlets The third pin (Pin 3) of the DR1 through DR8 terminal strips provides +12VDC to suitable access control accessories (see Figure 24). Superterm CIC1800 / CICP1400UL...
  • Page 37 AUXILIARY POWER Figure 23 - Onboard +12VDC Power Supply Outlets Figure 24 - Additional +12VDC Power Supply Outlets Superterm CIC1800 / CICP1400UL...

  • Page 38: Alarm Connection

    NOTE: When the Tamper Switch closes, all LEDs NOTE: For maximum protection, install the will extinguish (except AC on LBD1). Refer to resistors close to the alarm contacts and embed page 74, LED Diagnostics, for more specific them in epoxy. information. Superterm CIC1800 / CICP1400UL...
  • Page 39 ALARM CONNECTION Figure 25 - ALARM Terminal Strip - Unsupervised Alarm Condition Figure 26 - ALARM Terminal Strip - Supervised Alarm Condition Superterm CIC1800 / CICP1400UL...

  • Page 40: Communication Connection

    Modem DB25-P 232-1 Jumper Setting, for specific information. Pin# Address Setting Operating the Superterm on the RS-232 channel requires setting a board address on DIP switch S 1 (address zero is not valid). Refer to page 36, Superterm CIC1800 / CICP1400UL...
  • Page 41 COMMUNICATION CONNECTION Figure 27 - Superterm-to-Host Computer Connection Figure 28 - Superterm-to-Modem-to-Computer Connection Superterm CIC1800 / CICP1400UL...

  • Page 42: Networking

    7 set to ON. Refer to page 70 for specific information regarding Addresses shown in Figure 29 are for example the MODE 1 jumper. purposes only. Figure 29 - Superterm Address Switch (S I) Location Superterm CIC1800 / CICP1400UL...
  • Page 43 COMMUNICATION CONNECTION Table 29 - Superterm Address Switch (S1) Positions Superterm Address Switch Position Number Number Superterm CIC1800 / CICP1400UL...

  • Page 44: Rs-232 To Rs-422 Repeat Network

    POLL 11 (MD/T+ POLL 10 (RPT/R-) POLL 12 (MD/T-) POLL 7 (RPT/T+) POLL 13 (MD/R+) >>>> POLL 8 (RPT/T-) POLL 14 (MD/R-) >>>> POLL 9 (RPT/R+) POLL 11 (MD/T+) >>>> POLL 10 (RPT/R-) POLL 12 (MD/T-) >>>> Superterm CIC1800 / CICP1400UL...
  • Page 45 MODE 1 Jumper =RPT (pins 1 and 2) EOL2 Jumper= IN (pins 1 and 2) EOL2 Jumper = IN (pins 1 and 2) EOL2 Jumper = IN (pins 1 and 2) Figure 30 - Superterm RS-232 -to- RS-422 REPEAT Network Connection Superterm CIC1800 / CICP1400UL...

  • Page 46: Rs-232 To Rs-422 Multidrop Network

    POLL 8 (RPT/T-) POLL 14 (MD/R-) POLL 14 (MD/R-) >> POLL 14 (MD/R-) POLL 9 (RPT/R+) POLL 11 (MD/T+) POLL 11(MD/T+ >> POLL 11 (MD/T+) POLL 10 (RPT/R-) POLL 12 (MD/T-) POLL 12 (MD/T-) >> POLL 12 (MD/T-) Superterm CIC1800 / CICP1400UL...
  • Page 47 EOL2 Jumper = IN (pins I and 2) EOL2 Jumper = OUT (pins 2 and 3) EOL2 Jumper = OUT (pins 2 and 3) NOTE: Set the EOL2 jumper for the last Figure 31 - Superterm RS-232 -to- RS-422 MULTIDROP Network Connection Superterm CIC1800 / CICP1400UL...

  • Page 48: Rs-422 To Rs-422 Repeat Network

    POLL 11 (MD/T+ POLL 10 (RPT/R-) POLL 12 (MD/T-) POLL 7 (RPT/T+) POLL 13 (MD/R+) >>>> POLL 8 (RPT/T-) POLL 14 (MD/R-) >>>> POLL 9 (RPT/R+) POLL 11 (MD/T+) >>>> POLL 10 (RPT/R-) POLL 12 (MD/T-) >>>> Superterm CIC1800 / CICP1400UL...
  • Page 49 MODE1 Jumper = RPT (pins 1 and 2) EOL2 Jumper = IN (pins 1 and 2) EOL2 Jumper = IN (pins 1 and 2) EOL2 Jumper = IN (pins 1 and 2) Figure 32 - Superterm RS-422 to RS-422 REPEAT Network Connection Superterm CIC1800 / CICP1400UL...

  • Page 50: Rs-422 To Rs-422 Multidrop Network

    RS-422 RXD+ POLL 11 (MD/T+) POLL 11 (MD/T+) POLL 11 (MD/T+ POLL 11 (MD/T+) >> POLL 11 (MD/T+) RS-422 RXD- POLL 12 (MD/T-) POLL 12 (MD/T-) POLL 12 (MD/T-) POLL 12 (MD/T-) >> POLL 12 (MDT-) Superterm CIC1800 / CICP1400UL...
  • Page 51 MODE I Jumper= MD (pins 2 and 3) EOL2 Jumper = OUT (pins 2 and 3) EOL2 Jumper = IN (pins 1 and 2) EOL2 Jumper = OUT (pins 2 and 3) Figure 33- RS-422 to RS-422 MULTIDROP Network Connection Superterm CIC1800 / CICP1400UL...

  • Page 52: Auxiliary Communications Channels

    Table 34 - Connection Table for COM1 Terminal Strip Baud Rate: 9600 COM1 Pin # Function DB-25P Pin # None Parity: Data Bits: Stop Bits: Superterm CIC1800 / CICP1400UL...
  • Page 53 Figure 34- COM1 Terminal Strip Connection...

  • Page 54: Com2 Terminal Strip Connection

    RS-485 device. Unit Distance Wire Gauge (maximum) Table 39 -- Cable Requirements for RS- RS-232 50 ft/15m 22AWG Shielded 485 Connection Device w/drain Unit Distance Wire Gauge (maximum) RS-485 4000 ft/1220m 22AWG Device Shielded w/drain Superterm CIC1800 / CICP1400UL...
  • Page 55 Figure 35 - Connecting Auxiliary RS-232 and RS-485 Devices to the Superterm...

  • Page 56: Expansion Board Connections

    Superterm main circuit board A maximum of three boards may be added to the 1/O cables between Expansion boards and Superterm. These boards mount to the inside door accessories of the Superterm cabinet (see Figure 36). Superterm CIC1800 / CICP1400UL...
  • Page 57 Figure 36 - Expansion Input/Output Board Layout in Superterm Cabinet...

  • Page 58: Supervised Alarm Board Installation

    J2 - 2 2, 4, or 6 innermost Expansion I/O board to the Superterm main circuit board at the Supervised Alarm Board Power Cable Data/Control Line Input Terminal Strip. Requirements The Supervised Alarm board requires 18AWG Superterm CIC1800 / CICP1400UL...
  • Page 59 EXPANSION BOARD CONNECTIONS Figure 37 - Supervised Alarm Board Layout Figure 38 - Supervised Alarm Board-to-Superterm Power Connection Superterm CIC1800 / CICP1400UL...

  • Page 60: Supervised Alarm Board Accessory Connections

    Table 42 - Cable Requirements for Alarm Inputs Unit Distance Wire Gauge (maximum) Supervised 22AWG Shielded Alarm 1000 ft/305m w/drain Input Figure 39 - Expansion Board Address Positions NOTE: All alarm input cables must be grounded. Superterm CIC1800 / CICP1400UL...
  • Page 61 EXPANSION BOARD CONNECTIONS Figure 40 - Supervised Alarm Board Alarm Input Connections and Address Settings Superterm CIC1800 / CICP1400UL...

  • Page 62: Di/Do Board Connection

    J2 - 2 2, 4, or 6 innermost Expansion I/O board to the Superterm main circuit board at the Data/Control Line Input DI/DO Board Power Cable Requirements Terminal Strip. The DI/DO board requires 18AWG stranded wire Superterm CIC1800 / CICP1400UL...
  • Page 63 Figure 41 - DI/DO Board Layout Figure 42 - DI/DO Board -to- Superterm Power Connection...

  • Page 64: Di/Do Alarm Input Connections

    Alarm 3 Signal Alarm 3 Return NOTE: All alarm input cables must be grounded. Alarm 2 Signal Refer to the Grounding Accessory Drain and Alarm 2 Return Shield Wire section, Page 9. Alarm 1 Signal Alarm 1 Return Superterm CIC1800 / CICP1400UL...
  • Page 65 Figure 43 - DI/DO Board Alarm Input Terminal Strip...

  • Page 66: Di/Do Alarm Output Connections

    Transients produced by these wires may cause unreliable operation of the Superterm. Maintain a minimum of six inches distance between door strike wiring and all other input wiring. Figure 44 - Expansion Board Address Positions Superterm CIC1800 / CICP1400UL...
  • Page 67 Figure 45 - DI/DO Board Relay Output Connections and Address Setting...

  • Page 68: I/O Signal Mapping

    1, 2, 3 Door Shunt 8 Alarm Aux Alarm 20 Alarm 9,10 Aux Alarm 21 RLY_17 1, 2, 3 Console Relay Alarm 11,12 Aux Alarm 22 Alarm 13,14 Aux Alarm 23 Alarm 15,16 Aux Alarm 24 Tampr1 Tamper Superterm CIC1800 / CICP1400UL...

  • Page 69: Superterm Main Circuit Board: 4-Reader Version

    RLY_17 1, 2, 3 Console Relay Alarm Aux Alarm 19 Alarm Aux Alarm 20 Alarm 9,10 Aux Alarm 21 Alarm 11,12 Aux Alarm 22 Alarm 13,14 Aux Alarm 23 Alarm 15,16 Aux Alarm 24 Tampr1 Tamper Superterm CIC1800 / CICP1400UL...

  • Page 70: Expansion I/O Boards

    1, 2, 3 CH14 1, 2, 3 CH15 1, 2, 3 CH16 *NOTE: Relay outputs are limited to a maximum of 72 (73 is reserved for the console relay). Address CSX4 supports no more than eight relay outputs. Superterm CIC1800 / CICP1400UL...

  • Page 71: Supervised Alarm Board

    The Supervised Alarm board has 16 alarm inputs. Table 49 defines the terminal strip, the associated * NOTE: Inputs are limited to a maximum of 80 (81 is reserved for the tamper switch). Address X4 allows no more than 8 alarm inputs. Superterm CIC1800 / CICP1400UL...

  • Page 72: Settings

    Superterm NOT TERMINATED  Set the jumper to contact the center post (pin Set the jumper to contact the center post (pin 2) 2) and the right-hand post (pin 3). and the right-hand post (pin 3). Superterm CIC1800 / CICP1400UL...
  • Page 73 SETTINGS Figure 46 - 232-1, EOL1, and EOL2 Jumper Locations and Settings Superterm CIC1800 / CICP1400UL...

  • Page 74: Com1 Jumper

     Set the jumper to contact the center post (pin 2) 1200Kbps Pins 7 and 8 and the right-hand post (pin 3) (see Figure 47). 2400Kbps Pins 5 and 6 4800Kbps Pins 3 and 4 9600Kbps Pins 1 and 2 Superterm CIC1800 / CICP1400UL...
  • Page 75 Figure 47 - COM1, COM2, and MONITOR Jumper Locations and Settings...

  • Page 76: Mbat Jumper

    2) and the left hand post (pin 1).  Set the jumper to contact the center post (pin 2) and the left-hand post (pin 1). OUT - Data Lost The OUT mode de-activates the lithium battery. Superterm CIC1800 / CICP1400UL...
  • Page 77 Figure 48 - Jumper Locations and Settings...

  • Page 78: Door Strike Jumper Setting

    NOTE: The letters R and L on the jumper refer to S 11 and S 12 REMOTE and LOCAL. They DO NOT refer to S13 and S14 Right and Left. S15 and S16 S 17 and S 18 Superterm CIC1800 / CICP1400UL...
  • Page 79 SETTINGS Figure 49 - Superterm Door Strike Jumper Settings Superterm CIC1800 / CICP1400UL...

  • Page 80: Troubleshooting

    Presence of an outgoing signal from the Superterm board to an external device Blank No function Blank No function Reserved for test function Blank No function Reserved for test function Figure 50 - Superterm Status LED's Superterm CIC1800 / CICP1400UL...

  • Page 81: Superterm Circuit Board Main Fuse

    3) Replace the fuse with a 2-Amp, SB, 250V, Amp, 250V, slow-blow fuse. plug-in, slow-blow fuse. 4) Reset the main circuit breaker. 4) Reset the main circuit breaker. Figure 51 - Superterm Main Fuse Location Figure 52 - Door Strike Fuse Location Superterm CIC1800 / CICP1400UL...

  • Page 82: Upgrading

    Installing the 256K Memory Module 5) Connect the 12VAC battery and restore the AC 1) Remove AC power from the Superterm and power to the Superterm. disconnect the 12VAC battery. 2) Discharge static electricity from your body. Superterm CIC1800 / CICP1400UL...
  • Page 83 Figure 53 - 256K Memory Upgrade Installation...

  • Page 84: 2Mb Memory Board

    8) Reconnect the 12VAC battery and restore the possibility of static discharge damaging the AC power to the Superterm cabinet. Superterm circuit board and the 2MB memory board. Figure 54 - 2MB Expansion Board Jumper Setting Superterm CIC1800 / CICP1400UL...
  • Page 85 UPGRADING Figure 55 - 2MB Expansion Board Installation Superterm CIC1800 / CICP1400UL...

  • Page 86: Maintenance

    4 (refer to page 12, Step-Down 10) Install the new power supply in the reverse Transformer Connection for specific order of the removal. information). Figure 56 - Superterm Power Supply Replacement Superterm CIC1800 / CICP1400UL...

  • Page 87: Backup Battery Replacement

    7) Remove the old battery. 8) Install the new battery in the reverse order of the removal. Figure 57 - Superterm Battery/In-Line Fuse Backup Battery In-Line Fuse Replacement Location WARNING Verify that the AC source voltage is switched off Superterm CIC1800 / CICP1400UL...

  • Page 88: Superterm Step-Down Transformer Replacement

    (labeled GND) of the power input terminal 10) Install the new transformer assembly in the strip. reverse order of the removal. 4) Disconnect the WHITE lead from pin 9 Figure 58 - Replacing the Superterm Transformer Assembly Superterm CIC1800 / CICP1400UL...

  • Page 89: Service Entrance Fuse Replacement

    1) Open the Superterm cabinet and locate the transformer assembly secured to the lower left- 6) Restore the AC source voltage to the hand ledge of the Superterm cabinet (see Superterm. Figure 59). Figure 59 - Service Entrance Fuse Replacement Superterm CIC1800 / CICP1400UL...

  • Page 90: Specifications

    Operating 32-115°F (0-46°C) Storage 32-149°F (0-65°C) Relative Humidity 0% to 80% non-condensing Card Capacity 4000 Standard, expandable to 100,000 Time Zones Standard Access Levels Standard Holidays Standard Link Programs Standard Facility Codes Standard Transaction Buffer Standard Superterm CIC1800 / CICP1400UL...

  • Page 91: Power Ratings

    Current Power Voltage (Maximum) (Maximum) AC- 105-125VAC 1.0 Amperes 125VA 210-250VAC 0.5 Amperes DC- 12VDC 0.5 Amperes 6 Watts Std. Version DC- 12VDC 1.0 Ampere 12 Watts Exp. Power Version Superterm CIC1800 / CICP1400UL...
  • Page 92 A NAPCO SECURITY TECHNOLOGIES COMPANY 355 Bayview Avenue, Amityville, NY 11701 Phone: 631-842-9400 Fax: 631-842-9135 www.cicaccess.com Publicly traded on NASDAQ Symbol: NSSC Superterm CIC1800 / CICP1400UL...
