Operating Instructions and Parts Manual
Horizontal-Vertical Band Saw
Models HVBS-712V, HVBS-712DV

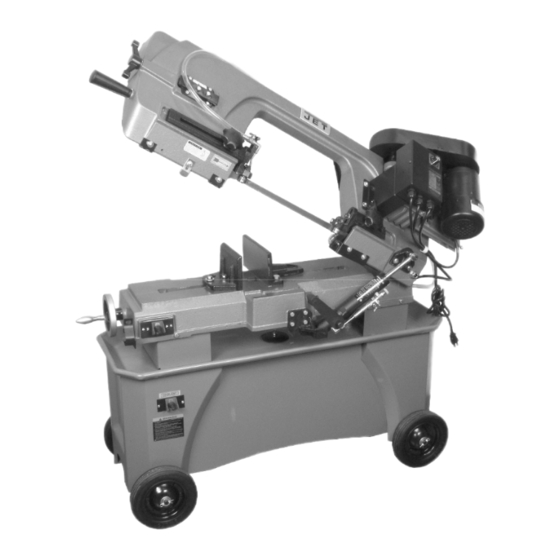

HVBS-712V shown
JET
427 New Sanford Road
LaVergne, Tennessee 37086
Part No. M-415560
Ph.: 800-274-6848
Edition 1 03/2019
www.jettools.com
Copyright © 2019 JET

Advertisement

Table of Contents
loading

Summary of Contents for Jet HVBS-712V

  • Page 1 This .pdf document is bookmarked Operating Instructions and Parts Manual Horizontal-Vertical Band Saw Models HVBS-712V, HVBS-712DV HVBS-712V shown 427 New Sanford Road LaVergne, Tennessee 37086 Part No. M-415560 Ph.: 800-274-6848 Edition 1 03/2019 www.jettools.com Copyright © 2019 JET...
  • Page 2: Important Safety Instructions

    Do not use this band saw for other than its 18. Give your work undivided attention. Looking intended use. If used for other purposes, JET around, carrying on a conversation and “horse- disclaims any real or implied warranty and holds play”...
  • Page 3: On-Off Switch Padlock

    27. Make sure workpiece is securely clamped in WARNING: This product can expose you to vise. Never use your hand to hold the chemicals including titanium dioxide which is workpiece. known to the State of California to cause cancer, 28. Never reach around or over a moving saw and lead which is known to the State of blade.
  • Page 4: Table Of Contents

    11.2 Operational problems ..........................19   12.0 Replacement Parts ............................. 20   12.1.1 HVBS-712V,-712DV Bed and Stand Assembly – Exploded View ............21   12.1.2 HVBS-712V,-712DV Bow Assembly – Exploded View ............... 22   12.1.3 HVBS-712V,-712DV – Parts List ......................23  ...
  • Page 5: About This Manual

    If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com.
  • Page 6: Specifications

    5.0 Specifications Table 1 Stock number 415560 415559 Model number HVBS-712DV HVBS-712V Style Deluxe model Base model Motor and Electricals Brushed DC Type Horsepower 1 HP (0.76 kW) Phase Single Voltage 115V Main motor Cycle 60 Hz 7.5 A Listed FLA (full load amps)
  • Page 7 CFM = cubic feet per minute The specifications in this manual were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations.
  • Page 8: Setup And Assembly

    6.0 Setup and assembly Read understand instructions before attempting assembly. Band Saw must be disconnected from power during all assembly procedures. Failure to comply may cause serious injury. 6.1 Shipping contents See Figures 6-1, 6-2. Figure 6-2: hardware package HVBS712-HP Band saw (not shown) Pulley cover –...
  • Page 9 Remove shipping bracket (Figure 6-4). Then rod and secure with thumb screw. See Figure reinstall bottom hex nut beneath plate. Retain 6-7. shipping bracket in case machine must be transported in future. Figure 6-7: installing work stop (712V only) Figure 6-4: shipping bracket removal Slide pulley cover (A, Figure 6-8) over spindles Install handle with flat washers and nut (C, secure...
  • Page 10: Coolant Tank Preparation

    Canadian Electrical Code, C22.1. The HVBS-712V and HVBS-712DV Band Saw is rated at 115V power. The band saw comes with a plug designed for use on a circuit with a grounded...
  • Page 11: Adjustments

    doubt, use the next heavier gauge. The smaller the access screw (B). When adjustment gauge number, the heavier the cord. complete, reinstall coolant valve assembly and tighten set screw (C). Ampere Total length of Volts Rating cord in feet Verify that blade guide bearings are set correctly in relation to blade (see sect.
  • Page 12: Drive Belt Tension/Replacement

    8.3 Drive belt tension/replacement 8.5 Blade replacement Disconnect band saw from power source. A general-use variable-tooth blade is provided with this band saw. Open pulley cover, and loosen hex nuts (K, Figure 8-5). Turn screw (L) out to relieve Choice of blade pitch is governed by thickness of pressure on motor mount plate.
  • Page 13: Blade Guide Bearings

    8.9 Blade tracking 13. Run saw and make sure blade is tracking properly (sect 8.9. Blade tracking.) Blade tracking adjustment 14. Follow blade break-in procedures (sect. 9.1). requires running saw with rear guard open. This 8.6 Blade guide bearings adjustment must be completed by qualified persons only.
  • Page 14: Test Cut To Verify Adjustment

    If you do not have a piece of 2-inch bar stock available for a test cut, use a larger diameter test piece rather than a smaller one. The maximum thickness variation on any test piece should be no more than 0.003 inch, per side, per inch of stock diameter.
  • Page 15: Blade-To-Table Squareness

    Place a weigh scale (such as spring or hanging scale) beneath blade tension handle, and lift saw bow. Scale should indicate approximately 5 to 6 kg (11-13 lb). If adjustment is needed, loosen one nut and tighten the other (Figure 8-13) on eye bolt, until scale indicates 5 to 6 kg (11-13 lb).
  • Page 16: Vise Positioning (712V Only)

    Make sure vise handles are positioned to specific blades on specific materials. However, the prevent contact with descending bow. following procedure will be adequate for break-in of JET-supplied blades lower alloy ferrous materials.
  • Page 17: Evaluating Cutting Efficiency

    Position workpiece in vise and tighten vise. 10.0 User-maintenance Workpiece should be fitted directly between the jaws without adding other objects. When work piece is profiled section, flat piece or special Always disconnect power to shape, refer to examples in Figure 9-1 for machine before performing...
  • Page 18: Coolant Level

    Hold a container under lower right corner of Disconnect saw from power source. gear box with one hand while slowly raising bow Remove motor fan cover (A, Figure 10-2). with the other. Drain completely. Follow local regulations for used oil disposal. Unscrew and remove plastic cap with flat blade screwdriver.
  • Page 19: Troubleshooting Hvbs-712V/712Dv Band Saw

    11.0 Troubleshooting HVBS-712V/712DV Band Saw 11.1 Mechanical and electrical problems Symptom Possible Cause Correction * Motor will not start. No incoming power. Check plug connection. If satisfactory, check breaker or fuse. Low voltage. Check power line for proper voltage. Open circuit in motor or loose Inspect all lead connections on motor for connection.
  • Page 20: Replacement Parts

    Some parts are shown for reference only, and may not be available individually. Non-proprietary parts, such as fasteners, can usually be found at local hardware stores, or may be ordered from JET.
  • Page 21: Hvbs-712V,-712Dv Bed And Stand Assembly - Exploded View

    12.1.1 HVBS-712V,-712DV Bed and Stand Assembly – Exploded View...
  • Page 22: Hvbs-712V,-712Dv Bow Assembly - Exploded View

    12.1.2 HVBS-712V,-712DV Bow Assembly – Exploded View...
  • Page 23: Hvbs-712V,-712Dv - Parts List

    12.1.3 HVBS-712V,-712DV – Parts List Index No Part No Description Size 1 ....HVBS712-01 ..... Water Tray ..................... 1 2 ....HVBS712-02 ..... Stand - Left ....................1 3 ....HVBS712-03 ..... Stand - Right ....................1 4 ....
  • Page 24 Index No Part No Description Size 60 ....HVBS7MW-38 ... Stop Screw ....................1 61 ....TS-0561021 ....Hex Nut ..............5/16" ......2 62 ....TS-1540080 ....Plastic Knob ............. M12 ....... 1 63 ....TS-1540081 ....Nut ................M12 ....... 1 63-1 ...
  • Page 25 Index No Part No Description Size 102 .... HVBS712-102 ... Hose ................ 1" ........1 103 .... HVBS712-103 ... Pump ............... 1/8HP 115/230V ..1 104 .... TS-0050011 ....Hex Cap Screw ............1/4"x1/2"......2 107 .... HVBS7MW-66N ..New Coolant Tank ..................1 109 ....
  • Page 26 Index No Part No Description Size 163-1 ..HVBS712-163-1 ..Adjustable Bracket (Left) ......... Base Model ....1 164 .... HVBS712-164 ... Blade Guard ....................1 164-1 ..HVBS712-164-1 ..Round Head Screw ..........3/16"x1/4"...... 2 165 .... TS-0050011 ....Hex Cap Screw ............1/4"x1/2"......4 166 ....
  • Page 27 ....HVBS712V-244C ..Carbon Brush (not shown) ................2 244-1 ..HVBS712V-244-1 ..Motor Bracket ....................1 ....JET-113 ..... Jet Logo With 3M Adhesive (not shown) ....113 x 47mm ....1 ....LM000375 ....ID Label HVBS-712V (not shown) ......Base Model ....1 ....
  • Page 28: Electrical Connections - Hvbs-712V,-712Dv Band Saw

    13.0 Electrical Connections – HVBS-712V,-712DV Band Saw VR Speed knob White Black White Black White Black Blade On / Off Switch Yellow DC Motor Driver White White Black Pump On / Off Switch Black DC Motor Coolant Pump...
  • Page 29: Warranty And Service

    Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand.
  • Page 30 This page intentionally left blank.
  • Page 31 This page intentionally left blank.
  • Page 32 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com...
