Binatone TERRAIN 650 User Manual

Binatone TERRAIN 650 User Manual

Private mobile radio with dual charger
Hide thumbs Also See for TERRAIN 650:
Table of Contents

Advertisement

Quick Links

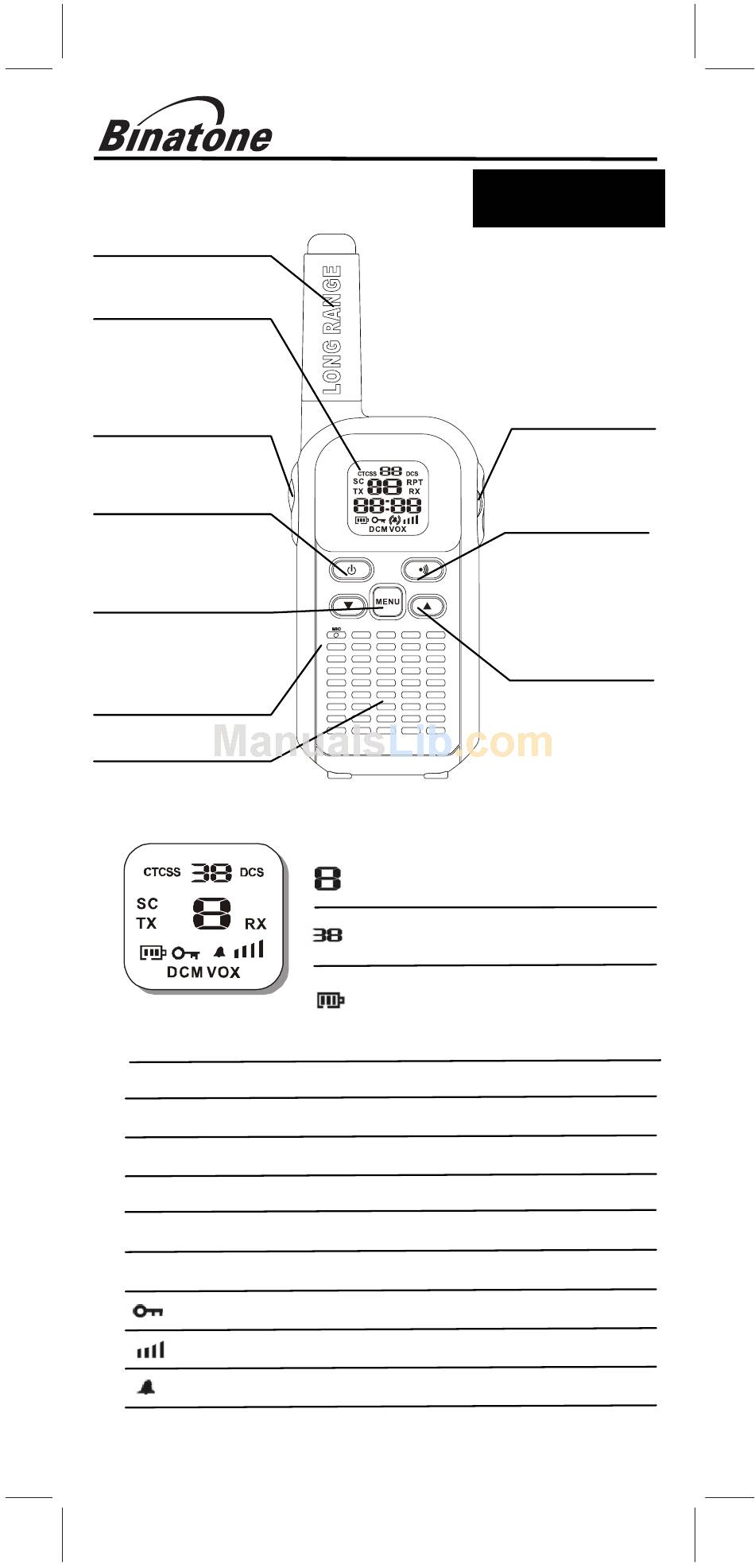

Antenna

LCD Screen

- Displays the
current channel
selection and other
radio symbols.
PTT (PUSH to
TALK) button
–Press and hold to
transmit.
PWR(POWER)
Button – Press
and hold to turn
the unit ON or
OFF.
MENU Button
-Press to change
To switch between
Modes.
MIC (Microphone)
Speaker
1. LCD Screen
TX
Displayed when transmitting a signal.
RX
Displayed when receiving a signal.
DCM Displayed when the Dual Watch function is turned ON.
DCS Displayed when the Digital Code System is turned On.
VOX Displayed when the VOX feature is enabled.
SC
Displays when the PMR is scanning all channels.
Displayed when the Key Lock feature is activated.
Displays the current Speaker volume level.
Displays when the call signal is ON.
Private mobile radio with d al charger
Channel Number. Changes from 1 to
8 as selected by the user.
CTCSS Code. Changes from 1 to 38
as selected by the user.
Displays the Battery change level.
When the bars are reduced, the
battery needs recharging.
Terrain 650
U
USER GUIDE
Ear/Mic/Charge
jack
CALL button
-Press to send
Ringing tone to
other PMR units.
UP/DOWN
Buttons –
Press to change
channels, volume,
and to select
settings during
programming.

Advertisement

Table of Contents
loading

Related Manuals for Binatone TERRAIN 650

Summary of Contents for Binatone TERRAIN 650

  • Page 1: Lcd Screen

    Displays when the PMR is scanning all channels. Displayed when the Key Lock feature is activated. Displays the current Speaker volume level. Displays when the call signal is ON. Terrain 650 Private mobile radio with d al charger USER GUIDE Channel Number. Changes from 1 to 8 as selected by the user.

  • Page 2: Installation

    Replace the Battery Compartment Cover. See Figure 4. Read these Safety Warnings before you charge the batteries. When placing the Terrain 650 in the charger, use only the power supplies listed in the user instructions supplied with the Terrain 650 .
  • Page 3 Place the Terrain 650 units in the charge cradle in an upright position and facing outward. The charge LED indicators will light up. e. It takes about 10 hours to fully recharge the batteries if they are completely run down. New batteries takes up to 14 hours to fully charge.
  • Page 4 Never use your Terrain 650 outdoors during a thunderstorm. Don’t use the Terrain 650 in the rain. If your Terrain 650 gets wet, turn it off and remove he battery. Dry the battery compartment and leave the cover off for a few hours. Don’t use the unit until it is completely dry.

  • Page 5: Setting The Dcs Advanced Digital Code

    Press the MENU button to stop the channel monitoring. 3.5 Setting the VOX (Voice Activated) Sensitivity In VOX mode, the Terrain 650 will transmit a signal only when it is activated by your voice or other sounds around you. The unit will transmit further for 2 seconds even if you stop talking.
  • Page 6 Press the PTT button to confirm your setting. “VOX” will steadily appear on the LCD Screen as along as the VOX feature is activated. VOX operation is not recommended if the Terrain 650 will be used in a noisy or windy environment. 3.6 Activating the auto Channel Scan Channel scan perform searches for active signals in an endless loop for all 8 channels, 38 CTCSS codes and all 83 DCS codes.
  • Page 7 Press the PTT button to confirm your setting. 3.9 Setting the Key Tone ON or OFF This feature allows the Terrain 650 to emit a confirmation tone after pressing each button. a. Press the MENU button 10 times, the “ON” icon is blinking on the LCD Screen.
  • Page 8 Press the PTT button to confirm your setting. 3.9 Setting the Key Tone ON or OFF This feature allows the Terrain 650 to emit a confirmation tone after pressing each button. a. Press the MENU button 10 times, the “ON” icon is blinking on the LCD Screen.

  • Page 9: Specifications

    For Vehicles with an Air Bag Do not place your Terrain 650 in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a Terrain 650 is...
  • Page 10 Copyright (c) by Foxit Software Company, 2004 For Evaluation Only. 9. Guarantee The Binatone Terrain 650 is fully guaranteed for 12 months from the date of purchase shown on your sales receipt. The guarantee does not cover damage by misuse or negligence, or by excessive voltage.

  • Page 11: Troubleshooting Guide

    ETSI EN 300 296-2 V1.1.1 ETSI EN 301 489-5 V1.3.1 ETSIEN301489-1V1.6.1 EN60065-1:2001 Binatone Telecom plc operates a policy of continuous product improvement, and so reserves the right to make changes to the product and functions without prior notice. battery may be weak.
